Reina Belbo RNS-BLB154 Polished Stainless Steel Towel Rail 530mm x 1540mm
Regular price
£395.00
Inc. VAT
£329.17
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us

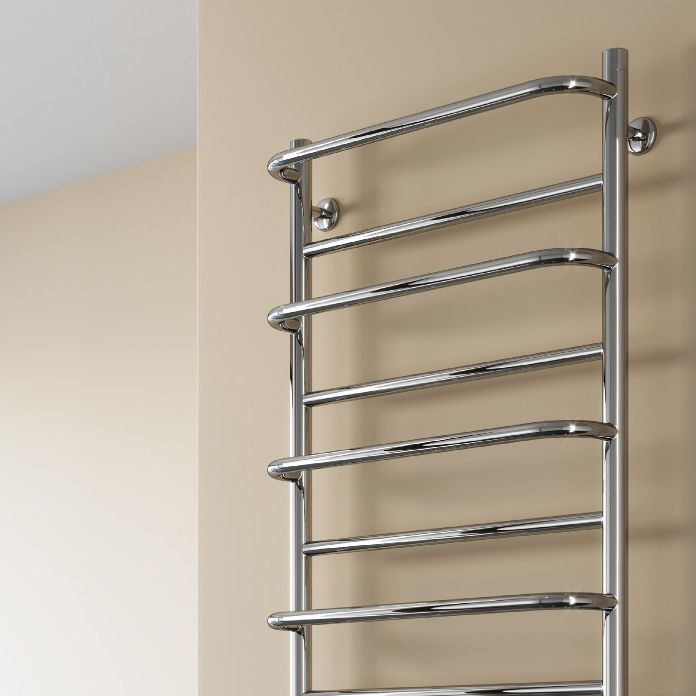

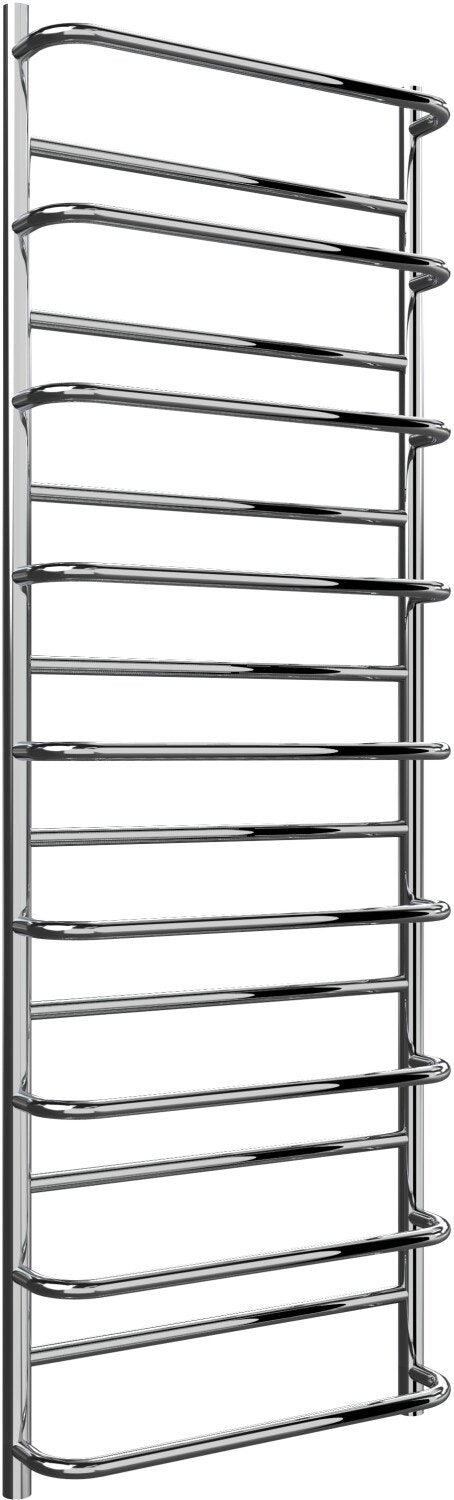

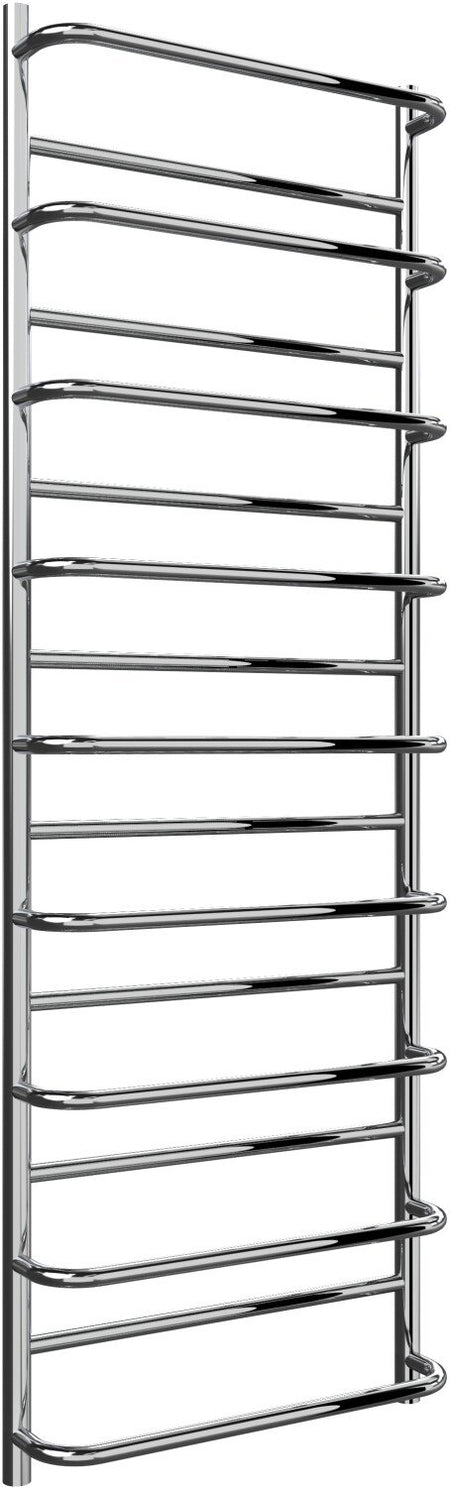

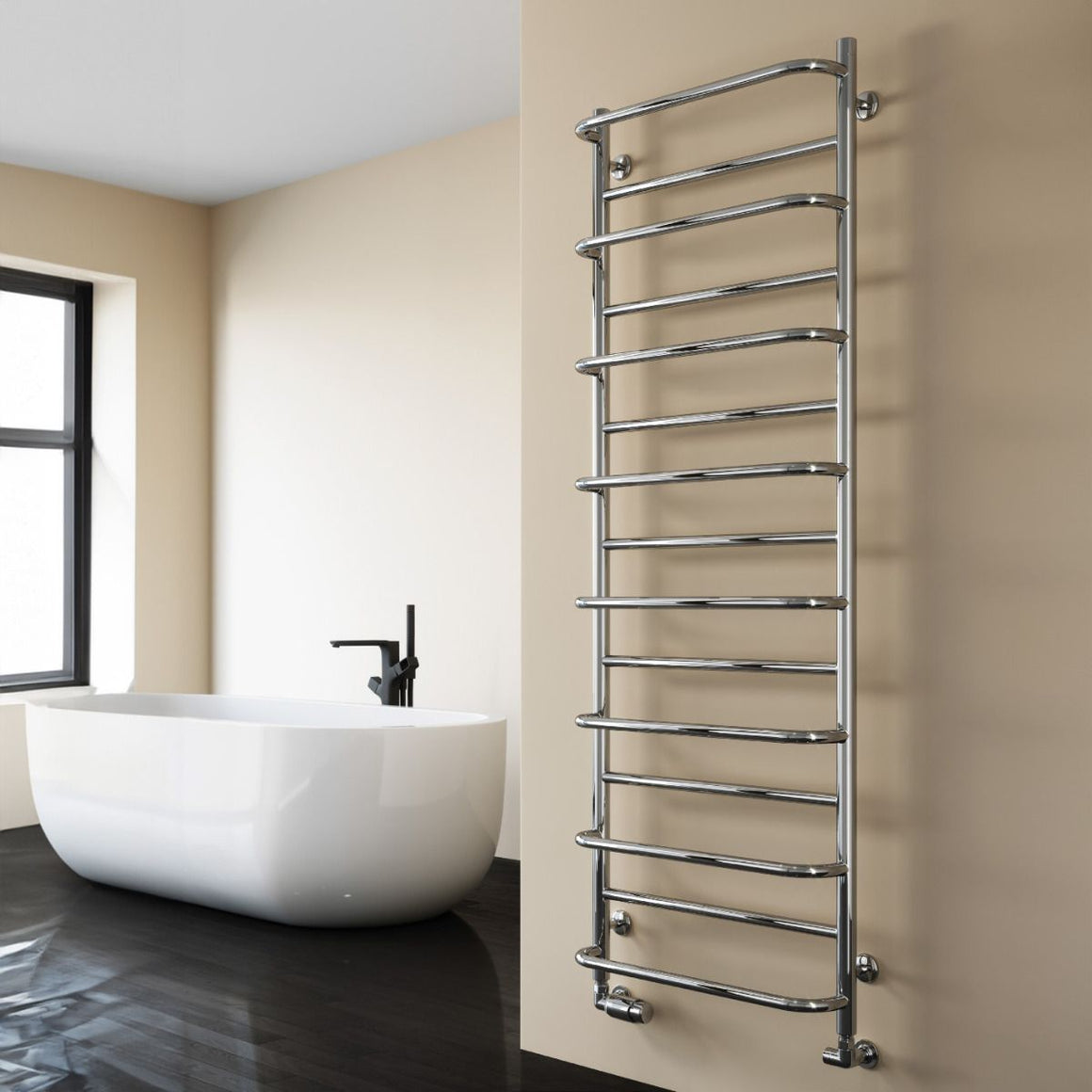

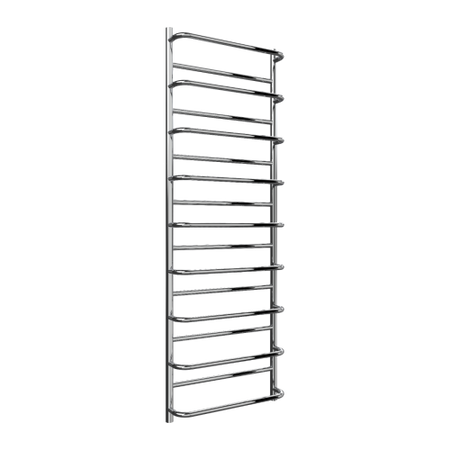

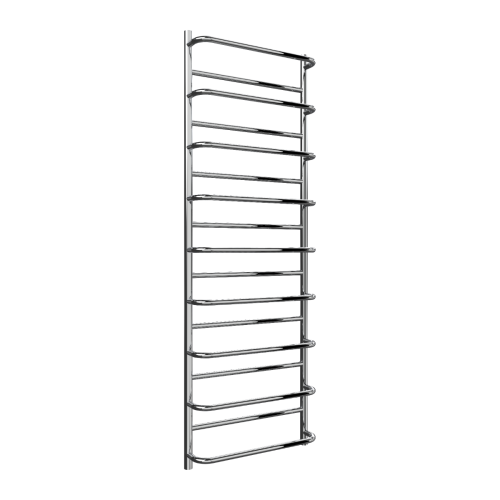

The Reina Belbo is a polished stainless steel ladder towel rail with a modern design of elegantly curved horizontal tubes. Premium stainless steel and a bright polished finish make it a statement piece in a bathroom, cloakroom or en suite, while the evenly spaced bars give generous space for hanging and drying towels.
Choose the 820mm rail for compact walls or the tall 1540mm rail for larger bathrooms, both at a 530mm width. The Belbo is rated for central heating, electric or dual fuel use, operates at up to 10 bar and carries a 25 year guarantee.
25 Year
Guarantee
Polished
Stainless steel
2 Sizes
820 / 1540mm
245–460 W
Output at ΔT50
10 bar
Max operating pressure
½"
Female connections
Safety and installation
Fit the Belbo using a qualified installer. Towel rails run hot in use, so consider the position of the rail where young children or vulnerable users could touch it accidentally.
Key features
Polished stainless steel
Built from premium stainless steel with a polished shine that stays bright and resists corrosion in humid bathrooms.
Curved ladder design
Elegantly curved horizontal tubes form a modern ladder with 9 bars (820mm) or 17 bars (1540mm) for hanging towels.
25 year guarantee
A 25 year manufacturer guarantee gives long-term peace of mind and reflects the durability of stainless steel.
Central heating, electric or dual fuel
Rated C/E/D by the manufacturer: central heating, electric or dual fuel. Confirm the configuration you need when ordering.
10 bar operating pressure
Rated for a maximum operational pressure of 10 bar, with ½" female pipe thread inlet and outlet.
Wide 530mm width
A generous 530mm width and 500mm pipe centres make it a strong focal point in the bathroom.
Heat output and sizing
Outputs below are the manufacturer's central heating figures at ΔT50°C (mean water temperature 70°C, room 20°C), the standard UK reference point, and at ΔT60°C. Always compare like with like: the larger 589 W figure for the 1540mm model is the ΔT60 output, not ΔT50.
Model / size
Bars
ΔT50 BTU/h
ΔT50 Watts
ΔT60 BTU/h
ΔT60 Watts
Water
Empty weight
RNS-BLB082 – 530 × 820mm
9
834
245
1068
313
2.06 L
5.74 kg
RNS-BLB154 – 530 × 1540mm
17
1568
460
2007
589
3.89 L
10.34 kg
Heat pump and low-temperature systems
Output falls significantly when the flow temperature is lower than the ΔT50 or ΔT60 test conditions, as is typical on heat pump systems. Size the rail against the bathroom heat loss at your actual design flow temperature.
Technical specifications
General
Brand
Reina
Range
Belbo
Material
Stainless steel
Finish
Polished stainless steel
Design
Ladder with curved horizontal tubes
Fuel type
Central heating / electric / dual fuel (C/E/D)
Mounting
Vertical, wall mounted
Guarantee
25 years
Dimensions (all sizes)
Width
530mm
Pipe centres
500mm
Wall to pipe centre
50 to 60mm
Wall distance (projection)
147mm
Heights
820mm, 1540mm
Connections and limits
Inlet / outlet
½" female pipe thread
Maximum operational pressure
10 bar
Recommended valves
The Belbo has ½" female connections, so it needs a pair of radiator valves with a matching male ½" BSP tail: a lockshield valve for balancing and isolation, plus a manual or thermostatic valve for control. Choose angled valves where the pipework rises from the floor and straight valves where it comes out of the wall. Chrome valves pair well with the polished stainless finish.
BEST ALL-ROUND
A matched thermostatic valve and lockshield pair in chrome, ready for floor-fed pipework. The simplest way to get a complete, finished valve set.
BRAND MATCHED
Reina's own chrome angled valves for a manual-control set that keeps the rail hot whenever the heating is on.
WALL-FED PIPEWORK
A chrome straight thermostatic valve with integral head for pipework from the wall. Pair with a matching straight lockshield to complete the set.
Compatibility

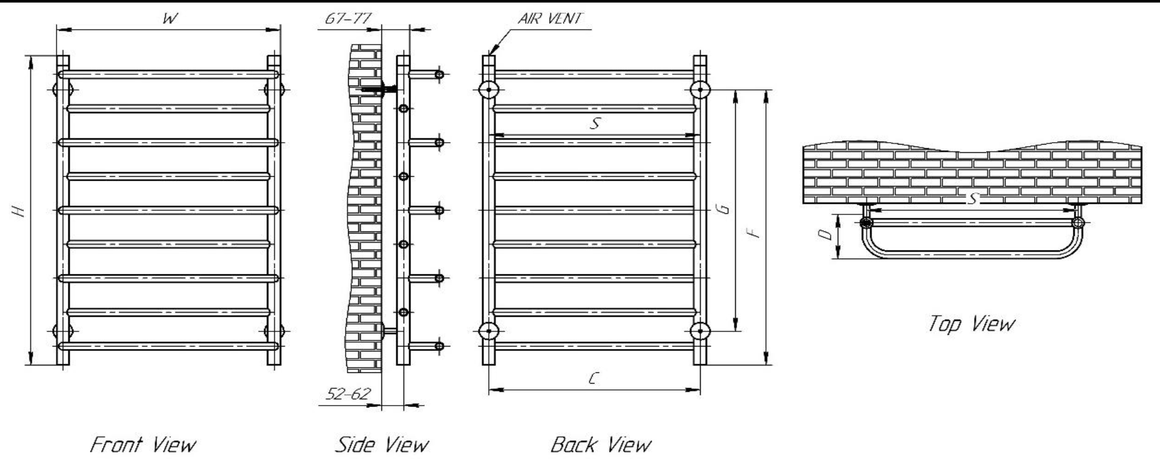

Confirm the inlet and outlet positions against the manufacturer's installation drawing before first fix. Pipe centres are 500mm on both sizes, and the rail projects 147mm from the wall.
Installation notes
Flush the heating system before connecting the rail and treat the system water with a suitable inhibitor as required. Mount the rail vertically using fixings that suit the wall material, and fit the manual or thermostatic valve on one side with the lockshield on the other. Clean polished stainless steel with a soft damp cloth and avoid abrasive cleaners.
