Underfloor Heating Foil Kits with Underlay & Overlay – Sizes 1m² to 12m² for Laminate, Wood, Carpet, Vinyl

Enjoy fast, efficient, and safe electric underfloor heating designed specifically for wood, carpet, vinyl, and other floating floor finishes. Each kit includes the high-performance double-layer foil heating element, a cushioning acoustic underlay, and a unique cushioning overlay – combining to provide comfort, thermal efficiency, and sound insulation.

Kit Advantages

Advanced double layer foil provides superior heat exchange and even heat distribution
Designed to fit beneath floating floors such as engineered or solid timber, carpet, and vinyl
Only adds approximately 9mm to total floor build-up, maintaining low profile installation
Unique cushioning and acoustic overlay plus underlay reduce impact sound by up to 19dB – ideal for flats and multi-storey buildings
Fully compliant with Section 753 of the 18th Edition Wiring Regulations for maximum safety
Lifetime warranty for complete peace of mind
Quick and easy installation with comprehensive kit components included
Compatible with recommended thermostats for effective temperature control and energy management (sold separately)

Available Kit Sizes and Power Outputs

Size (Floor Area)	Power Output (Watts)	Approx. Kit Dimensions (m)	Suitable Floor Types
1 m²	140 W	Variable to fit 1 m²	Wood, Carpet, Vinyl
1.5 m²	210 W	Variable to fit 1.5 m²	Wood, Carpet, Vinyl
2 m²	280 W	Variable to fit 12 m²	Wood, Carpet, Vinyl
2.5 m²	350 W	Variable to fit 2.5 m²	Wood, Carpet, Vinyl
3 m²	420 W	Variable to fit 3 m²	Wood, Carpet, Vinyl
4 m²	560 W	Variable to fit 4 m²	Wood, Carpet, Vinyl
5 m²	700 W	Variable to fit 5 m²	Wood, Carpet, Vinyl
6 m²	840 W	Variable to fit 6 m²	Wood, Carpet, Vinyl
7 m²	980 W	Variable to fit 7 m²	Wood, Carpet, Vinyl
8 m²	1,120 W	Variable to fit 8 m²	Wood, Carpet, Vinyl
9 m²	1,260 W	Variable to fit 9 m²	Wood, Carpet, Vinyl
10 m²	1,400 W	Variable to fit 10 m²	Wood, Carpet, Vinyl
12 m²	1,680 W	Variable to fit 12 m²	Wood, Carpet, Vinyl

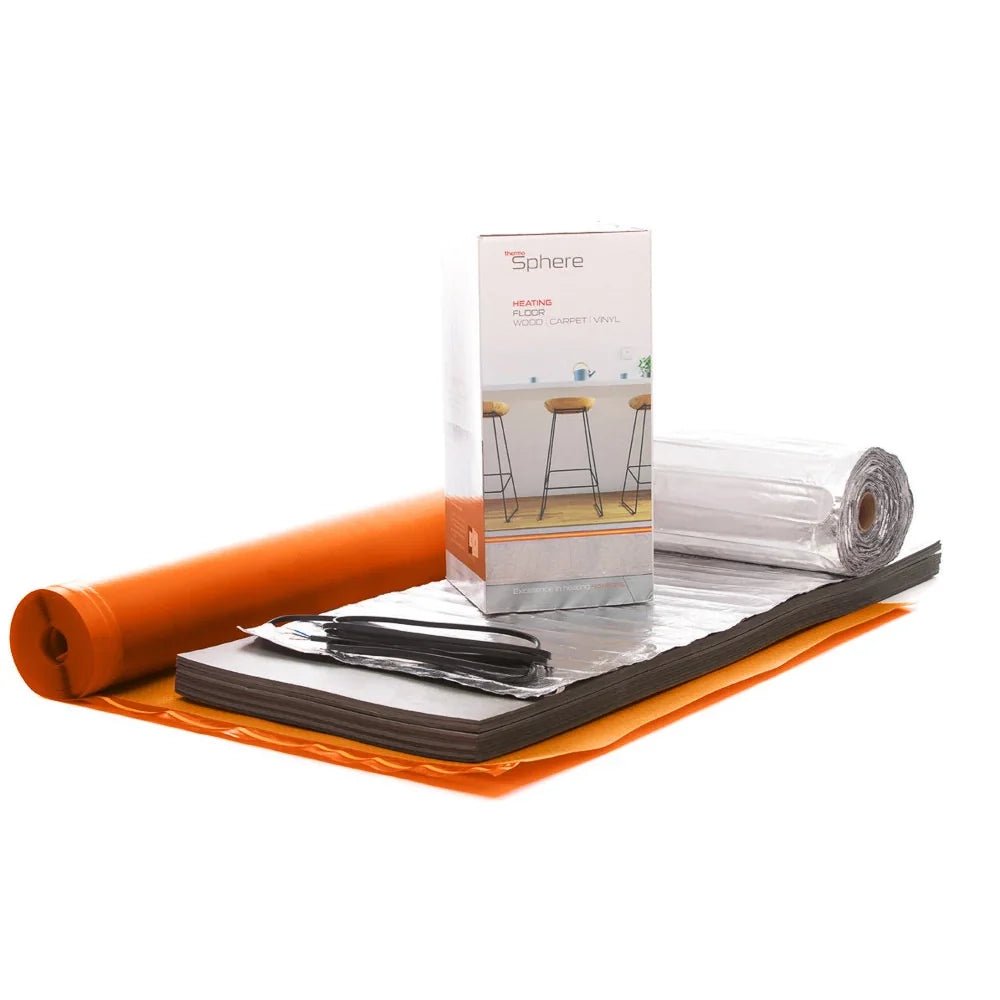

Kit Contents

Double layer foil electric heating mats sized to suit each floor area
Cushioning acoustic overlay to protect the heating element and reduce impact sound
Soft cushioning underlay for added acoustics and floor comfort
Clear installation instructions to aid straightforward fitting

Installation and Usage

Suitable for floating floor installations including engineered wood, solid timber, carpet, and vinyl
Maximum recommended wood floor thickness: 18 mm; max surface temperature 27°C to protect flooring
Use with recommended thermostats and floor sensors (sold separately) for precise temperature control
Fast heat-up times due to superior foil thermal conductivity
Ensure floor coverings such as carpets do not exceed 2.5 tog for safe performance

Why Choose These Heating Foil Kits?

These Underfloor Heating Foil Kits deliver advanced, energy-efficient heating with a low build-up height, acoustic benefits, and full safety compliance. Perfect for contemporary homes and apartments, they provide cosy warmth under your floors with simple installation and long-term reliability.

Order your Underfloor Heating Foil Kit today and enjoy the comfort of warm floors combined with excellent sound insulation.
