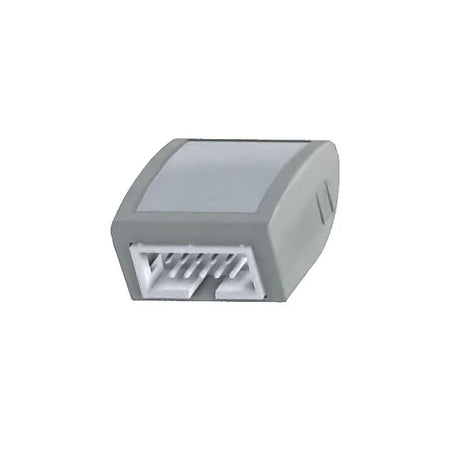

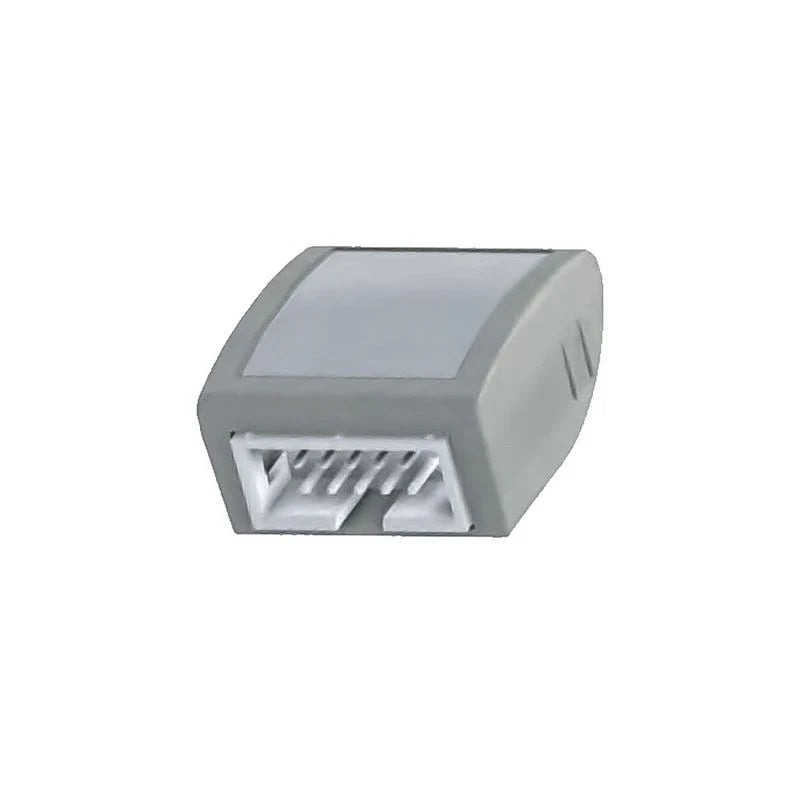

The Sunamp Optimino PV Key (part code PV02) is the plug-in configuration key that adds solar PV charging to a Sunamp Thermino ePlus heat battery. An ePlus is supplied as a grid-electric unit; fitting the PV02 key to its Optimino controller lets it be heated with surplus solar electricity from a compatible solar diverter, so free generation is stored as mains-pressure hot water instead of being lost to the grid.

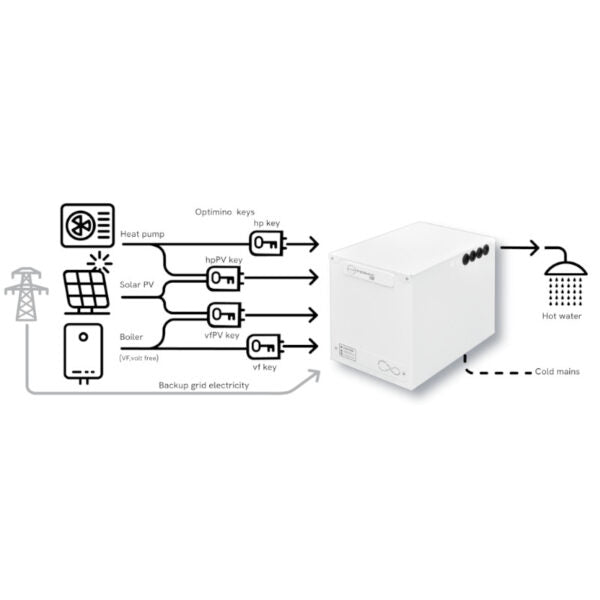

Because the ePlus is built around Optimino technology, the upgrade is a key swap, not a new cylinder. Add the key when the heat battery is installed, or years later when a solar array goes on the roof, with no replacement of the heat battery. The key works with the four solar diverters Sunamp documents: the 4-Noks Power Reducer SA, myenergi eddi, my-PV AC·THOR and Power Diverter Model 3, each with published wiring and settings instructions.
It is the natural companion for retrofit and new-build homes replacing a direct hot water cylinder with a compact, low heat loss heat battery that is solar PV ready.
PV02
Manufacturer part code
ePlus
Compatible heat battery
4
Documented solar diverters
Plug-in
Fits the Optimino controller
70–300
ePlus sizes (litre-equivalent)
Any time
Fit now or add later
Electrical safety: potential dual supply
All wiring must be carried out by a competent person in line with the latest wiring regulations (BS 7671). Sunamp warns of a risk of electric shock from a potential dual supply: always isolate the supplies to the heat battery and to the solar diverter before working on either appliance. Follow the Thermino ePlus installation manual (D0083) and the diverter wiring and settings instructions (D0085).
Compatibility: PV02 is for the Thermino ePlus
A
Thermino xPlus does not use PV02. It takes the
“02” key that matches its heat source:
VF02 for a boiler with PV, or the with-PV key for your heat pump (for example SG02 for Samsung). See our
Optimino Keys for Heat Pumps range for xPlus keys.
A solar diverter is required and sold separately
The PV02 key enables PV charging on the heat battery; a compatible solar diverter then controls how surplus solar power is sent to it. The diverter is not included with the key.
Key features and benefits
Solar PV charging for ePlus
Enables the ePlus heat battery to be heated electrically from solar PV via a diverter, turning surplus generation into stored hot water.
Upgrade without replacement
Optimino technology means you swap a key, not the battery. The ePlus is future-proofed for solar PV whenever the array is added.
Four documented diverters
Works with the 4-Noks Power Reducer SA, myenergi eddi, my-PV AC·THOR and Power Diverter Model 3 solar diverters.
Published wiring and settings
Sunamp publishes wiring diagrams and settings for each diverter (D0085-4S, D0085-MI, D0085-MV and D0085-PR), so commissioning follows a documented route.
Grid, off-peak and PV together
A grid-connected ePlus can shift demand to off-peak hours. Adding PV02 layers free solar electricity on top of that.
Compact, low-loss heat battery
The ePlus is up to 4x smaller than the cylinder it replaces, with ultra low heat losses, Legionella risk protection, no mandatory annual maintenance and a 10-year warranty on the heating element.
Technical specification
Product identity
Manufacturer part code
PV02
Key type
Optimino energy-source key (plug-in)
Energy source enabled
Solar PV, added to a grid-electric Thermino ePlus
Compatibility
Heat battery
Thermino ePlus (ePlus 70, 150, 210 and 300)
Thermino xPlus
Not applicable. xPlus uses the “02” key for its heat source (heat pump or boiler)
Compatible solar diverters
4-Noks Power Reducer SA; myenergi eddi; my-PV AC·THOR; Power Diverter Model 3
Solar diverter included
No. Required, sold separately
Installation and documentation
Fitting
Plug-in key for the heat battery’s Optimino controller; can be fitted at installation or at any later date
Installer
Competent person; isolate heat battery and diverter supplies before working
Diverter supply (Sunamp wiring diagrams)
230 V, 16 A supply with double-pole isolating switch, minimum 16 A
Heat battery manual
D0083 Thermino ePlus installation and user instructions
PV wiring and settings
D0085 (4-Noks: 4S; myenergi eddi: MI; my-PV AC·THOR: MV; Power Diverter Model 3: PR)
Frequently asked questions
What does the Sunamp Optimino PV key (PV02) do?
It adds solar PV capability to a Thermino ePlus. The ePlus ships as a grid-electric heat battery; with PV02 fitted, it can be heated with surplus solar electricity from a compatible diverter and store that energy as hot water.
Which heat battery is PV02 compatible with?
The Thermino ePlus range (ePlus 70, 150, 210 and 300). A Thermino xPlus uses the “02” key that matches its heat source instead: VF02 for a boiler with PV, or the with-PV key for its heat pump.
Do I need a solar diverter as well?
Yes. The key enables PV charging, but a compatible solar diverter is needed to divert surplus generation to the heat battery. Diverters are sold separately.
Which solar diverters can I use?
Sunamp documents four: the 4-Noks Power Reducer SA, myenergi eddi, my-PV AC·THOR and Power Diverter Model 3. Each has its own wiring and settings instructions in Sunamp’s D0085 documents.
Can I add the PV key after the ePlus is already installed?
Yes. Optimino technology is designed so solar PV can be added later by fitting the key, without replacing the heat battery. Isolate all supplies first and have the work done by a competent person.
Does a qualified electrician need to fit it?
The wiring around the heat battery and diverter must be carried out by a competent person in line with BS 7671. Sunamp specifically warns of a potential dual supply, so both supplies must be isolated before any work begins.
