Reina Claro RND-CLR3120 Towel Rail 300mm x 1200mm
Regular price
£256.88
Inc. VAT
£214.07
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us

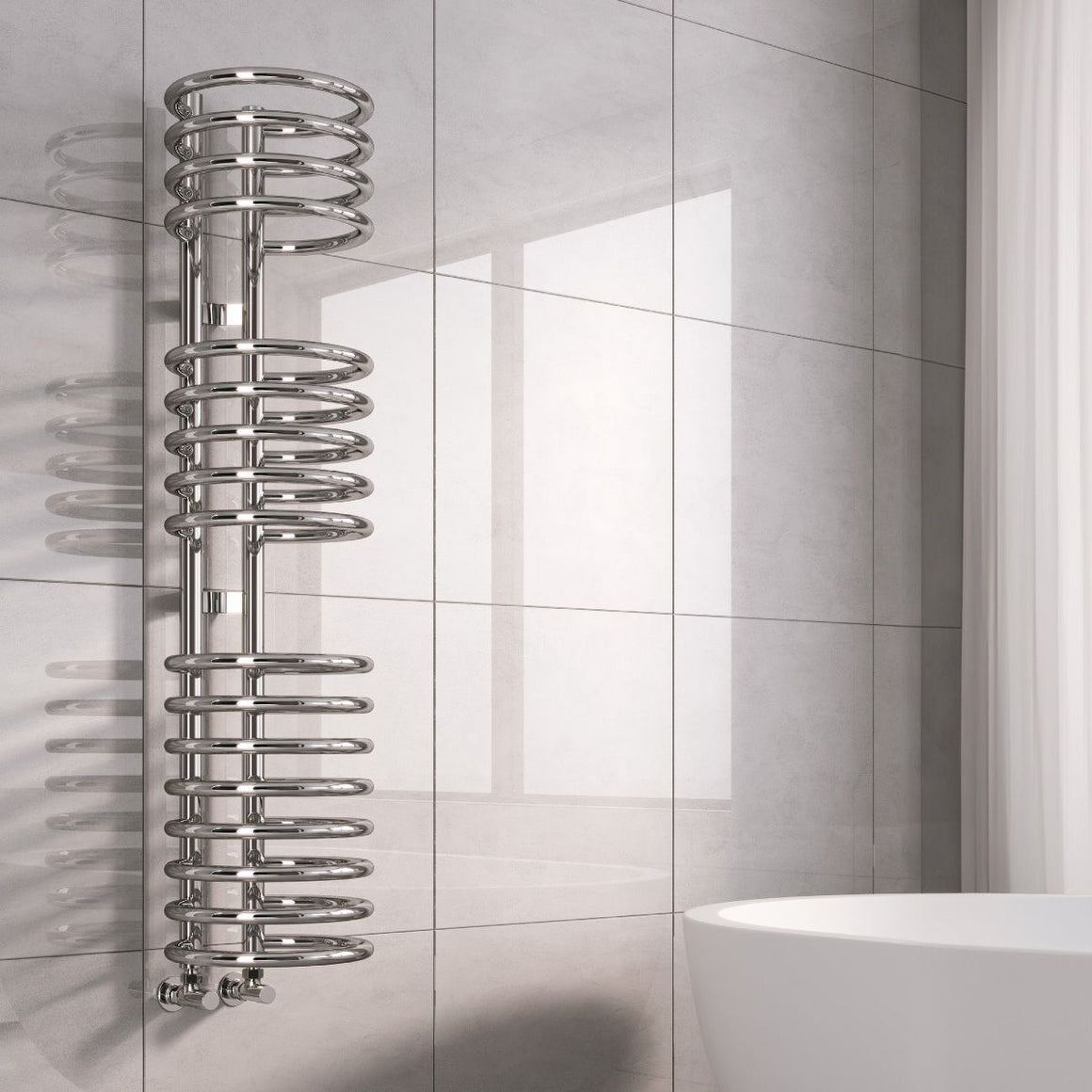

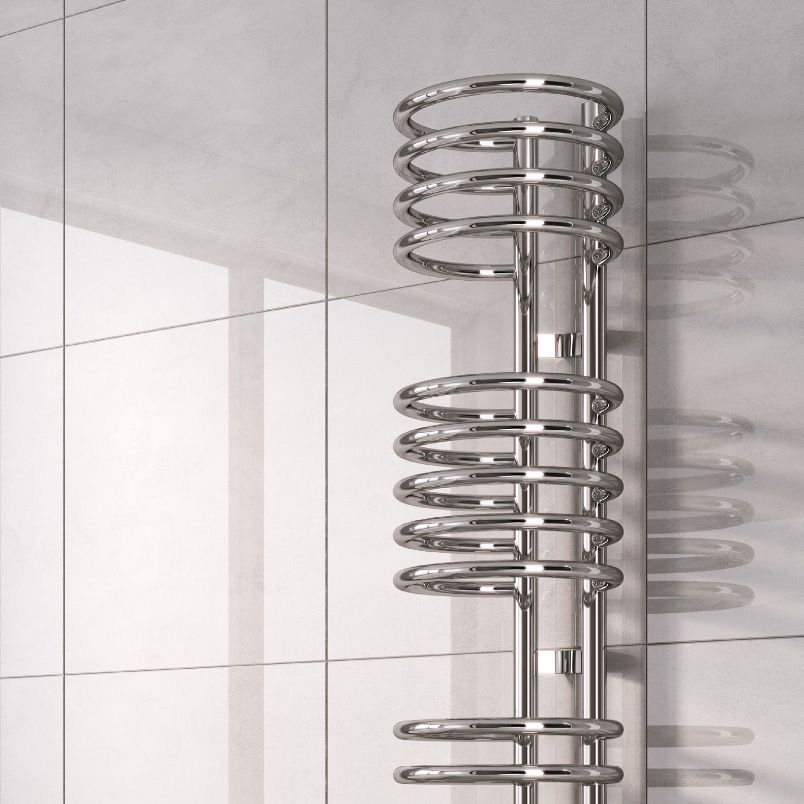

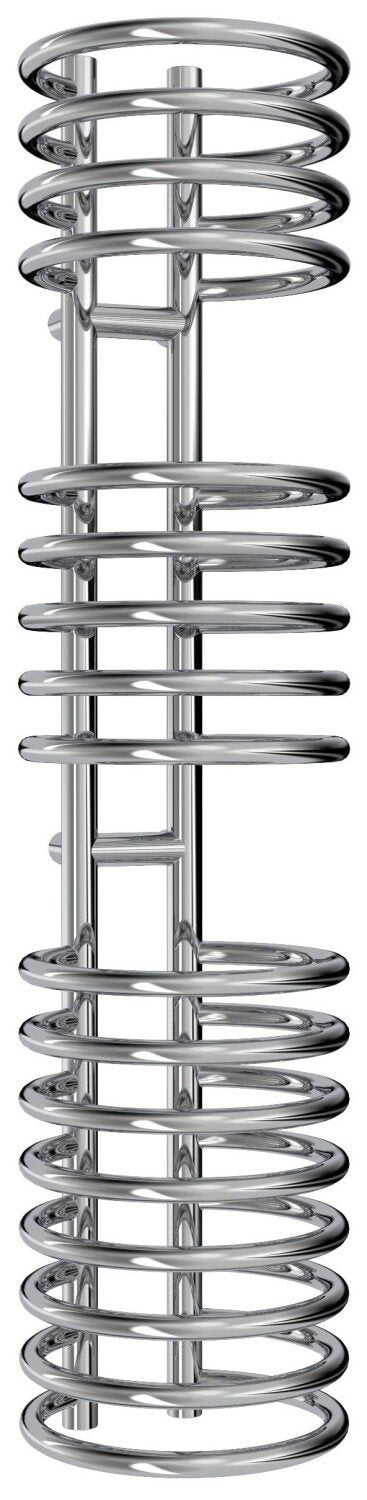

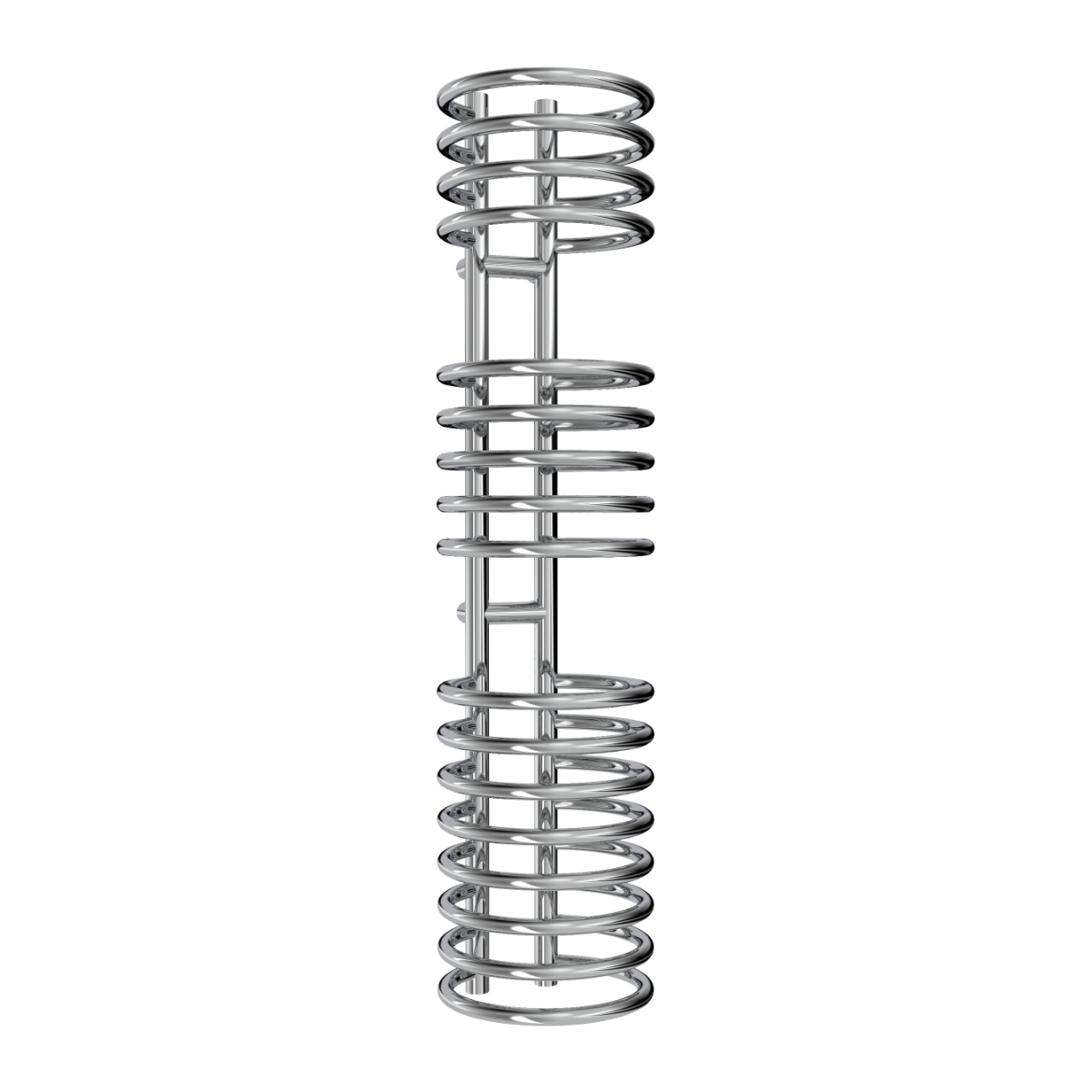

The Reina Claro is a chrome designer towel rail built from robust mild steel with a distinctive vertical circular tube design finished in a lustrous chrome. It warms and dries towels while heating the bathroom, and it suits modern and traditional interiors alike.
Available in three heights (900mm, 1200mm and 1600mm) with a slim 300mm width, the Claro fits narrow wall spaces beside a basin, shower screen or door. It is rated for central heating, electric or dual fuel use and is backed by a 5 year guarantee.
5 Year
Guarantee
Chrome
Mild steel build
3 Sizes
900 / 1200 / 1600mm
291–524 W
Output at ΔT50
95°C
Max working temp
4 bar
Max working pressure
Safety and installation
This product must be fitted only by a fully qualified installer. If the system water exceeds 50°C, the manufacturer requires a warning mark near the radiator to avoid accidental scalding. The rail must not be climbed on or used as a step.
Key features
Vertical circular tube design
Vertically aligned circular tubes give a contemporary look and plenty of surface for hanging towels. Rails have 12, 17 or 22 bars depending on height.
Chrome finish on mild steel
Mild steel construction delivers strong heat output, finished in lustrous chrome that matches taps, shower fittings and accessories.
Slim 300mm width
All three sizes share a 300mm width and 310mm wall distance, so you can choose the height without changing the footprint.
Central heating, electric or dual fuel
Rated C/E/D by the manufacturer: central heating, electric or dual fuel. Confirm the configuration you need when ordering.
5 year guarantee
Backed by a 5 year manufacturer guarantee for long-term confidence on a bathroom installation.
Fixings and vents supplied
Supplied with wall anchors, fixing screws and washers (4 to 6 of each), plus an air vent and end plug.
Heat output and sizing
Outputs below are the manufacturer's central heating figures at ΔT50°C (mean water temperature 70°C, room 20°C), the standard UK reference point, and at ΔT60°C. Match the rail to the heat loss of the bathroom and, where the rail is the only heat source, allow for towel drying demand as well.
Model / size
Bars
ΔT50 BTU/h
ΔT50 Watts
ΔT60 BTU/h
ΔT60 Watts
RND-CLR3090 – 300 × 900mm
12
991
291
1268
372
RND-CLR3120 – 300 × 1200mm
17
1370
402
1753
514
RND-CLR3160 – 300 × 1600mm
22
1785
524
2285
670
Heat pump and low-temperature systems
Output falls significantly when the flow temperature is lower than the ΔT50 or ΔT60 test conditions, as is typical on heat pump systems. Size the rail against the bathroom heat loss at your actual design flow temperature.
Technical specifications
General
Brand
Reina
Range
Claro
Material
Mild steel
Finish
Chrome
Design
Vertical circular tubes
Fuel type
Central heating / electric / dual fuel (C/E/D)
Mounting
Wall mounted
Guarantee
5 years
Dimensions (all sizes)
Width
300mm
Pipe centres
100mm
Wall to pipe centre
41mm
Wall distance (projection)
310mm
Heights
900mm, 1200mm, 1600mm
Operating limits
Maximum working temperature
95°C
Maximum working pressure
4 bar
Recommended system water pH
5.5 to 8.5
Supplied with the rail
Fixings
Wall anchors, fixing screws and washers (4 to 6 of each, depending on size)
Fittings
1 air vent and 1 end plug
Not supplied
Radiator valves (1 lockshield and 1 manual or thermostatic valve are required)
Recommended valves
A Claro towel rail needs two valves: a lockshield valve for balancing and isolation, plus a manual (gate) or thermostatic valve for control. Valves are not supplied with the rail. Choose angled valves where the pipework rises from the floor and straight valves where it comes out of the wall.
BEST ALL-ROUND
A matched thermostatic valve and lockshield pair in chrome, ready for floor-fed pipework. The simplest way to get a complete, finished valve set.
BRAND MATCHED
Reina's own chrome angled valves for a manual-control set that matches the Claro finish and keeps the rail hot whenever the heating is on.
WALL-FED PIPEWORK
A chrome straight thermostatic valve with integral head for pipework from the wall. Pair with a matching straight lockshield to complete the set.
Compatibility
Fit the rail at least 100mm above the floor and not closer than 50mm below any overhanging surface such as a shelf. Choose wall fixings that suit your wall material.
Installation notes
Flush the heating system before fitting to remove mud, scale, flux and oil. If the system water pH is outside 5.5 to 8.5, protect the system with a compatible chemical treatment. Clean the finish with a soft cloth only to avoid scratching, and do not use chemical cleaners.
Tools the manufacturer lists
Electric drill with a masonry bit suited to the fixings, spirit level, measuring tape, adjustable spanner, radiator valve hex key, flat and Phillips screwdrivers and PTFE tape.
