As the UK enters the 2026/27 heating season, water underfloor heating has moved from luxury upgrade to a core part of how energy-conscious homes are heated. Whether you are building a new extension, renovating an older property, or planning a whole-house system paired with an air source heat pump, a hydronic underfloor heating system delivers even warmth at lower flow temperatures than radiators — and that means lower energy bills all winter long.
This guide walks through the five main types of warm water underfloor heating system available at Quality Heating, explains which suits your project, and shows how smart zone controls tie everything together for genuine room-by-room comfort.
Why Choose Water Underfloor Heating for Winter?

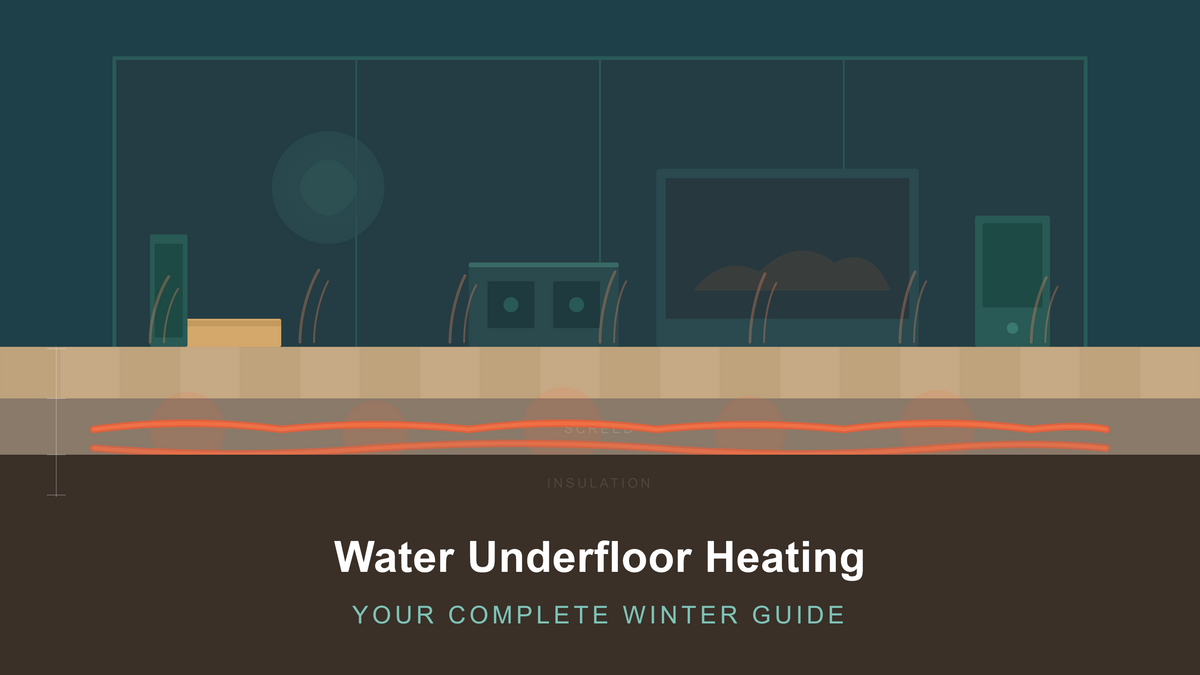

Wet underfloor heating (also called hydronic UFH) circulates warm water through pipes laid beneath the floor, turning the entire floor surface into a radiant heat emitter. Compared with wall-mounted radiators, the result is more uniform warmth, no cold spots, and a system that runs comfortably at the low water temperatures heat pumps and modern condensing boilers deliver most efficiently.
🌡️ Lower Running Costs
Operating at 35–45°C rather than the 60–70°C radiators need, water UFH reduces heat losses across pipework and allows your boiler or heat pump to work at peak efficiency — typically saving 15–25% on annual heating bills compared with a radiator-only system.
🏠 No Radiators, More Space
Every wall becomes usable for furniture and fittings. Kitchens, bathrooms, and open-plan living areas benefit enormously from freeing up wall space while maintaining comfortable, even warmth at floor level.
⚡ Heat Pump Ready
Air source heat pumps perform at their best when paired with low-temperature emitters. Water UFH is the ideal partner, allowing the heat pump to maintain a high coefficient of performance (COP) throughout the heating season.
💨 Better Air Quality
Radiant heating reduces air movement compared with convection-based radiators, which means less dust circulation — a noticeable benefit for allergy sufferers and families with young children.
Water Underfloor Heating System Types — Which Is Right for Your Project?
Not every floor build-up is the same, and no single UFH system fits every scenario. Quality Heating stocks five distinct system types, each designed for a specific installation environment. Here is how they compare and when to choose each one.
1. Multi-Zone Water Underfloor Heating Systems
Designed for whole-house or large-area installations, multi-zone kits provide independently controlled heating circuits for multiple rooms from a single manifold. Each zone has its own thermostat, so you heat only the rooms you are using — the hallway and living room during the day, bedrooms in the evening — rather than warming the entire property at once.
Quality Heating's multi-zone kits cover areas from 22 m² right up to 300 m², with 2 to 10 independently controlled zones. Every kit includes a Grundfos A-rated circulation pump, multi-port DualMix manifold, professional-grade 5-layer 16 mm PERT-AL-PERT pipe, thermostats, edge insulation, pipe clips, and all tools needed for installation. All components are WRAS approved and built to British standards.
2. Single Room Underfloor Heating Kits
Want to add underfloor heating to a kitchen, bathroom, or conservatory without replacing your entire system? Single room kits connect directly to your existing radiator circuit through a thermostatic mixing valve, so you can run UFH alongside your current radiators without a separate heat source. Coverage ranges from 7 m² to 36 m², and every kit includes a Grundfos pump, 5-layer pipe, programmable thermostat, and complete fixing accessories.
This is the most popular option for homeowners who want to upgrade one high-use room ahead of winter without a full-house project.
3. Joisted Floor Underfloor Heating Systems
For suspended timber floors — common in Victorian and Edwardian houses, upper storeys, and timber-frame new builds — joisted floor systems slot into the existing floor structure without raising floor heights. The ThermRite Heatboard ULTRA system uses 22 mm tongue-and-groove chipboard panels with integrated aluminium heat diffusion plates grooved at 150 mm centres for 12 mm pipe. The aluminium plates maximise heat transfer from the pipe into the room, compensating for the lower thermal conductivity of a timber floor compared with screed.
Available in sizes from 12 m² up to 120 m² with Grundfos pumps, multi-port manifolds, and all pipework included, these kits are ideal for renovation projects where you are lifting floorboards and want to add UFH without any additional build-up height.
4. Low Profile Underfloor Heating
Where floor-to-ceiling height is tight — a common constraint in retrofits and renovations — low profile systems let you add water underfloor heating over existing floors with minimal build-up. These overlay systems use pre-routed insulation panels that sit directly on top of the existing subfloor, holding the heating pipe securely in place and allowing tile, engineered wood, or LVT to be laid on top. Combined with self-levelling compound, they keep the total added height to a minimum.
5. Profix Underfloor Heating Systems
The Profix range is a low-profile overlay system at just 15 mm deep. The pre-routed panels securely hold 10–12 mm pipes and allow tiles and other heavyweight floor finishes to be applied directly on top — no screed required. Each Profix kit includes an A-rated Grundfos pump, mixing valve, multi-port manifold, 5-layer PERT-AL-PERT pipe, a digital programmable thermostat, and all fixing tools. Ideal for both new builds and retrofit projects on solid or suspended floors where fast installation and minimal floor height gain are priorities.
Quick Comparison — Choosing the Right System
| System Type | Best For | Floor Build-Up | Pipe Size | Screed Needed? |
|---|---|---|---|---|
| Multi-Zone | Whole house, new builds, extensions | Standard (screed) | 16 mm | Yes |
| Single Room | One-room upgrade, bathroom, kitchen | Standard (screed) | 16 mm | Yes |
| Joisted Floor | Suspended timber, upper floors, renovation | No added height | 12 mm | No |
| Low Profile | Retrofits with height constraints | Minimal overlay | 12–16 mm | Self-levelling compound |
| Profix | Fast install, tile-direct overlay | 15 mm overlay | 10–12 mm | No |
🌱 Heat Pump + Underfloor Heating: The Ideal Pairing
Water underfloor heating and air source heat pumps are designed for each other. Heat pumps deliver their highest efficiency at low flow temperatures — typically 35–45°C — and underfloor heating's large radiant surface means those low temperatures are enough to keep every room comfortable. The result is a heating system that uses significantly less energy than a boiler-plus-radiator setup, and one that meets the UK's evolving Building Regulations for low-carbon homes. Quality Heating stocks complete heat pump + UFH bundles for properties that want both technologies in a single, coordinated package.
Smart Zone Control: Getting the Most from Your Underfloor Heating
A water underfloor heating system without proper zone control is like fitting a car with no steering wheel — you have the engine, but you cannot direct where the energy goes. Multi-zone control lets you set different temperatures in different rooms, schedule heating around your routine, and avoid wasting energy on empty spaces. As heating demand peaks through autumn and winter, smart controls are what turn a good system into a genuinely efficient one.
Quality Heating stocks controllers and wiring centres from three leading brands, each suited to different project sizes and levels of smart-home integration.
Drayton Controls
Drayton Wiser UFH Controller — 6-Zone Smart Control
Integrates hydronic UFH into the Wiser smart home ecosystem via ZigBee. Controls up to 6 zones with 14 actuator outputs, supports heating and cooling with reversible heat pumps, and manages everything from the Wiser app. Up to 3 controllers can run on one system for 16 total zones.
£330.00 inc. VAT
Honeywell Home
HCC100M2022 — 8-Zone Multi-Zone Controller
Next-generation all-in-one hub managing up to 8 heating and cooling zones with any mix of wired and wireless thermostats. Patented Fuzzy Logic self-learning algorithm plus ITAC hydronic balancing. Supports OpenTherm, Evohome smart integration, and Bluetooth setup via the Resideo Pro app. Cascade up to 3 units for 24 zones.
£269.00 inc. VAT
Heatmiser
UH8-RF V2 — 8-Zone Wireless Wiring Centre
Purpose-built 8-zone wireless wiring centre for Heatmiser RF thermostats. Each zone is individually configurable as underfloor heating or radiator, with dedicated hot water output, volt-free boiler contacts, and onboard test switches for fast commissioning. Supports fully wireless boiler control via the RF Switch V2.
£117.00 inc. VAT
For a broader range of UFH thermostats, zone wiring centres, actuators, and complementary heating controls from brands including Engo Controls, Salus, and EPH, visit our thermostats collection or explore zone wiring centres and actuators to complete your system.
UFH Controller Quick Comparison
| Feature | Drayton Wiser | Honeywell HCC100 | Heatmiser UH8-RF V2 |
|---|---|---|---|
| Zones per Controller | 6 | 8 | 8 |
| Actuator Outputs | 14 | 20 | 6 per zone (48 total) |
| Heating + Cooling | Yes | Yes | Heating only |
| Max Controllers (Cascade) | 3 (16 zones) | 3 (24 zones) | N/A |
| Smart App | Wiser Home | Evohome / Resideo Pro | Via Heatmiser Neo |
| Wireless Protocol | ZigBee | 868 MHz RF + Bluetooth | RF (868 MHz) |
| Price inc. VAT | £330.00 | £269.00 | £117.00 |
Getting Ready for Winter: Pre-Season UFH Checklist
September and October are the ideal months to install or service a water underfloor heating system in the UK. Screed needs time to cure before the heating is turned on, pipes should be pressure-tested while access is easy, and smart controls need commissioning so everything is ready when temperatures drop. Here are the key steps to follow before the heating season begins.
🛠️ Pressure Test the System
Fill each circuit and pressurise the manifold to check for leaks before screeding or closing up floors. Address any issues while access is straightforward.
🌡️ Commission the Controls
Pair every room thermostat, set schedules that match your daily routine, and run a test cycle to confirm each zone opens and closes correctly.
💧 Bleed and Balance
Ensure all air is purged from the circuits and that flow rates across zones are balanced. Unbalanced circuits lead to uneven room temperatures and wasted pump energy.
📅 Annual Maintenance
Check system pressure, inspect pump and valve operation, and flush circuits if water quality has degraded. An annual service — much like a boiler check — keeps the system efficient and extends its lifespan.
Frequently Asked Questions
How much does water underfloor heating cost to run in the UK?
Can I retrofit water underfloor heating without raising my floor height?
Is water underfloor heating compatible with heat pumps?
Can I add underfloor heating to just one room?
What floor finishes work with water underfloor heating?
How long does a water underfloor heating system last?
Ready to prepare your home for winter?
Browse the full water underfloor heating range at Quality Heating — every kit ships with free UK mainland delivery and expert support from our team.
Need help choosing the right system? Request a custom quote or call us on 020 4577 3096.
