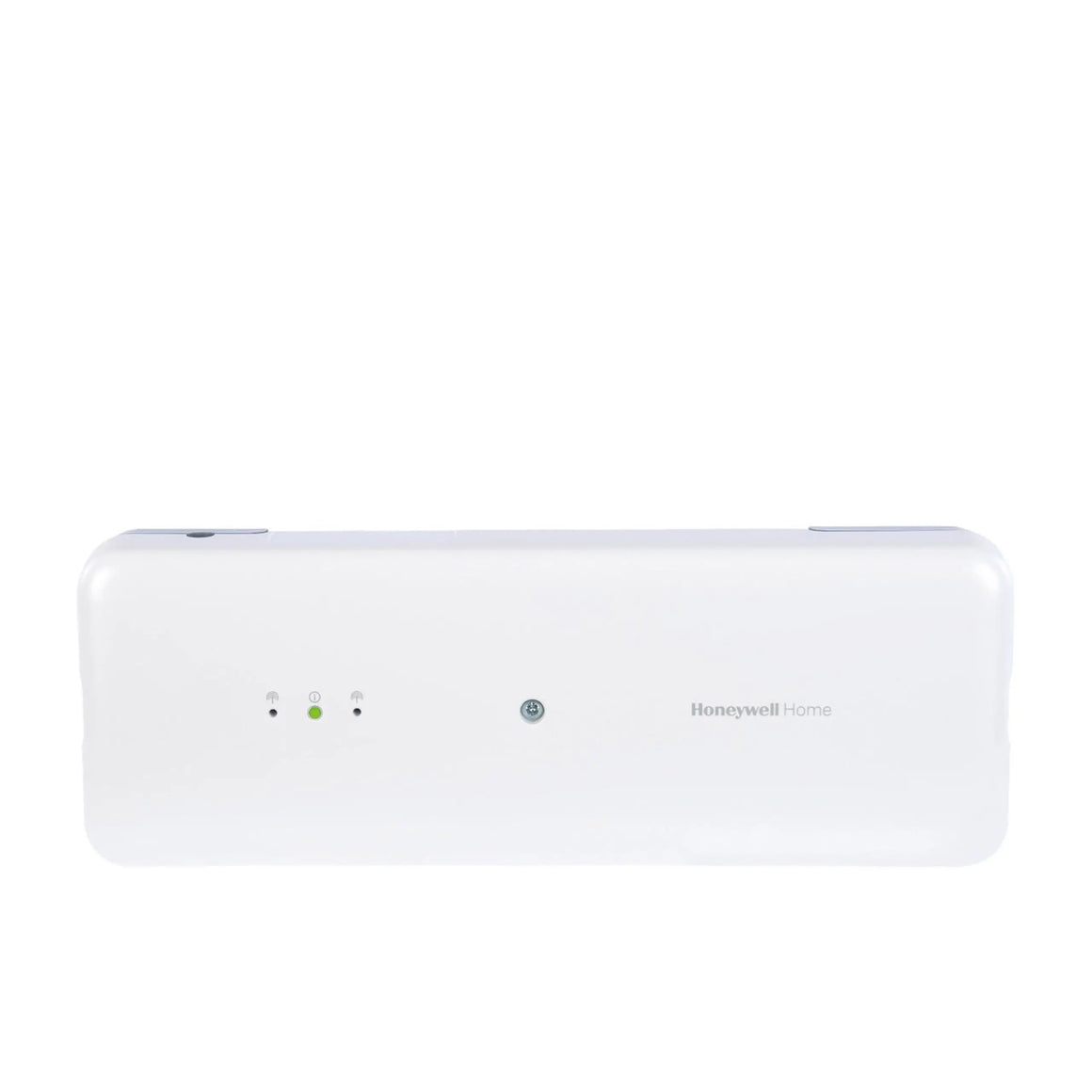

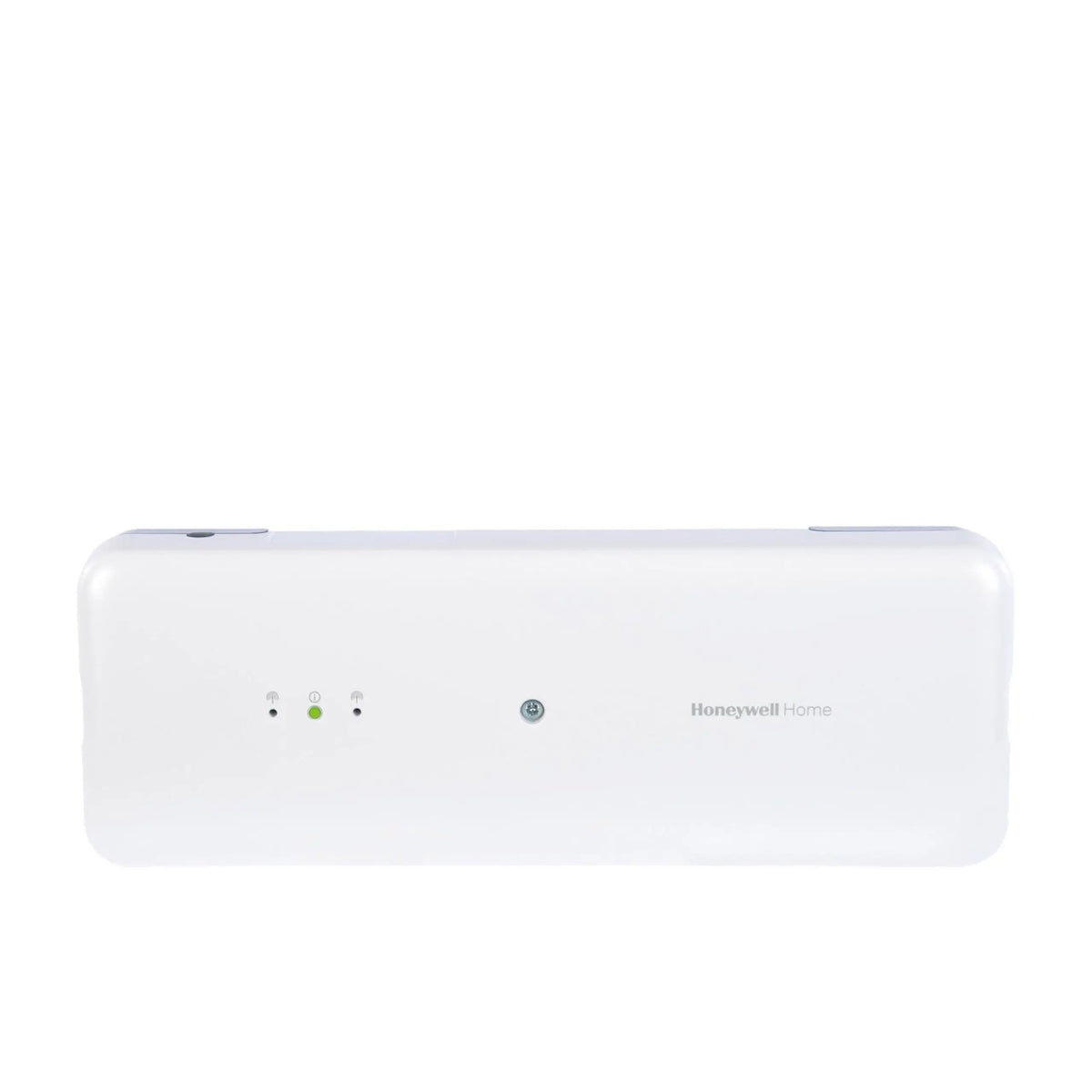

Honeywell Home HCC100M2022 Underfloor Multi-Zone Controller - Smart 8-Zone Wired & Wireless Heating/Cooling Hub

Description

The Honeywell Home HCC100M2022 Underfloor Multi-Zone Controller is a next-generation 'all-in-one' hub for individually managing up to 8 heating and cooling zones in a single home or small commercial space, using any combination of wired and wireless thermostats. It's designed to make integration into complex multi-zone systems faster and simpler, with configuration handled through the installer-focused Resideo Pro app over Bluetooth.

Supporting both OpenTherm and on/off appliance control, the HCC100 collects individual heat or cool demand from each zone and converts it into optimised demand control for the boiler, heat pump or heat/cool network. Its patented Fuzzy Logic self-learning algorithm and intelligent thermo-actuator output control (ITAC) balance the hydronic system for efficient, consistent zone temperatures, while evohome integration future-proofs installations for smart, app-controlled zoning.

8 Zones

Wired + Wireless Combined

6 Wired

OpenTherm Thermostat Inputs

20

Thermoelectric Actuator Outputs

Bluetooth

Resideo Pro App Setup

868 MHz

Wireless Zone Communication

IP30

Enclosure Rating

Qualified Installer Required

The HCC100 connects to a 230V AC mains supply and switches multiple 230V outputs, including pump and actuator circuits. Installation and wiring must be carried out by a qualified electrician or heating engineer in accordance with current UK wiring regulations and the manufacturer's installation guide.

Compatible Thermostats Only

Wired zones require OpenTherm-communicating thermostats such as the Honeywell Home T4M, T87M, T87HC or DT4M. Wireless zones require compatible Honeywell Home wireless thermostats such as the DTS92, T87RF or DT4RF. Third-party or non-compatible thermostats cannot be used with the HCC100's zone control.

Evohome & Smart Zoning Integration

The HCC100 can be wirelessly bound to an evohome system, allowing individual zone schedules to be managed via evohome's own zone control, and giving the option to control zones remotely from a smartphone when evohome is connected to the internet.

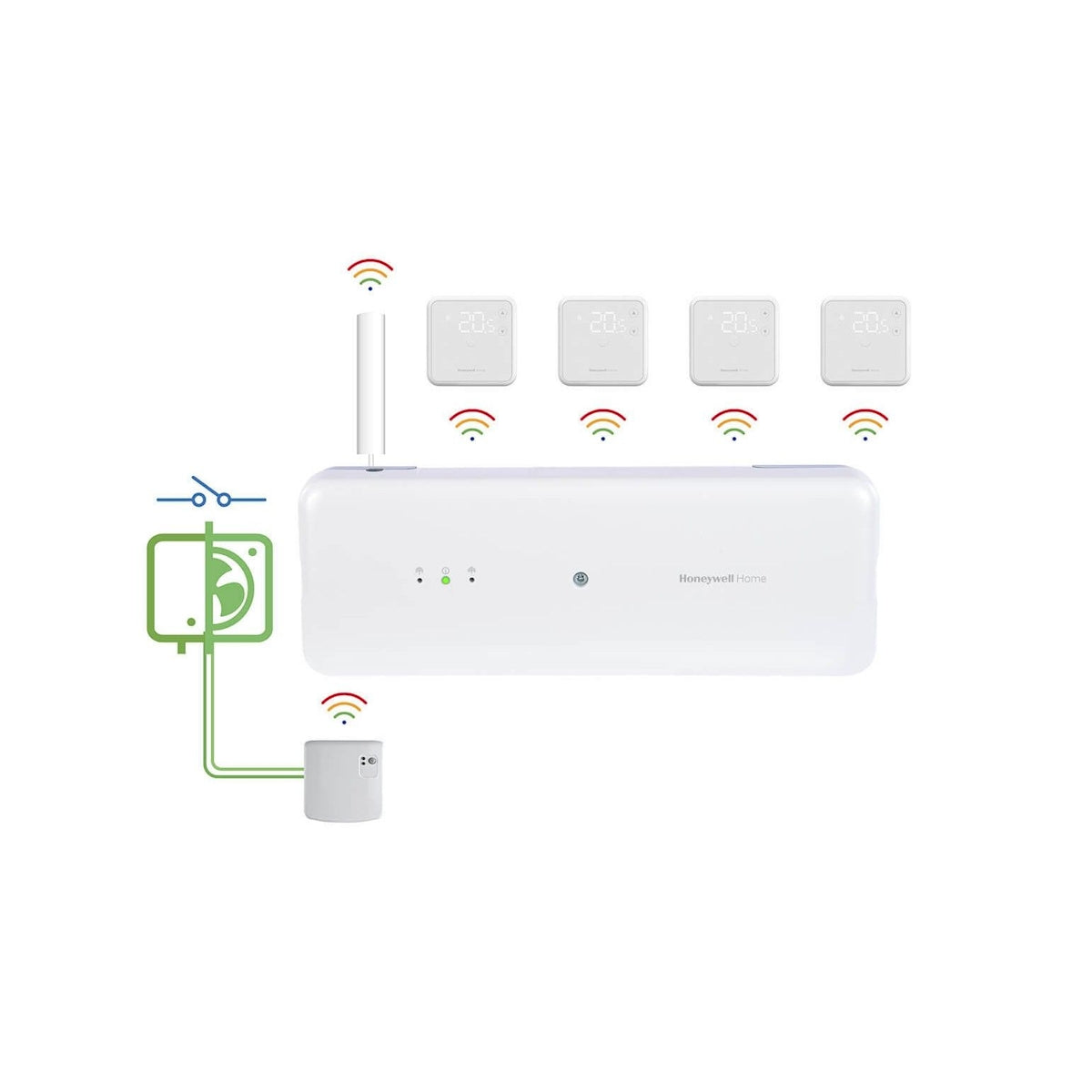

Flexible Wired & Wireless Zoning

Supports up to 8 total zones in any combination of wired and wireless thermostats - for example 6 wired and 2 wireless, or all 8 wireless - suiting both new-build and retrofit projects.

Fuzzy Logic Zone Control

A patented self-learning (Fuzzy Logic) algorithm continually refines zone temperature control for greater accuracy over time, without manual tuning.

Intelligent Thermo-Actuator Control (ITAC)

ITAC balances valve opening across zones with demand, creating a hydronic balancing effect that supports longer, lower-intensity run times - improving efficiency for heat pumps and modulating boilers.

Resideo Pro App Configuration

Installation and setup are guided through the Resideo Pro app via Bluetooth, with a guided menu for system type, demand control and zone configuration, plus a system test menu to verify wiring and signal strength.

Cascade Support for Larger Systems

Up to three HCC100 controllers can be cascaded together - via wired link or wireless RF - for applications needing more than 8 zones, with a single demand control shared across the group.

Screwless, Fast Wiring

No screws are required for wired zone terminals (aside from power and pump connections), speeding up installation and reducing wiring errors on site.

General

Model / MPN

HCC100M2022

Product Family

HCC100 Underfloor Multi-Zone Controller

Zone Capacity

Up to 8 zones (max. 6 wired + wireless, or all wireless)

Thermoelectric Actuator Outputs

20, freely configurable per zone

Mounting

Wall-mounted (4 mounting holes) or standard DIN-rail

Electrical

Power Supply

230 V AC +10% / -15%, 50 Hz

Maximum Power (Controller Only)

7 VA

Fuse

T3.15 A

Actuator Outputs

20 x 230 V AC / 0.5 A (1 A inrush) TRIAC

Pump Output

230 V AC / 1 A powered output

Heat / Cool Demand Relays

SPST relay, 24-230 V AC / 1 A

Heat/Cool Changeover Relay

SPST relay, 24-230 V AC / 1 A

OpenTherm Output

OpenTherm V4.1A

Enclosure Rating

IP30

Wireless & Configuration

RF Communication

868-868 MHz (868.3 MHz), Receiver Category 2, max. 25 mW

Bluetooth Communication

2.4-2.458 GHz, max. 100 mW

Configuration Method

Resideo Pro app via Bluetooth

Cascade Support

Up to 3 controllers, wired link or wireless RF

Antenna

Module with SMA connector, 2 m coaxial cable

Compatible Thermostats

Wired Zones

OpenTherm-communicating: Honeywell Home T4M, T87M, T87HC, DT4M

Wireless Zones

Honeywell Home DTS92, T87RF, DT4RF

Smart Zoning

Evohome integration for app-based zone scheduling

Environmental & Approvals

Operating Ambient Temperature

0 °C to 40 °C

Operating Ambient Humidity

0% to 90% (non-condensing)

Dimensions (A x B x C x D x E)

330 x 118 x 57 x 302 x 63 mm

Approvals

2014/35/EU, 2014/53/EU, Bluetooth, RoHS, WEEE, CE, UKCA

How many zones can the HCC100 control?

Up to 8 zones in total, using any combination of wired and wireless thermostats - for example 6 wired and 2 wireless, 4 and 4, or up to 8 wireless-only zones.

What thermostats are compatible with this controller?

Wired zones require an OpenTherm-communicating thermostat such as the Honeywell Home T4M, T87M, T87HC or DT4M. Wireless zones use compatible Honeywell Home wireless thermostats such as the DTS92, T87RF or DT4RF.

Can the HCC100 control both heating and cooling?

Yes, cooling control is a standard integrated function. The heat/cool mode can be switched via an external switch input, a Master zone thermostat, or by binding an evohome system to manage the changeover.

Does this controller work with evohome?

Yes, the HCC100 can be wirelessly bound to an evohome system, allowing zone schedules to be managed through evohome and, when evohome is connected to the internet, controlled remotely via smartphone.

How is the HCC100 configured?

Configuration is carried out via the Resideo Pro app, which connects to the controller over Bluetooth and guides installers through system type, demand control and zone set-up, including a system test menu to verify wiring and wireless signal strength.

Can more than 8 zones be controlled on a larger project?

Yes, up to three HCC100 controllers can be cascaded together via a wired link or wireless RF connection, allowing larger properties to be managed from a single coordinated demand control.
