Drayton Wiser 6-Zone UFH Controller | WF762F1A0902 | Heat/Cool | ZigBee

Description

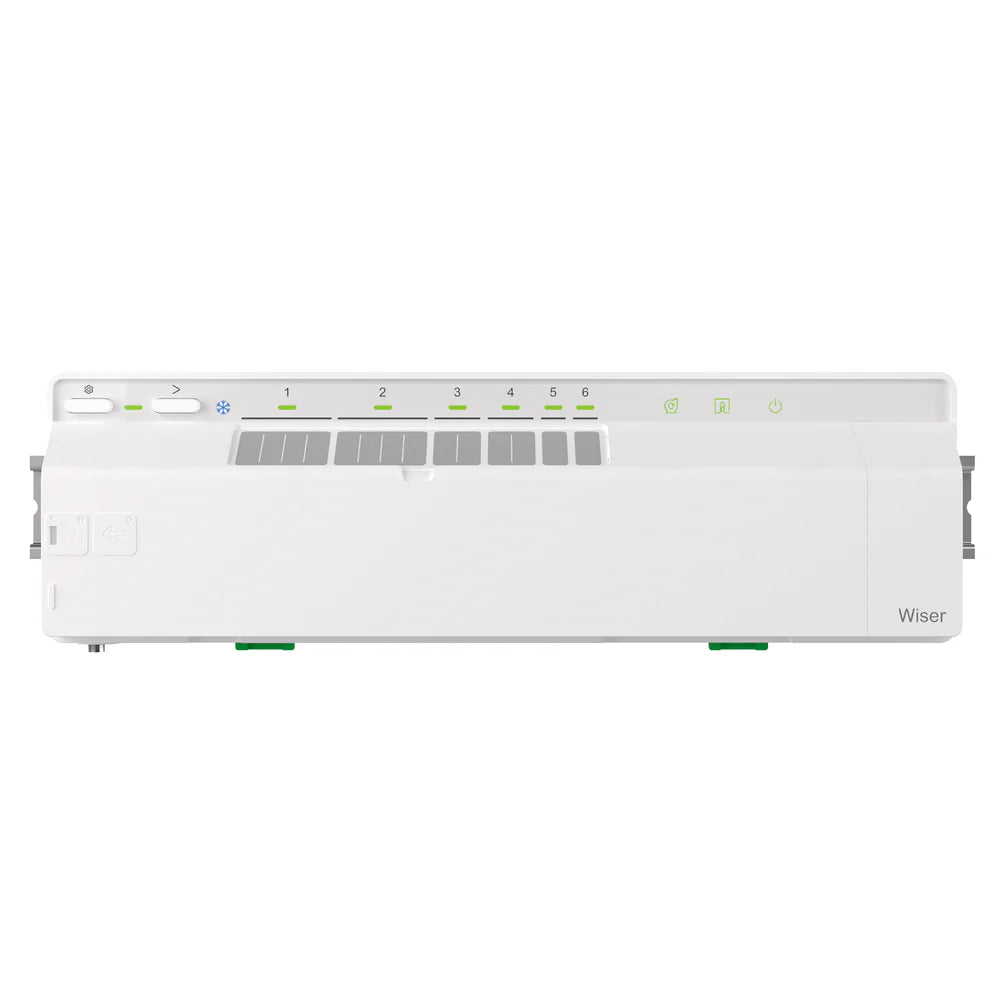

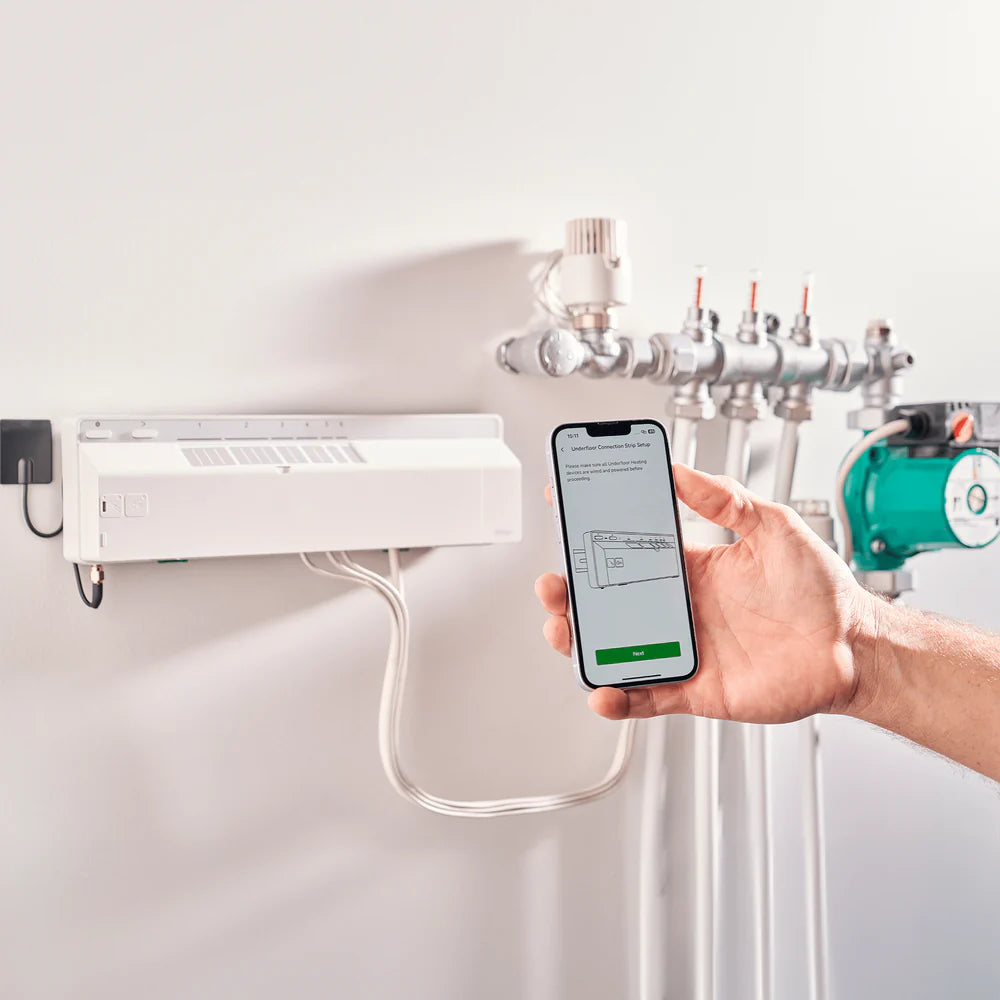

The Drayton Wiser Underfloor Heating Controller (WF762F1A0902) brings hydronic (water-based) underfloor heating into the Wiser smart heating system, so underfloor loops and radiators can be scheduled and controlled from one app. A single controller manages up to 6 zones and up to 14 normally-closed 230V thermal actuators, and it includes boiler and pump contacts so the heat source only runs when a zone is calling.

The controller talks to the Wiser HubR over 2.4GHz bi-directional wireless (ZigBee), so there is no signalling cable between the manifold and the room thermostats. Each zone is regulated by its own Wiser Room Thermostat. Add up to 3 controllers to one system for up to 16 zones, and use it with a reversible heat pump thanks to the heating/cooling input. It ships with a DIN rail and a remote antenna, and works with Amazon Alexa, Google Assistant and IFTTT through the Wiser Home app.

6

Zones per controller

14

Thermal actuator outputs

16

Zones across 3 controllers

30m

Wireless range (free space)

230V

Mains supply, 50Hz

Heat + Cool

Reversible heat pump input

Electrical installation

Installation must be carried out by a qualified, competent electrician in line with BS 7671 and the wiring diagram on the product. The controller is for fixed wiring only. Isolate the mains before opening the cover; some terminals can remain live even with the controller's own supply switched off.

Required, sold separately

A Wiser HubR, one Wiser Room Thermostat per zone and 230V normally-closed thermal actuators fitted to the manifold are all needed for a working system. None of these are supplied with the controller. The box contains the controller, DIN rail, remote antenna and installer guide.

Why choose the Wiser UFH Controller

Multi-zone hydronic control

Controls 6 independent zones per controller with 14 actuator outputs. Channels 1 and 2 can be associated with one room thermostat so a large room can drive up to 8 actuators.

Heating and cooling

Apply 230V to the heating/cooling input and the system switches to cooling. A dew sensor input turns cooling off if condensation is detected, and rooms such as bathrooms can be excluded from cooling in the app.

Boiler and pump control

A normally-open boiler relay (volt-free, or switched live 230V to a zone valve) and a pump contact. The pump runs for 2 minutes after the last valve closes, plus a short weekly pump exercise.

Overload protection

Channels switch one after the other with a delay (30 seconds) so every actuator never opens at once, and an internal 3.15A fuse protects the actuator outputs against short circuits.

Wiring test and offline commissioning

A built-in channel test opens selected or all valves for up to 4 hours, and doubles as an emergency mode. Per-channel LEDs show call for heat, delay and faults. The system can be set up without Wi-Fi.

Mixed radiator and UFH systems

Add Wiser Radiator Thermostats for a complete wet system. Set individual schedules per room, manual and away modes, and Eco mode and geofencing through the cloud features.

Cooling mode in detail

Only one heating/cooling input is required even with several controllers; the whole system changes to cooling together. Only rooms with underfloor heating will cool. An optional remote floor sensor (Drayton remote sensor 193720) can act as a high or low floor limit on one zone, and the Drayton dew sensor (193683) clips to the manifold.

Technical specifications

Identification and supply

Manufacturer

Drayton (Wiser range)

Part number

WF762F1A0902

Product type

Wiser UFH controller, heating/cooling, 230V

Power supply

230V AC +/-10%, 50Hz, fixed wiring

Internal fuse

3.15A

Relays

Normally open, 2(1)A

Zones and outputs

Room thermostat inputs

6 channels/zones (one Wiser Room Thermostat each)

Actuator outputs

Up to 14 normally-closed 230V thermal actuators

Actuators per channel

Channels 1-2: up to 4 each; channels 3-4: up to 2 each; channels 5-6: 1 each

Controllers per system

Up to 3

Zones per system

Up to 16 (max 6 devices per zone, max 32 devices per system)

Relay switching

Staggered, with delay between channels

Control and contacts

Boiler contact

Normally open; volt-free or switched live 230V; boiler off when all valves are closed

Pump contact

Pump runs for 2 minutes after the last valve closes; weekly pump protection run

Heating/cooling input

230V applied = cooling mode

Sensor inputs

Dew sensor and remote floor sensor

Wiring test

Select any channel combination; automatic stop after 4 hours

Indication

LEDs per channel, plus setup, pump, boiler and heating/cooling LEDs

Wireless

Protocol

2.4GHz bi-directional mesh (ZigBee)

Range

30m in free space

Maximum signal strength

14dBm (25mW)

Antenna

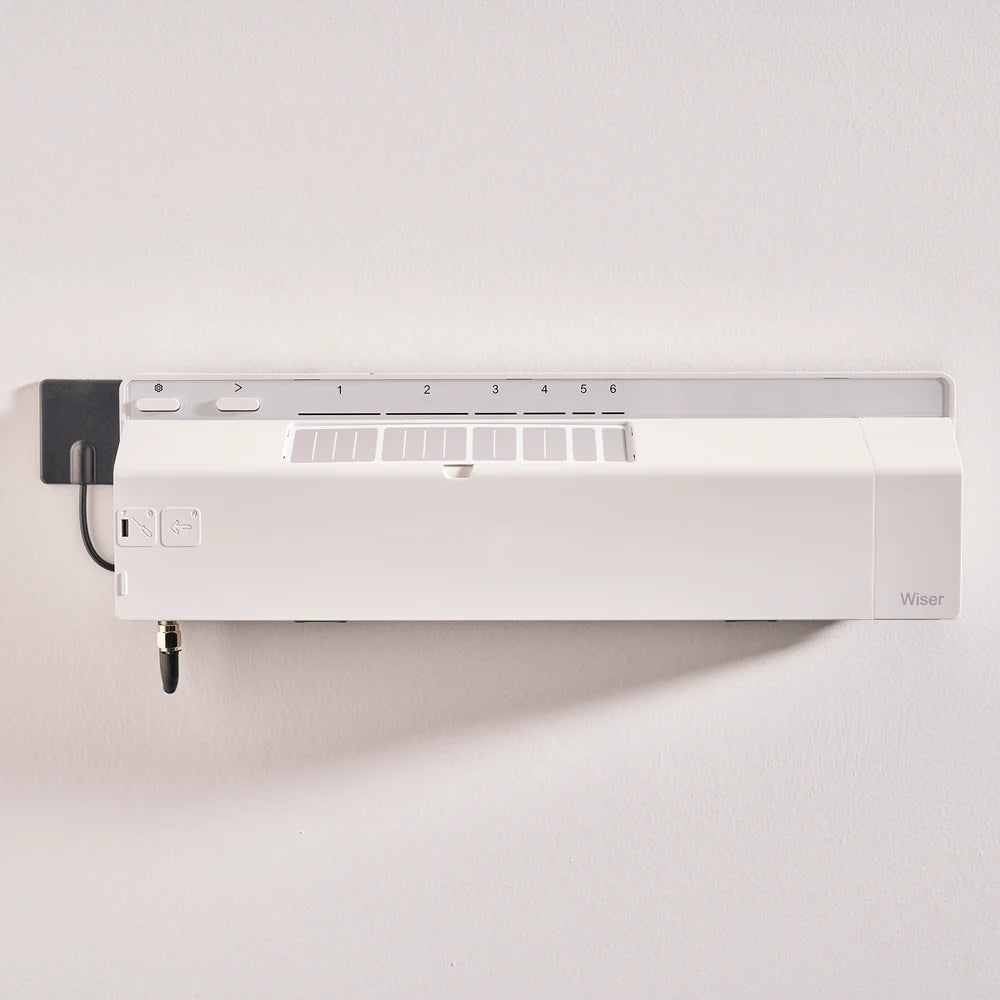

External antenna supplied; fit outside the manifold cabinet, not on its metal frame

Installation and environment

Mounting

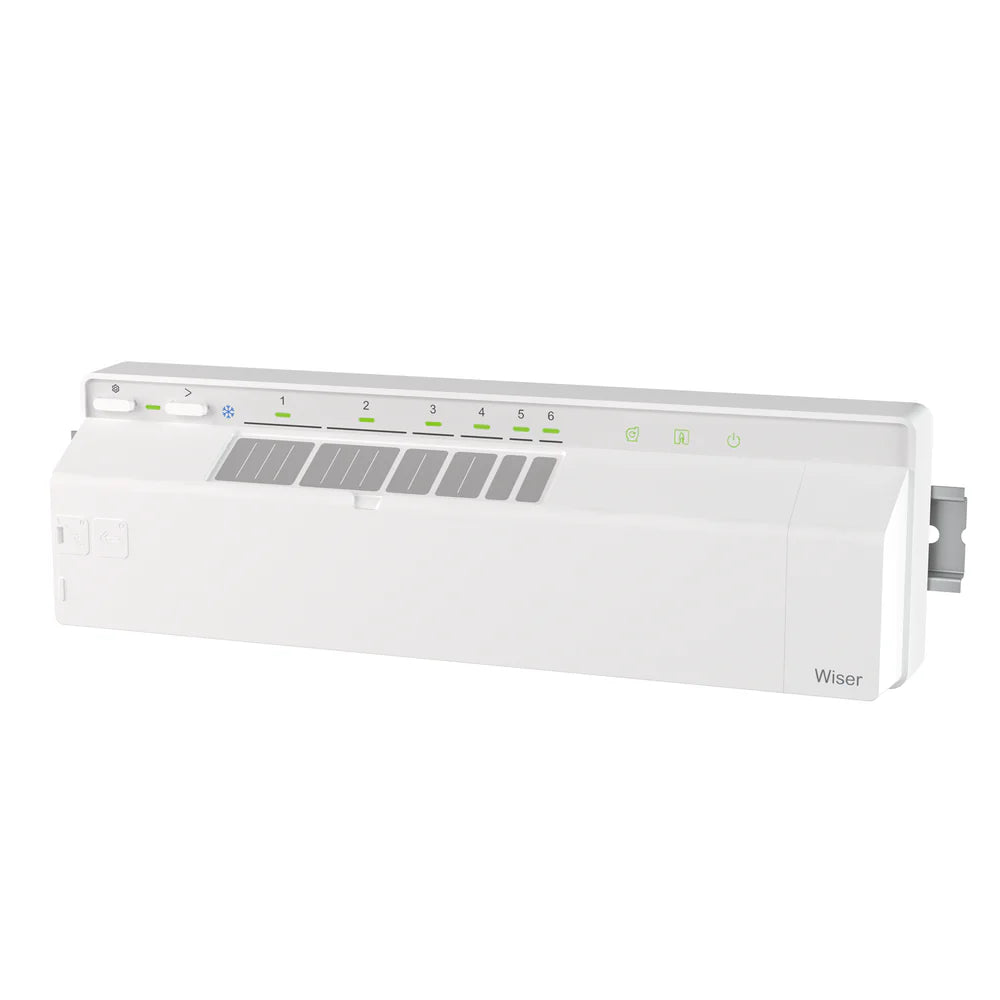

DIN rail (supplied); clips on and off

Dimensions

305 x 90 x 65mm (L x H x D)

Cable entry

Bottom only

Terminals

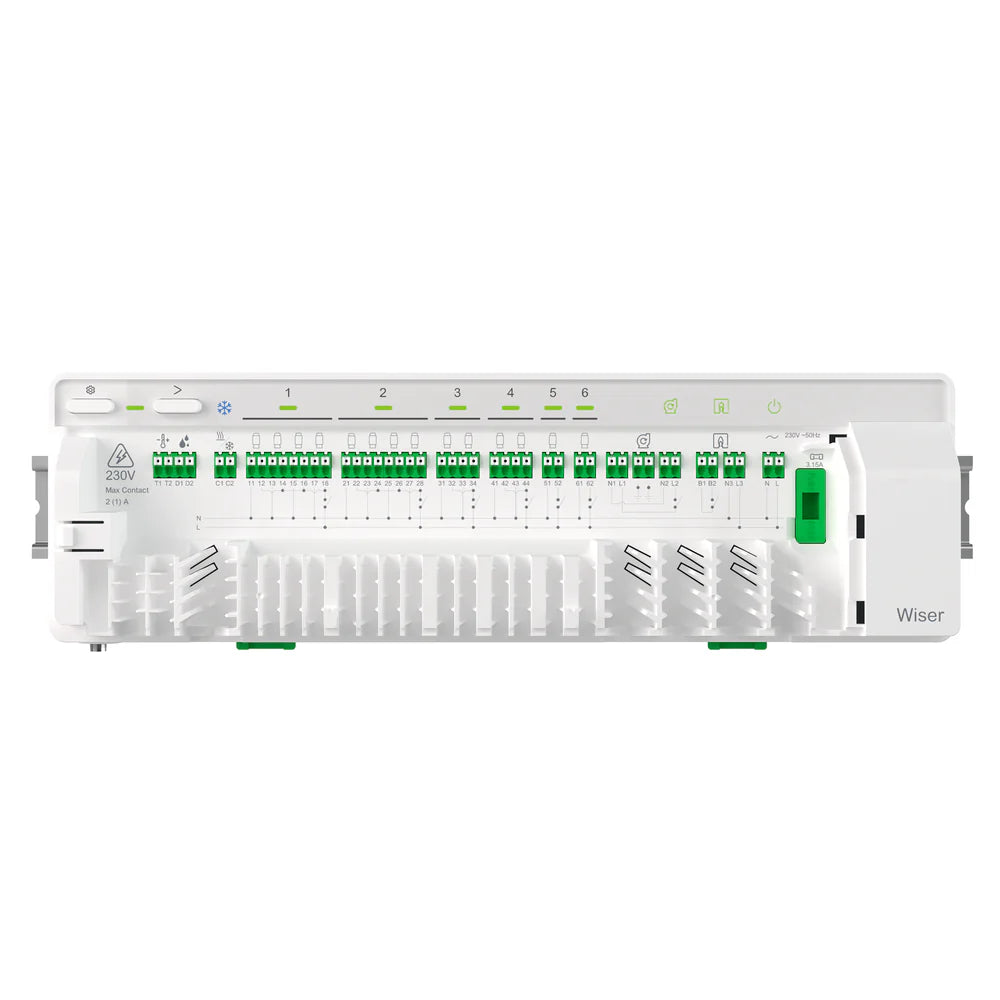

Screwless, 0.08-1.5mm2; strip 9mm of insulation

Minimum cable

Actuators and supply 0.75mm2 2-core flat; boiler, pump and heating/cooling 0.75mm2 2-core round; sensors 0.25mm2

Ingress protection

IP30 (dry, closed spaces only)

Protection class

Class II, double insulated; terminal provided for an external earth cable

Operating conditions

0 to 50C; 25 to 85% humidity, non-condensing

Storage conditions

-10 to 55C; 15 to 85% humidity

Standards

Conforms to EN 60730; radio equipment declared to RED 2014/53/EU

Compatibility

Required hub

Wiser HubR

Zone thermostats

Wiser Room Thermostat (one per zone)

Optional

Wiser Radiator Thermostats for mixed systems

App

Wiser Home app for iOS and Android

Voice and automation

Amazon Alexa, Google Assistant, IFTTT

Planning your manifold

Actuator allocation per channel

Channels

Max 3W actuators per channel

Combined

1 and 2

4

8

3 and 4

2

4

5 and 6

1

2

Controller total

14

Controllers and zones

Controllers

Maximum zones

1

6

2

12

3

16

Frequently asked questions

Do I need a Wiser HubR?

Yes. The controller joins the system through a Wiser HubR, which also serves radiator thermostats, room thermostats and other Wiser devices. Up to 3 UFH controllers can share one hub.

What is needed for each zone?

Each zone needs one Wiser Room Thermostat to measure room temperature, plus one or more thermal actuators fitted to the manifold loops for that room. The controller opens and closes the actuators and calls for heat from the boiler and pump.

Can it cool as well as heat?

Yes. With a reversible heat pump, apply 230V to the heating/cooling input and the system changes to cooling. The dew sensor input can stop cooling when condensation is detected, and individual rooms can be excluded from cooling in the app.

Can I commission it without Wi-Fi?

Yes. The wiring can be tested with or without the app, and Wiser can be installed and used without internet access by connecting directly to the hub at home. Remote access is not available in that mode.

How many actuators can I connect?

14 in total per controller: up to 4 each on channels 1 and 2, up to 2 each on channels 3 and 4, and 1 each on channels 5 and 6.

Can it run a system with underfloor heating only?

Yes. For a UFH-only system you can choose in the Wiser Home app whether the boiler is controlled by the boiler output on the controller or by the heating output on the HubR.
