WCED Fused Isolator Board 6-Way/8-Way | 32A MCB 63A Fuse

Description

The WCED fused isolator board is a versatile sub-board for solar points of connection, available in 6-way and 8-way versions. It features MCB protection on the solar line and fused protection on the combined path, giving cable protection in one simple-to-install unit.

Designed for projects where the electricity meters are located outside the flats, it simplifies installation and reduces cabling costs, and it accommodates all SolShare installation configurations, whatever the meter location. The enclosure is spacious enough to house the SolShare CT for a tidier, more compact installation. It comes as standard with a 32A MCB and a 63A BS88 (22 × 58) fuse, both easily swapped to suit your cable sizing or meter tail requirements.

32A

Standard MCB

63A BS88

Standard fuse, 22 × 58

6 or 8 way

Board sizes

CT space

Houses the SolShare CT

35A / phase

Max SolShare capacity

20kW

Typical max inverter

Safety and compliance

Installation must conform to BS 7671 and be carried out by a competent person. The flats' mains supply tails must be rated to carry both the DNO supply and the entire single-phase generation of the inverter. If they are not, additional fusing must be installed.

Check the MCB and fuse ratings

The MCB must carry the maximum single-phase output of the inverter, and the cable must be sized for the same load. Swap the standard 32A MCB and 63A fuse where your design requires different ratings.

Where it is used

Typical installs are where energy meters are in risers or co-located in a plant room.

Key features

Protection in one unit

MCB on the solar line and fused protection on the combined path in a single board.

All SolShare configurations

Suits every SolShare installation configuration regardless of meter location.

Room for the CT

A spacious enclosure houses the SolShare CT for a tidy install.

Swappable devices

The 32A MCB and 63A BS88 fuse can be changed to suit cable or meter tail needs.

Lower cabling cost

Reduces cabling costs where meters are outside the flats.

6-way or 8-way

Choose the board size to suit the number of connections on the project.

Available variants

Variant

Ways

Standard MCB

Standard fuse

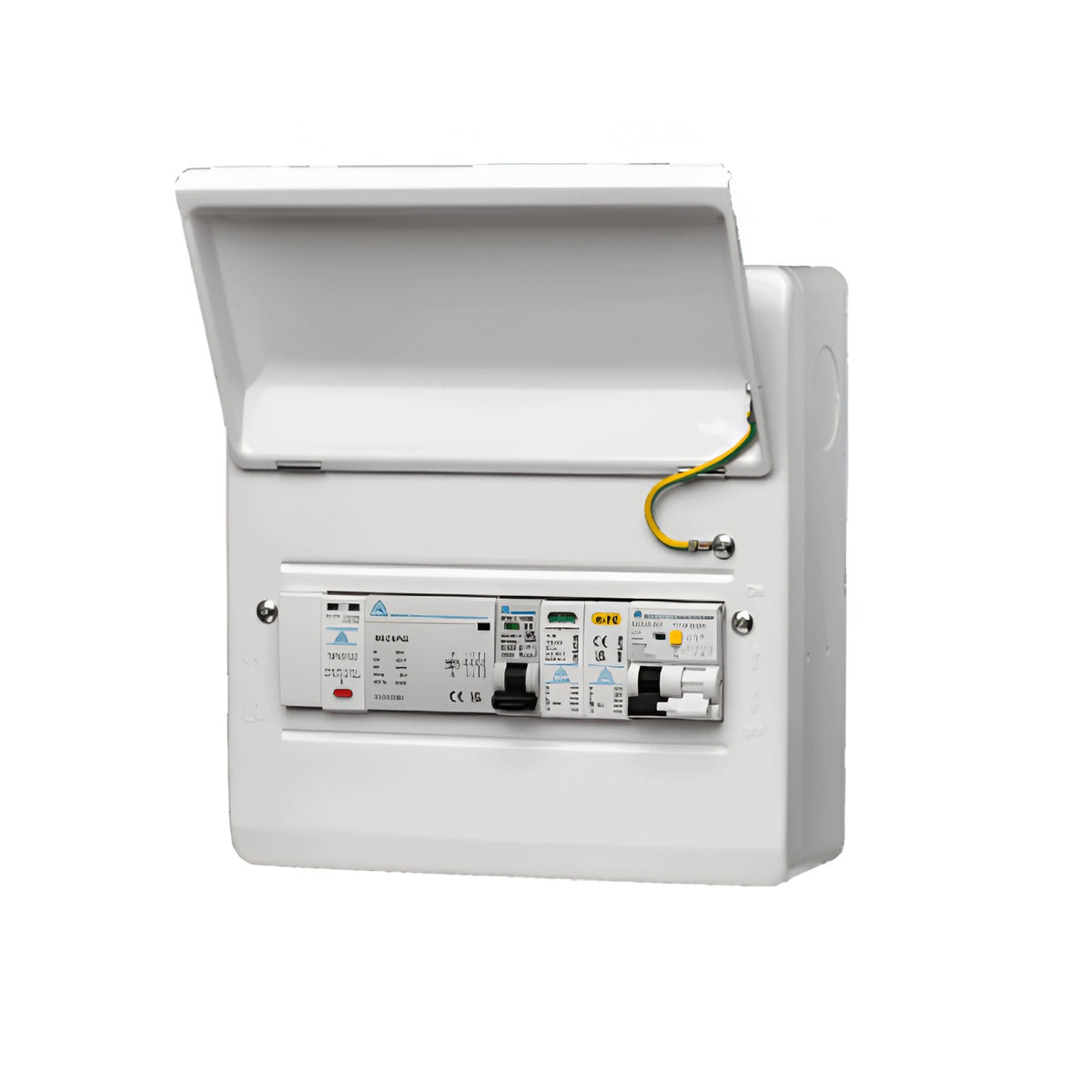

WCED Fused Isolator Board 6-way

6

32A

63A BS88 (22 × 58)

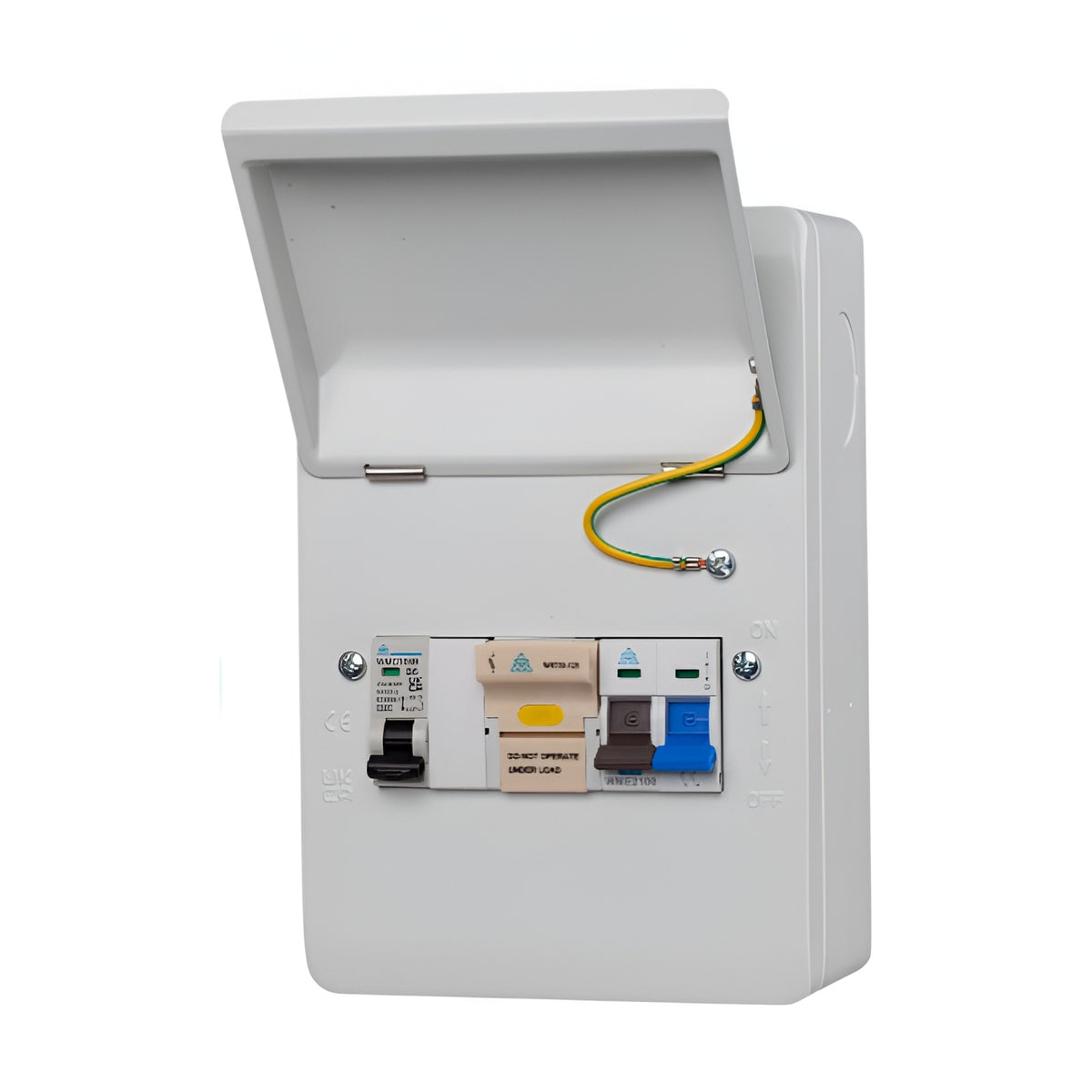

WCED Fused Isolator Board 8-way

8

32A

63A BS88 (22 × 58)

Technical specification

General

Parameter

Specification

Brand

WCED, for SolShare

Type

Fused isolator sub-board, solar point of connection

Sizes

6-way and 8-way

Standard MCB

32A, solar line

Standard fuse

63A BS88 (22 × 58), combined path

Enclosure

Houses the SolShare CT

System guidance

Parameter

Specification

Max. SolShare capacity

35A per phase, typically a 20kW inverter maximum

6-way board size (typical, for 25mm tails)

240mm high × 160mm wide

Typical locations

Meters in risers, co-located meters in a plant room

Frequently asked questions

What protection does the board include?

A 32A MCB on the solar line and a 63A BS88 (22 × 58) fuse on the combined path.

Can I change the MCB and fuse?

Yes. Both can be easily swapped to suit your cable sizing or meter tail requirements.

Is there space for the SolShare CT?

Yes. The enclosure is spacious enough to house the SolShare CT.

When should I use this board?

For projects where the meters are located outside the flats, to simplify installation and reduce cabling costs.

What is the maximum SolShare capacity?

35A per phase, which typically means a maximum 20kW inverter.
