Warmup Ultralight Electric UFH Insulation Boards - Heat Spreading, Decoupling and Acoustic

The Warmup Ultralight Electric UFH Insulation Boards for Decoupling Systems are specialized 4-in-1 composite boards designed to enhance electric underfloor heating systems, providing insulation, heat spreading, decoupling, and acoustic benefits for tiled and other floor finishes.

Product Description

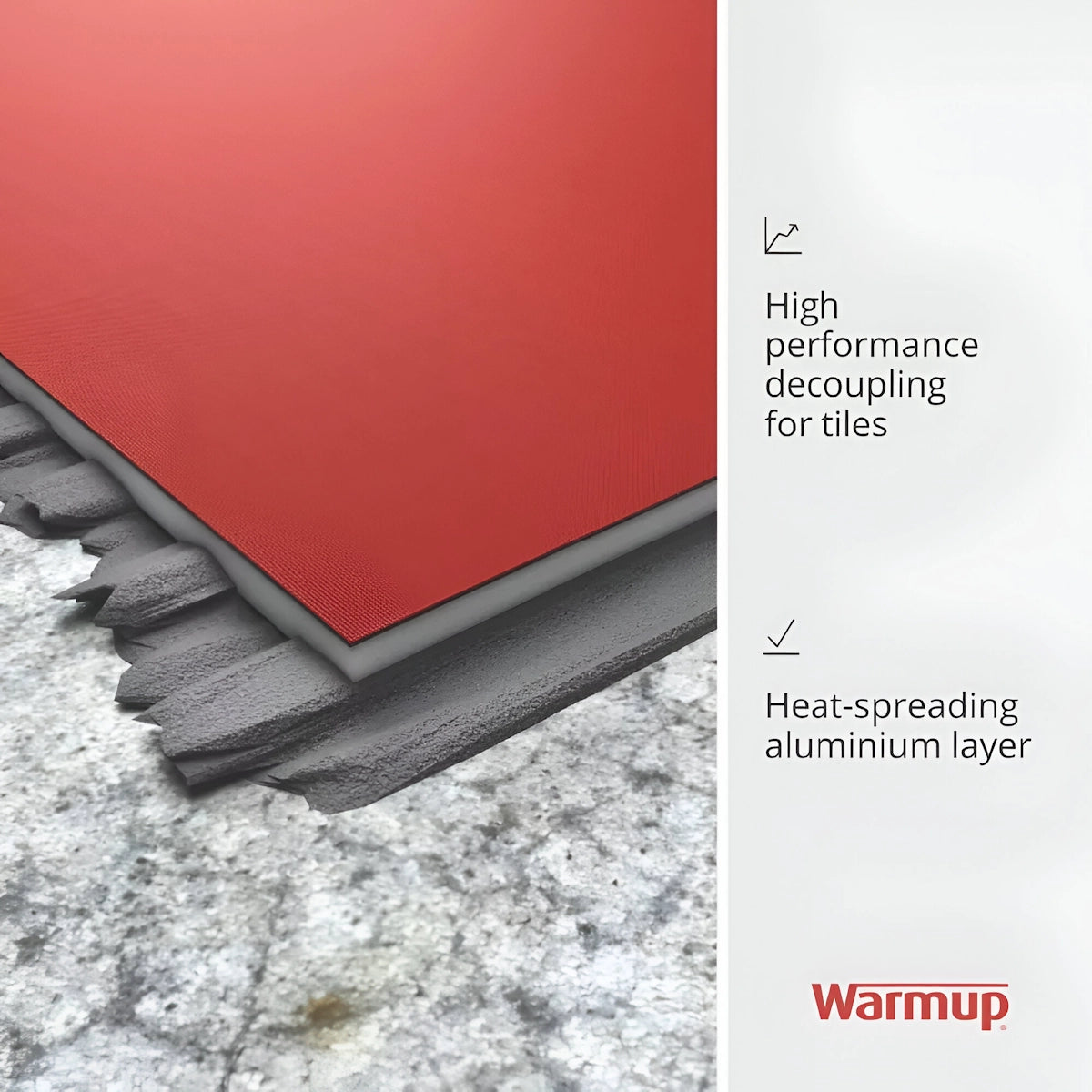

Warmup Ultralight Insulation Boards are engineered with a multi-layer construction for optimal performance in floor heating applications. Manufactured as flat, flexible sheets, they are water and mold resistant, lightweight, and easy to install. The boards feature a top non-woven fleece for direct adhesion of heating elements, an aluminum layer for even heat distribution, a PEF insulation core to reduce heat loss, and a bottom decoupling fleece to protect against subfloor movement. Ideal for use under electric UFH systems like DCM-PRO or Peel and Sticky UFH Mats, they significantly improve energy efficiency by reducing heat-up times by up to 78% (from 2.5 hours to 25-27 minutes) and saving up to 71% on energy costs. These boards also offer sound reduction comparable to dedicated acoustic products, making them suitable for residential and light commercial installations.

Key Features

• 4-in-1 functionality: Insulation, heat spreading, decoupling, and acoustic performance in one board.
• Lightweight design: Only 1.145 kg/m², easier to handle than cement-based boards; won't break if bent or dropped.

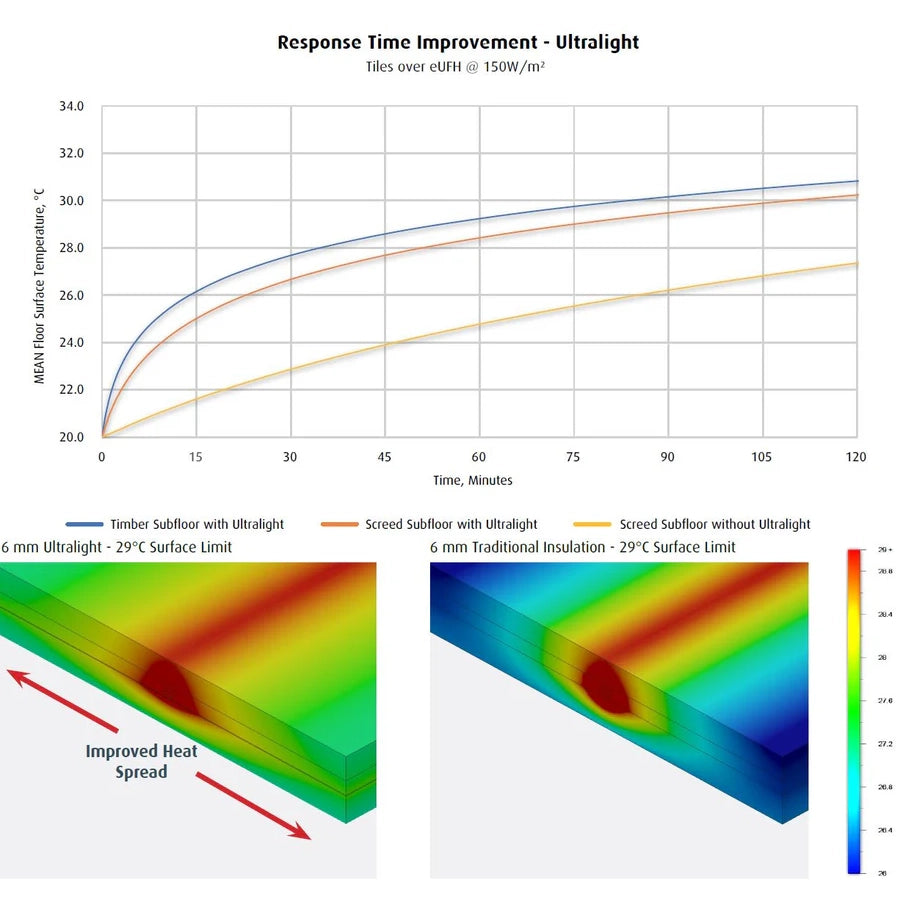

• Fast heat-up: Reduces ramp-up time by 78% and energy usage by 71%.
• Water and mold resistant: Durable for wet areas like bathrooms and kitchens.
• Even heat distribution: Aluminum layer ensures uniform warming.
• Decoupling protection: Guards tiled floors against cracks from subfloor movement.
• Acoustic benefits: Tested by Intertek, comparable to rubber, cork, or foam products.

Technical Specifications

• Model: Ultralight Insulation Boards.
• Material: Multi-layer composite: Non-woven fleece (top and bottom), aluminum heat-spreading layer, PEF insulation core.
• Thickness: 6 mm (1/4").
• Thermal resistance (RSI): 0.111 m²K/W.
• R-Value: 0.630 °F·ft²·h/BTU.
• Thermal conductivity: 0.054 W/mK.
• Compressive strength (10% compression): 32 psi (220 kPa).
• Fire rating: E.
• Certifications: Tested by Intertek for acoustic performance; CE/UKCA compliant (assumed based on brand standards).
• Warranty: 10 years.

Dimensions & Weights

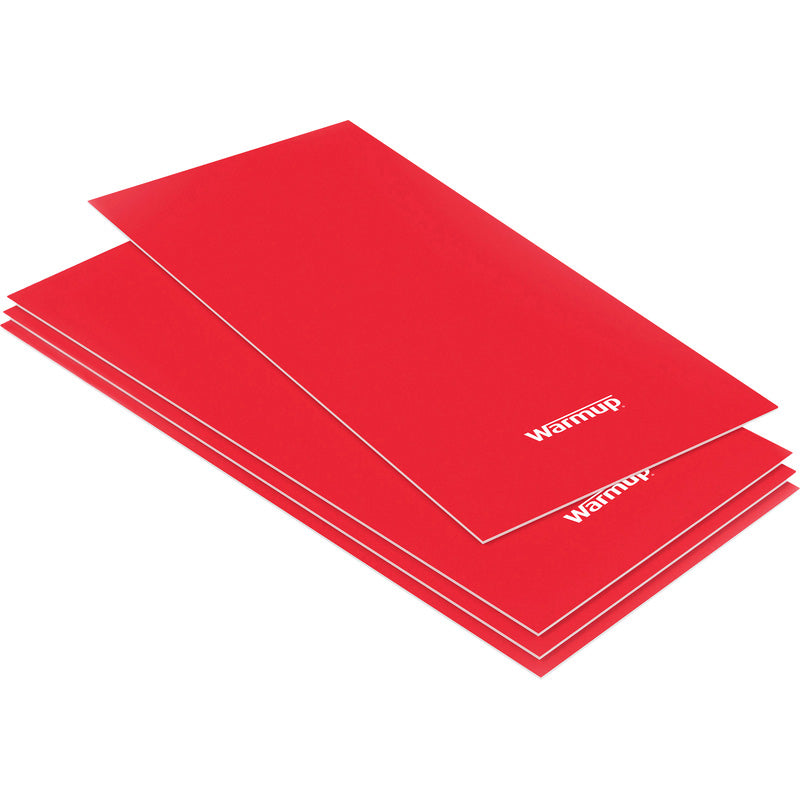

• Board dimensions: 1200 mm × 800 mm × 6 mm (approx. 3'11" × 2'7" × 1/4").
• Area per board: 0.96 m² (10.33 ft²).
• Weight per board: 1.1 kg (2.43 lbs).
• Weight per m²: 1.145 kg.

Available Variants

• WCI-01: Single board (0.96 m² coverage).
• WCI-06: Pack of 6 boards (5.76 m² coverage).
• WCI-16: Pack of 16 boards (15.36 m² coverage).

System & Application Notes

• Ideal for electric underfloor heating under tiles, stone, or other finishes in bathrooms, kitchens, and living areas.
• Compatible with Warmup systems like DCM-PRO, StickyMat, and Foil Heaters; install heating directly on top layer.

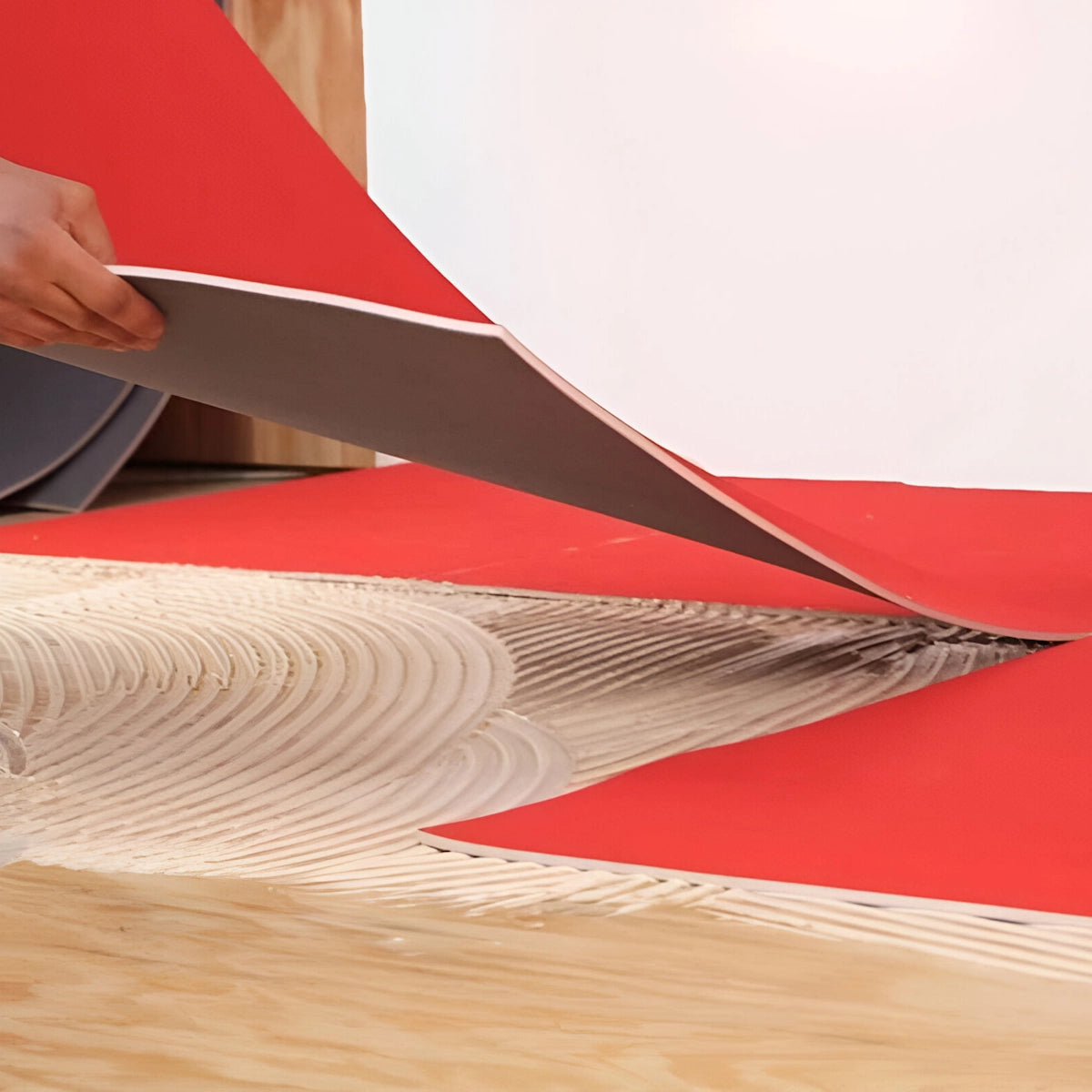

• Installation: Adhere to clean subfloors (concrete or wood) with modified thin-set mortar; stagger seams for thermal break.
• Suitable for self-leveling compounds up to 3/8"; not for layering multiple boards.
• Enhances smart thermostat integration for up to 25% energy savings.
• Professional installation recommended; follow Warmup guidelines for optimal performance.
