Wall Mount Support Bracket 90kg & 140kg

Description

The JET wall mount support bracket is a heavy duty electro-galvanised steel bracket for carrying outdoor equipment on a wall, finished in RAL 9002 with a polyester epoxy resin coating suitable for outdoor applications. It arrives pre-assembled with two adjustable rear feet, a wall fixing kit and insulating washers included, so it is ready to fit.

Choose the 90 kg rated bracket (800 mm deep) for lighter equipment or the 140 kg rated bracket (1000 mm deep), which also comes with a levelling system for the wall bar. Both are 550 mm wide and 375 mm high, carry a 2-year warranty and work as a replacement bracket where an old one is worn or damaged. Typical installs include wall-mounted outdoor units such as air conditioning condensing units.

90 / 140 kg

Max load ratings

800 / 1000 mm

Bracket depth

550 x 375 mm

Width x height

Galvanised

Electro-galvanised steel plate

Fixings included

Kit, feet and washers

2 years

Warranty

⚠ Check the load and the wall before you fix

The rating is the maximum load for the bracket. Check the full weight of the equipment you are mounting, including any accessories, and fix to a structurally sound solid wall. A wall fixing kit is supplied, but confirm it suits your wall type and use fixings rated for the load if it does not.

⚠ Check the fit before you order

Each bracket is 550 mm wide and 375 mm high, with a depth of 800 mm (90 kg) or 1000 mm (140 kg). The wall bar is drilled with slotted holes along its 550 mm length (layout in the specification below). Compare your equipment's footprint and mounting points with these dimensions before ordering.

ℹ Which rating do I need?

Pick the 90 kg bracket when the equipment weighs comfortably under 90 kg, and the 140 kg bracket for heavier units or where the longer 1000 mm depth suits the installation. Always check the weight in the equipment's installation manual.

Key features

🛠️

Heavy duty galvanised steel

Made from electro-galvanised steel plate with high resistance M6 x 70 grade 8.8 screws in the joints.

☔

Outdoor-ready finish

Polyester epoxy resin coating suitable for outdoor applications, in RAL 9002.

⚙️

Adjustable rear feet

Two adjustable polypropylene rear feet give you adjustment at the rear of the bracket when fitting.

📦

Fixings included

The wall fixing kit and insulating washers are supplied in the pack, together with the rear feet.

🧩

Pre-assembled

Supplied pre-assembled to save time on site.

📏

Level the wall bar

The 140 kg bracket is supplied with a levelling system to adjust the wall bar. Both brackets carry a 2-year warranty.

Technical specification

Product

Brand

JET Range

Type

Wall mount support bracket

Mounting

Wall mounted, for solid wall surfaces

Typical use

Wall-mounted outdoor equipment, including air conditioning condensing units; replacement wall brackets

Material

Electro-galvanised steel plate

Treatment

Polyester epoxy resin coating suitable for outdoor applications

Colour

RAL 9002

Joint

High resistance screw M6 x 70, grade 8.8

Adjustment

2 rear adjustable polypropylene feet

Warranty

2 years

In the package

Included

Pre-assembled bracket, 2 adjustable rear feet, wall fixing kit, insulating washers

Levelling system

Supplied with the 140 kg bracket (JETBRACK140) only

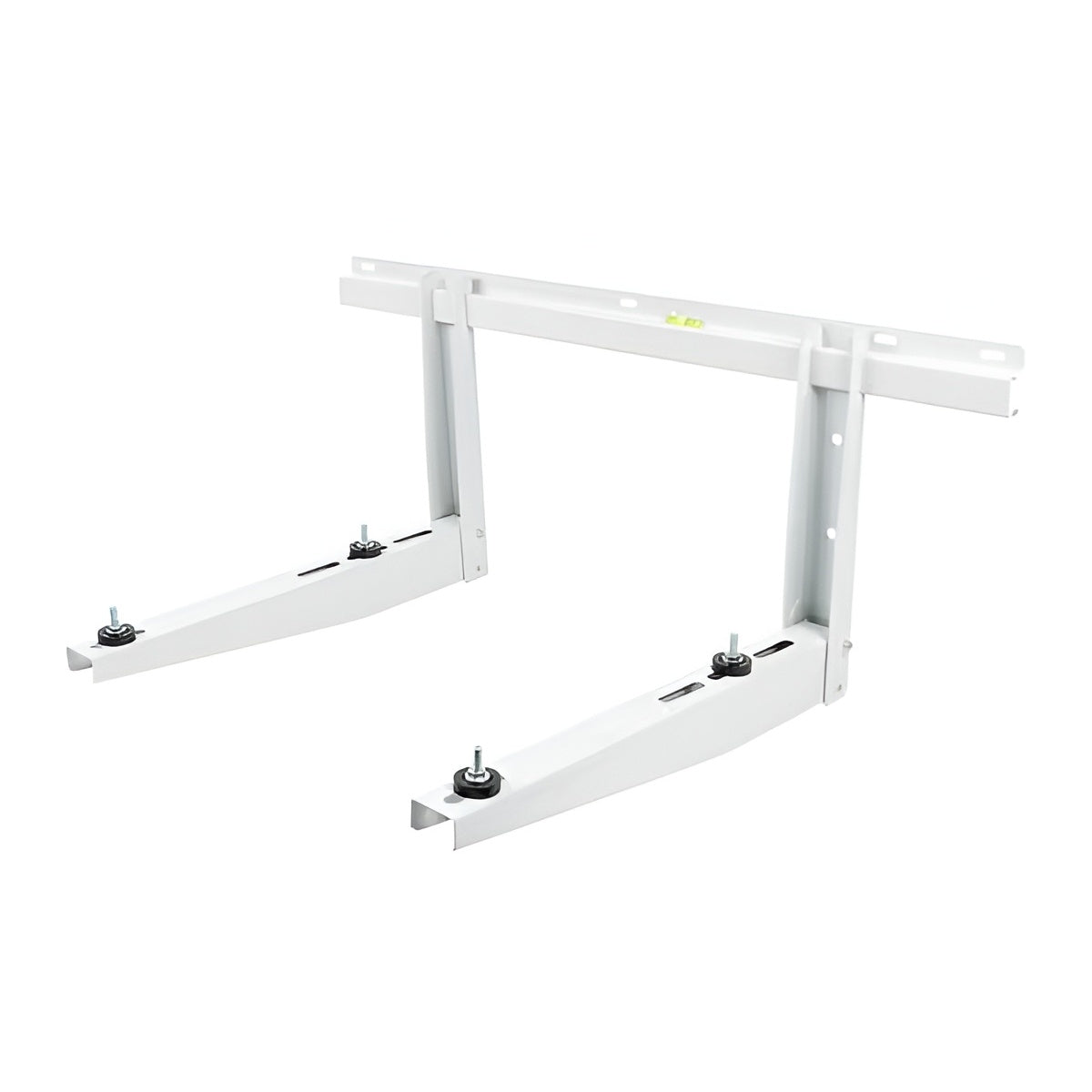

90 kg bracket

Manufacturer part number

JETBRACK90

EAN / barcode

5029125670528

Maximum load rating

90 kg

Depth

800 mm

Width

550 mm

Height

375 mm

Weight

4.2 kg

Pack dimensions

90 x 95 x 800 mm, carton box

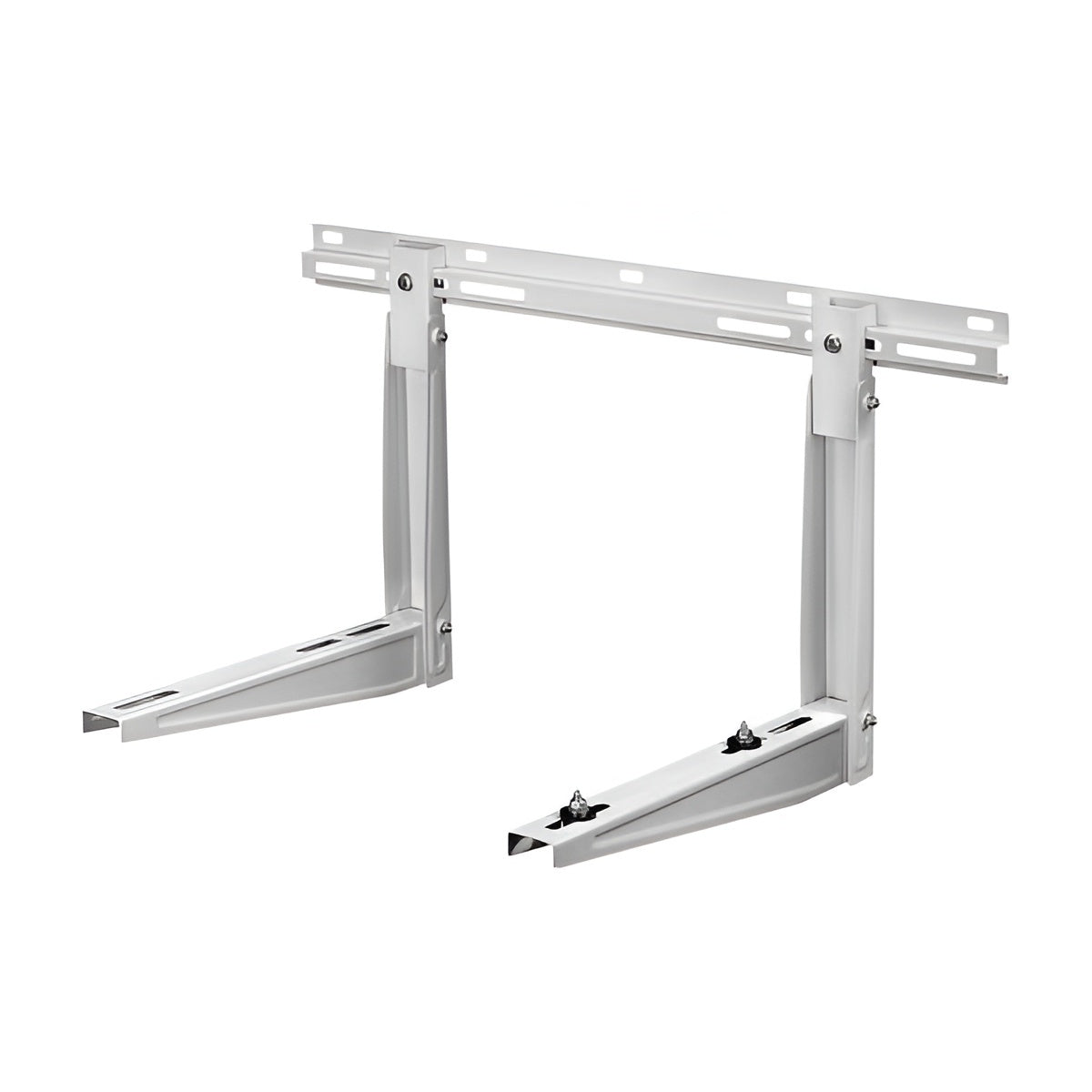

140 kg bracket

Manufacturer part number

JETBRACK140

EAN / barcode

5029125670535

Maximum load rating

140 kg

Depth

1000 mm

Width

550 mm

Height

375 mm

Weight

5.0 kg

Pack dimensions

90 x 95 x 1060 mm, carton box

Wall bar drilling layout

Slot layout along the 550 mm bar (mm, left to right)

70 | 60 slot | 12 | 60 slot | 12 | 60 slot | 200 | 62 slot | 14

Available ratings

Maximum load

Part number

Depth

Width x height

Weight

Pack size

90 kg

JETBRACK90

800 mm

550 x 375 mm

4.2 kg

90 x 95 x 800 mm

140 kg

JETBRACK140

1000 mm

550 x 375 mm

5.0 kg

90 x 95 x 1060 mm

Frequently asked questions

Which bracket do I need, 90 kg or 140 kg?

Match the bracket to the weight of the equipment. The 90 kg bracket suits lighter units and the 140 kg bracket suits heavier ones. Check the weight in your equipment's installation manual and choose the higher rating if you are close to the limit.

What is included in the pack?

Each bracket arrives pre-assembled with two adjustable polypropylene rear feet, a wall fixing kit and insulating washers. The 140 kg bracket also includes a levelling system for the wall bar.

Is it suitable for outdoor use?

Yes. The bracket is electro-galvanised steel with a polyester epoxy resin coating that is suitable for outdoor applications, finished in RAL 9002.

What are the dimensions and drilling layout?

Both brackets are 550 mm wide and 375 mm high. The 90 kg bracket is 800 mm deep and the 140 kg bracket is 1000 mm deep. Along the 550 mm wall bar the slots are laid out as 70, 60 (slot), 12, 60 (slot), 12, 60 (slot), 200, 62 (slot) and 14 mm, left to right.

How do I level the bracket?

The two rear feet are adjustable, and the 140 kg bracket includes a levelling system for the wall bar. For the 90 kg bracket, use a separate spirit level when fitting the wall bar.

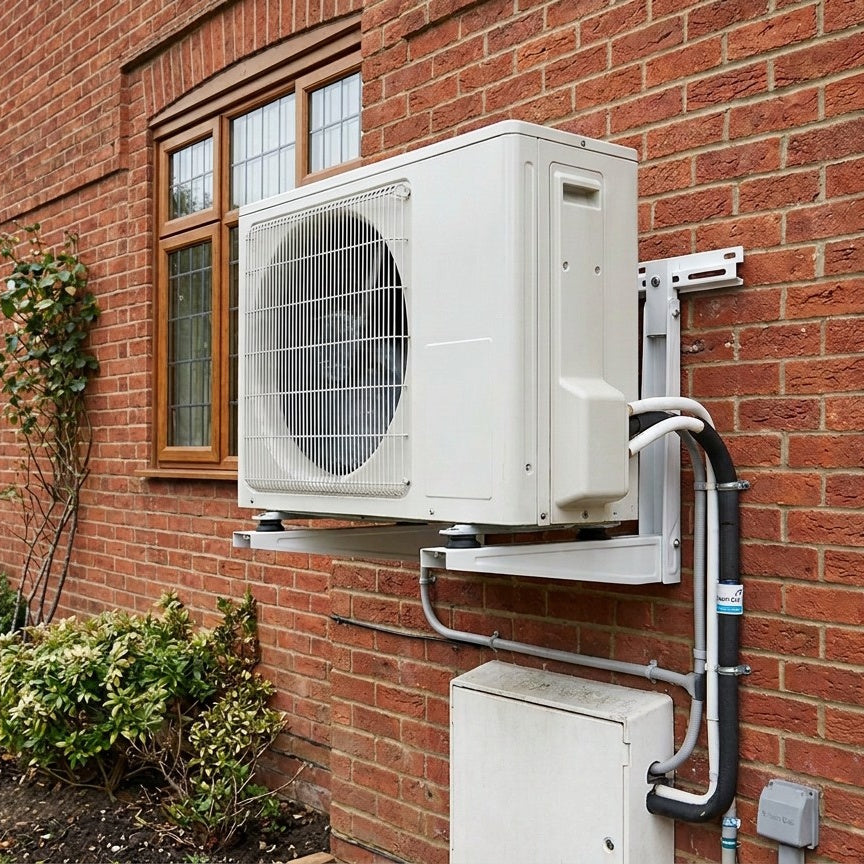

Can I use it for an air conditioning outdoor unit?

Yes, wall brackets of this type are commonly used for outdoor condensing units. Check the unit's weight, mounting foot spacing and depth against the bracket dimensions before ordering.
