Victron EV Charging Station NS 22kW Type 2 | EVC200300200

Description

The Victron EV Charging Station NS is a three-phase and single-phase AC charging station delivering up to 22 kW on three phases or 7.3 kW on a single phase, with a configurable output of 6 A to 32 A. It is technically identical to the original Victron EV Charging Station but with a modern, slimmer design and no built-in LCD screen.

Setup and monitoring are done wirelessly through VictronConnect over Bluetooth or the integrated web interface via a WiFi access point or your local network. When connected to a Victron GX device and the VRM portal, it can be controlled remotely and used with Automatic mode, which charges the car only from excess solar power before it is exported to the grid.

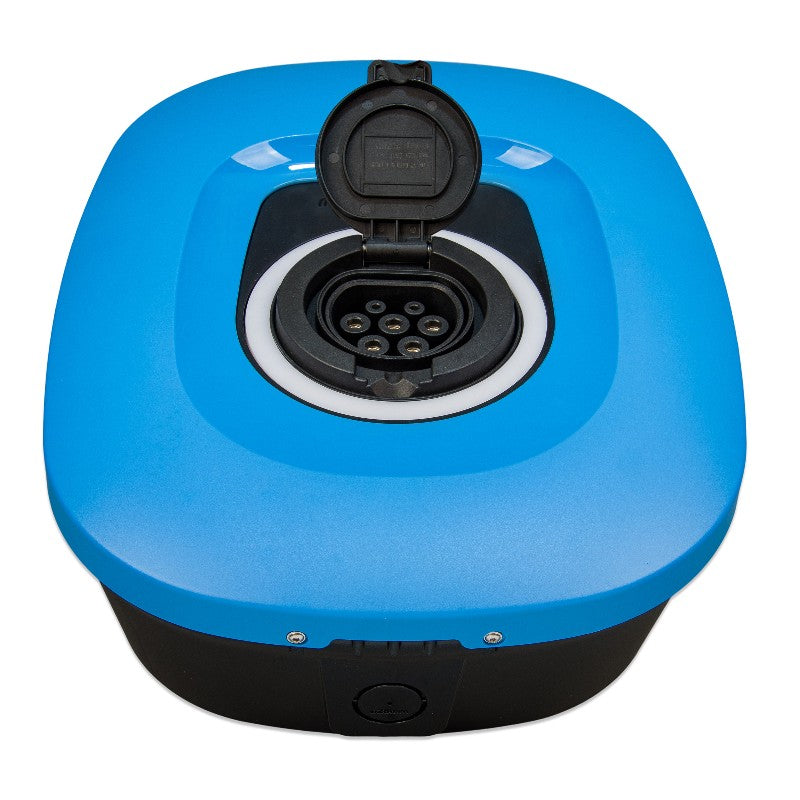

A fully programmable RGB light ring around the Type 2 charging port shows the charging status at a glance. The tough plastic enclosure is designed for harsh weather and can be mounted indoors or outdoors on a wall or pole. It ships with a blue front, and black or white fronts are available separately.

22 kW

Three-phase maximum

7.3 kW

Single-phase maximum

6–32 A

Configurable charge current

Type 2

IEC 62196 connector

IP44

Indoor or outdoor mounting

55 effects

Configurable light ring

Installer Safety and Regulatory Requirements

Installation must be carried out by a qualified, licensed electrician in accordance with BS 7671, including Section 722 for EV charging equipment. Protect the AC input with a fuse or magnetic circuit breaker rated at 40 A or less, and fit an external RCD. Victron recommends a Type B RCD (40 A if charging mostly at 22 kW), subject to local legislation. The station must be connected to earth at all times or it will not allow charging. Recommended cable cross-section is 6 mm².

Charging Cable Not in the Box, and Automatic Mode Needs a GX Device

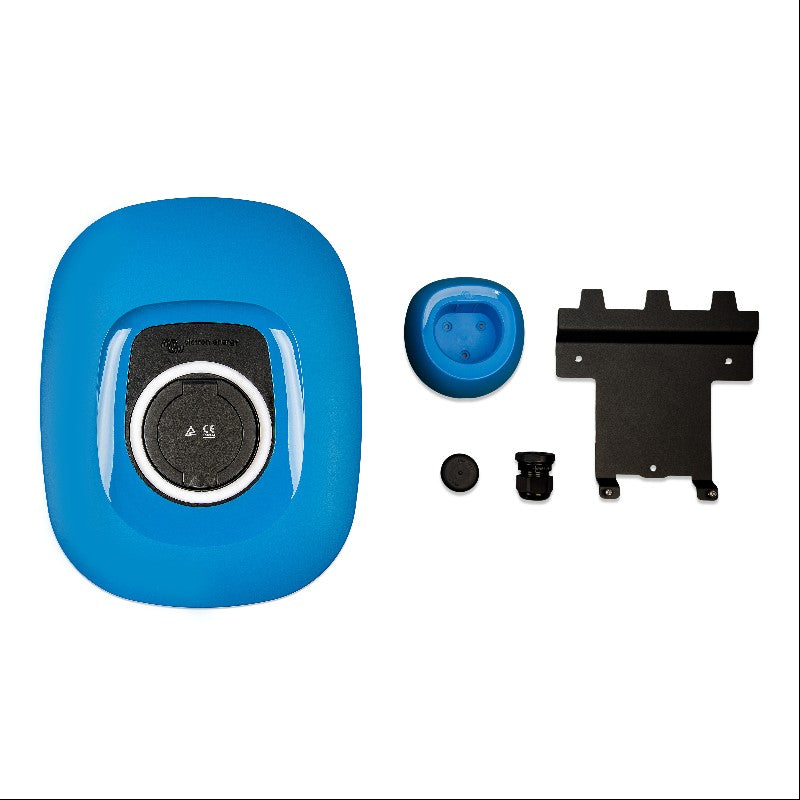

The manufacturer's box contents list a mounting plate, 28 mm nylon cable gland, Type 2 cable plug holder dummy socket and rubber plug. No charging cable is listed, so you will need a suitable Type 2 cable. Automatic mode requires a GX device in the system; Manual and Scheduled modes work without one. WiFi is 2.4 GHz only (802.11 b/g/n), and the station has no RFID.

Solar-Powered Charging

In Automatic mode charging starts when the car is connected and enough excess solar is available. The minimum is 6 A at 230 V, so more than 1.38 kW of excess solar power is needed. An optional setting tops up from the grid when solar is short, for example drawing 580 W from the grid to add to 800 W of excess solar and reach the 1380 W minimum.

Key Features

22 kW Three-Phase or 7.3 kW Single-Phase

Delivers up to 22 kW AC on three phases or 7.3 kW on a single phase at 32 A per phase, with maximum and minimum charging current each configurable between 6 A and 32 A.

Three Charging Modes

Manual for a set current from 6 A to 32 A, Automatic to charge from excess solar, and Scheduled with a fully programmable scheduler for cheaper overnight charging.

Victron GX and VRM Integration

Control and monitor from a GX device touch display, Remote Console and the VRM portal and VRM App, with real-time and custom reports, remote firmware updates and dashboard controls.

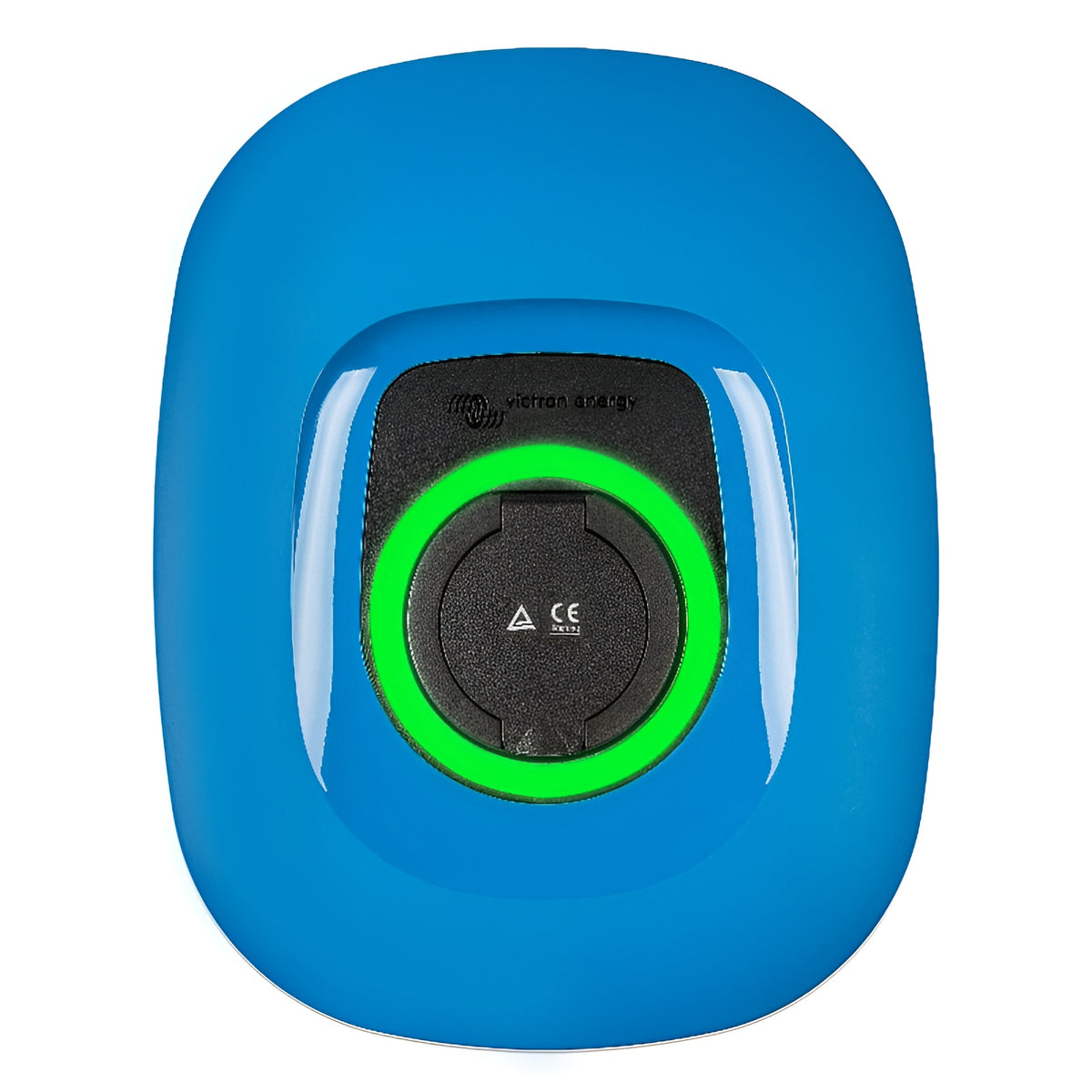

Programmable RGB Light Ring

A ring around the charging port shows disconnected, connected, charging, charged and other states, with 55 light effects, adjustable brightness and the option to turn it off at night.

Bluetooth, WiFi and Web Interface

Set up and control through VictronConnect, the built-in web page or Modbus TCP, with WiFi in access point or station mode. Enable the Modbus TCP IP whitelist for added security.

Overload Protection and Load Sharing

With a GX device, the station reduces charging current when the system inverter reports an overload, and multiple stations in one system share the available power.

Charging Modes at a Glance

Mode

What it does

GX device required

Manual

Charges at a set current from 6 A to 32 A; start and stop from the web interface, VictronConnect, GX device or VRM

No (optional)

Automatic

Detects excess solar power and uses only that to charge the vehicle, with an option to top up from the grid

Yes

Scheduled

Charges at set times and currents, repeating daily, Monday to Friday, weekends or custom days

No (optional)

Technical Specifications

Electrical

Input voltage range

170 – 265 V AC, 50 Hz

Rated charge current

32 A per phase

Nominal power

22 kW (three-phase); 7.3 kW (single-phase)

Current output range

6 – 32 A; maximum and minimum current configurable

Self-consumption

15 mA at 230 V

Power terminals

6 – 10 mm² / AWG 10 – 8

Means to disconnect

External circuit breaker, 40 A maximum or recommended

Protection required

External RCD (Type B recommended)

Connectivity and Control

Connector type

IEC 62196 Type 2

WiFi

802.11 b/g/n, 2.4 GHz only

Control

Web page, GX device over Modbus TCP, VictronConnect via Bluetooth

Data communication

Modbus TCP over WiFi, Bluetooth

Light ring

Programmable RGB, 55 light effects

Diagnostics

Detects welded relay contacts, missing protective conductor, missing ground and shorted CP; UK units also report light sensor and tamper detection codes

General and Enclosure

Operating temperature

−25 °C to +50 °C

Storage temperature

−40 °C to +80 °C

Humidity

95 %, non-condensing

Protection category

IP44; ventilation not required

Front colour supplied

Light Blue (RAL 5012); Traffic Black (RAL 9017) and Traffic White (RAL 9016) available separately

Mounting

Wall or pole, on a solid, flat vertical surface

Weight

3 kg

Dimensions (h × w × d)

372 × 292 × 122 mm

Part number (MPN)

EVC200300200

Safety standards

IEC 61851-1, IEC 61851-22

Frequently Asked Questions

Is a charging cable included?

The manufacturer's box contents list does not include a charging cable. The station has a Type 2 connector and includes a Type 2 cable plug holder dummy socket, so you will need a suitable Type 2 charging cable for your vehicle.

Does it have RFID, and how do I stop unauthorised use?

There is no RFID. To prevent unauthorised use, disable EV charger autostart in the general settings. Charging can then only be started or stopped from the web interface, VRM App widget, VRM controls or VictronConnect.

Do I need a GX device?

Only for Automatic mode, which needs communication between a GX device and the charging station. Manual and Scheduled modes work stand-alone, although a GX device can still be installed.

How much solar do I need for Automatic mode?

The minimum EV charge current is 6 A at 230 V, so you need more than 1.3 kW of excess solar. Some vehicles need a higher minimum, for example 10 A for the Renault Zoe. An optional setting adds grid power to make up any shortfall.

Can I install more than one in the same system?

Yes. Multiple EV Charging Stations can be used in one system and the available power is shared between them.

What if the light ring bothers the neighbours at night?

The light ring can be dimmed or fully disabled in the Light Ring menu by setting the brightness to 0 or to a lower level.
