Verplas 150mm Round Duct Straight Connector

Description

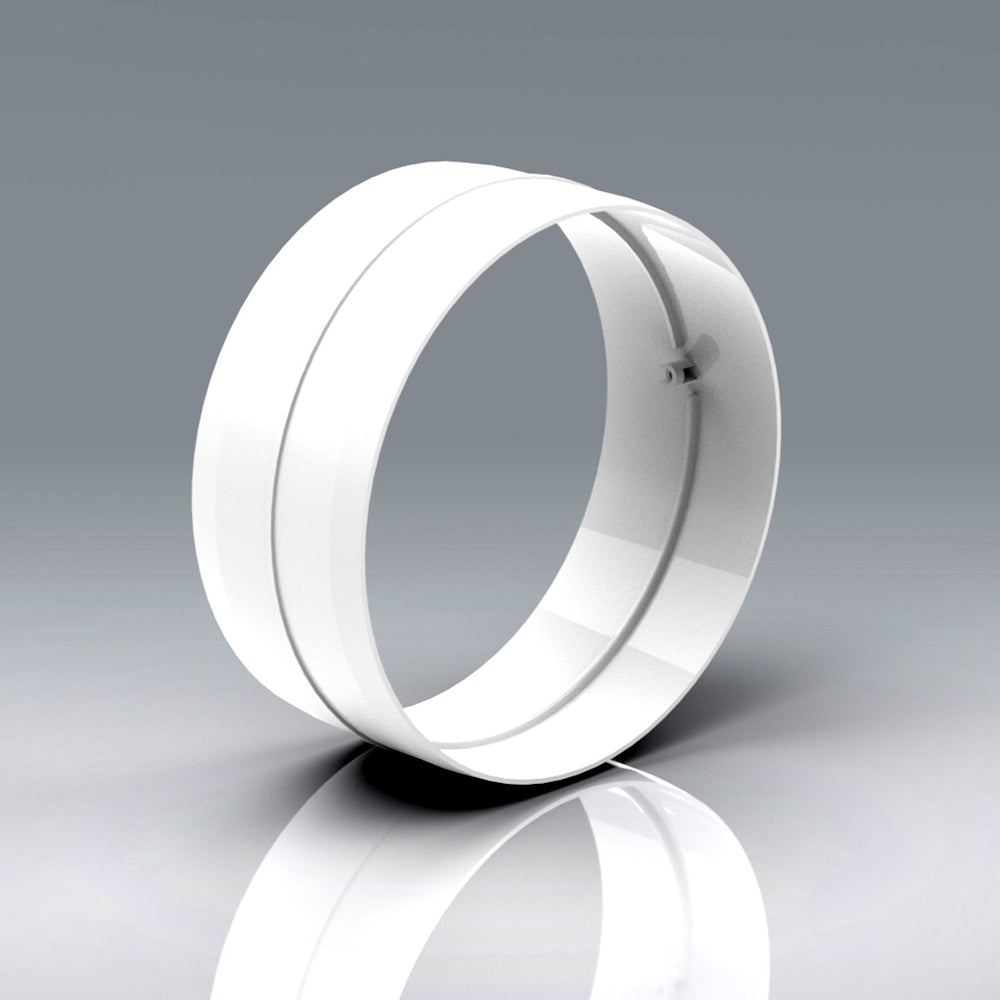

The Verplas VKC365 is the standard 150mm round straight connector for the Verplas System 150 rigid duct range. It provides a quick, secure, push-fit joint between two 150mm duct lengths — or between a duct length and a fan spigot or terminal fitting — without tools, tape, or sealant. Made from white uPVC, it is lightweight, durable, and fully compatible with the complete System 150 range of bends, T-pieces, valves, and grilles.

150mm

Diameter

Push-Fit

Tool-Free Joint

Straight

Connector Type

White uPVC

Material

System 150

Compatible

Note — Connector with Damper: The Verplas VKC363 is an alternative connector that includes an integral back-draught damper. Use VKC363 where a non-return function is required at the joint (e.g. single-fan extract systems).

Key Features

Straight Push-Fit Joint

Creates a simple, airtight straight joint between two 150mm duct sections — the most frequently used fitting in any System 150 installation.

White uPVC Construction

Manufactured from white uPVC matching the duct pipe colour for a clean, consistent installation appearance.

Tool-Free Assembly

The female socket accepts both male spigot ends of adjacent duct sections — no tools, clamps, or sealant required under normal installation conditions.

Available with Damper

The equivalent VKC363 connector includes a back-draught damper for single-fan extract applications where a non-return valve is required at the connector location.

Compact Profile

The connector's slim coupling body adds minimal length to the duct run, keeping the system compact in ceiling voids and loft spaces.

System 150 Compatible

Works with all System 150 duct pipes, bends, T-pieces, telescopic pipes, and terminal fittings from the Verplas round ducting range.

Specifications

Verplas SKU	VKC365
Diameter	150 mm
Type	Straight Connector (no damper)
Material	White uPVC
Damper Version SKU	VKC363 (150mm Round Connector with Damper)
System	Verplas System 150 — 150mm Round Ducting

Frequently Asked Questions

What is the difference between VKC365 and VKC363?

The VKC365 is a plain straight connector with no back-draught damper. The VKC363 includes an integral damper flap. Use VKC363 where a non-return function is required at that joint.

Do I need to use tape or sealant with this connector?

Under normal domestic installation conditions, no sealant is required. For higher-spec airtightness (e.g. Passivhaus), joints may be sealed with approved duct tape.

Can I use the VKC365 to connect a rigid duct section to flexible ducting?

Not directly — the VKC365 is designed for rigid-to-rigid joints. For flexible duct connections, use the male spigot of the fitting directly with a worm clip (VKC DIY674) to secure the flex hose.

How many connectors do I need per 2m duct run?

One connector is needed at each duct-to-duct or duct-to-fitting joint. A single 2m length plus one connector extends the run to the next fitting or terminal.
