60 kW DC OutputSimultaneous Dual ChargingIP55 RatedIK10 Impact ProofCE CertifiedOCPP 1.6J4G Modem IncludedRFID Included

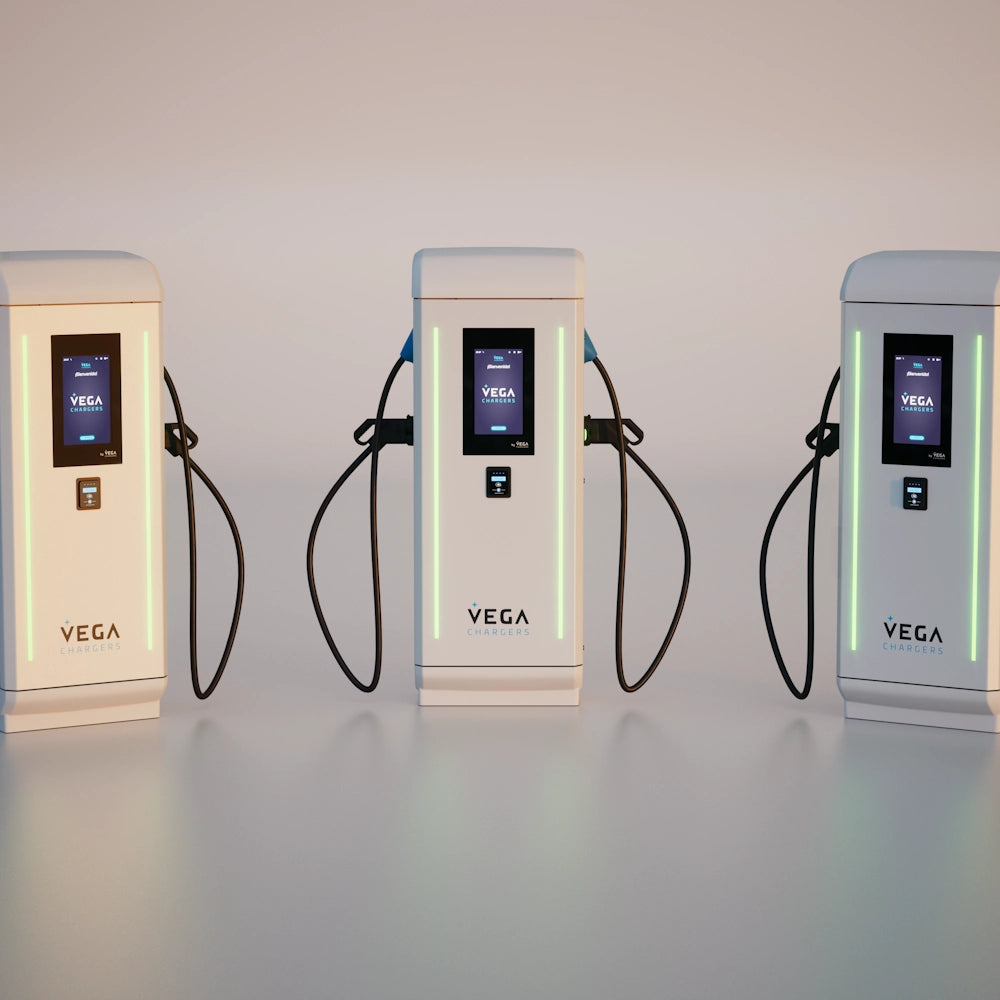

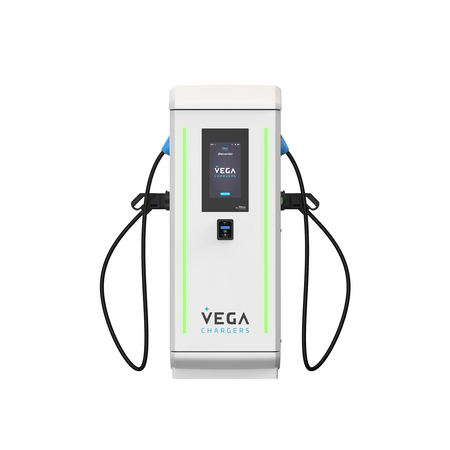

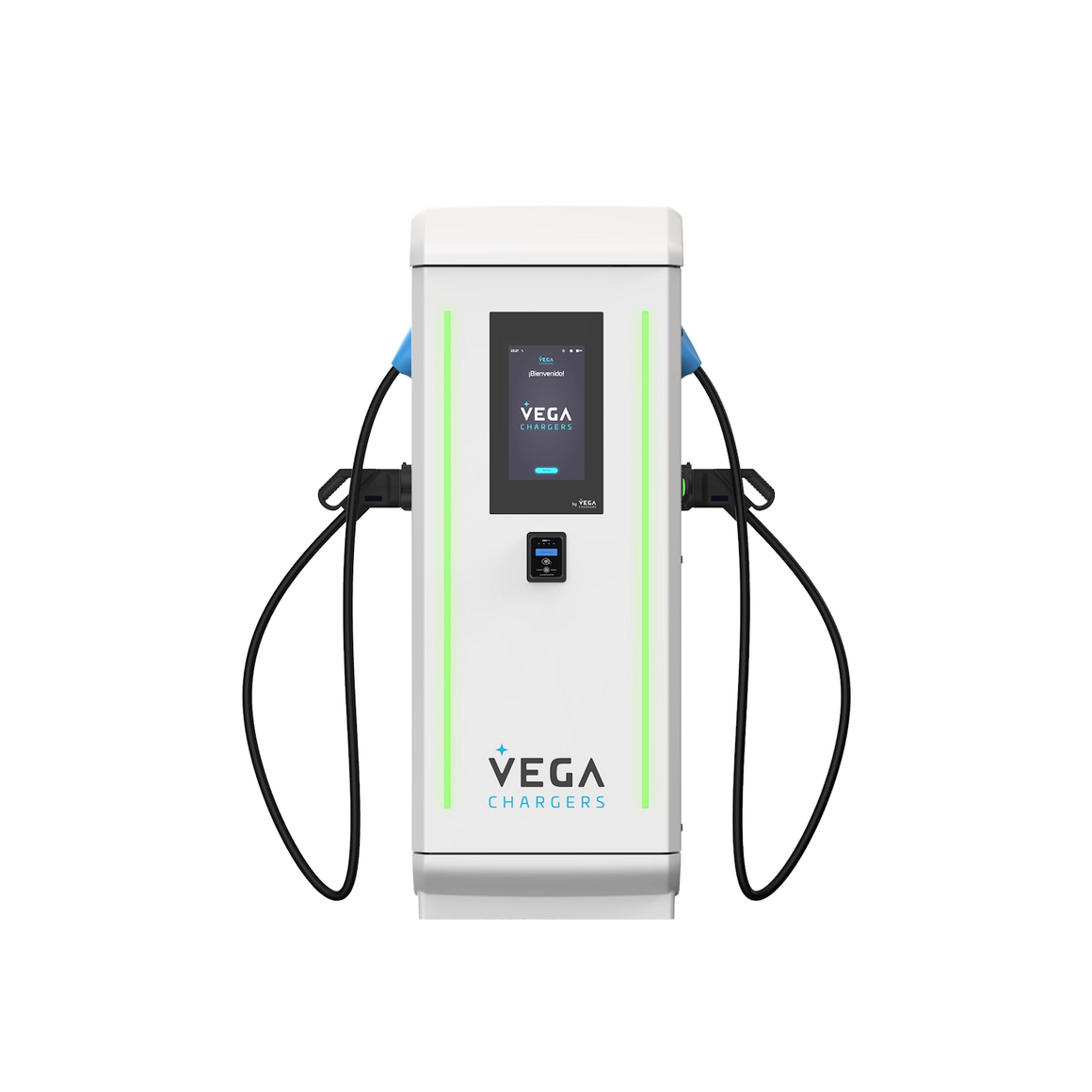

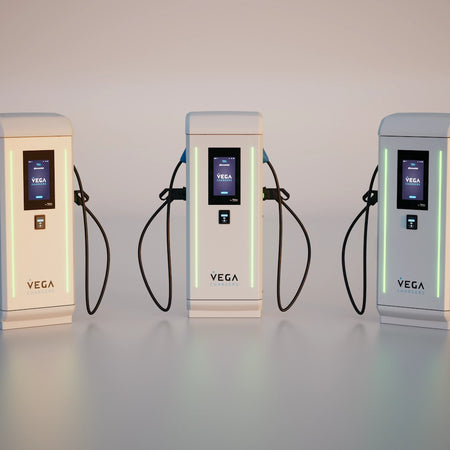

The VEGA Chargers ALOHA Lander DC 60 kW is a ground-mounted DC fast charger engineered for locations that need reliable, simultaneous charging for two vehicles in a compact footprint. With up to 400 km of range delivered per hour of charge, it is designed for sessions between 15 and 60 minutes — ideal for service stations, retail car parks, workplaces and fleet depots. Its modular architecture and side-ventilation design enables back-to-back installation to maximise space efficiency. Standard equipment includes a 10.1" TFT touchscreen, RFID card reader, 4G modem and OCPP 1.6J integration, with HMI customisable logos to match your brand identity.
Key Features
Simultaneous Dual-Vehicle Charging
Two CCS-2 connectors charge two vehicles at the same time, with Dynamic Load Management automatically splitting available power between them.
Dynamic Load Management
Intelligently distributes available grid capacity across active connectors — no overloads, no manual adjustment required.
Smart Charging
Cloud-based energy management via OCPP 1.6J enables remote monitoring, scheduling and optimisation from any back-office platform.
Autocharge (ISO 15118)
Plug & Charge authentication — drivers simply connect the cable and charging begins automatically, no card or app needed.
10.1" TFT Touchscreen & RFID
Intuitive colour touchscreen interface with integrated RFID reader supporting MIFARE Classic, DESfire EV1/EV2 and NFC Forum Type 4 cards.
HMI Customisable Logos
Brand the charger interface with your own logos and colour scheme — ideal for operators, fleets and white-label deployments.
Cashless Payment Terminal
Accept tap-to-pay transactions without prior driver registration via optional integrated payment terminal.
Back-to-Back Installation

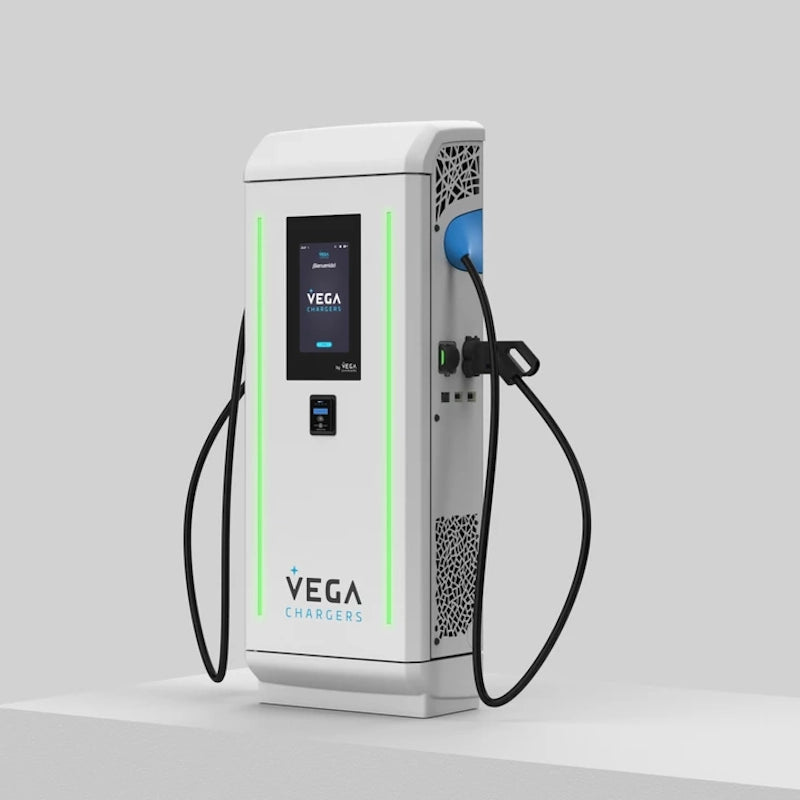

Side-ventilation design allows units to be installed back-to-back, doubling the charging density per metre of installation space.
Typical Applications

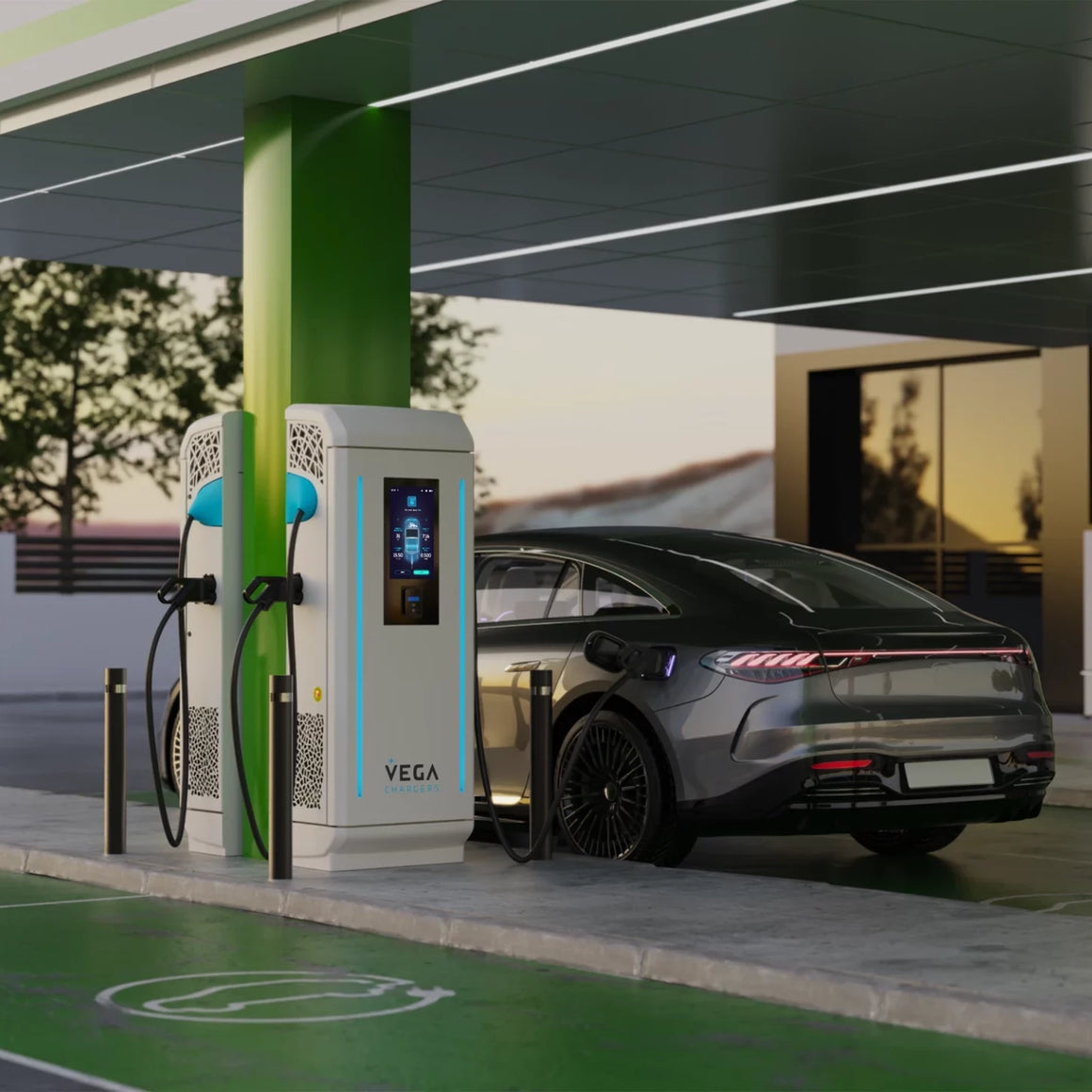

Service Stations & Mobility Hubs
Office Buildings & Workplaces
Malls & Supermarkets
Public & Private Car Parks
Corporate Fleets & Car Sharing
Service Vehicles & Public Transport
Technical Specifications
AC INPUT
Supply Voltage
400 Vac ± 10% (3P+N+PE)
Frequency
50 / 60 Hz
Power Factor
> 0.99
Efficiency
> 95% at nominal power
THDi
< 5%
Earthing System
TT / TN-S
DC OUTPUT
Max. Output Power
60 kW (@ V ≥ 375 Vdc)
Max. Output Current
150 A (single) / 2 × 80 A (simultaneous)
Output Voltage Range
150 – 1000 Vdc
Output Connectors
2 × CCS-2 (CHAdeMO + CCS-2 also available)
Cable Length
4.5 m per connector
Metering
DC Official meter certified (optional)
MECHANICAL
Dimensions (H × W × D)
757 mm × 475 mm × 275 mm
Weight
59 – 68 kg (depending on variant)
Mechanical Impact Protection
IK10
Housing Material
Stainless steel and PUR (V0) — customisable colour
Installation Method
On wall or pedestal
ENVIRONMENT
Ingress Protection
IP55
Operating Temperature
-10°C to +55°C (-30°C to +55°C with optional heater)
Storage Temperature
-35°C to +70°C
Relative Humidity
5% to 95% non-condensing
Cooling System
Exhaust fan
Noise Level
≤ 55 dBA (1 m, all directions)
Max. Altitude
2000 m
GENERAL
User Interface
10.1" TFT colour touchscreen (standard)
Communication Protocol
OCPP 1.6J; Modbus TCP; Modbus RTU
Communication Interface
4G (standard); RS485; Ethernet
Access & ID
RFID reader (standard) — MIFARE Classic / DESfire EV1, EV2; NFC Type 4; Autocharge; PIN code; White list
ℹ Installation Note: This product requires installation by a qualified electrician. Ensure supply capacity, earthing system and protection devices comply with local wiring regulations and the technical specification above.
Frequently Asked Questions
Can this charger really charge two vehicles at the same time?
Yes. The ALOHA Lander 60 kW features two CCS-2 connectors and Dynamic Load Management that automatically divides the 60 kW capacity between both connectors — for example, 2 × 30 kW when both vehicles are connected simultaneously.
What is back-to-back installation and why does it matter?
The ALOHA Lander's side-ventilation system allows two units to be installed directly back-to-back, so you can serve four vehicles from two chargers in the footprint of one conventional bay. This maximises revenue per square metre of car park space.
Does OCPP 1.6J integration work with any back-office platform?
OCPP 1.6J is an open, industry-standard protocol supported by virtually all major charge-point management systems. The unit also supports Modbus TCP and Modbus RTU for building energy management integration.
Can operators brand the charger interface?
Yes. The HMI supports customisable logos, allowing operators, fleets and white-label partners to display their own branding on the touchscreen interface.
What access methods does it support?
RFID cards (MIFARE Classic, DESfire EV1/EV2, NFC Forum Type 4), ISO 15118 Autocharge (plug & charge), PIN code and internal white list. An optional cashless payment terminal allows ad-hoc tap-to-pay access.
