Description

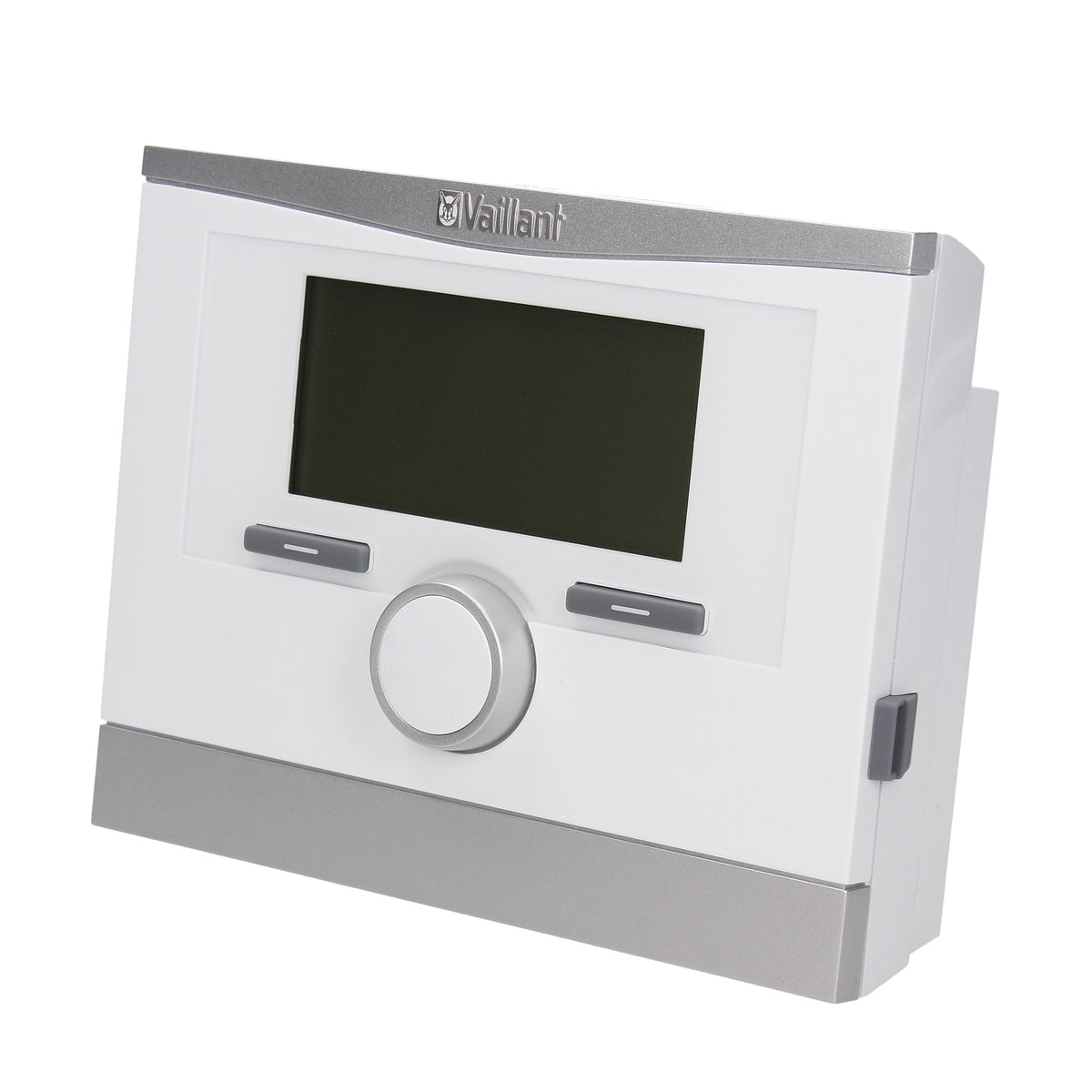

The Vaillant VRC700f is a wireless RF digital weather compensator and programmable room thermostat designed to give precise control over Vaillant heating and hot water systems. By using an outdoor temperature sensor and eBUS communication, it adjusts heating output to match changing weather conditions, helping the system maintain comfort while supporting efficient operation.

With a clear backlit display, flexible heating and hot water schedules, a holiday mode and permanently stored programmes, the VRC700f is a practical control upgrade for homeowners and a straightforward system control for installers. It is compatible with the current Vaillant boiler range and suitable for use with S Plan and Y Plan systems.

Wireless

RF system control

5-30°C

Temperature range

ErP 6

Control class

Battery

LR06 power supply

eBUS

System communication

115 mm

Control height

Useful information: The VRC700f uses weather compensation to modulate the heating system in response to outdoor conditions. As outside temperatures fall, it can increase heat delivery, as conditions improve, it can reduce output to avoid unnecessary energy use.

Compatibility note: This control is intended for use with Vaillant heating appliances via an eBUS interface. The wireless outdoor temperature sensor and radio receiver should be positioned where radio signal strength is sufficient. Installation, commissioning and electrical connections must be carried out by a competent, qualified person.

Model identification: The listing reference for this product is 0020259829.

Key Features

Wireless Weather Compensation

The VRC700f communicates wirelessly with the heating system and outdoor sensor, allowing heating output to respond intelligently to external temperature changes.

Programmable Comfort

Create up to three heating and three hot water time periods, giving households flexible control over daily comfort and hot water availability.

eBUS Modulating Control

Using eBUS communication, the control can work with compatible Vaillant appliances to support fully modulating, efficient heating operation.

Clear Digital Display

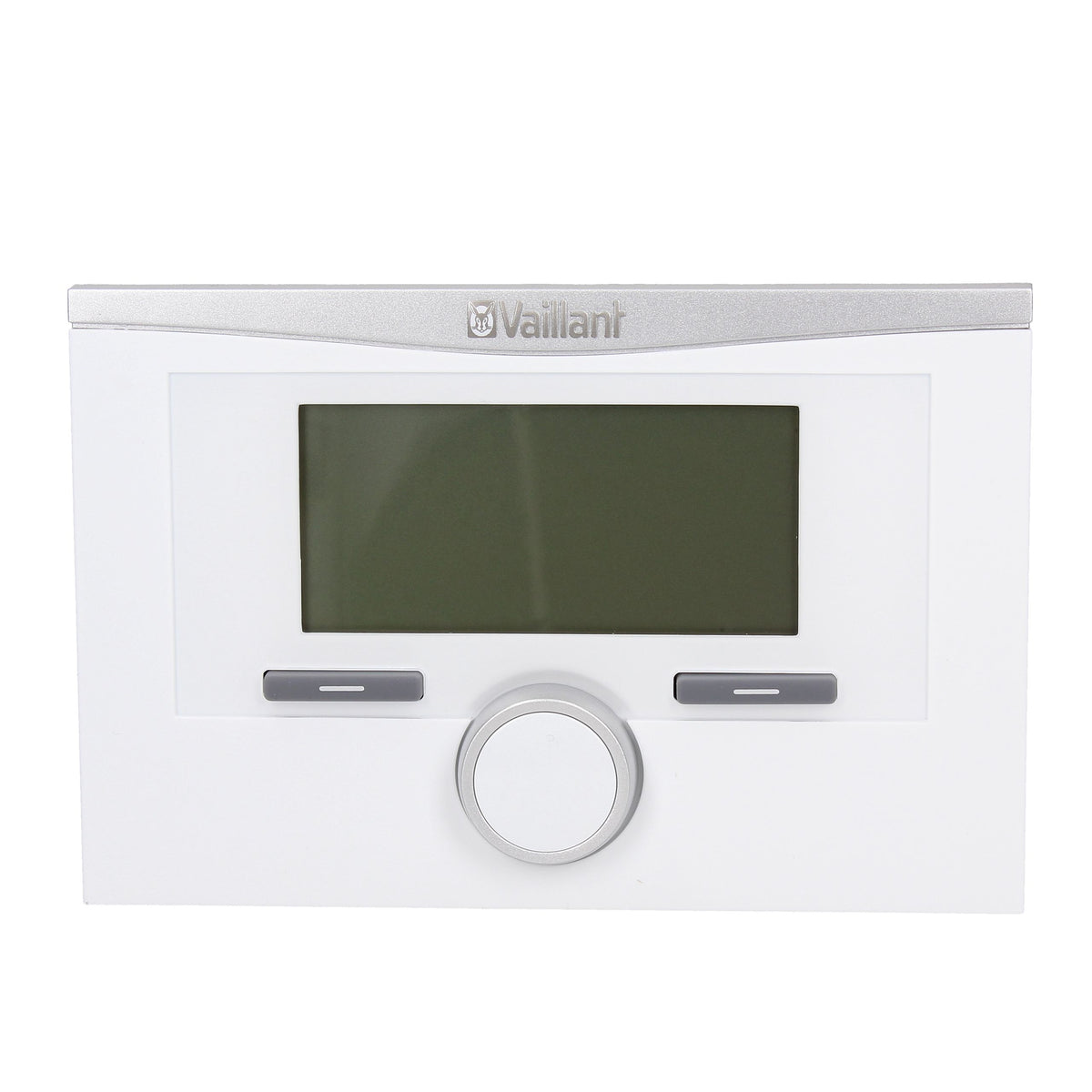

A high contrast backlit display and familiar menu structure make temperatures, schedules and system information easy to view and adjust.

Holiday Mode

The holiday function prevents unnecessary heating and hot water operation while the property is unoccupied, then restores the programme on return.

Permanent Programme Memory

Time and temperature settings are stored in permanent memory, helping retain programmed settings even if power to the heating system is interrupted.

Technical Specifications

General

Brand

Vaillant

Product range

VRC700f

Product type

Wireless RF digital weather compensator and programmable room thermostat

MPN

0020259829

EAN

4024074828311

Colour

White

Performance

Adjustable temperature range

5-30°C

ErP class

6

ErP contribution

4%

Time periods

3 heating and 3 hot water periods

Electrical & Connectivity

Power supply

Battery powered

Battery type

4 x LR06 batteries

Communication

Wireless RF and eBUS

Radio frequency band

868.0-868.6 MHz

Maximum transmission power

Less than 25 mW

Outdoor range

Up to 100 m, subject to site conditions and signal strength

Dimensions & Environment

Dimensions (H x W x D)

115 x 147 x 50 mm

Maximum ambient temperature

50°C

Operating temperature range

0-60°C

Compatibility & Certification

Compatibility

Current Vaillant heating and hot water products; S Plan and Y Plan systems

Outdoor sensor

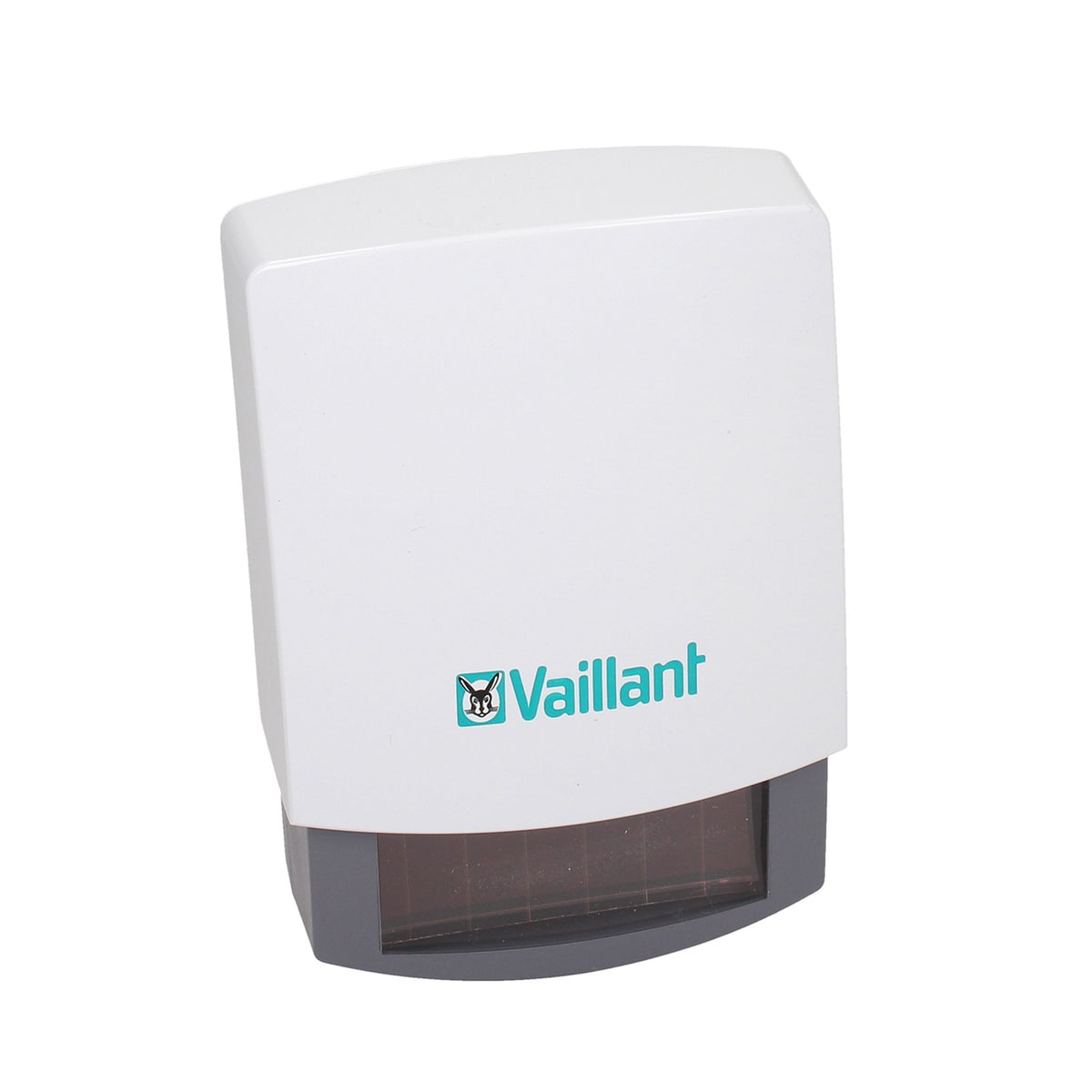

Wireless VR20 or VR21 outdoor temperature sensor

Certification

CE marked, radio equipment compliance with Directive 2014/53/EU

Warranty

1 year manufacturer warranty

Frequently Asked Questions

What does the Vaillant VRC700f do?

The VRC700f is a wireless weather compensating programmable room thermostat. It controls Vaillant heating and hot water systems, adjusting heating output according to outdoor temperature to help maintain comfortable indoor conditions efficiently.

Is the VRC 700f compatible with all Vaillant boilers?

It is designed to work with the current Vaillant product range and communicates using the eBUS protocol. Compatibility with a specific appliance should always be confirmed against the appliance documentation and system configuration.

Does it need wiring to the boiler?

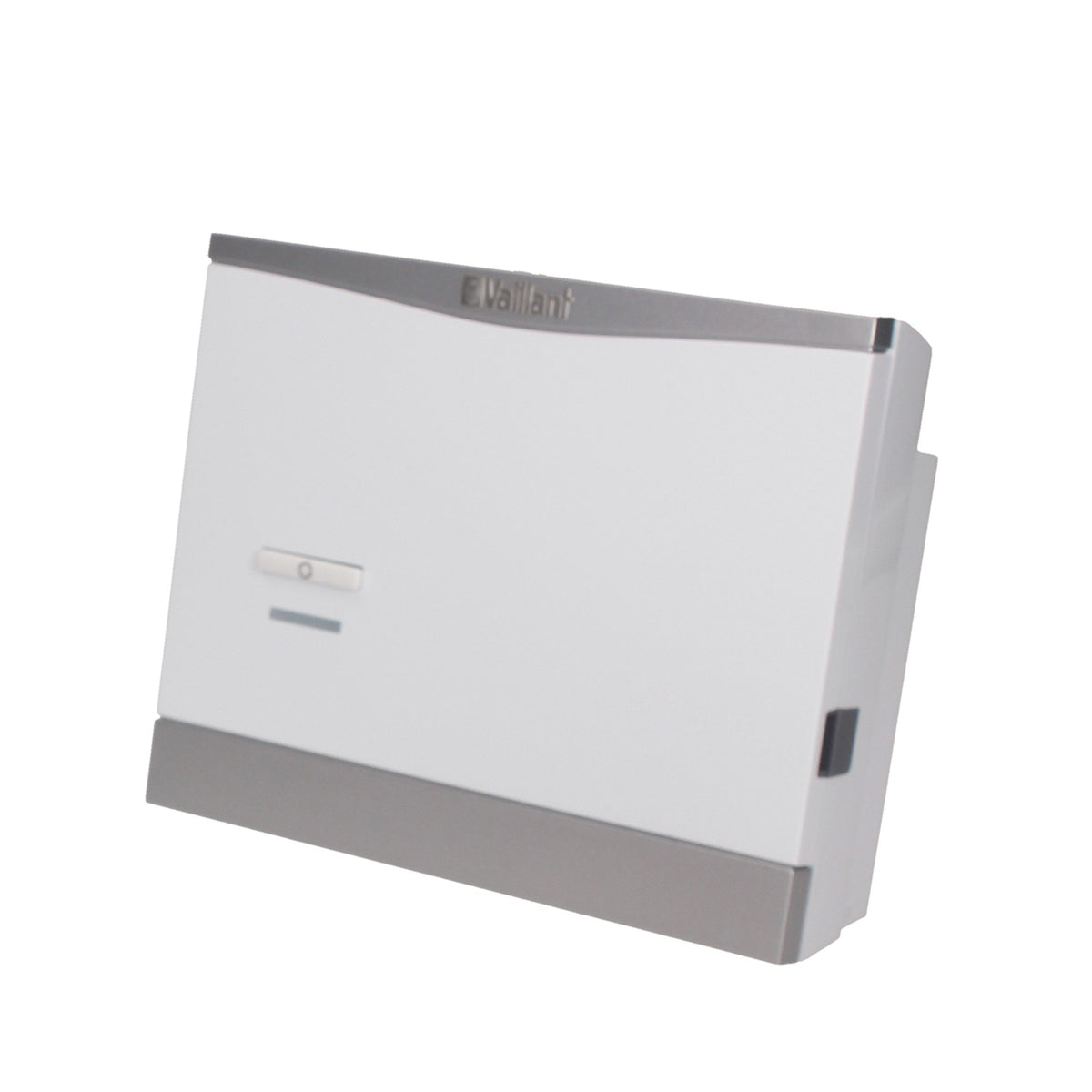

The room control itself is battery powered and wireless, but the supplied radio receiver unit connects to the heating appliance via an eBUS connection. A qualified installer should complete the electrical installation and commissioning.

Can I set different heating and hot water schedules?

Yes. The VRC700f supports three heating time periods and three hot water time periods, along with a holiday mode for periods when the property is unoccupied.

Will my settings be lost during a power cut?

No. The control stores time and temperature programmes in permanent memory, so scheduled settings remain available even if power to the heating system is interrupted.

Who should install this control?

Installation, electrical connection, setup and commissioning should be completed by a competent, qualified installer in accordance with the manufacturer instructions and applicable UK regulations.
