Vaillant VR 71 Wiring Centre for VRC 700 | 0020184847 | eBUS

Description

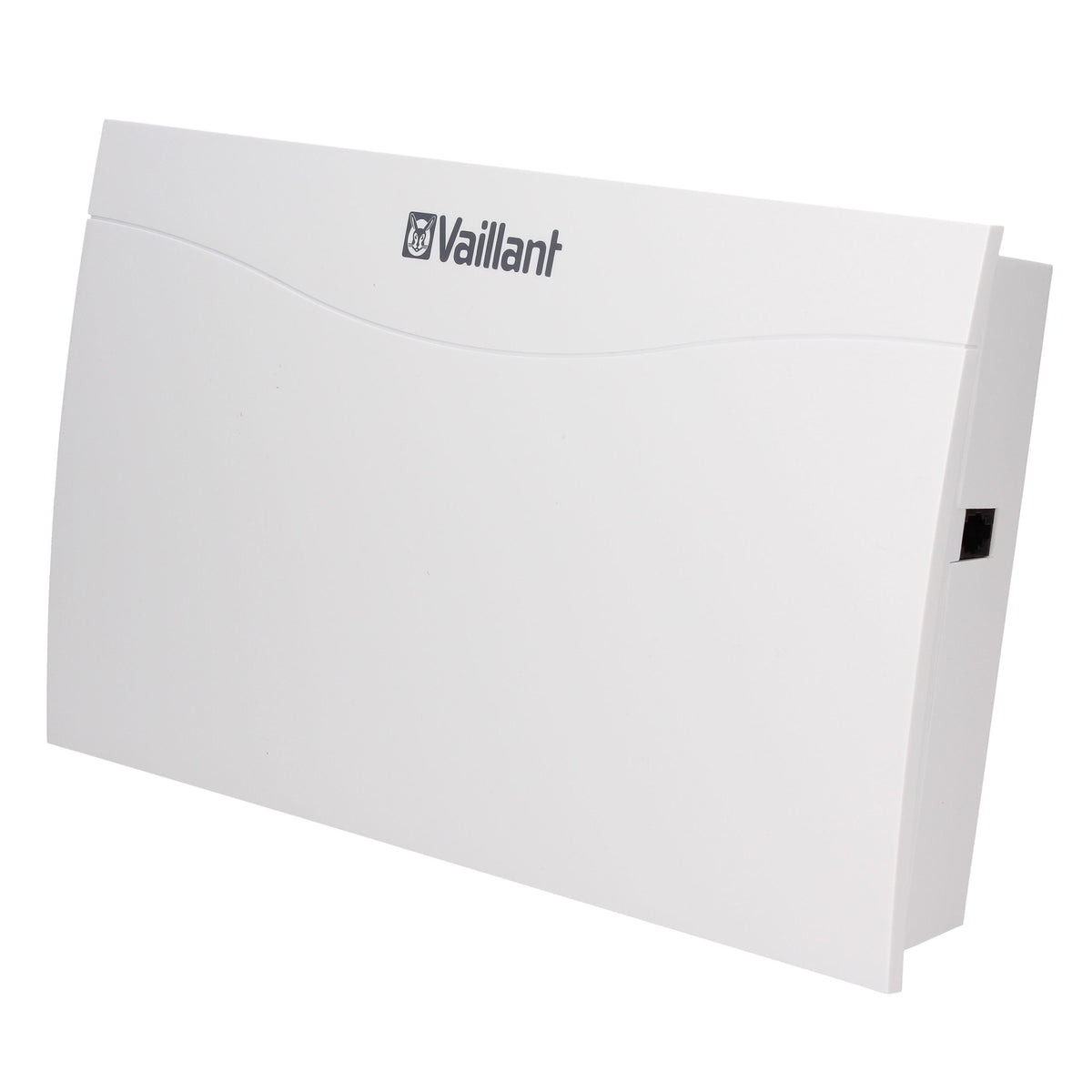

The Vaillant VR 71 wiring centre (0020184847) is an eBUS system component that extends the capability of a Vaillant VRC 700 controller. It provides sensor inputs, relay outputs and mains connections for pumps, mixers and other system components, so a single controller can regulate more complex heating and hot water layouts.

The VR 71 has no controls of its own. Its inputs and outputs are assigned and configured through the VRC 700, which lets you build different system layouts from the same hardware. It is supplied with four VR 10 sensors and one VR 11, plus wall-mounting fixings, and is installed on the wall in a dry room.

eBUS

Controller communication

230 V

Max. operating voltage

≤ 6.3 A

Total current

IP20

Protection rating

4 × VR 10

Sensors supplied

0–60 °C

Ambient temperature

Requires a VRC 700 controller

The VR 71 is a system component, not a standalone controller. Per the manufacturer's installation instructions it is intended for operation with the Vaillant VRC 700, which controls and regulates its functions over eBUS.

Installation & safety

Installation must be carried out by a competent person. Isolate the supply using a partition with at least 3 mm contact opening and check the unit is de-energised before opening it. Connect with a fixed connection in line with BS 7671, install in dry rooms only, and use the supplied strain relief.

Sensors included

Four VR 10 sensors and one VR 11 are supplied in the box, so the common sensing points are covered without a separate order.

Extends the VRC 700

Adds inputs and outputs to the VRC 700 so it can manage more circuits, pumps and valves in the system.

eBUS communication

Connects to the controller over eBUS using a low-voltage line of at least 0.75 mm².

Flexible I/O assignment

Inputs and outputs are configured via the controller, so one unit suits many system diagrams.

Standard cabling

Wired with standard commercial lines; sensor lines up to 50 m and bus lines up to 125 m.

Sensors in the box

Supplied with 4 × VR 10 and 1 × VR 11 plus bolts and rawl plugs for wall mounting.

Safe, tidy terminals

Strain relief and a clearly arranged upper and lower terminal block support a neat, safe installation.

Specification

Manufacturer

Vaillant

Manufacturer part number (MPN)

0020184847

Product type

Wiring centre (eBUS system component)

Compatible controller

Vaillant VRC 700

Communication

eBUS

Mounting

Wall-mounted (fixings supplied)

Electrical

Max. operating voltage

230 V

Total current

≤ 6.3 A

Rated surge voltage

2,500 V

Extra-low voltage / SELV

24 V

Protection class

I

Protection rating

IP20

Environment & Dimensions

Ambient temperature

0 to 60 °C

Relative humidity

29 to 95 %

Height × width × depth

293 × 277 × 68 mm

Cabling

Mains supply line (pump or mixer)

≥ 1.5 mm²

eBUS line (extra-low voltage)

≥ 0.75 mm²

Sensor line (extra-low voltage)

≥ 0.75 mm²

Maximum sensor line length

≤ 50 m

Maximum bus line length

≤ 125 m

In the box

Supplied

1 × VR 71, 4 × VR 10, 1 × VR 11, installation accessories (bolts and rawl plugs), installation instructions

Frequently asked questions

Which controller does the VR 71 work with?

It is intended for use with the Vaillant VRC 700, which controls and regulates the VR 71 over eBUS.

Does it include temperature sensors?

Yes. The box contains four VR 10 sensors and one VR 11.

What cable should I use?

Use standard commercial lines. Mains supply lines to pumps or mixers should be at least 1.5 mm², and eBUS and sensor lines at least 0.75 mm². Sensor lines can run up to 50 m and bus lines up to 125 m.

Where can it be installed?

Dry rooms only. The unit is rated IP20 and suits ambient temperatures from 0 to 60 °C.

Can it be installed by a homeowner?

No. Installation and electrical connection must be carried out by a competent person in line with the manufacturer's instructions and BS 7671.
