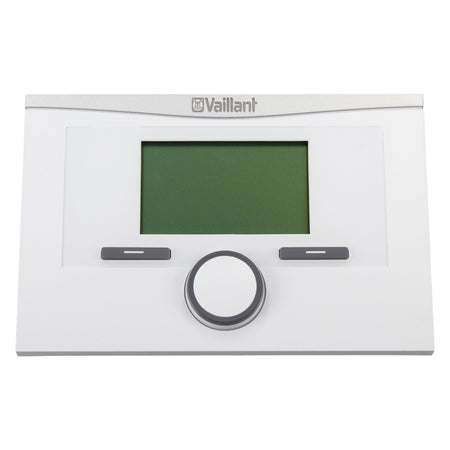

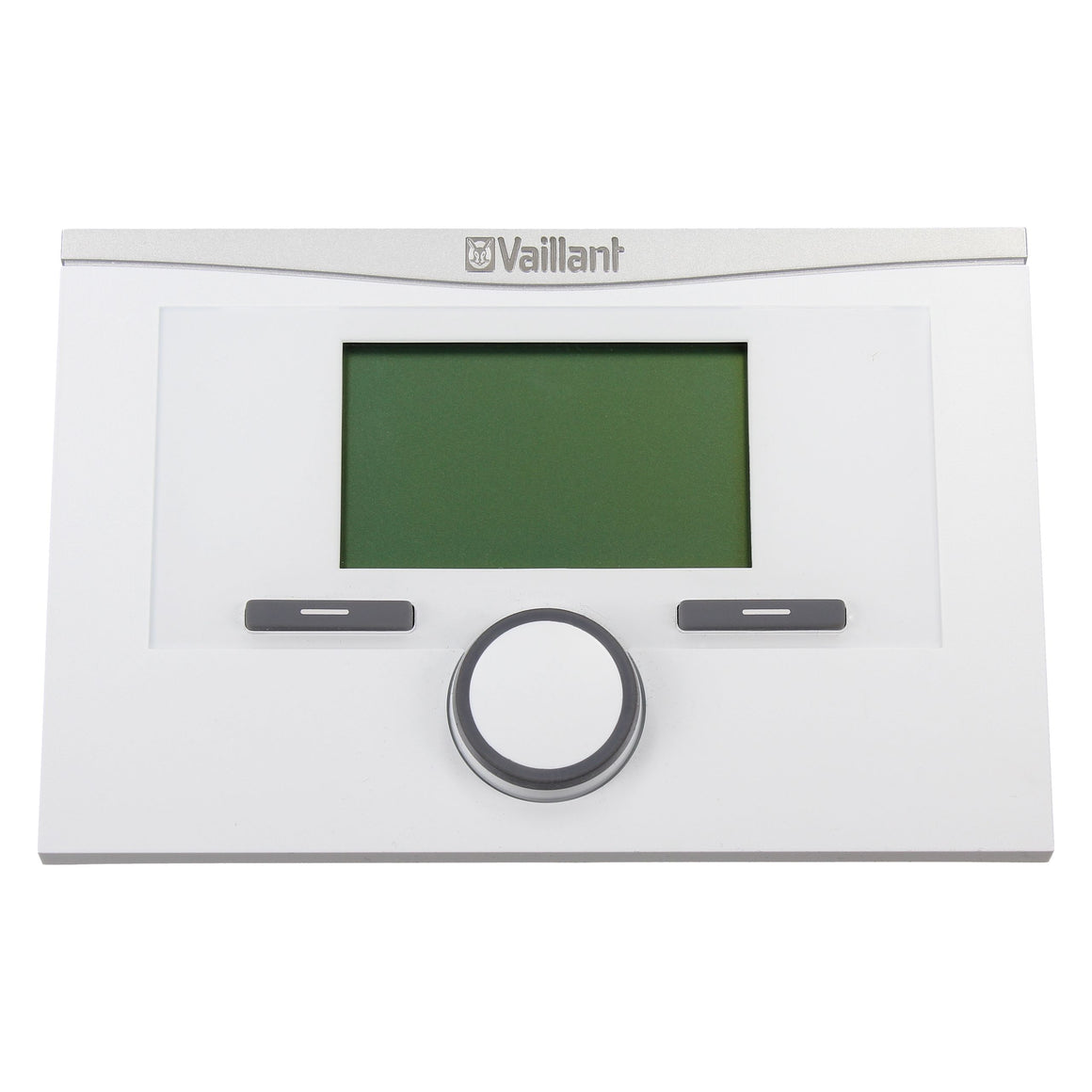

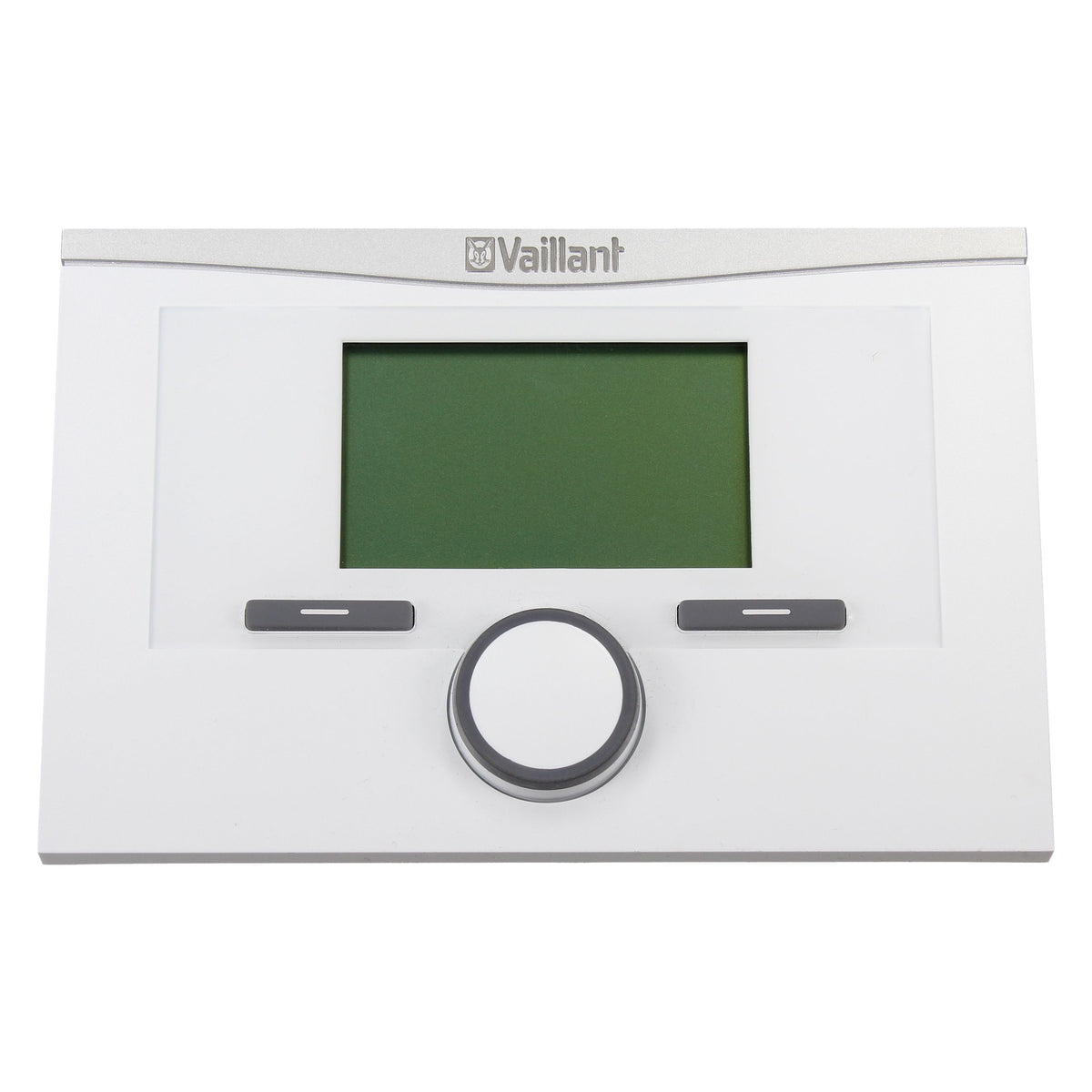

Vaillant timeSWITCH 160 7 Day Plug In Digital Programmer | 0020124498

Description

The Vaillant timeSWITCH 160 is a two channel digital programmer that plugs directly into the fascia of compatible Vaillant ecoTEC boilers, providing straightforward timed control of central heating and domestic hot water. With 7 day programming, up to three heating and hot water periods per day, a holiday mode and automatic British Summer Time adjustment, it helps homeowners maintain comfort while avoiding unnecessary energy use.

Designed for quick installation without a separate cable harness, the timeSWITCH 160 is a practical control upgrade for combi, system and open vent Vaillant boilers. It is equally suitable for homeowners seeking easier heating schedules and installers looking for a reliable, boiler integrated programmer.

7 Day

Programming

2

Channels

3

Periods Per Day

24V

eBUS Plug-In

IP20

Protection

Plug-In

Boiler Fascia Fit

Compatibility note: The timeSWITCH 160 plugs directly into compatible Vaillant ecoTEC combi boilers. For compatible ecoTEC system and open vent boilers, a VR 66 wiring centre is required. It is not compatible with the latest version of the ecoTEC plus boiler. Always confirm boiler compatibility before ordering.

Useful information: When used with a VR 66 wiring centre, the programmer can control traditional S Plan or Y Plan heating systems, giving installers flexible system design options.

Key Features

7 Day Flexible Programming

Set separate schedules for each day of the week, with up to three heating and hot water periods every 24 hours.

Two Channel Control

Independently manage central heating and domestic hot water timings from one convenient digital control.

Direct Boiler Fascia Fit

Plugs neatly into the boiler fascia using the eBUS connection, with no separate cable harness required.

Holiday Mode

Schedule heating to remain off while away and be ready for your return, helping to reduce wasted energy.

Automatic Clock Changes

Automatically adjusts for British Summer Time and winter time, so schedules remain accurate throughout the year.

Simple Digital Display

A clear digital display and straightforward override functions make daily operation easy for homeowners.

Technical Specifications

Product Identification

Brand

Vaillant

Product range

timeSWITCH

Model

timeSWITCH 160 / VTS 160

MPN

0020124498

EAN

4024074602652

Control & Programming

Programmer type

Two channel digital plug in timer

Programming period

7 days

Daily programmes

Up to 3 heating and hot water periods per day

Controlled functions

Central heating and domestic hot water

Additional functions

Holiday mode, override functions, automatic daylight saving adjustment

Electrical & Technical Data

Rated voltage

eBUS 24V, plug-in

Current consumption

Less than 50 mA

Protection rating

IP20

Protection class

Class III

Maximum ambient temperature

50°C

Dimensions & Compatibility

Height

97 mm

Width

147 mm

Depth

50 mm

Mounting

Plugs directly into compatible Vaillant boiler fascia

Compatibility

Compatible Vaillant ecoTEC combi, system and open vent boilers, VR 66 wiring centre required for compatible system and open vent boilers

Frequently Asked Questions

Which boilers is the Vaillant timeSWITCH 160 compatible with?

It is designed for compatible Vaillant ecoTEC combi, system and open vent boilers. A VR 66 wiring centre is required for compatible system and open vent installations. It is not compatible with the latest version of the ecoTEC plus boiler.

Does it control both heating and hot water?

Yes. As a two channel programmer, it provides independent timed control of central heating and domestic hot water.

How many heating periods can be programmed?

You can set up to three heating and hot water periods for each 24 hour period, with individual programming available across seven days.

Does the timeSWITCH 160 require additional wiring?

No separate cable harness is required for direct installation into a compatible Vaillant boiler fascia. It connects through the boiler’s designated eBUS plug-in connection.

Can it be used with S Plan or Y Plan systems?

Yes. When used with a VR 66 wiring centre, the timeSWITCH 160 can control either an S Plan or Y Plan heating system.
