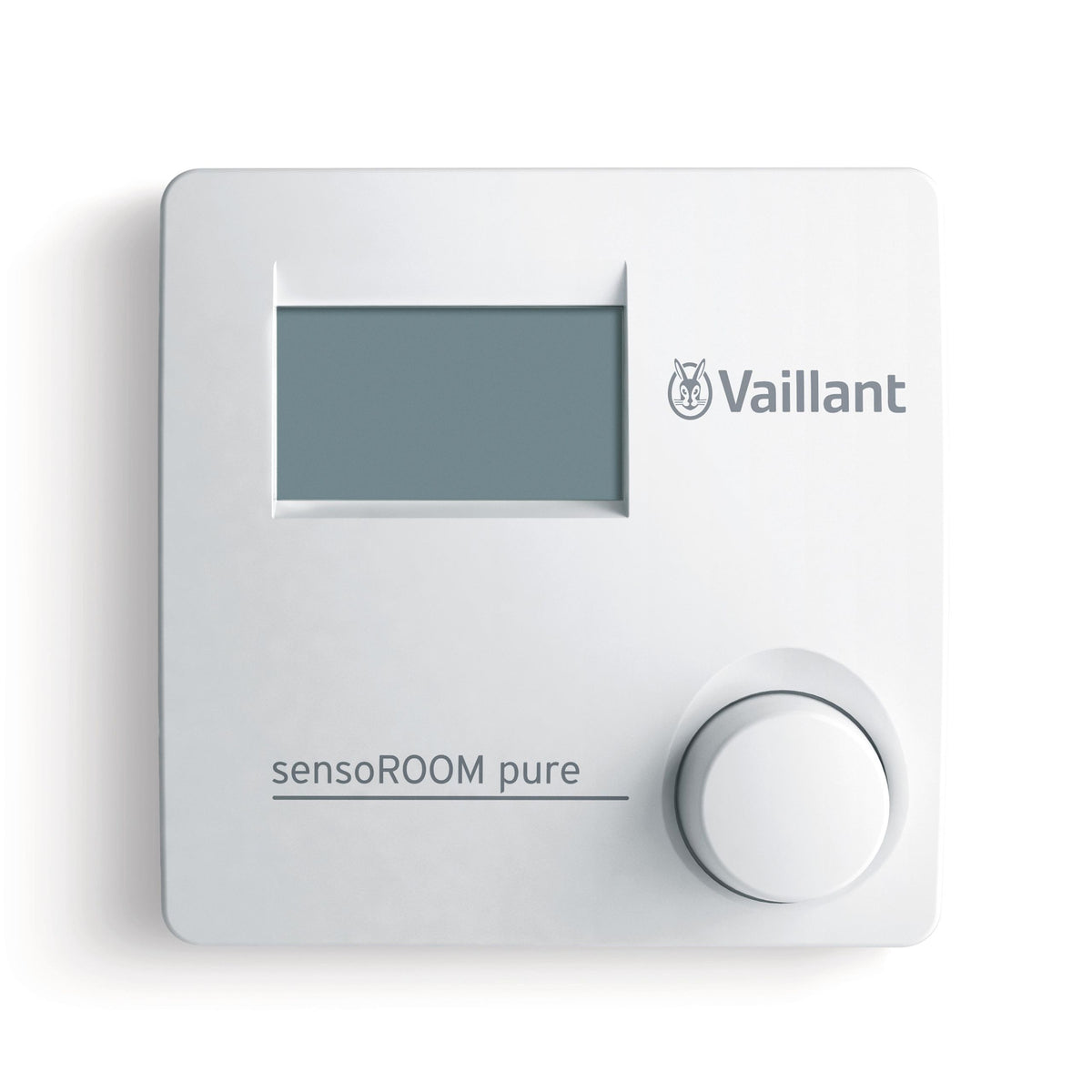

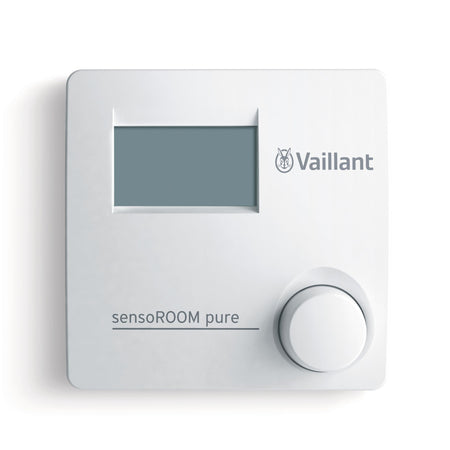

Vaillant sensoROOM Pure eBUS Room Thermostat | VRT50/2 | ErP Class V

Description

The Vaillant sensoROOM pure is a straightforward wired digital room thermostat designed to give homeowners clear, reliable control over room temperature and domestic hot water. Using Vaillant’s eBUS communication protocol, it can help a compatible Vaillant boiler modulate its output through enhanced load compensation, supporting efficient heating operation.

With a familiar rotary dial, large digital display and simple two core low voltage connection, the VRT 50/2 is a practical choice for both new installations and boiler control upgrades. It is particularly suitable where a clean, easy to use thermostat is required, while remaining ready for optional smart control through the myVAILLANT connect gateway and myVAILLANT app.

VRT 50/2

Model

5-30°C

Temperature range

eBUS

Communication

24 V DC

Power supply

ErP V

Control class

IP20

Protection rating

Installation and electrical safety: This is a fixed wired control intended for installation by a competent person in accordance with the manufacturer’s instructions and applicable UK electrical requirements. Always isolate the heating system before installation or maintenance.

Compatibility note: The sensoROOM pure is designed for use with compatible Vaillant boilers featuring an eBUS interface. To comply with Boiler Plus, it must be used together with the timeSWITCH 150 timer.

Smart ready control: When paired with a compatible Vaillant boiler and the optional myVAILLANT connect internet gateway, the thermostat can support remote temperature control and heating time programming through the myVAILLANT app.

Key features and benefits

Boiler modulation

Uses Vaillant’s eBUS protocol to communicate directly with a compatible Vaillant boiler, allowing the heating system to respond more accurately to demand.

Enhanced load compensation

Helps the boiler adjust its output so that it uses only the energy required, supporting more efficient and comfortable heating.

Clear digital display

A large, easy to read display shows the room temperature in 0.5°C intervals, along with service, maintenance and fault indications where applicable.

Simple dial operation

The familiar rotary dial makes it easy to set the required room temperature between 5°C and 30°C without complicated menus.

Hot water warm start

Supports the hot water warm start function, helping ensure warm water is available more quickly from the taps when required.

Straightforward installation

Requires a two core low voltage connection and can often use existing cable, helping to simplify installation and commissioning.

Technical specifications

General

Brand

Vaillant

Product name

sensoROOM pure

Model

VRT 50/2

Product type

Wired digital room thermostat

Manufacturer article number / MPN

0010038663

Colour

White

Performance and control

Temperature setting range

5°C to 30°C

Display increments

0.5°C

Control zones

1 zone

Communication protocol

Vaillant eBUS

Boiler modulation

Enhanced load compensation with compatible Vaillant boilers

ErP control class

Class V

ErP seasonal space heating efficiency contribution

3.0%

Electrical data

Rated voltage

24 V DC ±10%

Power consumption

240 mW

Rated current

Less than 50 mA

Rated surge voltage

330 V

Connection cable cross section

2 x 0.75-1.5 mm²

Protection class

III

Ingress protection

IP20

Dimensions and environment

Dimensions (H x W x D)

97 x 97 x 31 mm

Maximum ambient temperature

50°C

Pollution degree

2

Compatibility and certification

Compatible systems

Compatible Vaillant boilers with an eBUS interface

Boiler Plus compliance

Use with timeSWITCH 150 timer

Smart control compatibility

myVAILLANT connect gateway and myVAILLANT app

IP rating standard

EN 60529

Warranty

Manufacturer warranty applies, terms and conditions apply

Frequently asked questions

Is the Vaillant sensoROOM pure wireless?

No. The sensoROOM pure VRT 50/2 is a wired room thermostat that connects using a two core low voltage eBUS connection.

Which boilers is it compatible with?

It is designed for use with compatible Vaillant boilers that have an eBUS interface. Always confirm compatibility with the specific boiler model before ordering or installation.

Can I control it from my phone?

Yes, when the thermostat is used with a compatible Vaillant boiler and the optional myVAILLANT connect internet gateway, heating can be managed through the myVAILLANT app.

What temperature can the thermostat be set to?

The room temperature can be adjusted between 5°C and 30°C, with the digital display showing changes in 0.5°C intervals.

Does it help with Boiler Plus compliance?

Yes. To comply with Boiler Plus, the sensoROOM pure must be installed together with the timeSWITCH 150 timer.
