Vaillant Rp 1 Mixing Pump Group Kvs 2.5 | 0020191814 | 95°C

Description

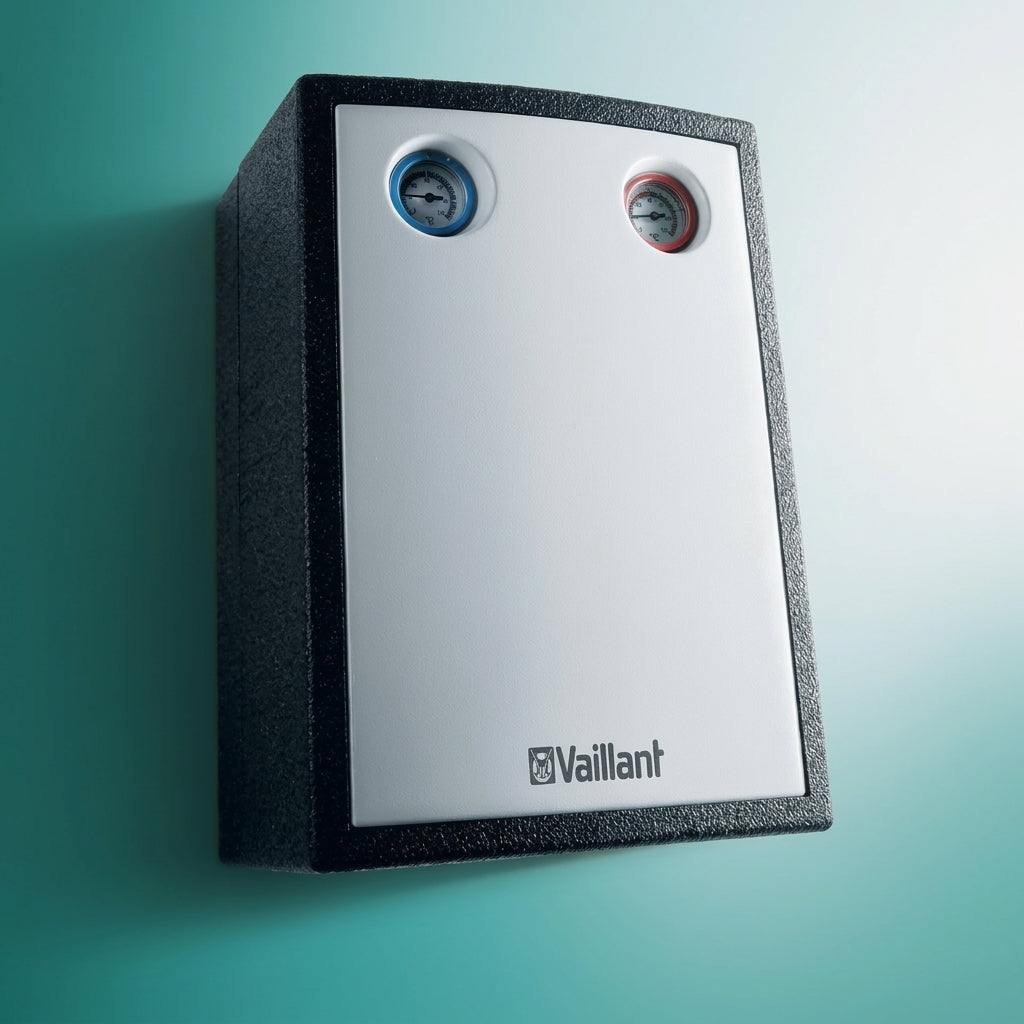

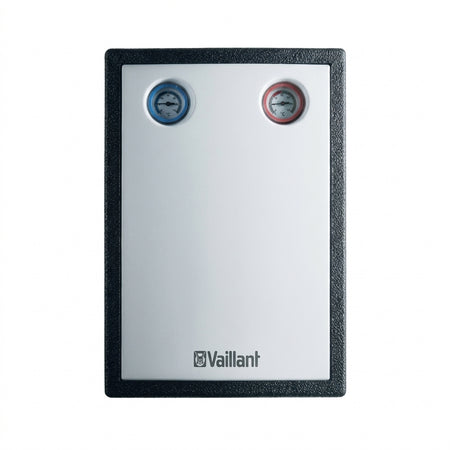

The Vaillant 0020191814 mixing pump group is a pre-assembled, insulated hydraulic module that supplies a mixed, lower-temperature heating circuit from a higher-temperature generator flow. It combines a high-efficiency circulation pump (EEI < 0.23), a three-way mixing valve with actuator (Rp ½, Kvs 2.5) and two ball shut-off valves with integrated thermometers, one of which includes a gravity brake, all inside a fitted insulation shell. Flow and return connections are Rp 1.

It is the right choice for circuits such as underfloor heating that need a lower flow temperature than the rest of the system. The group is rated for water temperatures up to 95 °C and operating pressure up to 6 bar, and the mixer and pump run from a 230 V / 50 Hz supply.

Rp 1

Flow & return connections

Kvs 2.5

3-way mixing valve, Rp ½

95 °C

Max water temperature

6 bar

Max operating pressure

< 0.23

EEI (high-efficiency pump)

230 V

50 Hz mixer and pump

Check the mixing valve size and flow

The mixing valve is rated Kvs 2.5 (Rp ½). Size it against your circuit's design flow rate and pressure drop. If you need more capacity, Vaillant offers mixing groups with larger valves (Rp ¾ and Rp 1), and an unmixed group is available for circuits running at generator flow temperature.

Installation & safety

Installation and electrical connection must be carried out by a competent heating engineer and electrician in line with the manufacturer's instructions and BS 7671. Isolate the electrical supply before working on the pump or actuator, and allow the system to cool and depressurise before servicing.

Protects low-temperature circuits

A mixing group lets underfloor heating and other low-temperature zones run at their own controlled flow temperature, alongside circuits at the full system temperature.

Controlled mixed flow

Three-way mixing valve with actuator blends flow and return water to hold the circuit at its own temperature.

High-efficiency pump

EEI below 0.23 for low running costs and quiet, reliable circulation.

Integrated thermometers

Both ball valves include a thermometer, giving instant flow and return readings for commissioning and servicing.

Gravity brake

One ball valve incorporates a gravity brake to prevent unwanted gravity circulation when the pump is off.

Insulation shell included

A fitted insulation shell reduces heat loss and keeps the installation neat.

Rated to 95 °C / 6 bar

Suitable for water temperatures up to 95 °C and pressures up to 6 bar (0.6 MPa).

Specification

Manufacturer

Vaillant

Manufacturer part number (MPN)

0020191814

GTIN / EAN

4024074730140

Product type

Mixing pump group (three-way mixer)

Flow and return connections

Rp 1

Mixing valve connection

Rp ½

Mixing valve Kvs

2.5

Performance & Electrical

Maximum water temperature

95 °C

Maximum operating pressure

6 bar (0.6 MPa)

Energy Efficiency Index (EEI)

< 0.23

Mixer and pump supply

230 V / 50 Hz

Construction

Circulation pump

High-efficiency pump

Mixing valve

Three-way mixer with actuator

Shut-off valves

2 ball valves with integrated thermometers

Gravity brake

Fitted in one of the two ball valves

Insulation

Insulation shell included

Dimensions (approx.)

250 mm wide × 355 mm high

Frequently asked questions

Does this pump group include a mixing valve?

Yes. The 0020191814 includes a three-way mixing valve with actuator (Rp ½, Kvs 2.5), so it can supply a mixed, lower-temperature circuit.

What are the connection sizes?

Rp 1 for the flow and return connections, and Rp ½ for the mixing valve.

What temperature and pressure is it rated for?

Up to 95 °C water temperature and up to 6 bar (0.6 MPa) operating pressure.

What electrical supply does it need?

The mixer and circulation pump run from a 230 V / 50 Hz supply. Wiring should be done by a qualified electrician in accordance with BS 7671.

Is the insulation included?

Yes. A fitted insulation shell is part of the pump group.
