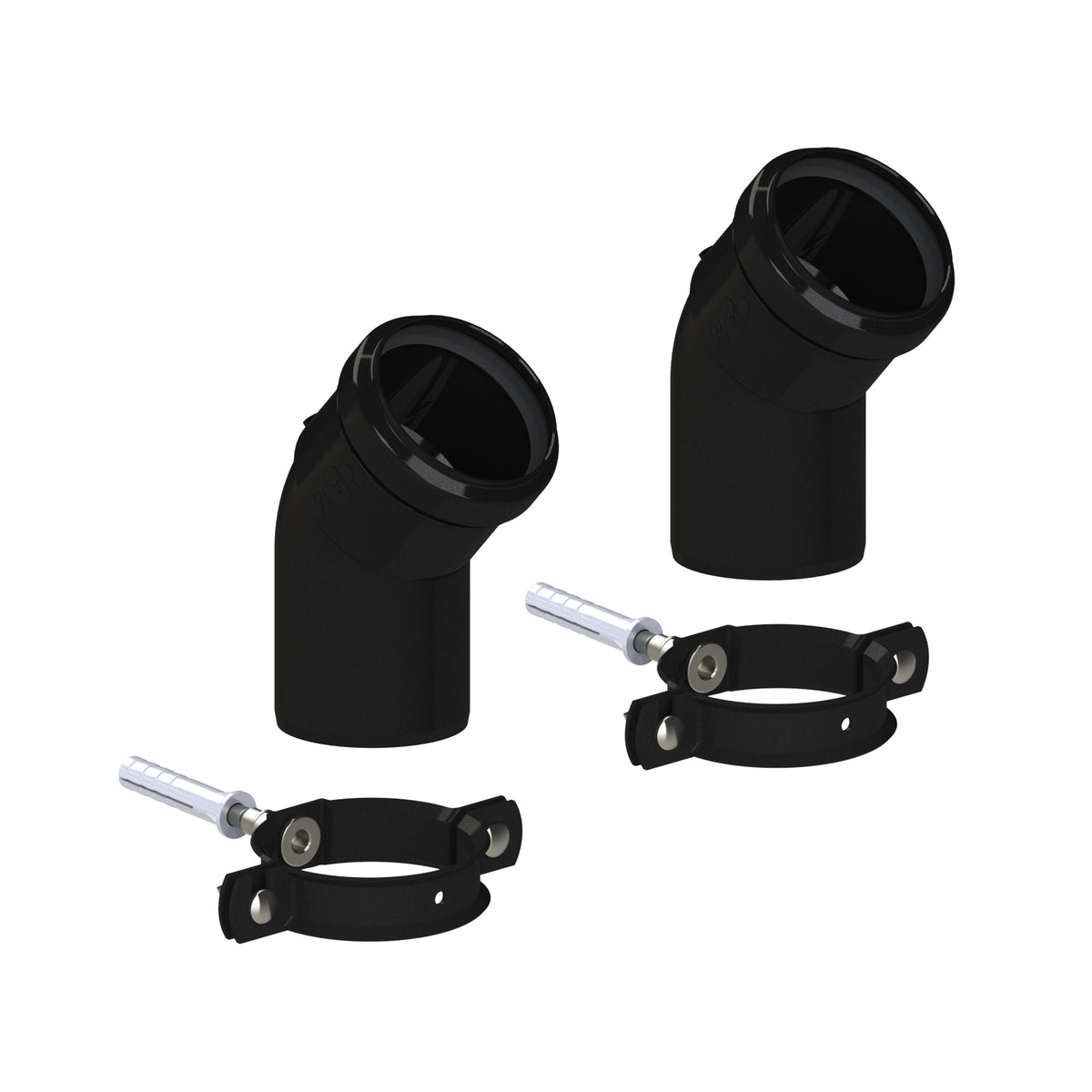

Vaillant Black 45° Plume Elbow Pair | 0010039358 | DN60

Description

The Vaillant Black 45° Plume Elbow Pair is a genuine Vaillant flue accessory designed for use with a plume management kit where additional changes of direction are required. Supplied as a pack of two 45° elbows, it helps route boiler exhaust gases safely away from windows, doors and ventilation openings, supporting a tidier and more compliant flue installation.

With a 60 mm (DN60) diameter and a durable black polypropylene construction, these elbows are suitable for compatible Vaillant variable terminal set (VTK) installations. They give installers greater flexibility when positioning pipework around obstacles, while helping to manage condensing boiler plume effectively.

2

Elbows per pack

45°

Bend angle

DN60

Pipe diameter

60 mm

Connection size

Black

Finish

1 Year

Manufacturer warranty

Safety and installation: Flue components must be installed by a competent, qualified installer in accordance with the boiler and flue system installation instructions, current UK regulations and manufacturer requirements. Incorrectly installed flue pipework can allow flue gases to escape.

Compatibility: These black 45° plume elbows are intended for use with compatible Vaillant plume management and variable terminal set (VTK) installations. Always confirm suitability for the specific boiler model and flue system before ordering.

Installer note: Additional elbows reduce the available maximum concentric flue length. Follow the relevant Vaillant flue installation manual to confirm permitted pipe lengths, gradients, support positions and terminal clearances.

Key Features

Genuine Vaillant Accessory

Manufactured for Vaillant flue systems, helping maintain correct system compatibility and installation quality.

45° Directional Control

Allows the flue route to be adjusted by 45 degrees, making it easier to avoid obstructions and route gases appropriately.

Supplied as a Pair

Includes two elbows, providing a convenient quantity for creating offset or directional changes in a plume route.

DN60 / 60 mm Size

Designed with a 60 mm diameter connection for compatible Vaillant plume management pipework.

Durable Black Finish

The black finish provides a discreet external appearance and is suited to matching black flue and plume components.

Supports Effective Plume Management

Helps direct exhaust gases away from sensitive areas such as windows, doors and ventilation openings.

Technical Specifications

Product Identification

Brand

Vaillant

Manufacturer Part Number (MPN)

0010039358

EAN / GTIN

4024074938645

Product Type

Plume management flue elbow

Dimensions and Construction

Bend Angle

45 degrees

Pipe Diameter

60 mm (DN60)

Material

Polypropylene

Colour

Black

Quantity

2 elbows per pack

Compatibility and Warranty

Intended Use

Compatible Vaillant plume management / variable terminal set installations

Application

Domestic gas boiler flue and plume routing

Manufacturer Warranty

1 year, subject to manufacturer terms and conditions

Frequently Asked Questions

What is included with this product?

This listing includes a pair of black 45° plume elbows. No additional flue pipe, brackets, clamps or plume management kit are included unless stated separately.

What pipe size are these elbows?

They are DN60 / 60 mm elbows, intended for compatible Vaillant plume management pipework and variable terminal set installations.

Can these elbows be used with any boiler?

No. They should only be used where they are compatible with the installed Vaillant flue system and the boiler manufacturer’s installation instructions. Always verify the boiler model, flue type and permitted configuration before installation.

Who should install this product?

Installation should be carried out by a competent, qualified heating engineer in line with UK regulations, Gas Safe requirements where applicable, and the manufacturer’s flue installation guidance.
