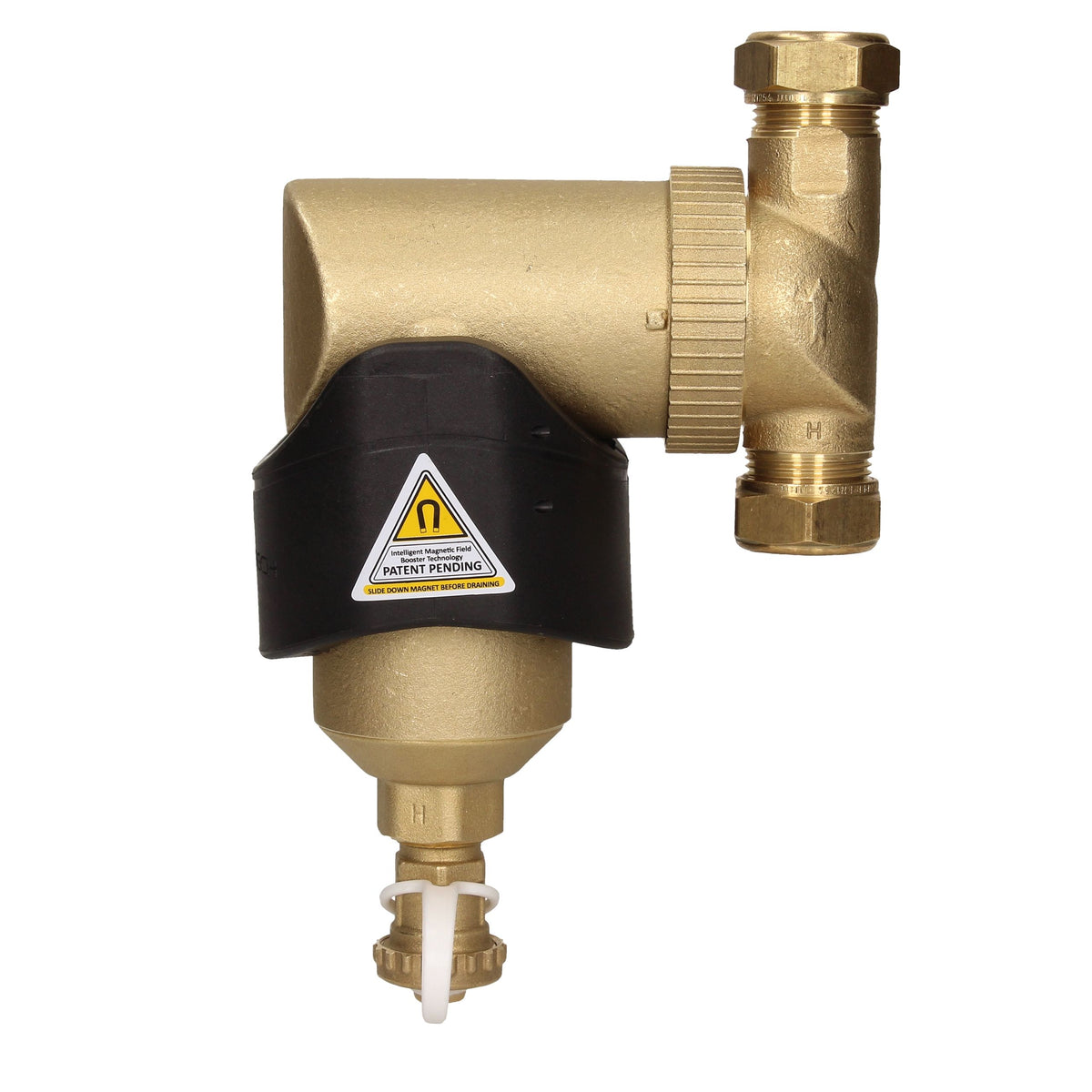

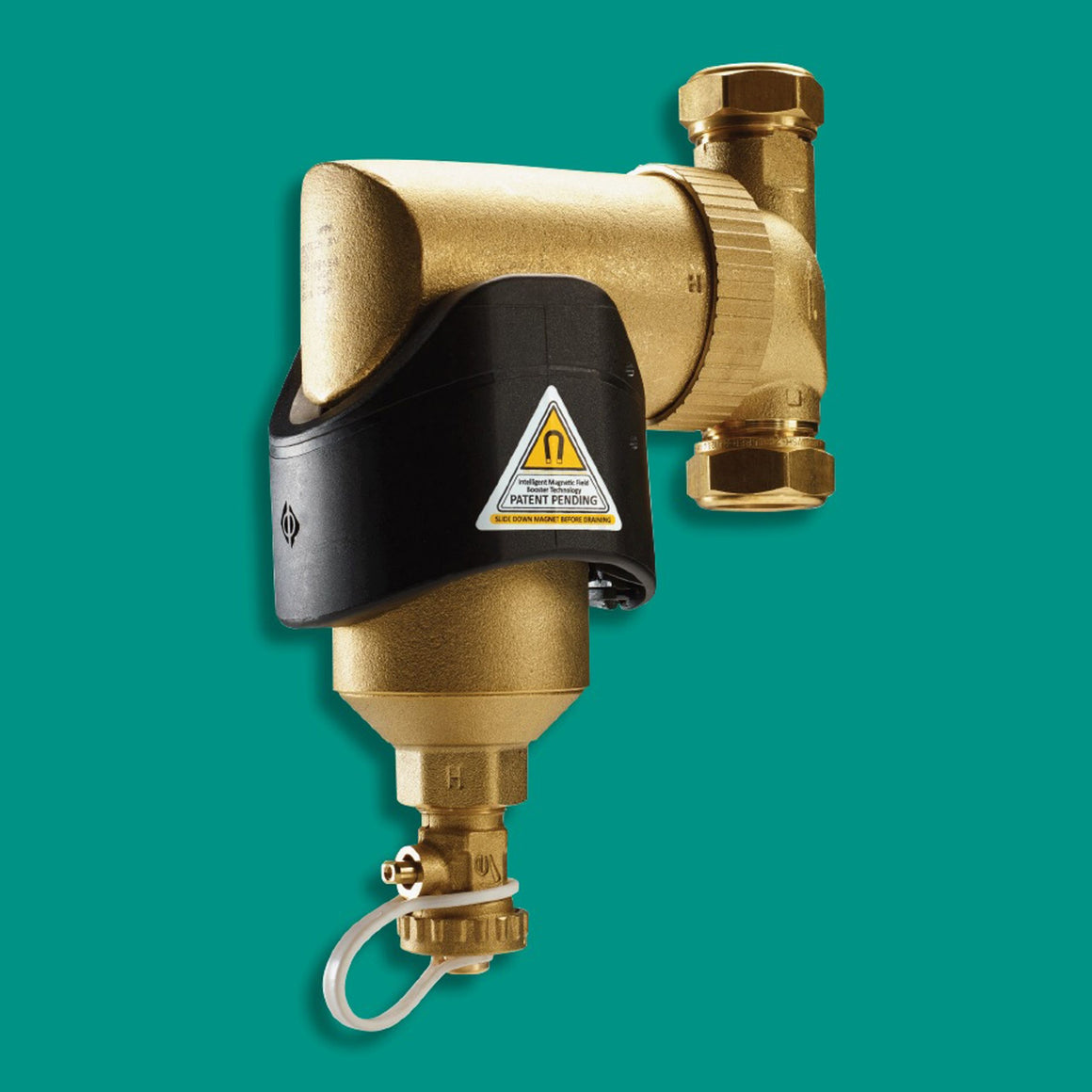

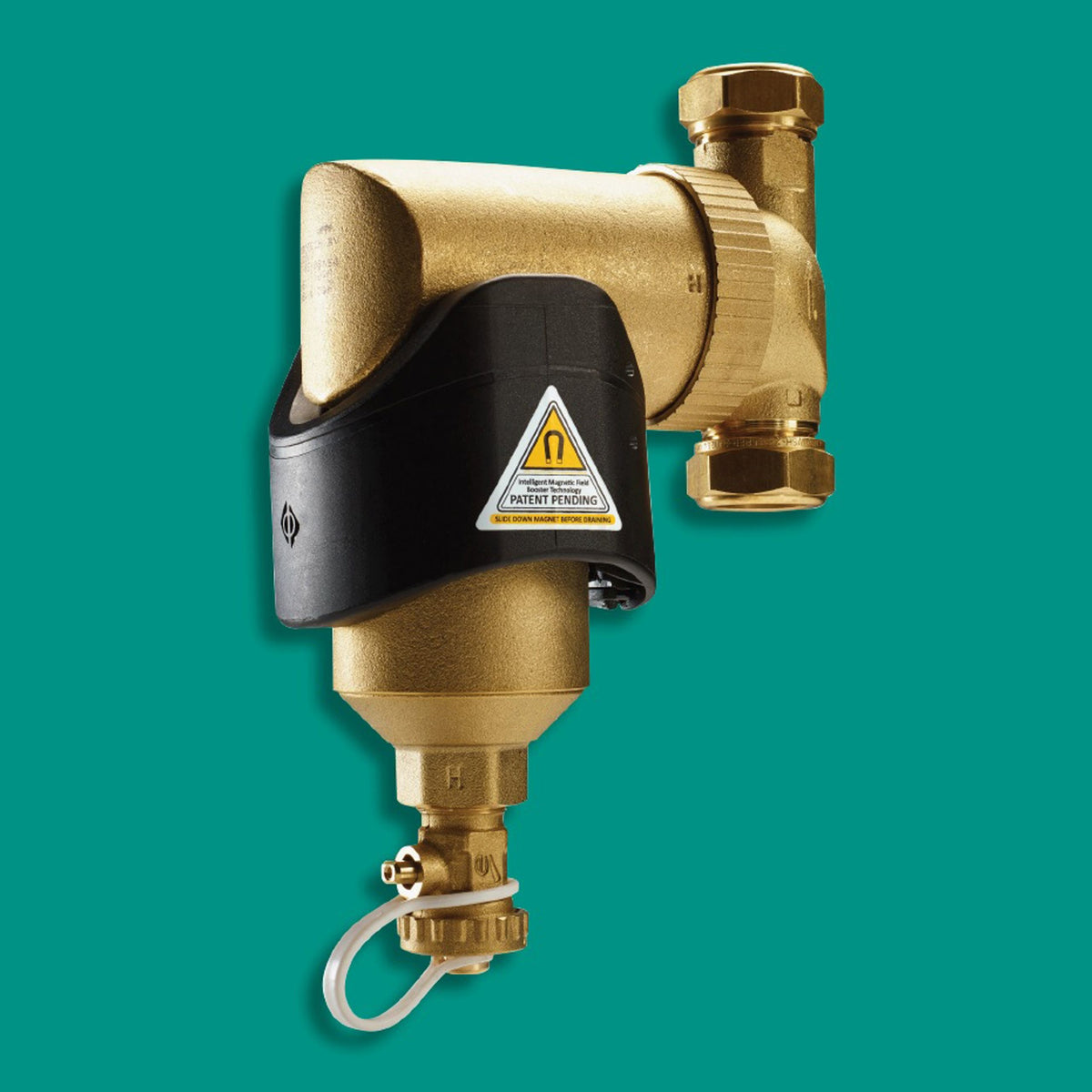

The Vaillant 22 mm Boiler Protection Kit (0020278309) is a brass magnetic system filter designed by Vaillant for domestic central heating systems, supplied complete with a system water test kit so the filter and the water quality check are covered in one box. It is sized for boilers with a 14 to 27 kW heating output and is fitted to the heating return using the 22 mm compression connections supplied.
Using magnetic field booster technology, the filter captures magnetite and other sludge before it can reach the heat exchanger, pump and controls. It removes both magnetic and non-magnetic particles from 5 µm (0.005 mm) upwards, needs no shut-off valves or bypass, and holds a constant low pressure drop so system flow is not compromised. The removable high-powered magnet and integral drain valve make the annual clean a quick job rather than a messy one.
The housing is sturdy brass and the filter itself carries a guarantee of up to 20 years (based on the estimated service life of the system, from the date of installation). When installed with an eligible ecoTEC plus or ecoTEC exclusive boiler and registered through Vaillant Advance, it also unlocks the 10 year extended boiler guarantee.
22 mm
Compression Connection
up to 27 kW
Boiler Heating Output
1.3 m³/h
Nominal Flow Rate
5 µm
Smallest Particles Removed
6 bar
Max Operating Pressure
Choosing the Right Size: The 22 mm kit (0020278309) suits boilers up to 27 kW heating output. For a 28 to 45 kW boiler you need the 28 mm kit (0020278310) instead. Match the kit to the boiler's heating output, not just the pipe size.
Safety and Installation: This filter contains a powerful external magnet. Keep it away from pacemakers and other implanted cardiac devices, watches and cards with magnetic strips. Do not install outdoors or where temperatures fall to 0°C unless frost protection is in place. Fit to the heating return with the flow arrow matching the return flow direction, and tighten fittings to less than 40 Nm.
Key Features
Magnetic Field Booster
Vaillant's magnetic field booster technology separates dirt fast and removes even the smallest magnetite particles, protecting the heat exchanger, pump and valves.
Magnetic and Non-Magnetic Capture
Removes both magnetic and non-magnetic debris from 5 µm upwards, so scale and sludge are caught as well as magnetite.
No Bypass or Isolation Valves Needed
Fitted directly in line on the heating return with no shut-off valves or bypass required, keeping installation simple and pipework tidy.
Constant Low Pressure Drop
A pressure drop of just 2.1 kPa at nominal flow keeps circulation efficient and protects boiler performance.
Clean in Seconds
The removable external magnet and drain valve let you release collected dirt in about two seconds at the annual service, without dismantling the filter.
360° Rotatable Connections
Universal installation with rotatable connections adapts to tight or awkward pipe runs, and the sturdy brass body is built for the life of the system.
Technical Specifications
Product
Article number (MPN)
0020278309
Description
Filter, 22 mm Boiler Protection Kit
Filter type
Magnetic system filter (magnetic field booster)
Performance
Suitable boiler heating output
14 to 27 kW
Connection
22 mm compression
Nominal flow rate
1.3 m³/h
Pressure drop at nominal flow (Δp)
2.1 kPa
Nominal flow velocity
1 m/s
Smallest particle size removed
5 µm (0.005 mm)
Operating Limits
Maximum operating pressure
6 bar
Fluid temperature range
0 to 110°C
Suitable fluids
Water, or water with up to 50% glycol
Fit to
Heating return pipe
Dimensions and Weight
Height, vertical fitting (Hv)
177 mm
Height, horizontal fitting (Hh)
149 mm
Width (b / B)
123 mm / 141 mm

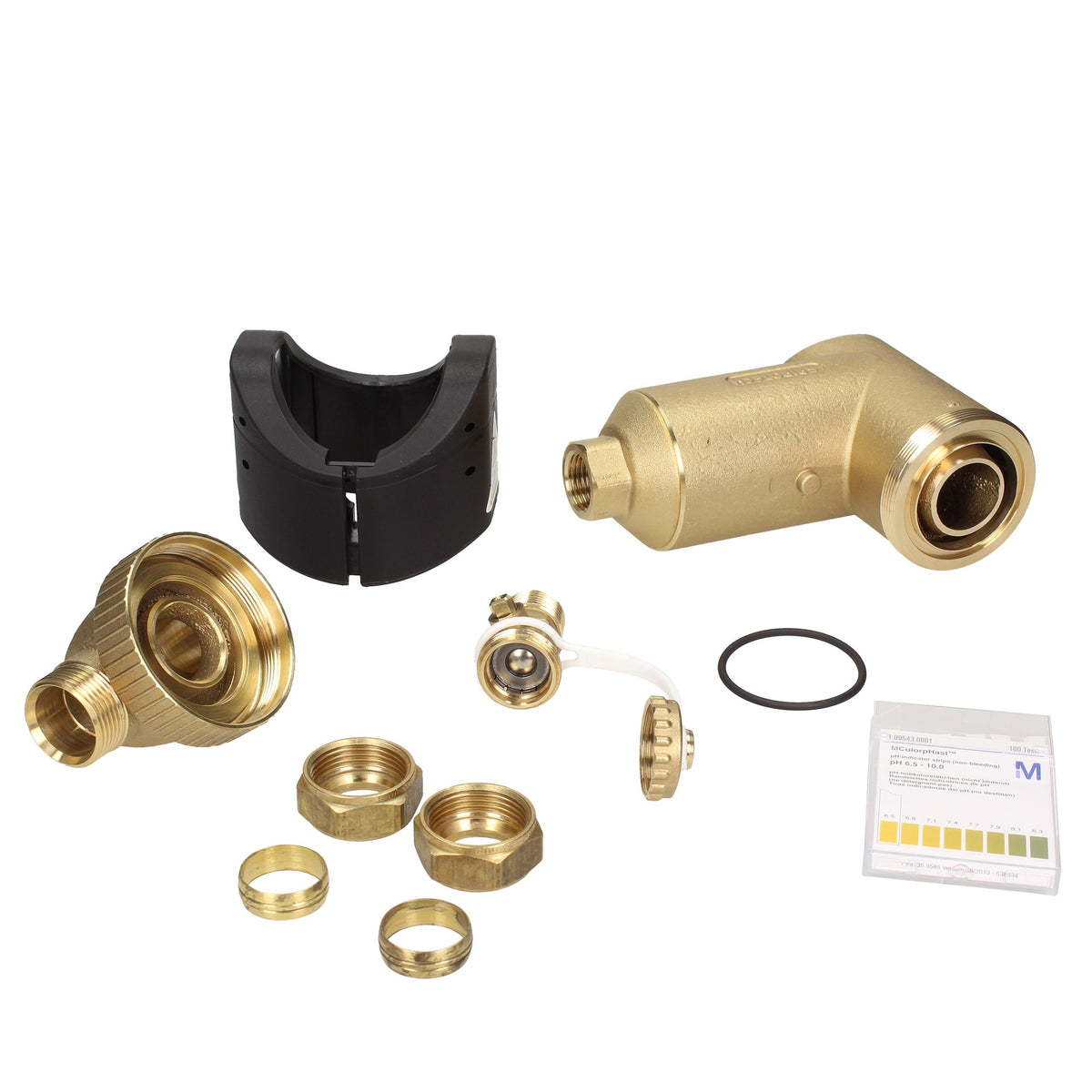

What's in the Box
Filter
1 × main body with pipe manifold and external magnet
Fittings
2 × 22 mm compression fittings with olives
Drain valve
1 × drain valve
Water quality test kit
Test strips with reference chart
Documentation
Instruction sheet and serial number card
Guarantee
Filter guarantee
Up to 20 years from installation (estimated service life of the system)
Extended boiler guarantee
10 years, on eligible boilers when registered via Vaillant Advance
Guarantee Conditions: The 10 year extended boiler guarantee applies to ecoTEC plus (800 series combi, 600 series system, 400 series open vented) and ecoTEC exclusive (800 series combi, 627 system) boilers only. It must be registered by an Advance Loyalty Club installer within 30 days, and requires the system to be flushed, cleansed and inhibited to BS 7593 with annual servicing. The 20 year filter guarantee applies separately to the filter itself.
22 mm and 28 mm Kits Compared
Model
Connection
Boiler Output
Flow Rate
Pressure Drop
Weight
Vaillant 22 mm Kit (0020278309)
22 mm
up to 27 kW
1.3 m³/h
2.1 kPa
2.2 kg
Vaillant 28 mm Kit (0020278310)
28 mm
28 to 45 kW
2.0 m³/h
3.8 kPa
2.3 kg
Frequently Asked Questions
Which Vaillant boilers is this kit designed for?
The kit is sold as a Vaillant accessory for domestic boilers with a 14 to 27 kW heating output. To qualify for the 10 year extended boiler guarantee it must be fitted to an eligible ecoTEC plus or ecoTEC exclusive model and registered through Vaillant Advance.
Where on the system should the filter be fitted?
On the heating return pipe, close to the boiler, with the arrow on the manifold matching the return flow direction. It can be fitted vertically or horizontally and does not need shut-off valves or a bypass.
How do I clean the filter?
Clean it at the annual boiler service. Isolate the boiler and close the service valves, then remove the external magnet and open the drain valve so the collected magnetite drains away. Refit the magnet, reopen the valves and switch the boiler back on.
Does the kit include a water test?
Yes. A system water test kit is included so you can check pH at commissioning and at each annual service. Test before adding inhibitor on a new install, and record the result in the Benchmark logbook.
Can it be used on systems with antifreeze?
Yes. The filter is rated for water or water with up to 50% glycol, across a fluid temperature range of 0 to 110°C.
What is the difference between the 22 mm and 28 mm kits?
The 22 mm kit (0020278309) has a nominal flow rate of 1.3 m³/h and suits boilers up to 27 kW. The 28 mm kit (0020278310) handles 2.0 m³/h and suits boilers from 28 to 45 kW. Body height, length and diameter are identical; only the connection size, width and weight differ.
