Vaillant 1.7m Horizontal Flue Kit 60/100mm | 0010039327| White

Description

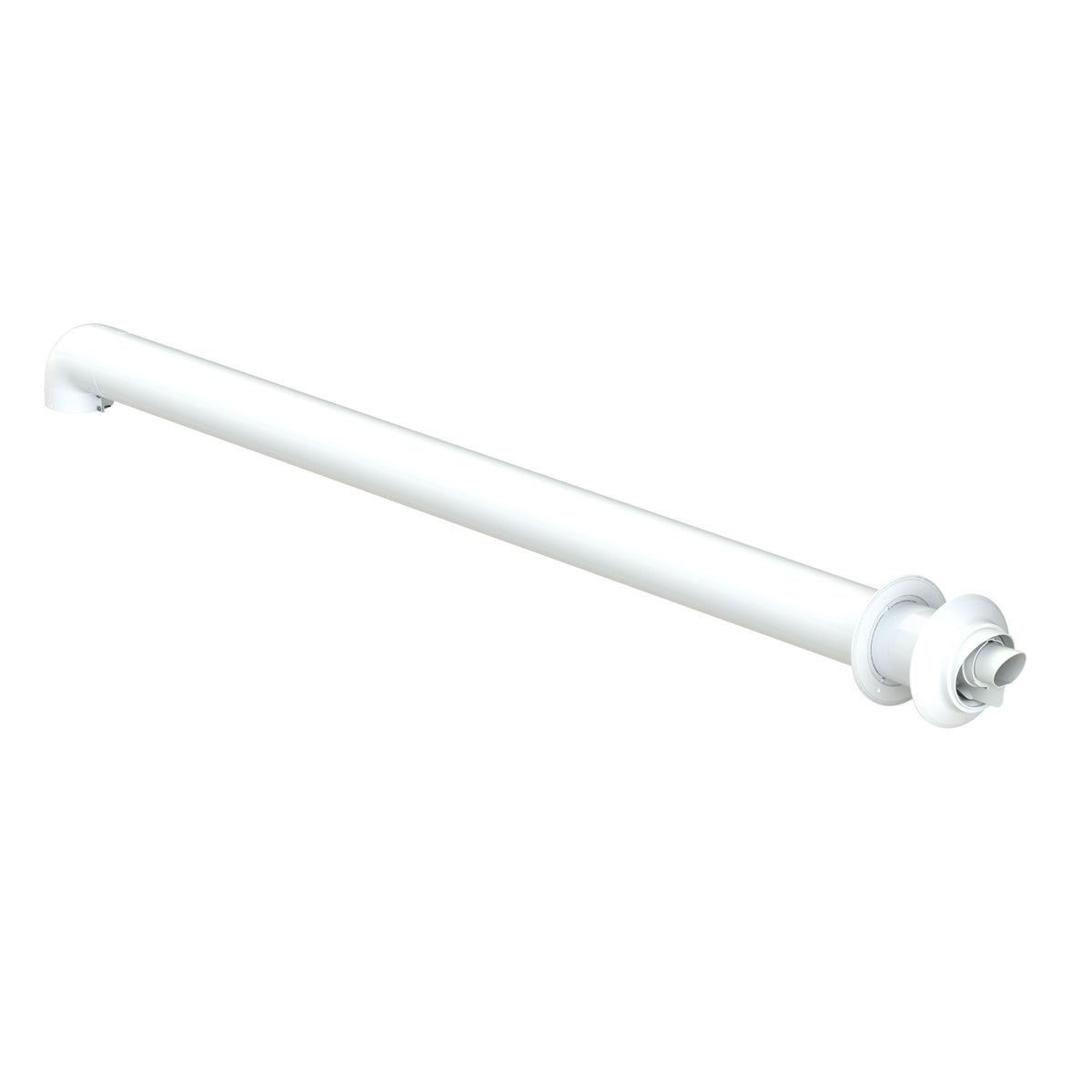

The Vaillant 1.7m Horizontal Flue Kit is a genuine 60/100mm concentric air/flue duct designed for suitable Vaillant condensing boilers. It provides a practical solution for rear or side wall installations where the boiler flue outlet needs to reach an external wall, while maintaining the required air intake and flue gas discharge arrangement.

Manufactured by Vaillant, this 1.7 metre horizontal wall duct supports a clean, professional installation and is intended for use as part of a correctly specified flue system. It is particularly useful where a standard shorter flue does not provide sufficient reach, helping installers achieve a compliant and tidy boiler installation.

1.7m

Flue length

60/100mm

Concentric duct

Horizontal

Wall flue

Vaillant

Genuine part

0020219519

Manufacturer MPN

C13

Flue application

Important: This flue must be installed by a competent person in accordance with the boiler manufacturer’s installation instructions, current Gas Safe requirements and BS 7671 where electrical work is involved. Flue routing, terminal position and maximum permissible flue length must be checked for the specific boiler model before purchase.

Compatibility note: This 1.7m horizontal wall duct is intended for compatible Vaillant boilers using a 60/100mm DN concentric flue system. Always confirm the exact boiler model, flue type and required total flue length before ordering.

Installer tip: Horizontal flue sections should be installed with the correct fall back towards the boiler to allow condensate to drain correctly, as specified in the appliance installation instructions.

Key Features

Genuine Vaillant Component

Designed for use with compatible Vaillant condensing boilers, helping ensure correct fit and system compatibility.

1.7 Metre Reach

The extended 1.7m length is suitable where the boiler position is further from the external wall than a standard shorter flue can accommodate.

60/100mm Concentric Design

The 60/100mm concentric arrangement carries combustion air and flue gases through a single wall penetration.

Horizontal Wall Installation

Intended for horizontal rear or side wall flue installations where site layout and boiler position allow.

Supports Compliant Installation

When correctly selected and installed, it helps support a compliant flue route in line with the appliance manufacturer’s requirements.

Professional Finish

Provides a neat, purpose-designed flue solution for domestic heating installations.

Technical Specifications

Product Identification

Brand

Vaillant

Product

Horizontal flue / horizontal wall duct

MPN

0010039327

Colour

White

Flue Specification

Flue type

Horizontal concentric air/flue duct

Duct size

60/100mm DN

Length

1.7 metres

Installation orientation

Horizontal, through an external wall

Compatibility & Installation

Compatible systems

Suitable Vaillant boilers using a 60/100mm concentric flue system

Flue classification

C13 horizontal flue application, where permitted by the boiler installation instructions

Installation

Must be installed by a competent installer in accordance with manufacturer instructions and applicable regulations

Frequently Asked Questions

What is the length of this Vaillant horizontal flue?

This is a 1.7 metre horizontal flue kit, providing an extended flue run for suitable installations where a shorter standard flue is not long enough.

Which flue size does it use?

It uses a 60/100mm concentric air/flue duct arrangement, commonly used with compatible Vaillant condensing boilers.

Is this flue suitable for my boiler?

It is intended for compatible Vaillant boilers that use a 60/100mm horizontal concentric flue system. The boiler model, flue route and maximum permitted flue length should always be checked before installation.

Can this flue be cut or extended?

Any cutting, extension or alteration must follow the boiler and flue manufacturer’s installation instructions. The total flue length, bends and terminal position must remain within the limits specified for the appliance.
