Delta Dore Tybox RF 210 Wireless Heat/Cool Thermostat | 6051149

Description

The Delta Dore Tybox RF 210 (6051149) is a wireless thermostat for hydraulic and aeraulic systems. The pack pairs the Tybox Control room thermostat with the RF 7210 mains receiver, already associated, to control a boiler, wood-burning stove, reversible or non-reversible heat pump, zone valve or motorised damper (ductable systems).

It manages four modes: Heating, Cooling, Off and Absence, shows room temperature and humidity, and offers PID or On/Off regulation. A wireless measurement tool helps you find the best position, and a QR code on the screen links to the digital instructions. Add a Delta Dore Tydom hub for scheduling, app control and voice assistants.

4 Modes

Heat, Cool, Off, Absence

300 m

Open-field wireless range

5 A

Receiver changeover contact

2 Years

Battery life (2 × AAA)

0 to 55°C

Thermostat operating range

5 Years

Manufacturer guarantee

What is in the pack

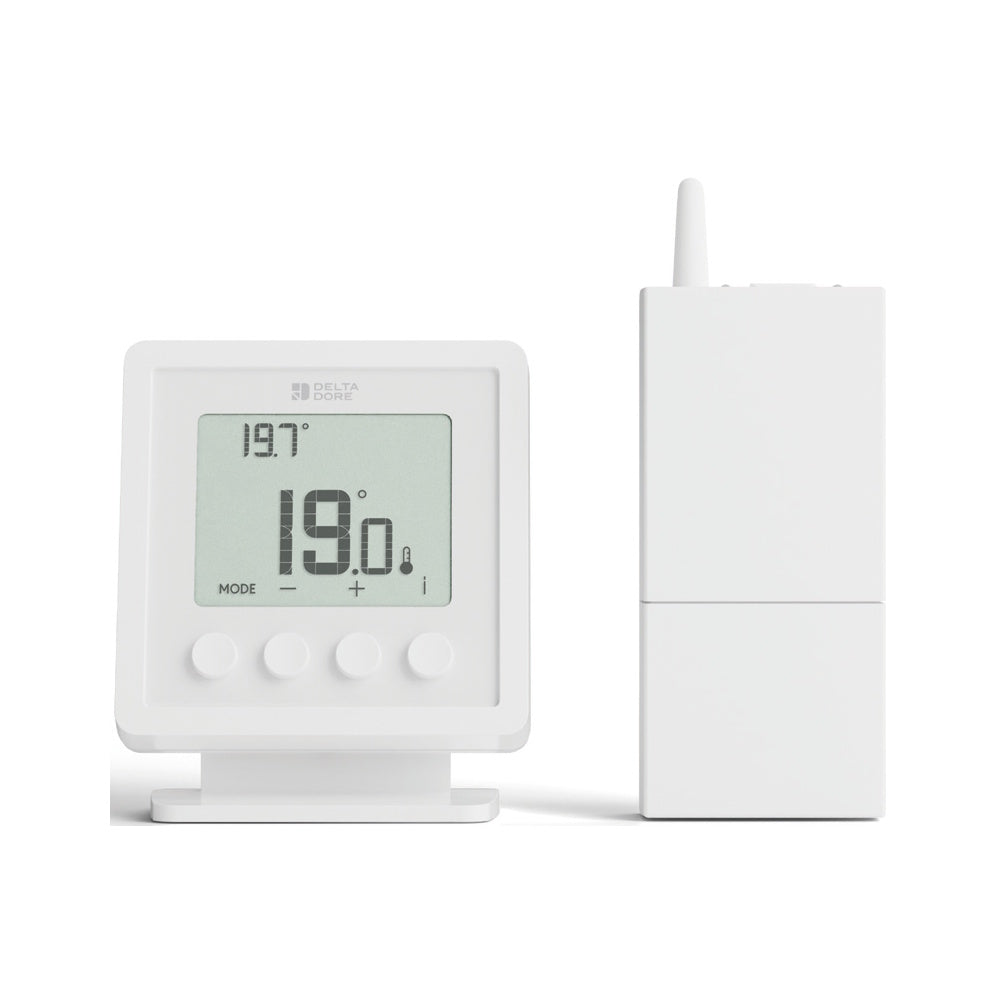

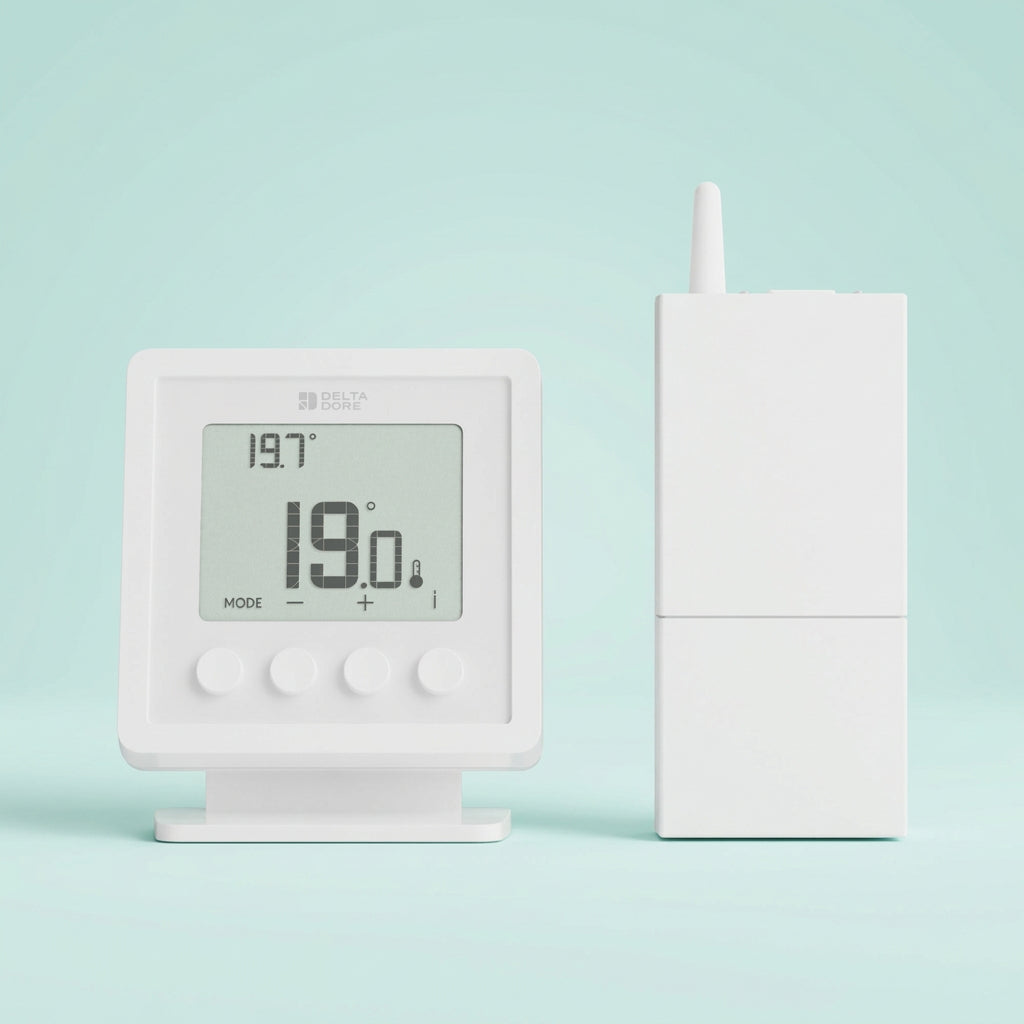

Tybox Control room thermostat (92 × 92 × 21 mm), RF 7210 receiver with 1.25 m cable, 2 × 1.5 V alkaline LR03 (AAA) batteries, wall plate and table stand, self-adhesive strips and instructions. Thermostat and receiver are delivered pre-associated.

Scheduling needs a Tydom hub

On its own the Tybox Control offers Manual, Absence and Off. The AUTO (scheduled) mode, app control, routines and voice control are added by connecting a Delta Dore Tydom hub, sold separately. The Tybox Home RF 210 UK (6053091) includes the hub.

Heat pump and multi-zone notes

Choose heating, cooling or heating/cooling in the installer menu. With the Delta Dore generator-control receivers RF 6420 / RF 6450 in multi-zone installations, PID regulation is required because On/Off is not compatible with them. Check the changeover wiring of reversible heat pumps.

Key Features

Hydraulic and Aeraulic Control

One system covers boilers, stoves, heat pumps, circulators, zone valves and motorised dampers for ducted air systems.

Temperature and Humidity Display

See room temperature, setpoint and humidity with configurable lines for active and standby screens and an optional backlight.

Heat and Cool

5 to 30°C in heating and 10 to 35°C in cooling, with Absence and Off modes and an optional frost protection setting of 5 to 16°C.

PID or On/Off Regulation

PID with 15, 30, 45 or 60 minute time base (Delta Dore states up to 10% energy savings), or On/Off with 0.2 to 2°C hysteresis.

Open Window Detection

Detects a temperature drop (15 or 30 minute pause), or acts within 10 seconds with an optional radio opening detector.

Installer-Friendly

Wireless measurement tool, radio quality percentage, lock codes, child lock, setpoint limits, ±5°C temperature correction and QR access to the digital manual.

Technical Specifications

Pack

Brand

Delta Dore

MPN

6051149

Contents

Tybox Control thermostat + RF 7210 receiver

Applications

Boiler, wood stove, reversible or non-reversible heat pump, zone valve, motorised damper

Modes

Heating, Cooling, Off, Absence

Guarantee

5 years

Place of use

Indoor

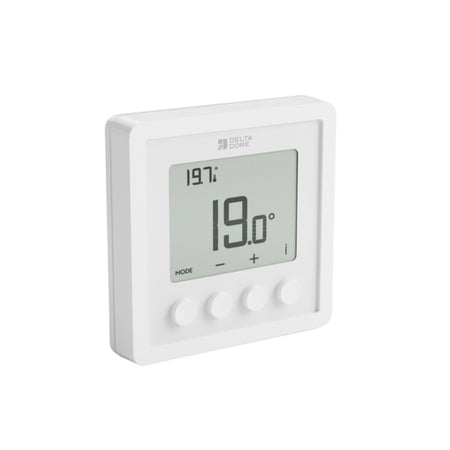

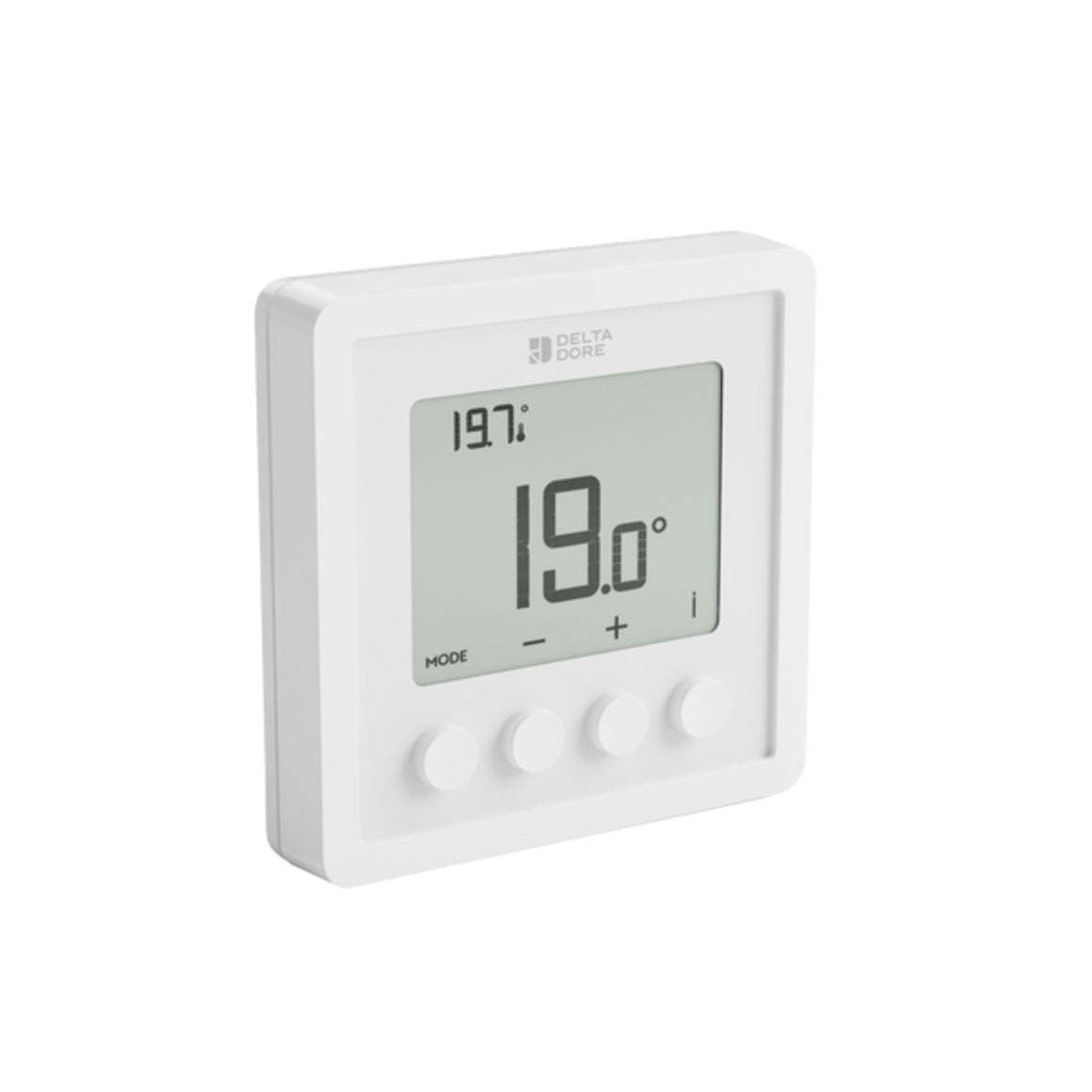

Tybox Control

Dimensions (H × W × D)

92 × 92 × 21 mm

Power supply

2 × 1.5 V alkaline LR03 (AAA), no lithium or rechargeable

Battery life

2 years (5 actions a day, 25 setting changes a year)

Operating temperature

0°C to +55°C

Protection rating

IP30, insulation class III

Mounting

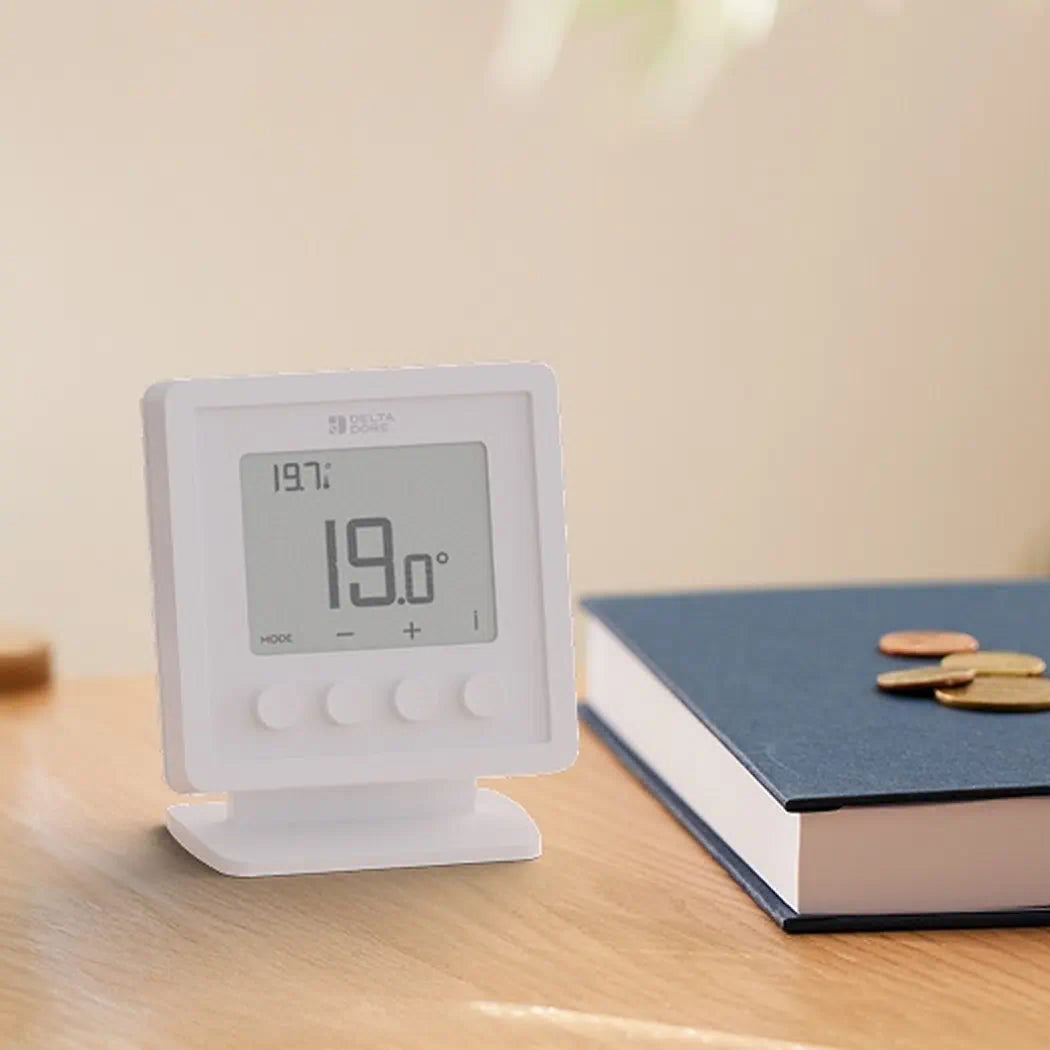

Wall plate or table stand

RF 7210 Receiver

Dimensions (H × W × D)

140 × 54 × 25 mm

Power supply

230 V~, 50 Hz, 0.8 W max

Output

Changeover dry contact, 5 A max at 230 V~

Cable

1.25 m, 4 wire (blue neutral, brown live, black and grey contact)

Operating temperature

-10°C to +60°C

Protection rating

IP44 with supplied cable, vertical position; insulation class II

Radio

Frequency band

868.7 to 869.2 MHz, below 10 mW

Range

Up to 300 m in open field

Receiver placement

At least 20 cm from metal, about 1.5 m above floor

Frequently Asked Questions

Can it control cooling as well as heating?

Yes. It manages Heating, Cooling, Off and Absence and supports reversible and non-reversible heat pumps and ducted air systems.

Is it a programmable thermostat?

Programming (AUTO mode) is provided through a Tydom hub. Without a hub you have Manual, Absence and Off on the thermostat.

What happens if the radio link is lost?

After one hour the receiver enters safe mode: it stays off if it was off, otherwise it runs emergency frost protection (about 15% heating). Pressing the receiver button cycles safe-mode options.

How do I check the signal?

Use the radio diagnostic on the thermostat: below 30% is too weak, 30 to 60% is correct and above 60% is excellent. Move the unit or add an ERX 1000 / ERX 2000 repeater.

Can I add more receivers?

Yes. Further receivers or repeaters can be associated with the Tybox Control from the thermostat menu.

Is there a black version?

Delta Dore also makes the Tybox RF 210 BK (black) and an XL rectangular Tybox Control. This listing is the standard square white version.
