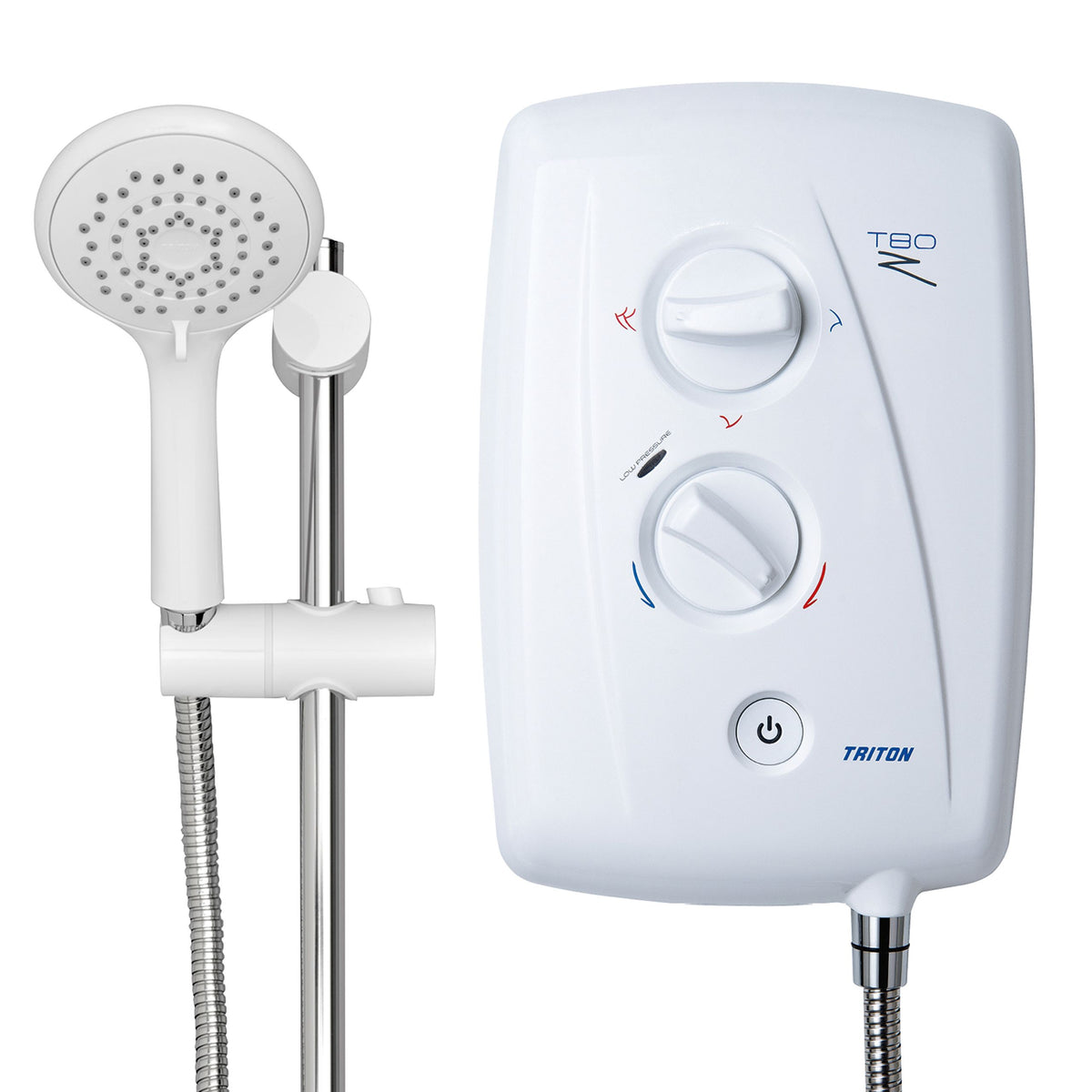

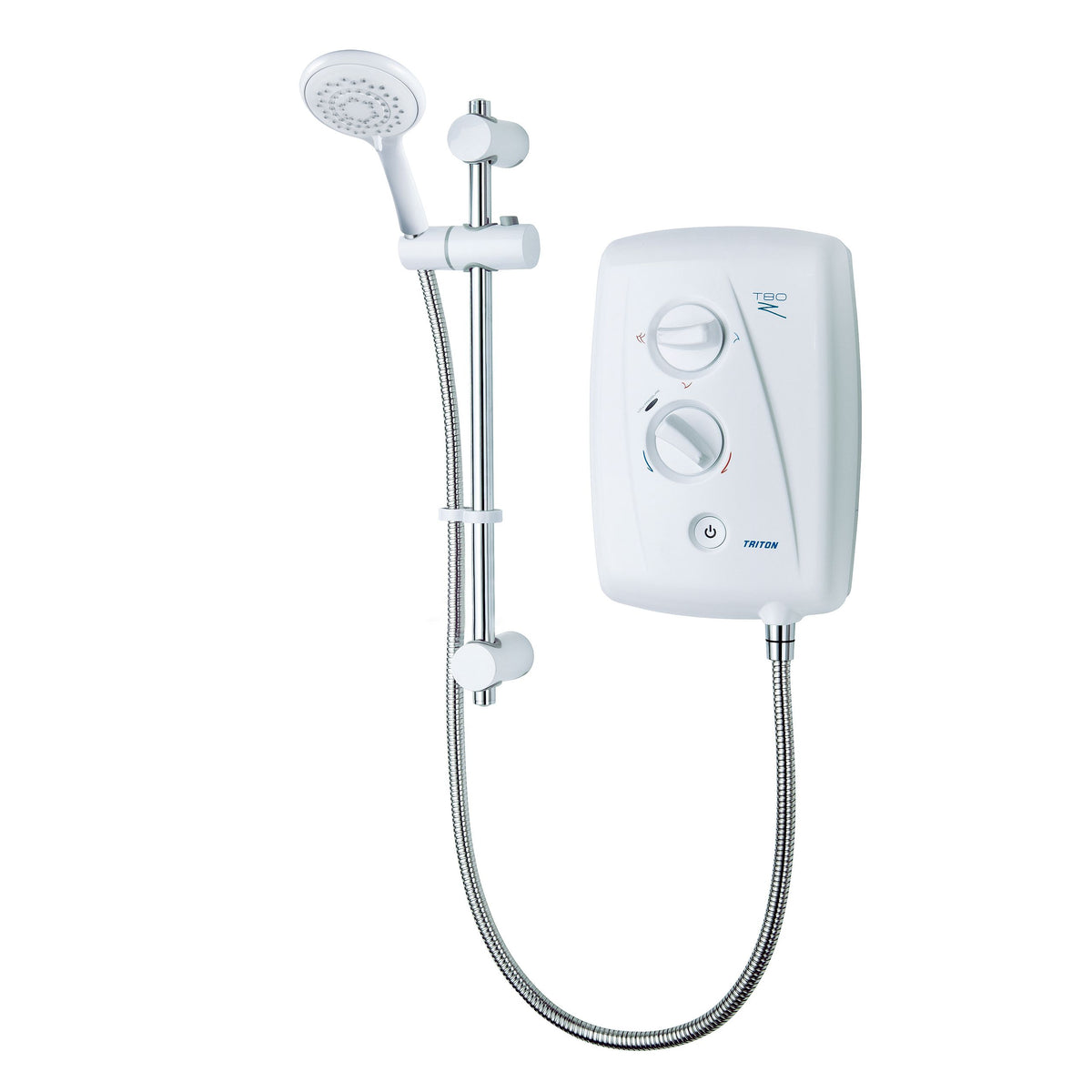

Triton T80Z Fast-Fit Electric Shower 7.5/8.5/9.5/10.5kW
Regular price
£169.00
Inc. VAT
£140.83
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
The Triton T80Z Fast-Fit electric shower is built for one job: swapping an old electric shower for a new one with as little disruption as possible. It is available in 7.5kW (SP8007ZFF), 8.5kW (SP8008ZFF), 9.5kW (SP8009ZFF) and 10.5kW (SP8001ZFF), so you can match the output to your water supply and electrical capacity. It belongs to the household-favourite T80Z range, the latest generation of the Triton T80 that has been a fixture in UK bathrooms for more than 30 years, and its generous footprint covers the original T80Z Fast-Fit and most competitor models, so you are unlikely to expose bare wall or leave unused fixing holes.
Installation flexibility is where the Fast-Fit earns its name. Swing-Fit™ lets the wiring terminal swing left or right to meet your existing cable, Swivel-Fit™ gives a fully reversible 180° water inlet for left- or right-hand pipework, and 8 water entry points and 6 cable entry points mean the connections can arrive from almost any direction. In use you get push-button start/stop that retains your preferred power and temperature settings, separate flow and temperature controls and an easy-clean shower head with five spray patterns. Covered by a 2 year parts and labour guarantee.
4
Power ratings: 7.5, 8.5, 9.5 and 10.5kW
6
Cable entry points
8
Water entry points
2 Years
Parts and labour guarantee
10 bar
Maximum static pressure
2 min
Simple commissioning
Choose your variant
All four variants are White / Chrome. Current figures are calculated from the power rating at 240V.
Electrical and installation safety
These are high-load appliances, drawing roughly 31A to 44A at 240V depending on the rating. Each must be installed by a competent electrician on its own dedicated circuit, with RCD protection and in line with BS 7671 and Part P where applicable. Always check the cable size and protective device rating in Triton’s installation instructions against your cable run length and installation method before ordering — do not assume an existing shower cable is suitable. The 10.5kW (SP8001ZFF) requires 10mm² cable.
Compatibility: mains-fed water supply
These are mains-fed electric showers with a 15mm inlet and a maximum static pressure of 10 bar. The 7.5kW, 8.5kW and 9.5kW models need a minimum 1 bar running pressure at 8 l/min; the 10.5kW needs 1.5 bar at 11 l/min. For replacements, slight pipework alterations or new screw holes may still be needed depending on the old unit.
Which rating should I choose?
A higher kW rating heats water faster for a stronger, hotter shower, but needs a heavier electrical supply and, for the 10.5kW, more water pressure and flow. Choose the highest rating your existing cable, consumer unit and water supply can safely support.
Key features
Ultimate replacement fit
The large footprint covers most electric showers on the market, and adjustable riser rail brackets let you position fixings on tile or grout lines, or reuse existing holes.
Swing-Fit™ wiring terminal
The terminal swings left or right so existing cabling reaches the connection, with 6 cable entry points to choose from.
Swivel-Fit™ water inlet
A fully reversible 180° swivel inlet accepts pipework from either side, with 15mm compression connection and a 1/2" BSP male outlet.
Push-button start/stop
Push-button start/stop retains your preferred power and temperature settings, with separate flow and temperature controls.
Easy-clean shower head
A rub-clean head with five spray patterns and a removable spray plate makes limescale maintenance simple.
Quick, tidy fitting
Wire-free cover fit, entry trims that fit with no tools and a simple 2 minute commissioning process.
Technical specification
