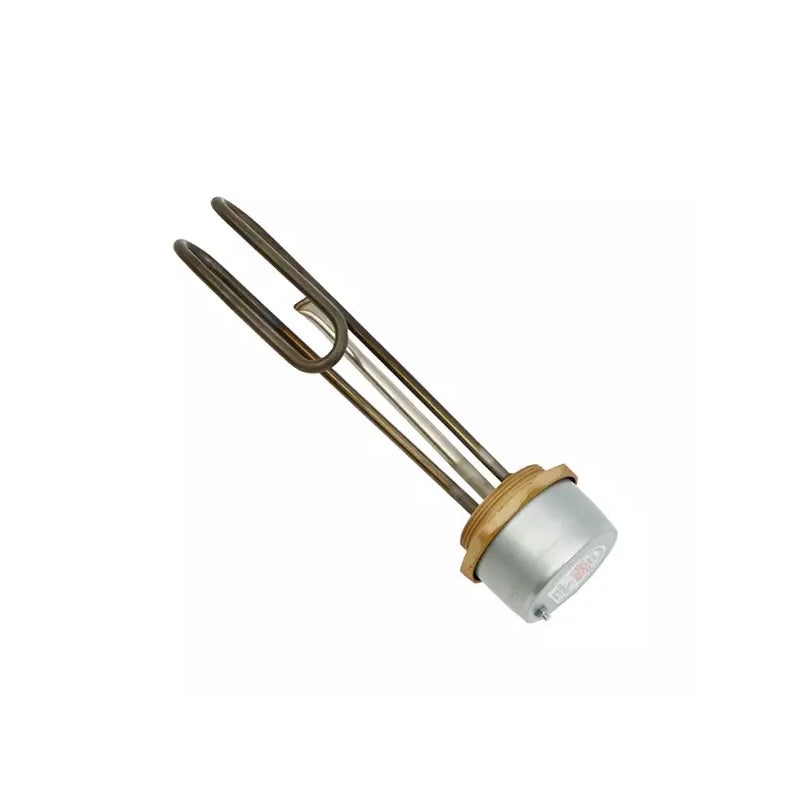

The Tesla UK Titanium Immersion Heater with Incoloy Thermostat Pocket is the premium element in the Tesla domestic heater line-up, recommended for hard to very hard water areas where scale build-up is most aggressive. It uses a standard 2-1/4" BSP boss and is rated 3kW at 240V across all three available lengths.
This variant is supplied complete with a dual safety thermostat matched to the element length, a sealing washer, and full fitting instructions. It is manufactured to EN 60335-2-73 and BEAB approved (Certificate No. 21089), with Kiwa water regulations approval. Select the correct length below to match your existing cylinder boss and thermostat pocket depth.
Titanium
Element Material
Incoloy
Thermostat Pocket
Please Note: This Titanium variant is manufactured in three lengths only — 11", 14" and 27". It does not cover every length available in the Copper or Incoloy ranges. If your cylinder requires 18", 23", 30" or 36", an Incoloy element is the next-best option for hard water areas.
Titanium Element for the Hardest Water
Titanium is the manufacturer-recommended material for hard to very hard water areas, offering the best resistance to limescale build-up and the longest service life of any material in the Tesla range.
Incoloy Thermostat Pocket
Unlike the standard copper-pocket variants, this heater uses an Incoloy thermostat pocket, making it more resistant to galvanic corrosion and better suited to demanding water conditions.
Dual Safety Thermostat Included
Every length is supplied complete with a combined thermostat and safety over-temperature cut-out, factory pre-set to 60°C with an 85°C manual-reset cut-out.
Thermostat Length Matched to Element
Stem length increases with element length — 7" for the 11" and 14" models, and 18" for the 27" model — ensuring accurate temperature sensing depth.
BEAB & Kiwa Approved Throughout
Manufactured to EN 60335-2-73 and BEAB approved (Certificate No. 21089), with Kiwa water regulations approval and a non-asbestos gasket or WRAS-approved seal as applicable.
Suits Combination, Standard and Solar Cylinders
The 11" and 14" lengths suit combination cylinders, while the 27" length is recommended for larger 36" x 18" domestic cylinders.
| General Specification |
| Manufacturer |
Tesla UK Ltd, Sutton Coldfield, West Midlands |
| Element Material |
Titanium |
| Thermostat Pocket Material |
Incoloy |
| Boss Size |
2-1/4" BSP |
| Power Rating |
3kW @ 240V |
| Approval Standard |
EN 60335-2-73 (BS EN 60335-2-73) |
| Safety Certification |
BEAB Approved, Certificate No. 21089 |
| Water Regulations |
Kiwa approved |
| Thermostat Type |
Combined dual safety thermostat with manual-reset over-temperature cut-out |
| Thermostat Pre-set |
60°C (adjustable, cut-out at 85°C) |
| Sealing |
Non-asbestos gasket or WRAS-approved ‘O’ ring, as applicable |
| Cable Rating |
Minimum 1.5mm² heat-resistant cable required (installer-supplied) |
| Max System Temperature |
75°C (per BS699 / BS1566 / BS3198 domestic hot water systems) |
| Recommended Water Hardness |
Hard to very hard water areas |
| Installation Guidance |
| Combination Cylinders |
11" or 14" recommended |
| 36" x 18" Cylinders |
27" recommended |
| Mounting Orientation |
14" or shorter: horizontal. 27": vertical (top-entry) |
| Clearance |
Approx. 60mm clearance required between element end and cylinder wall/base |
| Length |
Boss |
kW @ 240V |
Thermostat Length |
MPN |
| 11" |
2-1/4" BSP |
3 |
7" |
TIH565 |
| 14" |
2-1/4" BSP |
3 |
7" |
TIH570 |
| 27" |
2-1/4" BSP |
3 |
18" |
TIH585 |
Important Safety Information: This is a mains-voltage electrical heating product for installation into a water-filled cylinder. Installation, wiring and testing must be carried out by a suitably qualified electrician or a Part P registered competent person, in accordance with current IEE wiring regulations. The appliance must be earthed and wired through a double-pole isolator with a contact separation of at least 3mm in all poles. The heater must never be switched on unless fully immersed in water.
Why choose Titanium over Incoloy or Copper?
Titanium offers the best resistance to limescale build-up of any material in the Tesla range, making it the manufacturer-recommended choice for hard to very hard water areas where Copper or Incoloy elements would scale up more quickly.
Why does this variant have an Incoloy pocket rather than Titanium?
The thermostat pocket houses the sensing element and does not need to be Titanium itself. An Incoloy pocket still offers strong corrosion resistance and is more cost-effective than a full Titanium pocket, while the Titanium element does the main work of resisting scale.
What lengths are available in this Titanium range?
This Titanium/Incoloy-pocket variant is available in 11", 14" and 27" only. If you need 18", 23", 30" or 36", an Incoloy element is the next-best option for hard water areas.
How do I choose the right length for my cylinder?
The 11" and 14" lengths generally suit combination cylinders, while the 27" length is recommended for larger 36" x 18" domestic cylinders.
Does this heater include a thermostat?
Yes. Every length is supplied complete with a dual safety thermostat matched to the element length, pre-set to 60°C with an 85°C manual-reset safety cut-out, along with the correct sealing washer or O-ring.
