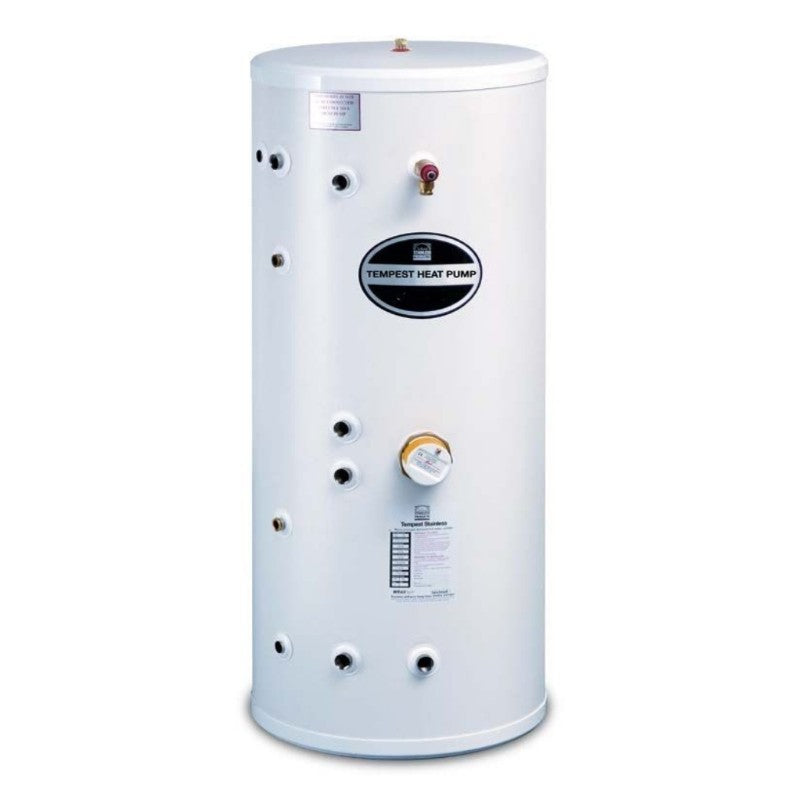

Telford Tempest 500L Indirect Heat Pump Cylinder

Description

The Telford Tempest 500L Indirect Heat Pump Cylinder is a high capacity hot water storage solution designed for use with air source heat pump systems. Its large 500 litre capacity makes it suitable for larger homes, high demand domestic hot water applications and selected commercial installations.

Manufactured from durable Duplex stainless steel, this unvented cylinder provides mains pressure hot water and high flow rates while offering excellent resistance to corrosion. A purpose designed 3m² heat exchange coil supports efficient transfer of renewable heat into the stored water, while the factory fitted 3kW immersion heater provides reliable back up heating when required.

The cylinder is fully insulated to help reduce standing heat loss and is supplied with essential unvented system components, including an external expansion vessel, tundish, inlet control group and safety valves. A 3 port valve is not included and must be purchased separately.

Key Features

500 Litre Capacity Provides substantial hot water storage for larger households and high demand applications.

Heat Pump Compatible Designed for indirect connection to suitable air source heat pump systems.

3m² Heat Exchange Coil Supports efficient renewable heat transfer into the stored domestic hot water.

Duplex Stainless Steel Offers strong corrosion resistance and long term durability.

Mains Pressure Hot Water Delivers high flow hot water directly from the mains fed unvented system.

Factory Fitted 3kW Immersion Heater Provides dependable supplementary or back up heating.

Complete Unvented Kit Supplied with key safety and control components for installation.

Fully Insulated Design Helps minimise standing heat loss and improve overall system efficiency.

Technical Specifications

Specification	Details
Product type	Indirect unvented heat pump cylinder
Brand	Telford
Range	Tempest
Product code	TSMI500/HP
Nominal capacity	500 litres
Height	1835 mm
Diameter	710 mm
Empty weight	59 kg
Approximate full weight	544 kg
Heat exchange coil area	3 m²
Immersion heater	3 kW factory fitted immersion heater
Material	Duplex stainless steel
Coil and fittings	316L grade stainless steel, 22mm compression fittings and coil
Standing heat loss	2.49 kWh per 24 hours
Maximum supply pressure	12 bar
Maximum primary pressure	3 bar
Temperature and pressure relief valve setting	7 bar / 90°C
Hot water system	Mains pressure unvented system

Included Components

• 3kW immersion heater.
• Temperature and pressure relief valve.
• Acetal tundish.
• Inlet group control.
• 2 port valve.
• External expansion vessel.
• Dual probe thermostat.
• Wall mounting bracket for the external expansion vessel.

Suitable Applications

Larger Homes Suitable for properties requiring a high volume of stored domestic hot water.

Air Source Heat Pump Systems Designed to work with compatible indirect air source heat pump installations.

High Demand Hot Water Areas A practical choice for homes with multiple bathrooms or frequent simultaneous hot water use.

Trade Installations Supplied with key unvented system components to support professional installation.

Installation Information

This is an unvented cylinder and must be installed, commissioned and serviced by a suitably qualified professional in accordance with applicable UK regulations and manufacturer instructions. The 3 port valve is not included with the cylinder and must be sourced separately where required by the heating system design.
