Home » Strom Fittings Pack for Combi Boilers - Isolation Valve Kit for Strom Electric Combi & AuraHeat Stored Combi Boilers
SKU: SBSVPC
(0)

Strom Fittings Pack for Combi Boilers - Isolation Valve Kit for Strom Electric Combi & AuraHeat Stored Combi Boilers

Strom
£89.00 Inc. VAT £74.17 Exc. VAT
  • FREE Express Delivery (1-3 days) in UK Mainland on most orders
  • Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£49 delivery), Small Items (£4.95 delivery / free above £500)
  • Contact Us to check for Next Working Day Delivery or Same-day Delivery options
  • Contact Us for Click & Collect options
  • Custom quote available on request
*See checkout or shipping policy for full details

Payment options

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Do you have a question
about this product?

One of our expert advisors will be happy to help you!

Contact Us
Question Image

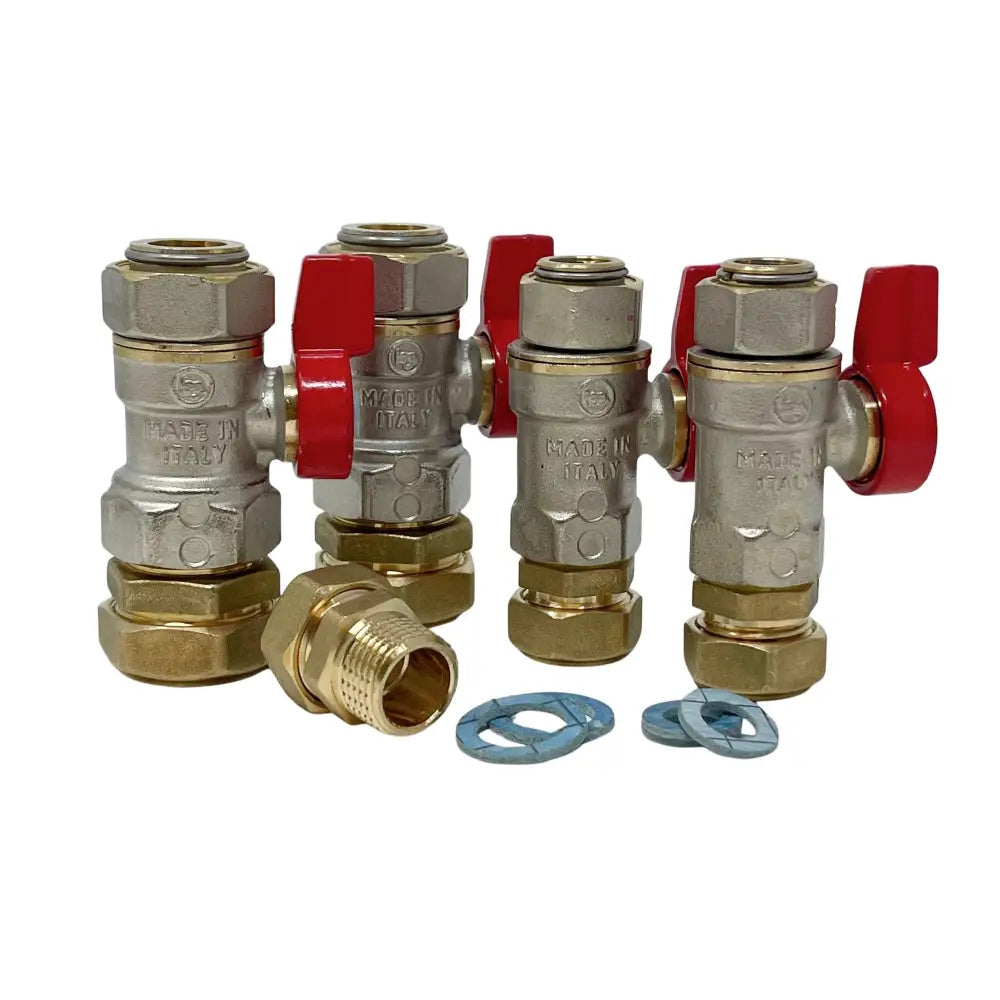

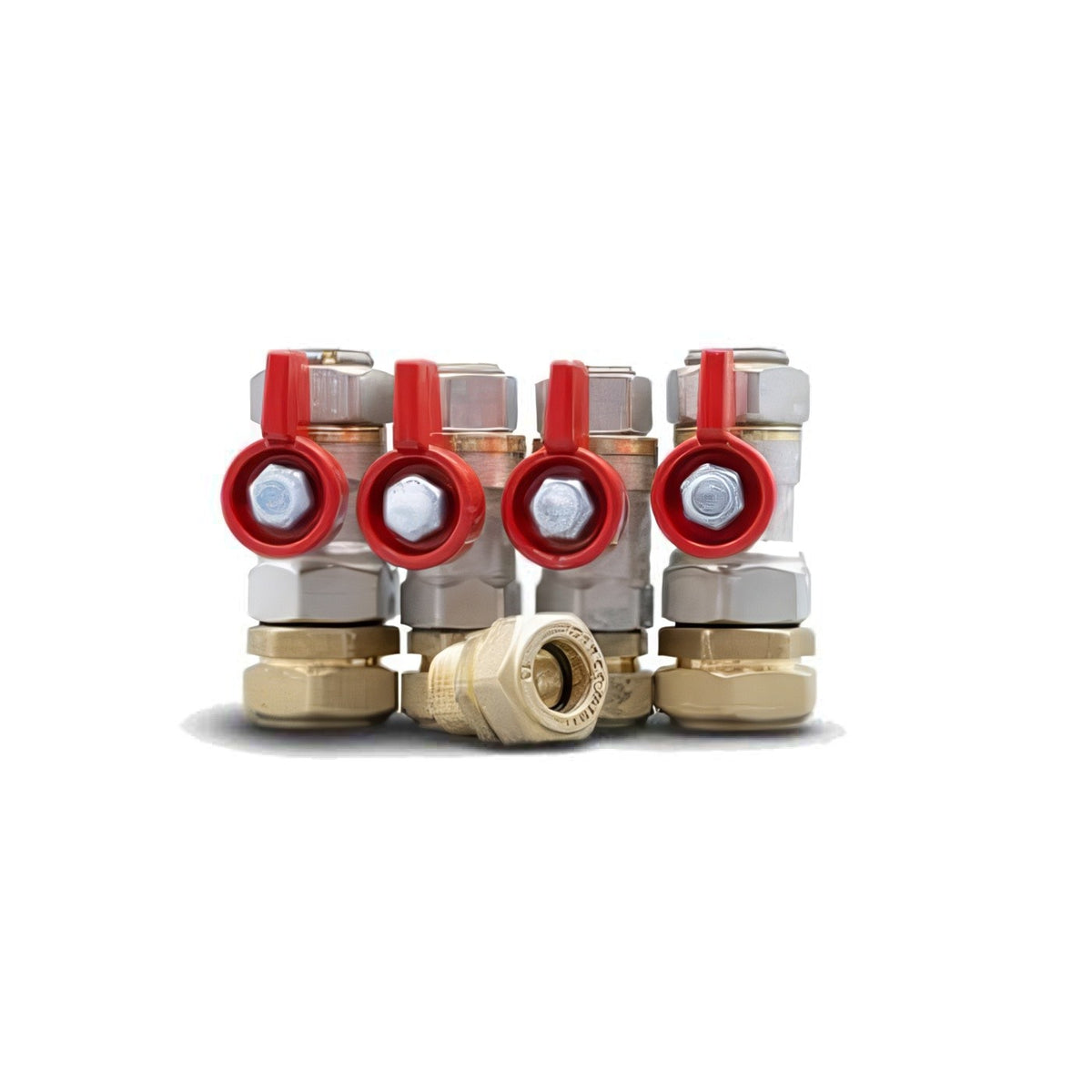

The Strom Fittings Pack for Combi Boilers provides the isolation valves needed to make the final heating and hot water connections to a Strom electric combi boiler. The pack includes two 22mm flat-faced isolation valves for the central heating flow and return, two 15mm flat-faced isolation valves for the domestic hot water inlet and outlet, and a 15mm male union for added flexibility when finishing off the pipework.

4 + 1
Isolation Valves & Union
22mm & 15mm
Heating & DHW Connections
Flat-Faced
Compression Isolation Valves
Flat-Faced Valves for Easier Servicing

The flat-faced design lets in-line devices such as magnetic filters or scale reducers be fitted and removed without draining the system, and allows the boiler itself to be isolated for future servicing without draining the whole heating circuit.

Matches Strom's Combi Connection Sizes

The pack covers both connection sizes used on Strom electric combi boilers: 22mm (3/4") for the central heating flow and return, and 15mm (1/2") for the domestic hot water inlet and outlet, as set out in Strom's combi installation guidance.

Tidy, Flexible Final Connections

The included 15mm male union makes it easier to align and tighten the final domestic hot water joint without putting strain on the boiler's internal pipework, where over-tightening of irons can cause damage that isn't covered under warranty.

Other Fittings Still Required

This pack covers isolation on the heating and hot water connections only. Strom's installation guide separately requires a filling loop, an automatic bypass valve (ABV), and a drain point at the lowest point of the heating system - none of these are included in this pack and should be sourced and fitted separately as part of a complete installation.

Pack Details
Manufacturer Strom Limited
Pack Contents 2 x 22mm flat-faced isolation valves, 2 x 15mm flat-faced isolation valves, 1 x 15mm male union
Heating Connection Size 22mm (3/4")
DHW Connection Size 15mm (1/2")
Valve Type Flat-faced compression isolation valves
Compatible With Strom electric Combi and AuraHeat Stored Combi boilers (e.g. SBSP7C, SBSP11C, SBSP15C, SBSP9SC, SBSP13SC)
What's included in the Strom Fittings Pack for Combi Boilers?
The pack contains two 22mm flat-faced isolation valves for the central heating flow and return, two 15mm flat-faced isolation valves for the domestic hot water inlet and outlet, and a 15mm male union to help finish off the hot water connection neatly.
Which Strom boilers does this pack fit?
It's designed for Strom's electric combi boilers, which all use the same 22mm (3/4") heating and 15mm (1/2") domestic hot water connection sizes - including the standard Combi range (such as SBSP7C, SBSP11C, SBSP15C) and the AuraHeat Stored Combi range (SBSP9SC, SBSP13SC).
Do I still need a filling loop and automatic bypass valve?
Yes. This pack provides isolation valves only. Strom's installation guide separately calls for a filling loop, an automatic bypass valve (ABV), and a drain point at the lowest point of the system, none of which are included here and should be fitted as part of a complete, compliant installation.
Why use flat-faced isolation valves rather than standard valves?
Flat-faced valves provide a sealed, flush face when closed, which makes it possible to disconnect downstream pipework, fit a filter, or remove the boiler for servicing without draining the entire heating system - something a standard compression or ball valve cannot do as cleanly.
