The

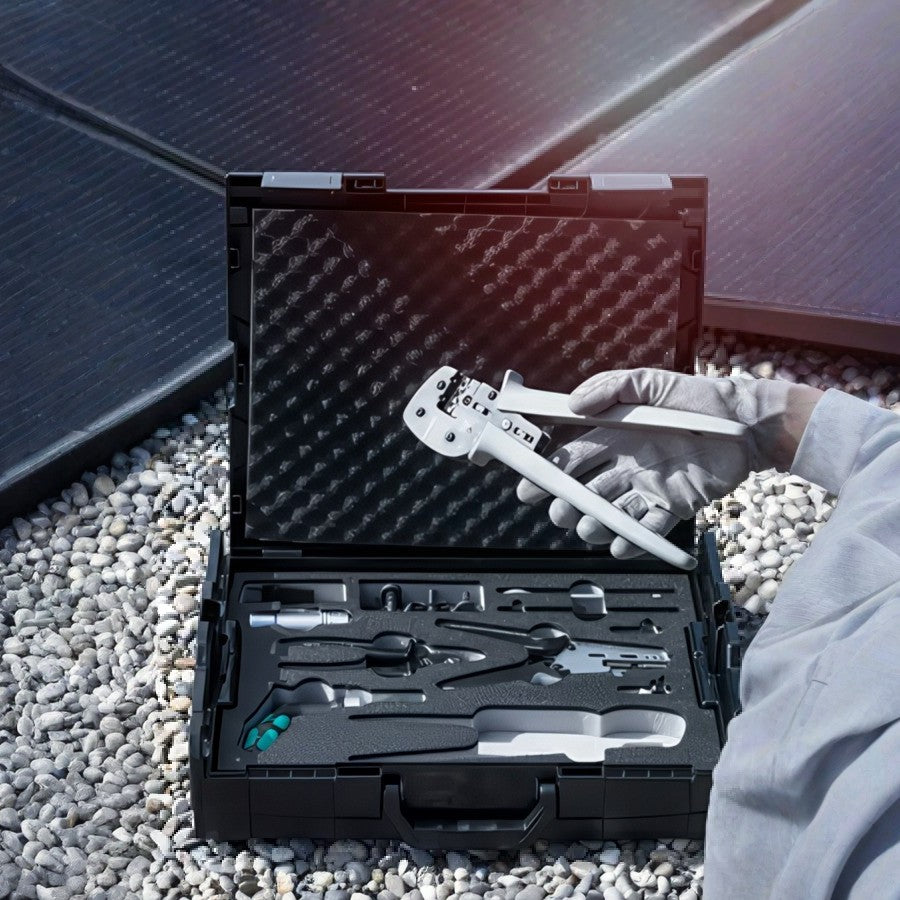

Stäubli PV-Installer Tool Case is the complete, manufacturer-assembled professional toolkit for installing the entire
Original MC4 and MC4-Evo 2 connector range. Housed in a robust plastic carry case, it brings together every tool required for correct, certified field assembly — crimping pliers, locators, stripping pliers, a torque tool set, cable cutter, test plugs, sealing caps, and the metal open-end spanner set — configured for
metric (mm²) cable sizes and open crimp contacts.
444 x 350 x 118mm
Case Dimensions
MC4 & MC4-Evo 2
Connector Compatibility
4 / 6 / 10 mm²
Cable Sizes
⚠ IEC / metric configuration — confirm before ordering
This case is equipped for metric cable sizes (mm²) and open crimp contacts (4mm², 6mm², 10mm²). Installers working to AWG cable sizing for the North American market should instead specify Stäubli's UL-configured case (PV-WZ/AWG-SET), which uses different crimping pliers and locators sized to AWG cross-sections.
◆ Case contents are fixed at time of order
The case ships as a fixed bundle of the components listed in the specification table below. If a specific tool inside the case is lost or worn out, individual replacement parts (e.g. the crimping die, a locator, or the torque tool) can be ordered separately using the part numbers listed, rather than needing to replace the entire case.
ℹ One crimping tool covers both connector families
The crimping pliers included in this case (PV-CZM-60100) use the same crimping die for both MC4 and MC4-Evo 2 open crimp contacts — only the drop-in locator changes between connector types, and both locators are included in the case.

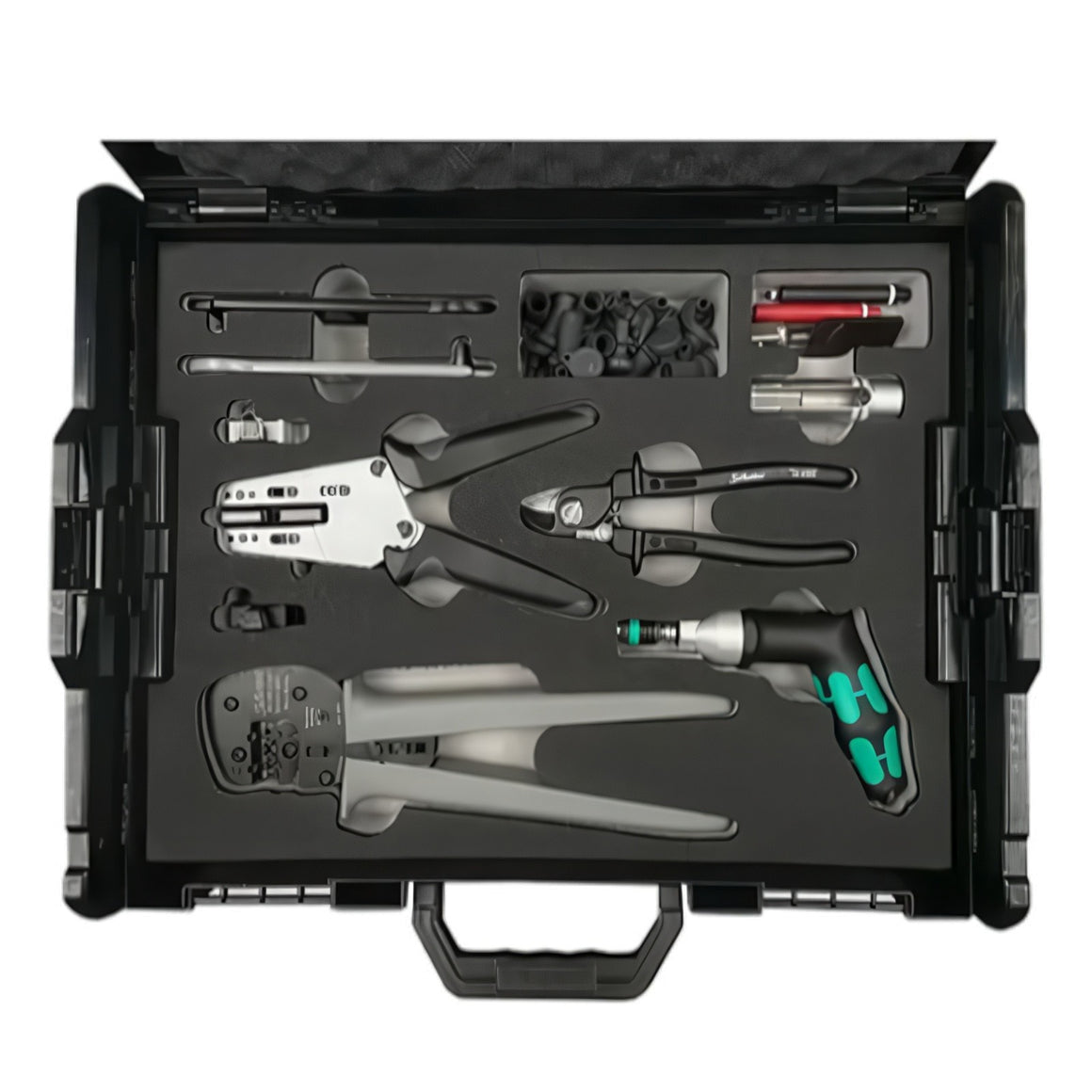

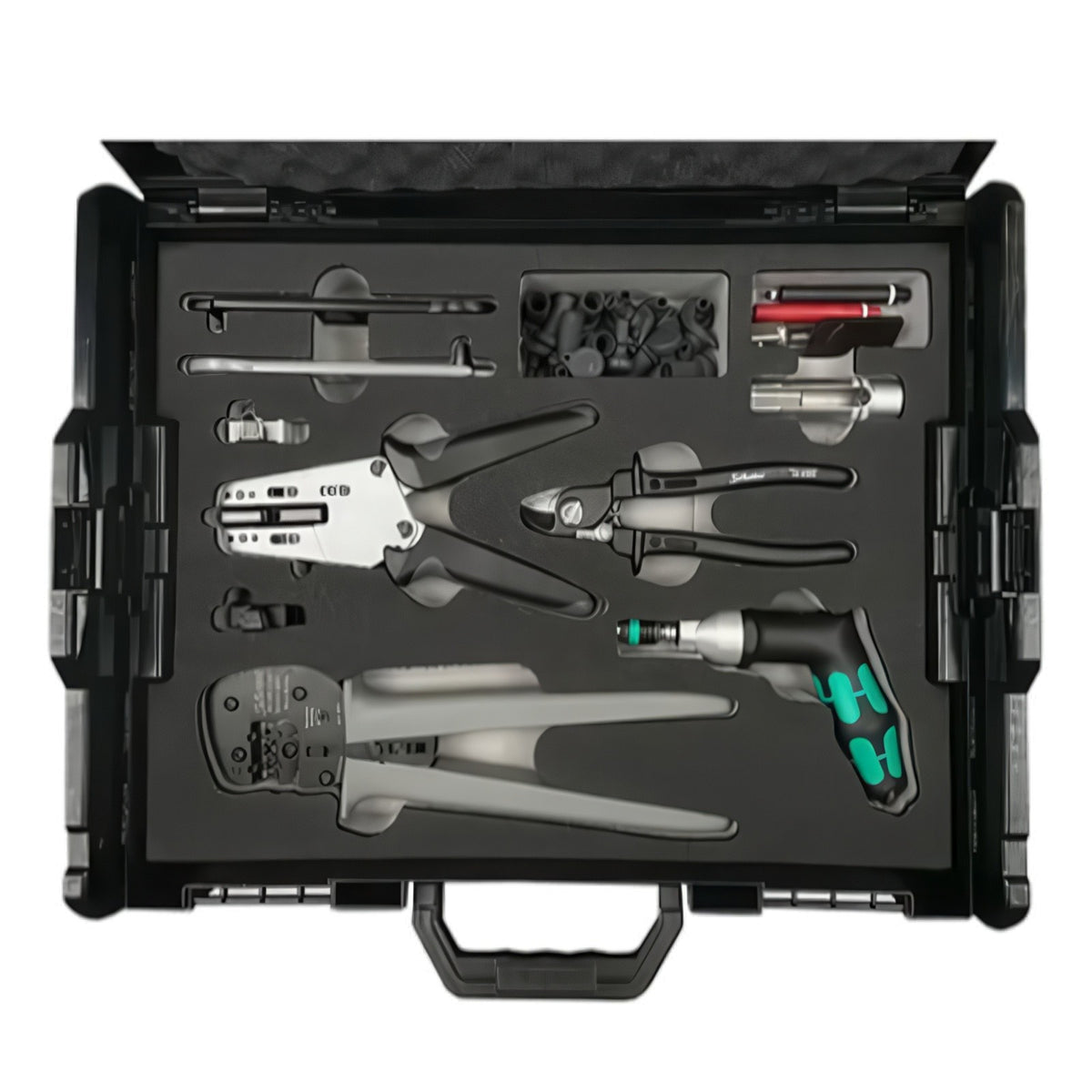

Complete Field-Ready Toolkit
Everything required for correct MC4 and MC4-Evo 2 assembly is included in one case — no need to source individual tools separately or guess at compatible third-party alternatives.
Metal MC4/MC4-Evo 2 Spanner Set Included
The case includes the PV-MS-PLS metal open-end spanner set, giving durable, professional-grade pre-tightening and unlocking tools alongside the crimping equipment.
Adjustable Torque Tool Set
The included PV-WZ-TORQUE-SET torque tool applies the correct final assembly torque (3.0–6.0 N·m, ±6% accuracy) to the connector cap nut, critical for achieving the connector's rated IP68 seal.
Test Plugs for Both Connector Types
Separate MC4 test plug (PV-PST) and MC4-Evo 2 test plug (PV-EVO-PST) are included, allowing installers to verify correct contact seating depth in the insulator body after assembly.
Sealing Caps and Cable Cutter Included
Ships with 10 pairs of MC4/MC4-Evo 2 sealing caps (socket and plug) for protecting unmated connectors, plus a dedicated cable cutter rated to 15mm wire diameter for clean, deformation-free cuts.
Traceable, Certified Crimping
The crimping pliers included are TÜV Rheinland and UL certified and leave a registered crimp die identifier on every terminal, providing verifiable evidence of correct tool use long after installation.
| Case Details |
| Type designation |
PV-Installer Tool Case SET |
| Order number |
32.6126 |
| Description |
MC4 and MC4-Evo 2 tool case (IEC / metric configuration) |
| Case dimensions (L x W x H) |
444 x 350 x 118mm |
| Case material |
Robust plastic |
| Configured for |
Metric (mm²) cable sizes, open crimp contacts |
| Included Tools |
| Crimping pliers (with locators for MC4 & MC4-Evo 2) |
PV-CZM-60100 (32.6020-60100) |
| MC4 locator (included with crimping pliers) |
PV-LOC-MC4 (32.6081) |
| MC4-Evo 2 locator (included with crimping pliers) |
PV-LOC-MC4-Evo 2 (32.6083) |
| Stripping pliers |
PV-AZM-410 (32.6027-410), cable sizes 4/6/10mm² |
| Open-end spanner set, metal |
PV-MS-PLS (32.6058) |
| Cable cutter (max. wire diameter 15mm) |
PV-WZ-KS (32.6080) |
| Torque tool set |
PV-WZ-TORQUE-SET (32.0065) |
| MC4-Evo 2 unlocking tool |
PV-MS-MC4-Evo 2 (32.6066) |
| MC4 test plug |
PV-PST (32.6028) |
| MC4-Evo 2 test plug |
PV-EVO-PST (32.6073) |
| Sealing caps, socket side (10 pcs.) |
PV-BVK4 (32.0716) |
| Sealing caps, plug side (10 pcs.) |
PV-SVK4 (32.0717) |
| Torque Tool — Technical Data |
| Torque range |
3.0 N·m – 6.0 N·m |
| Accuracy |
±6% (EN ISO 6789) |
| Display of set torque |
Numerical scale |
| Cable Cutter — Technical Data |
| Maximum wire diameter |
15mm |
| Suitable conductors |
Single-stranded, multi-stranded, finely stranded copper and aluminium |
| Not suitable for |
Steel wire, wire rope, hard-drawn copper cable |
Does this case work with both MC4 and MC4-Evo 2 connectors?
Yes. Every tool in the case is designed to handle both the original MC4 and MC4-Evo 2 connector families, including dedicated test plugs and locators for each.
Is this the metric or AWG version?
This case (32.6126) is the metric (mm²) configuration for 4mm², 6mm², and 10mm² cable. For AWG-sized cable, Stäubli offers a separate UL-configured case, PV-WZ/AWG-SET.
Can individual tools inside the case be replaced if lost or worn?
Yes. Every tool in the case has its own Stäubli part number, listed in the specification table above, so individual components can be reordered separately without replacing the whole case.
Does the case include a torque tool for final assembly?
Yes, the PV-WZ-TORQUE-SET is included, providing the correct 3.0–6.0 N·m torque range required for properly sealing MC4 and MC4-Evo 2 cap nuts to their rated IP68 standard.
Are the crimping pliers in this case certified?
Yes, the included PV-CZM-60100 crimping pliers are TÜV Rheinland certified and UL listed, and leave a traceable, registered crimp identifier on every terminal produced.
