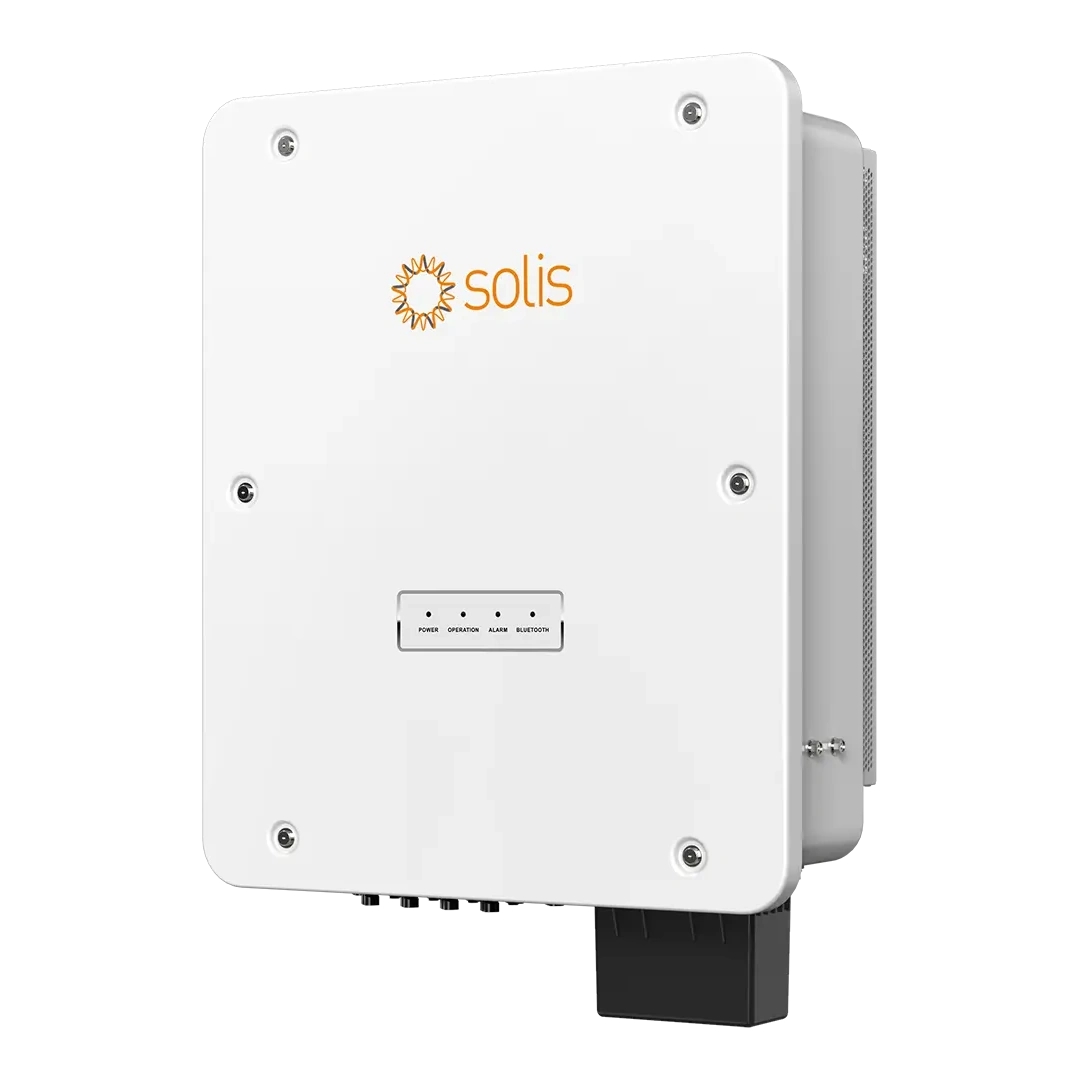

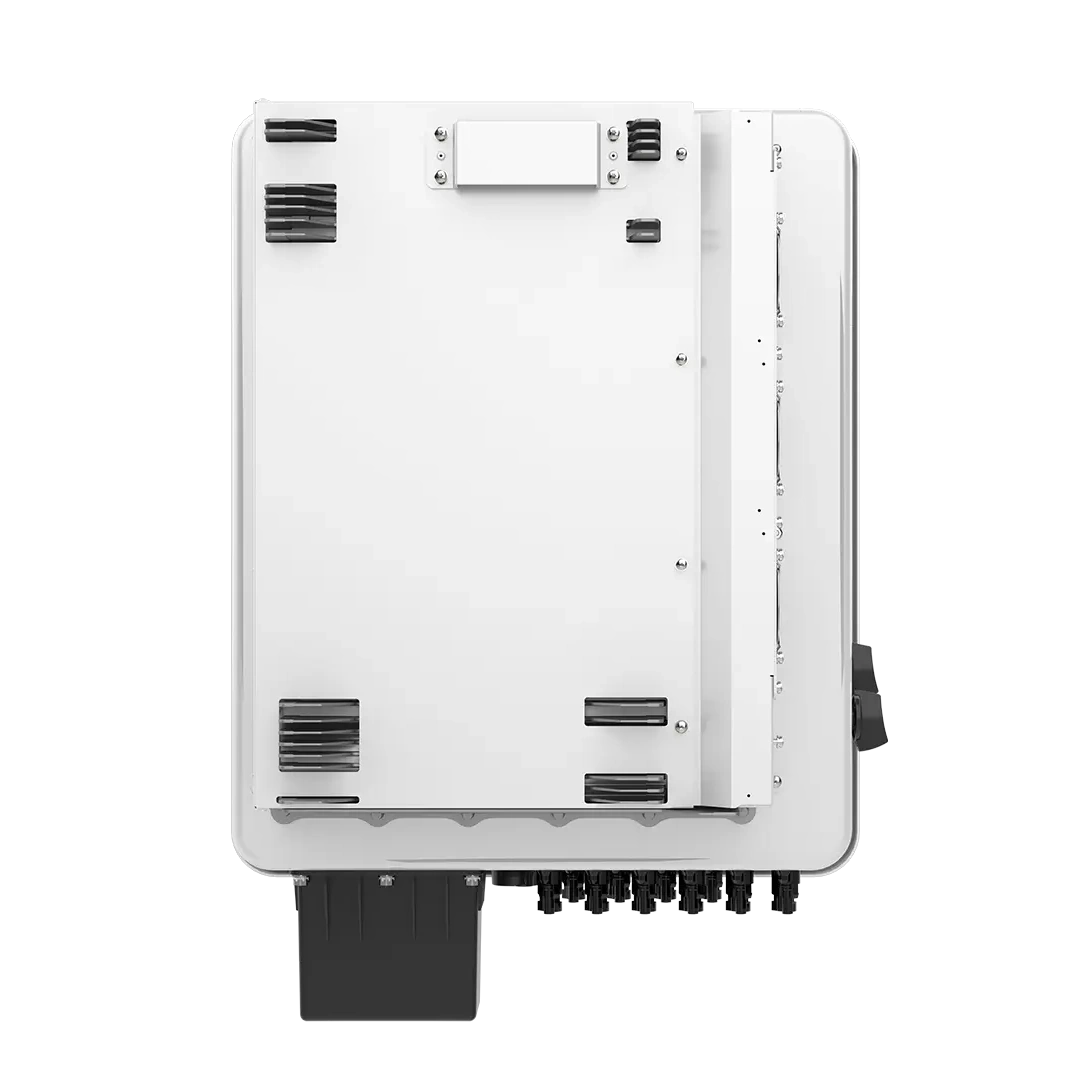

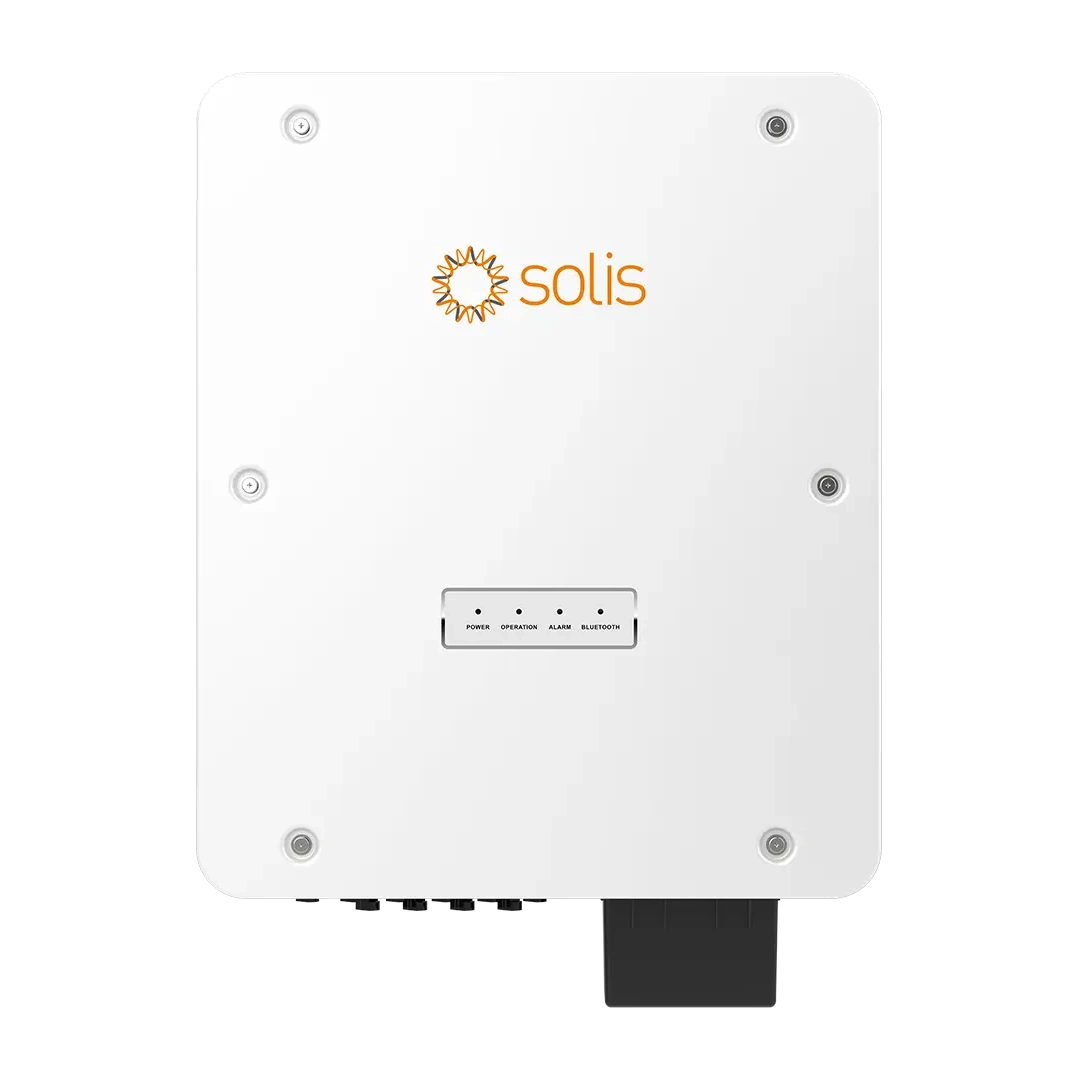

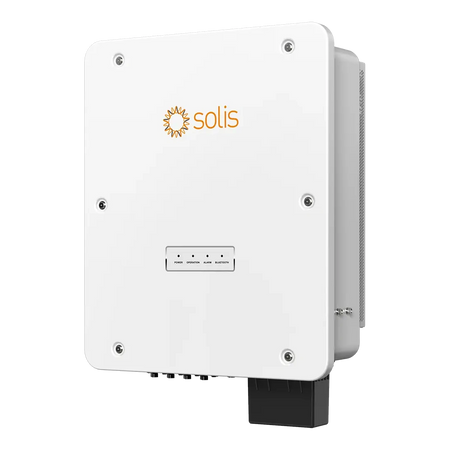

Solis S6 50kW 3 Phase Solar Inverter | S6-GC3P50K04-NV-ND

Description

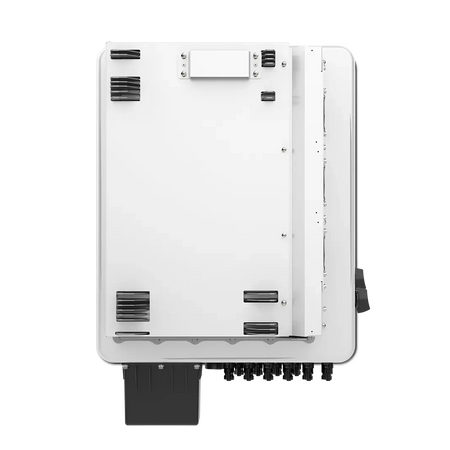

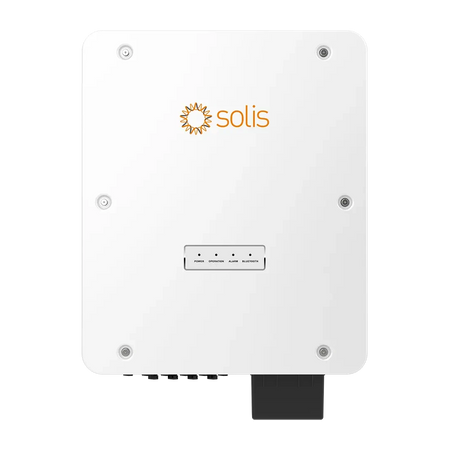

The Solis S6 50kW three-phase solar inverter (part number S6-GC3P50K04-NV-ND) is a transformerless string inverter for commercial and industrial PV systems. It combines 50 kW rated AC output, an integrated DC switch, MC4 DC connectors and a sealed IP66 enclosure suited to outdoor installation.

With 4 independent MPPT trackers and 8 string inputs, the inverter gives designers flexible string layouts across multiple roof planes. Each MPPT input handles up to 40 A, and a DC/AC ratio above 150% lets high-power modules be paired without compromise. Yield is protected by 98.6% maximum efficiency, 98.1% European efficiency and over 99.5% MPPT efficiency.

Built-in protection includes Type II DC and AC surge protection, string monitoring, I-V curve scanning and multi-peak scanning, while Bluetooth and app commissioning, SolisCloud monitoring, remote upgrade and RS485 communication cover setup and ongoing monitoring.

50 kW

AC output power

4

MPPT trackers

98.6%

Max efficiency

1100 V

Max DC input voltage

>150%

DC/AC ratio supported

IP66

Ingress protection

Grid connection: G99 application required

Rated AC output current is 72.2 A per phase at 400 V, well above the 16 A per phase limit for G98. A G99 application to the Distribution Network Operator is therefore required before connection. Installation must be carried out by a competent electrician in line with BS 7671.

Compatibility and options

A three-phase four-wire (3/N/PE) supply at 230 V / 400 V is required, with the neutral connected. Wi-Fi and GPRS data logging, integrated AFCI 2.0 and PID recovery are listed as optional in the manufacturer datasheet. Please contact us before ordering if your project depends on any of these.

Array design at a glance

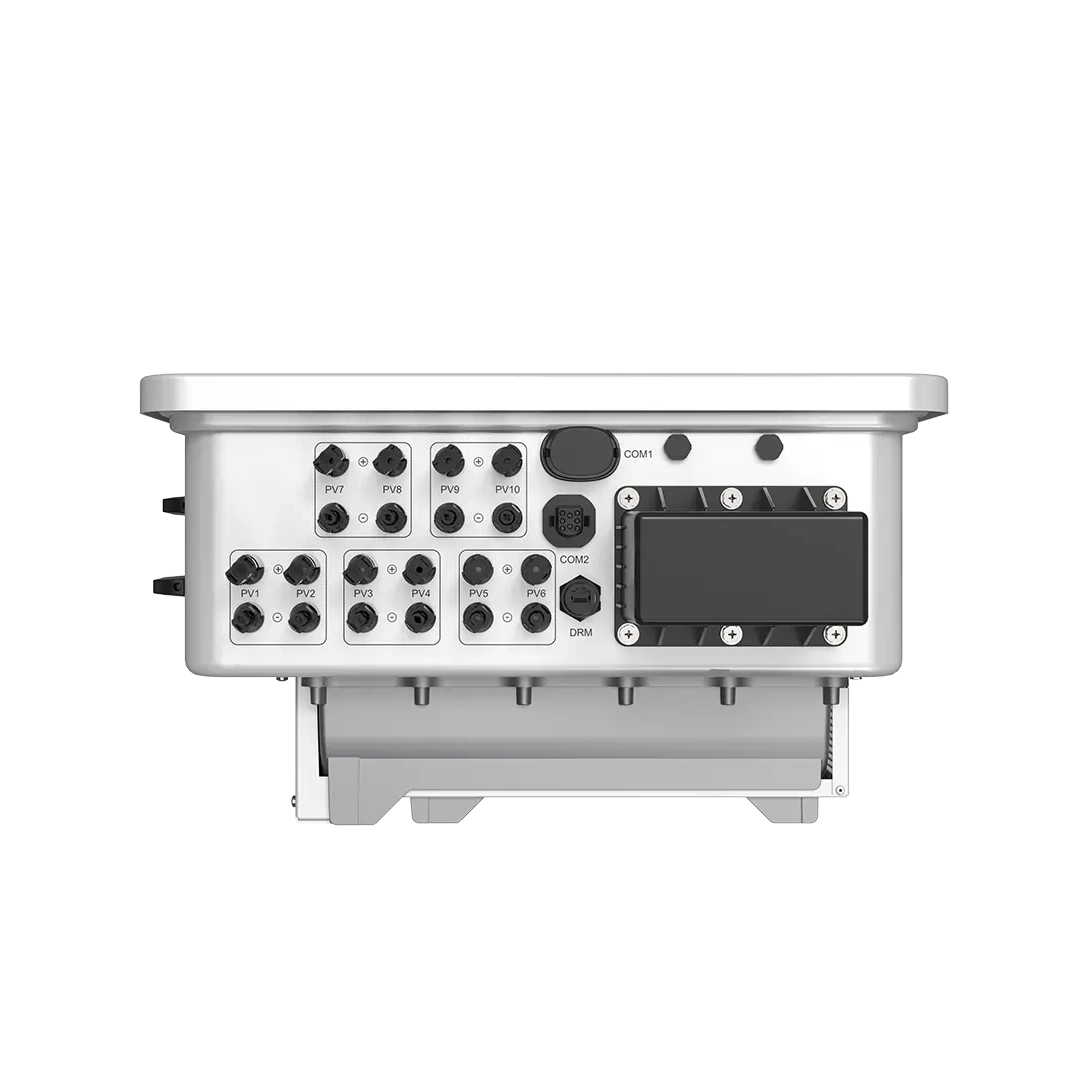

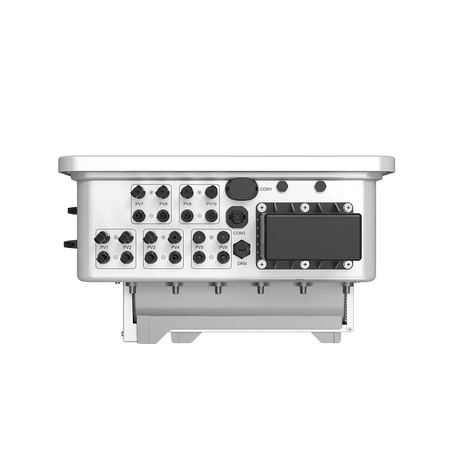

4 MPPT trackers with 8 string inputs (two per tracker), each tracker rated for 40 A input current and 50 A short-circuit current. Strings facing different directions can be split across separate trackers.

Key features

High efficiency

98.6% maximum efficiency, 98.1% European efficiency and over 99.5% MPPT efficiency to maximise annual yield.

Flexible string design

4 MPPT / 8 strings, each input rated for 40 A with 50 A short-circuit current.

High DC oversizing

Supports a DC/AC ratio above 150% and a wide 180 to 1000 V MPPT range, ideal for high-power modules.

Built for outdoors

IP66 enclosure, -25 to +60 °C operating range, 0 to 100% humidity and operation up to 4000 m altitude, with intelligent fan cooling at 60 dB(A) or less.

Comprehensive protection

Integrated DC switch, Type II DC and AC surge protection, string monitoring, I-V curve scan, multi-peak scan, plus optional AFCI 2.0 arc-fault protection and PID recovery.

Smart monitoring

Bluetooth and app commissioning, SolisCloud monitoring with remote upgrade and control, RS485 as standard and optional Wi-Fi or GPRS.

Technical specifications

Model

Part number

S6-GC3P50K04-NV-ND

Rated AC output power

50 kW

Max apparent power

50 kVA

Max output power

50 kW

DC input

Max input voltage

1100 V

Rated input voltage

600 V

Start-up voltage

180 V

MPPT voltage range

180 to 1000 V

MPPT trackers / string inputs

4 / 8

Max input current

4 × 40 A

Max short-circuit current

4 × 50 A

DC connection

MC4 connectors

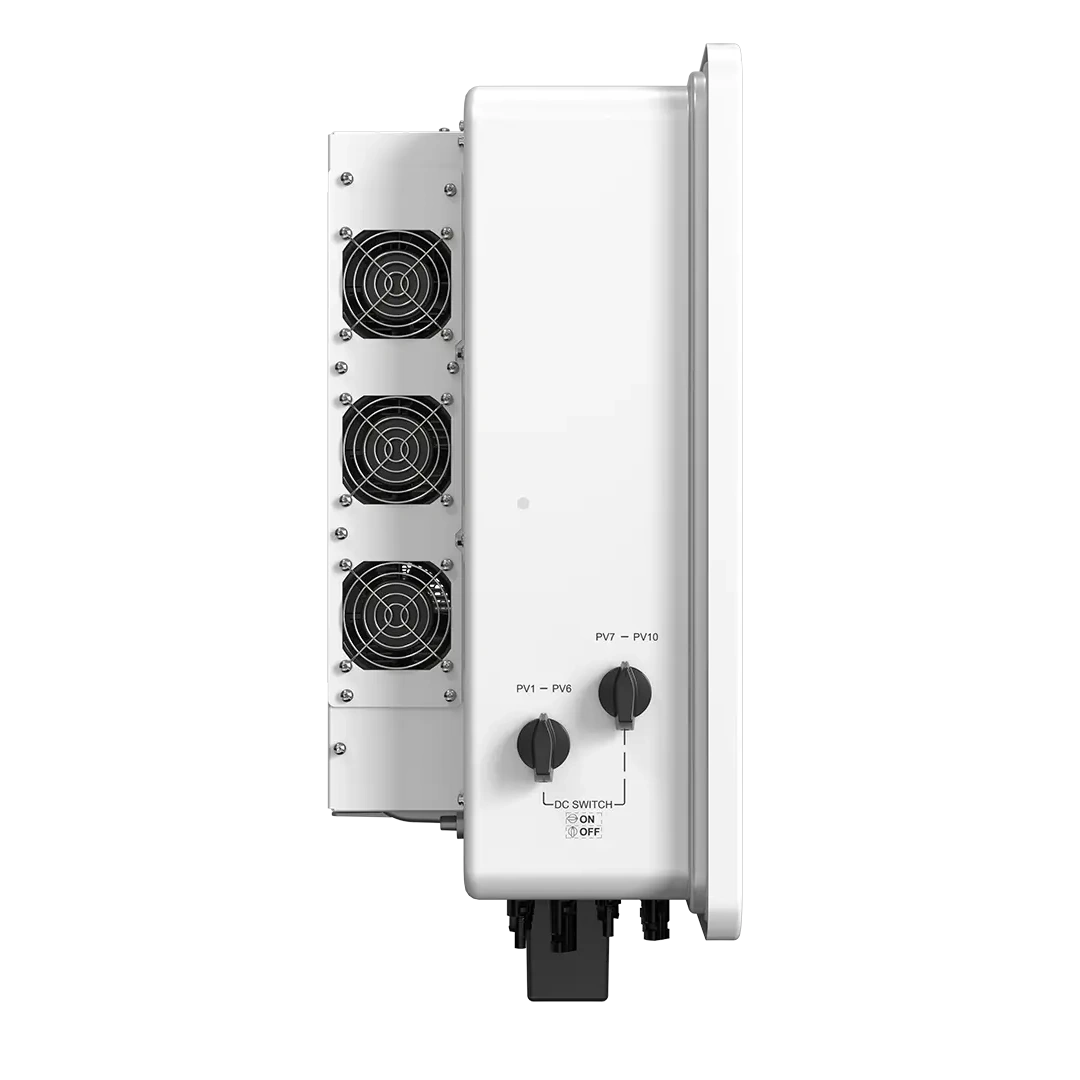

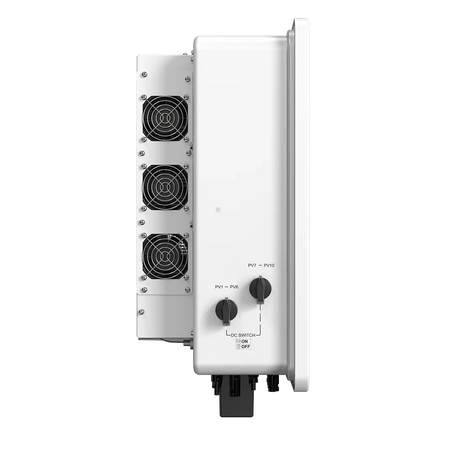

Integrated DC switch

Yes

AC output

Grid connection

3/N/PE, 220 V / 380 V or 230 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated output current at 400 V

72.2 A

Rated output current at 380 V

76.0 A

Power factor

Above 0.99 (0.8 leading to 0.8 lagging)

THDi

Below 3%

AC connection

OT terminal

Efficiency

Maximum efficiency

98.6%

European efficiency

98.1%

MPPT efficiency

Above 99.5%

Protection

DC reverse polarity protection

Yes

Short-circuit protection

Yes

AC output overcurrent protection

Yes

Surge protection

DC Type II / AC Type II

Grid monitoring

Yes

Anti-islanding protection

Yes

Temperature protection

Yes

String monitoring

Yes

I-V curve scan

Yes

Multi-peak scan

Yes

Integrated AFCI 2.0

Optional

Integrated PID recovery

Optional

General

Dimensions (W × H × D)

515 × 672 × 287.5 mm

Weight

35.8 kg

Topology

Transformerless

Night-time consumption

Below 1 W

Operating temperature

-25 to +60 °C

Relative humidity

0 to 100%

Ingress protection

IP66

Noise emission (typical)

60 dB(A) or less

Cooling

Intelligent fan cooling

Max operating altitude

4000 m

Interface and communication

Display

LED indicator, Bluetooth and app

Communication

RS485 (Wi-Fi and GPRS optional)

Monitoring platform

SolisCloud

Standards

Grid connection

G98 / G99, EN 50549-1, VDE-AR-N 4105, IEC 62116, IEC 61727, IEC 61683, IEC 60068, EN 50530

Safety and EMC

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Frequently asked questions

How many strings can the 50kW inverter take?

The inverter has 4 MPPT trackers and 8 string inputs. Each tracker accepts up to 40 A input current and 50 A short-circuit current.

Does the inverter include a DC isolator?

Yes. It has an integrated DC switch, so no separate DC isolator is needed at the inverter.

Do I need a G99 application for this inverter?

Yes. The rated output current of 72.2 A per phase at 400 V exceeds the G98 limit of 16 A per phase, so a G99 application to your DNO is required before connecting.

How much can I oversize the DC array?

The inverter supports a DC/AC ratio above 150%. Array design must stay within the 1100 V maximum input voltage, the 180 to 1000 V MPPT range and the 40 A input current limit per MPPT.

How do I monitor and commission the inverter?

Commissioning is carried out over Bluetooth using the Solis app, and performance is tracked through SolisCloud. RS485 is standard, while Wi-Fi and GPRS data logging are optional.

Is the inverter suitable for outdoor installation?

Yes. The IP66 enclosure is rated for outdoor use across -25 to +60 °C, and cooling is by intelligent fan with noise at 60 dB(A) or less. The unit weighs 35.8 kg, so plan the mounting accordingly and follow the manufacturer's installation guidance.
