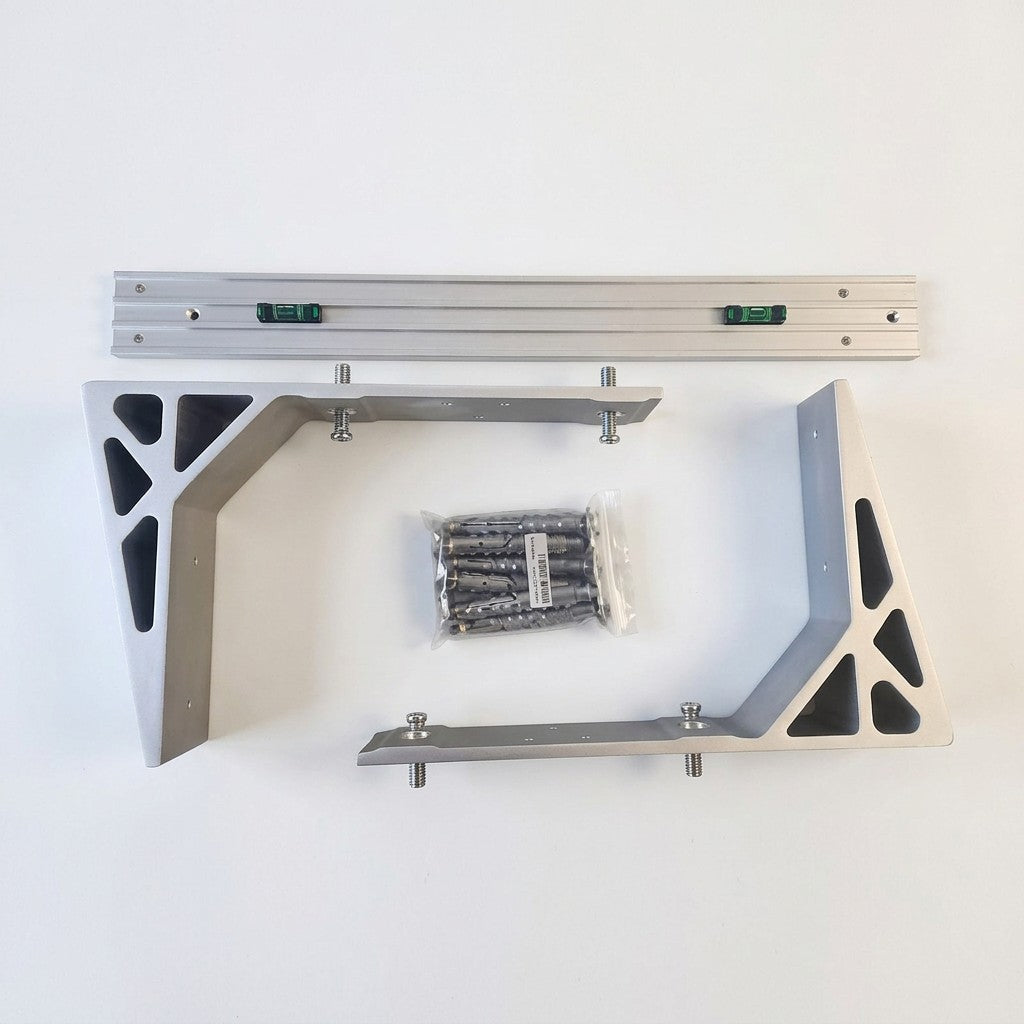

The SolaX IES Wall Mounting Kit (SolaX Base Support for X1/X3-IES) lets you mount an X1-IES or X3-IES storage tower on the wall instead of the floor. It is a base support that carries the battery tower at a raised level, and it is required for each storage tower installed in the wall-mounted configuration.
The kit is designed for the SolaX IES all-in-one home energy storage system, in which the inverter, BMS and battery modules form one seamless unit. It suits both single phase X1-IES and three phase X3-IES systems and includes an integrated spirit level and the mounting hardware needed to fit it.
Wall Mount
Raised tower installation
X1 + X3
Single & three phase IES
Per Tower
One kit per storage tower
Spirit Level
Integrated for accurate fitting
Hardware
Mounting hardware included
M5 × 8
Base support to plate fixings
Important Safety Information
IES battery towers are heavy. Fix the base support to a wall structure capable of carrying the full tower load, follow the torque values in the SolaX installation manual, and use suitable lifting assistance. Installation must be carried out by a competent, qualified person.
Compatibility & Ordering
Order one wall mounting kit per storage tower. The kit is for the X1-IES and X3-IES storage tower and is not a general-purpose inverter bracket. Where a system uses two towers, each tower needs its own kit. Check your configuration against the installation manual before ordering.
Installation Note
The manual describes attaching the base support and transverse plate with M5 × 8 screws at a tightening torque of 2.2–2.5 N·m. Remove the dust covers from the base, battery modules and BMS before installing.
Wall-Mounted Towers
Raises the IES storage tower off the floor for wall-mounted installations, freeing floor space in garages, utility rooms and plant areas.
Fits X1-IES & X3-IES
One kit design covers both single phase and three phase IES compact systems.
Integrated Spirit Level
An integrated spirit level helps you fit the base support level the first time.
Hardware Included
Mounting hardware is included, so the kit is ready to install with the tower components.
Base Support & Transverse Plate
Assembled from a base support and transverse plate joined with M5 × 8 screws for a rigid foundation for the tower.
Modular System Fit
Part of the modular IES all-in-one system, alongside the inverter, BMS, battery modules and series box.
Product
Product name
SolaX Base Support for X1/X3-IES (wall mounting kit)
Manufacturer
SolaX Power
Suitable for
X1-IES and X3-IES compact energy storage systems
Purpose
Wall mounting of the IES storage tower
Quantity required
One kit per storage tower
Features
Levelling
Integrated spirit level
Hardware
Mounting hardware included
Assembly screws
M5 × 8 (base support to transverse plate)
Assembly torque
2.2–2.5 N·m
Related IES System Components
Inverter
X1-IES (single phase) or X3-IES (three phase)
Battery module
TP-HS50E
BMS
TBMS-MCS0800E
Two-tower systems
Series Box required to join towers
What does the wall mounting kit do?
It carries the IES storage tower at a raised level on the wall, so you can wall mount the tower instead of floor mounting it.
Do I need one kit per tower?
Yes. SolaX states the wall mounting kit must be added for each storage tower.
Does it fit both single phase and three phase IES systems?
Yes. It is listed as suitable for the X1-IES and X3-IES compact systems.
Is mounting hardware supplied?
Yes. The kit includes mounting hardware and an integrated spirit level. You will still need suitable wall fixings for your specific wall type, so check that the supplied anchors suit your structure.
What tightening torque applies?
The installation manual gives 2.2–2.5 N·m for the M5 × 8 screws that join the base support and transverse plate.
