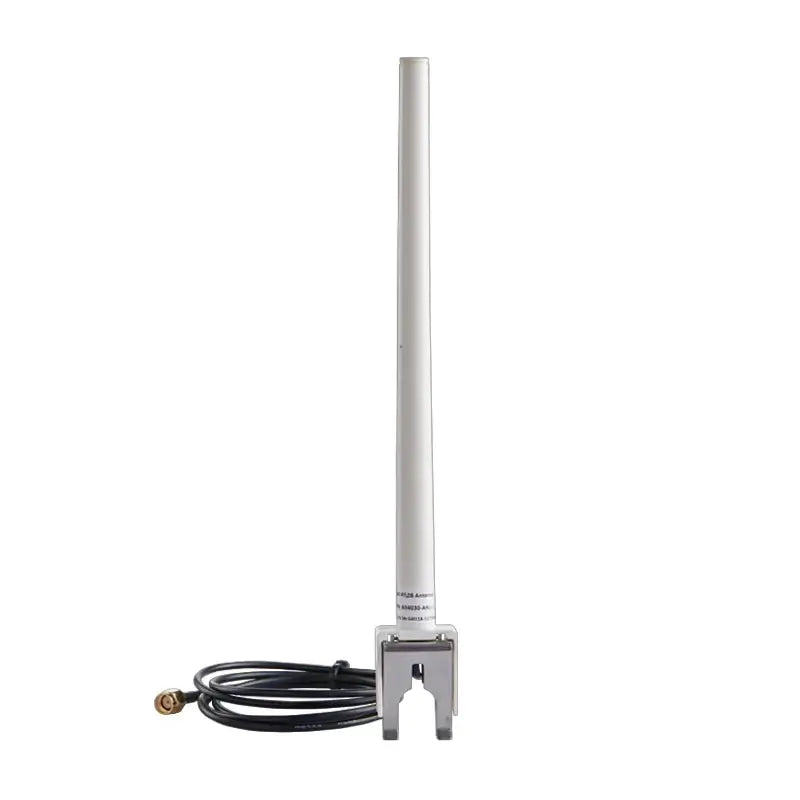

SolarEdge WiFi and ZigBee Antenna single - Set APP

The SolarEdge WiFi and ZigBee Antenna single (SetAPP) is an external omnidirectional antenna that enhances Wi-Fi and ZigBee connectivity for SetApp-enabled SolarEdge inverters.

Product Description

This compact antenna connects externally to SolarEdge inverters to provide wider range wireless communication for monitoring platform access and Smart Energy device networking. It supports reliable Wi-Fi connectivity for data upload and ZigBee mesh for home energy management devices.

Key Features

• Wi-Fi and ZigBee compatible: Dual-band support for SolarEdge systems.
• External mounting: Wider signal range than internal antennas.
• Indoor/outdoor use: Weatherproof for flexible installation.
• Easy installation: Includes RF cable and mounting hardware.
• SetApp inverters only: For screenless HD-Wave inverters.
• 5-year warranty: Reliable performance backed by SolarEdge.

Technical Specifications

• Frequency range: 2.4–2.5 GHz.
• Gain (max): 5 dBi.
• VSWR: 2.1:1.
• Polarization: Linear.
• Impedance: 50 Ohm.
• Radiation pattern: Omni-directional.
• Max input power: 5 W.
• Beam width (horizontal): 360°.

Physical Specifications

• Dimensions (H × D): 200 × 20 mm (7.9 × 0.8 in).
• Weight: 50 g (0.11 lb).
• Cable: RG316 coaxial.
• Cable length: Up to 180 cm.
• Connector: SMA male.
• Material: UV-resistant plastic.

Applications

• Connecting SetApp SolarEdge inverters to monitoring platform via Wi-Fi.
• Extending ZigBee range for Smart Energy devices (plugs, meters, EV chargers).
• Improving signal in large homes or challenging RF environments.
• Outdoor inverter installations requiring robust wireless coverage.
