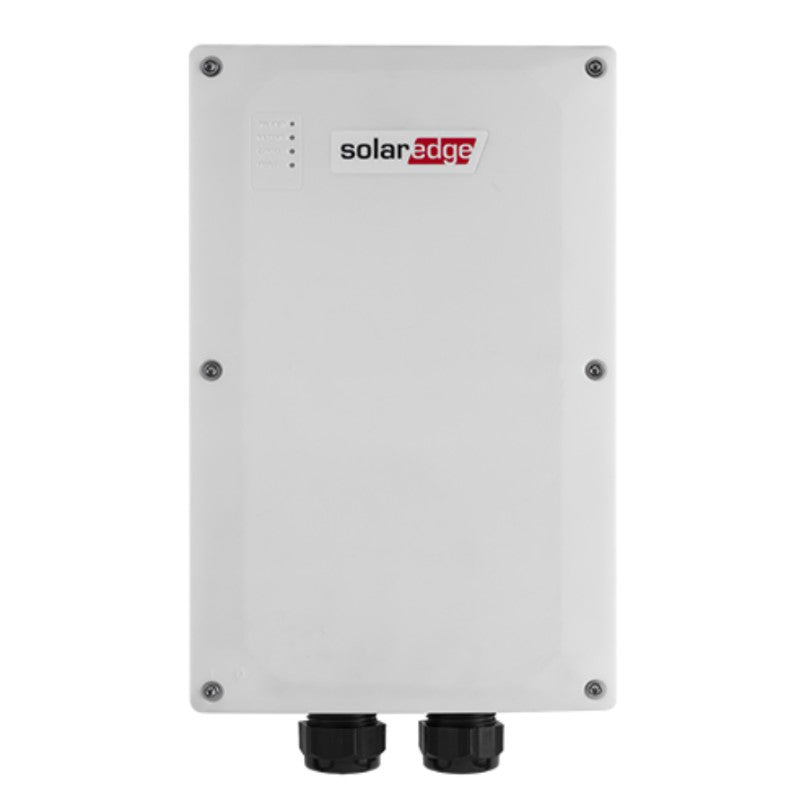

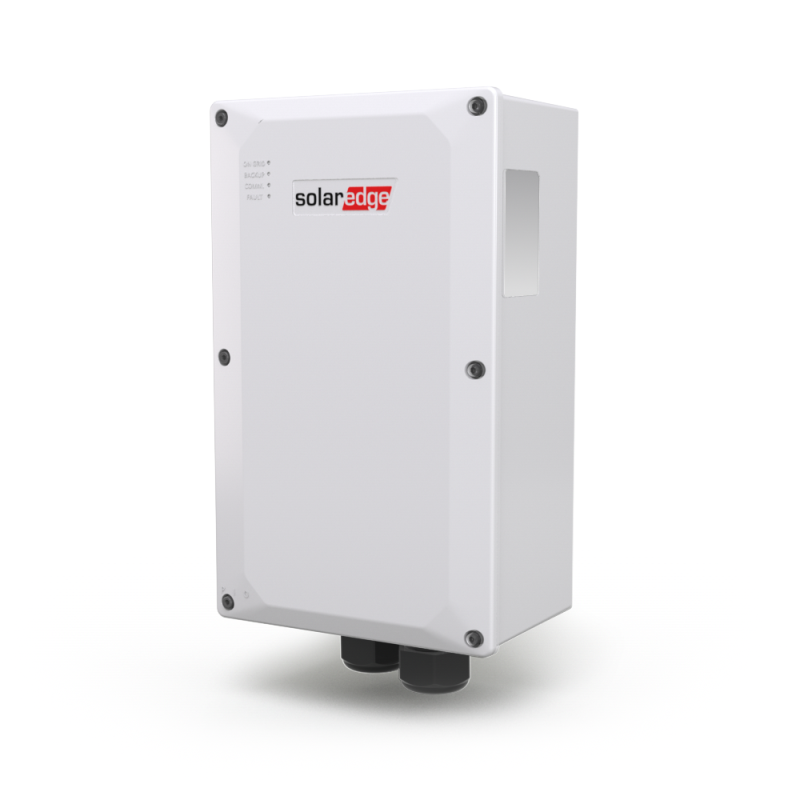

The SolarEdge Home Backup Interface (single-phase, model BI-NEUNU-1P-01) automatically provides backup power to household loads whenever the grid goes down. Paired with a SolarEdge Home Hub Inverter and SolarEdge Home Battery, it forms the switching heart of a residential backup system, giving homeowners the flexibility to keep either the entire home or a selection of essential circuits running through a power cut.
Beyond backup switching, the unit includes an integrated energy meter for import/export monitoring, connects to the inverter over RS485, and is built as a scalable platform designed to support higher power and higher capacity configurations as a system grows. It carries a weatherproof IP65 rating for indoor or outdoor installation and is backed by a 12-year manufacturer warranty.
100 A
Max AC Current
230 V
Nominal Line-Neutral
< 3 sec
Grid-to-Backup Switchover
IP65
Indoor / Outdoor Rated
RS485
Inverter Communication
12 Year
Warranty
Compatible Inverter Required
The BI-NEUNU-1P-01 is designed exclusively for use with the SolarEdge Home Hub Inverter - Single Phase. It is not a standalone backup device and must be commissioned as part of a matched SolarEdge inverter and battery system.
Qualified Installer Required
This is an electrical switching device operating at mains voltage and current up to 100 A. Installation, wiring and commissioning must be carried out by a qualified electrician following the manufacturer's installation manual and current UK wiring regulations.
Supported Grid Topologies
The interface supports TT, TN-S and TN-C-S earthing arrangements. For any other grid topology, SolarEdge support should be consulted before installation to confirm compatibility.
Automatic Backup Switching
Detects a grid interruption and switches household loads to backup power in under 3 seconds, with disconnection of phase and neutral from the external grid during backup operation.
Whole-Home or Partial Backup
Offers full flexibility in choosing which loads are protected during an outage - the entire property, or a selected set of essential circuits.
Integrated Import/Export Meter
Built-in energy meter (pending firmware support) provides 1.25% accuracy metering of grid import and export, feeding directly into SolarEdge monitoring.
Scalable for Growing Systems
Designed as a scalable platform to support higher power and higher storage capacity as a household's solar and battery system expands.
Seamless Inverter Integration
Communicates with the SolarEdge Home Hub Inverter over RS485, allowing PV generation and energy storage to be managed and monitored from a single system.
Weatherproof IP65 Enclosure
Rated IP65 for both indoor and outdoor mounting, with a wide -40°C to +50°C operating range for demanding installation locations.
General
Model
BI-NEUNU-1P-01
Product Family
SolarEdge Home Backup Interface - Single Phase, for Europe (BI-EU1P)
Supported Inverters
SolarEdge Home Hub Inverter - Single Phase
Warranty
12 years
Grid Connection
AC Current Input
100 A
AC Voltage, Line-Neutral (Min/Nom/Max)
184 / 230 / 264 V
AC Frequency Range
50 / 60 Hz
Grid-to-Backup Switchover Time
< 3 sec
Output to Distribution Panel
Maximum AC Current Output
100 A
AC Voltage, Line-Neutral (Min/Nom/Max)
184 / 230 / 264 V
AC Frequency Range
50 / 60 Hz
Overvoltage Category
III
Additional Features
Supported Grid Topologies
TT, TN-S, TN-C-S
Operation During Backup
Disconnection of phase and neutral from external grid; PE-to-neutral connection on load side, with disconnection configuration option on internal grid
Manual Control Over Microgrid Interconnection Device
Yes
Installation Specifications
AC from Grid / Loads Conductor Cross Section
6 - 25 mm²
Grid / Loads Conduit Diameter
14 - 22 mm
Communication Cable Cross Section
0.2 - 1.5 mm²
Communication Gland Diameter
5 - 15 mm
Weight
< 5 kg
Noise
< 50 dBA
Operating Temperature Range
-40°C to +50°C
Relative Humidity Range
0 - 100%
Protection Rating
IP65 - outdoor and indoor
Dimensions (H x W x D)
390 x 238 x 147 mm
Pollution Degree
3
Maximum Altitude Rating
2000 m
Standard Compliance
Safety
IEC/EN 62109-1
Emissions
IEC 61000-6-2, IEC 61000-6-3, IEC 61000-3-11, IEC 61000-3-12, EN 55011
EAN Not Yet Confirmed
An EAN/barcode for this SKU could not be confirmed from an authoritative manufacturer or distributor source at the time of writing and has therefore been omitted rather than estimated.
Can this be used with any SolarEdge inverter?
No. The BI-NEUNU-1P-01 is built specifically for the SolarEdge Home Hub Inverter - Single Phase. It is not compatible with other SolarEdge inverter series, and should only be specified as part of a matched Home Hub system.
How quickly does it switch to backup power?
The unit disconnects from the grid and switches connected loads to backup power in under 3 seconds of an outage being detected, minimising disruption to the household.
Can I back up my whole house, or just part of it?
Both are possible. The Home Backup Interface offers full flexibility to protect the entire property or a selected set of circuits, depending on how the installer configures the backup loads.
Is this suitable for outdoor installation?
Yes. The enclosure carries an IP65 rating, suitable for both indoor and outdoor mounting, with an operating temperature range of -40°C to +50°C.
Does it include energy metering?
Yes, it has an integrated import/export energy meter rated to 1.25% accuracy, though this metering function is pending firmware support from SolarEdge.
What grid types is it compatible with?
It supports TT, TN-S and TN-C-S earthing topologies. For any other grid arrangement, SolarEdge support should be consulted to confirm compatibility before installation.
