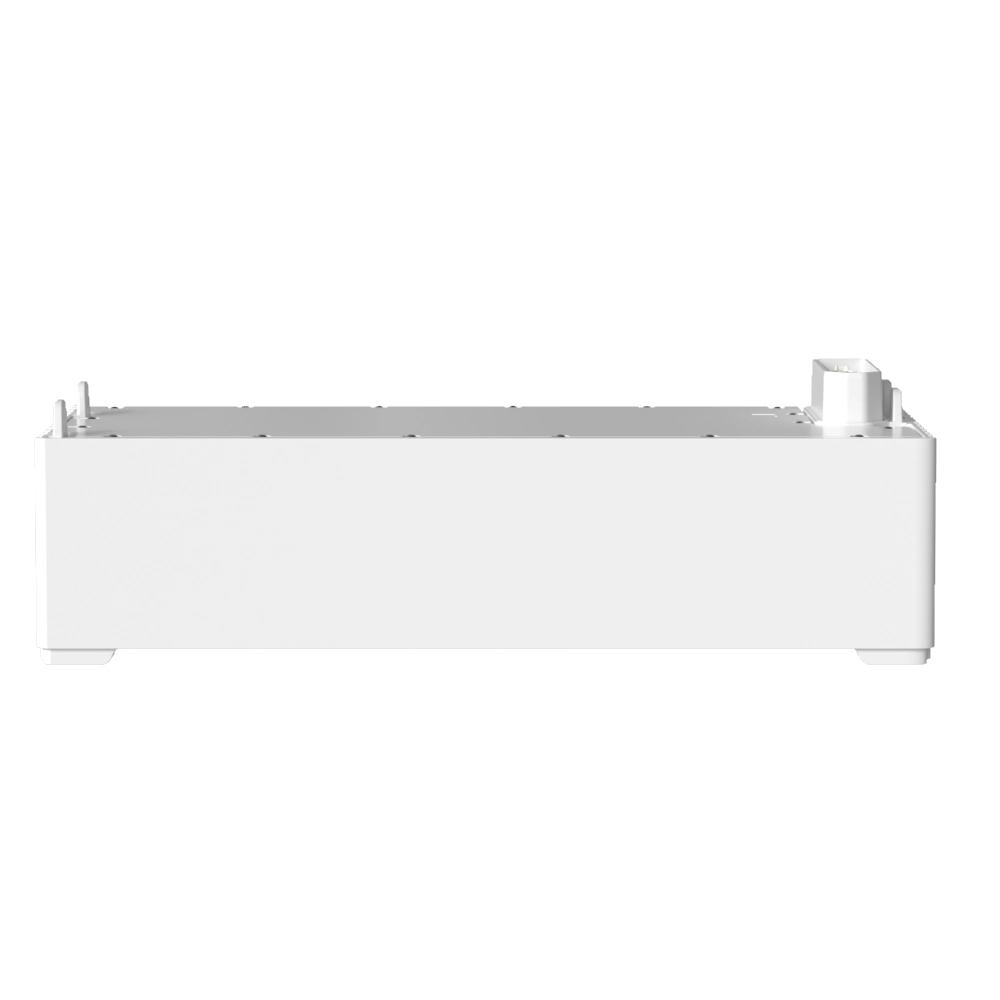

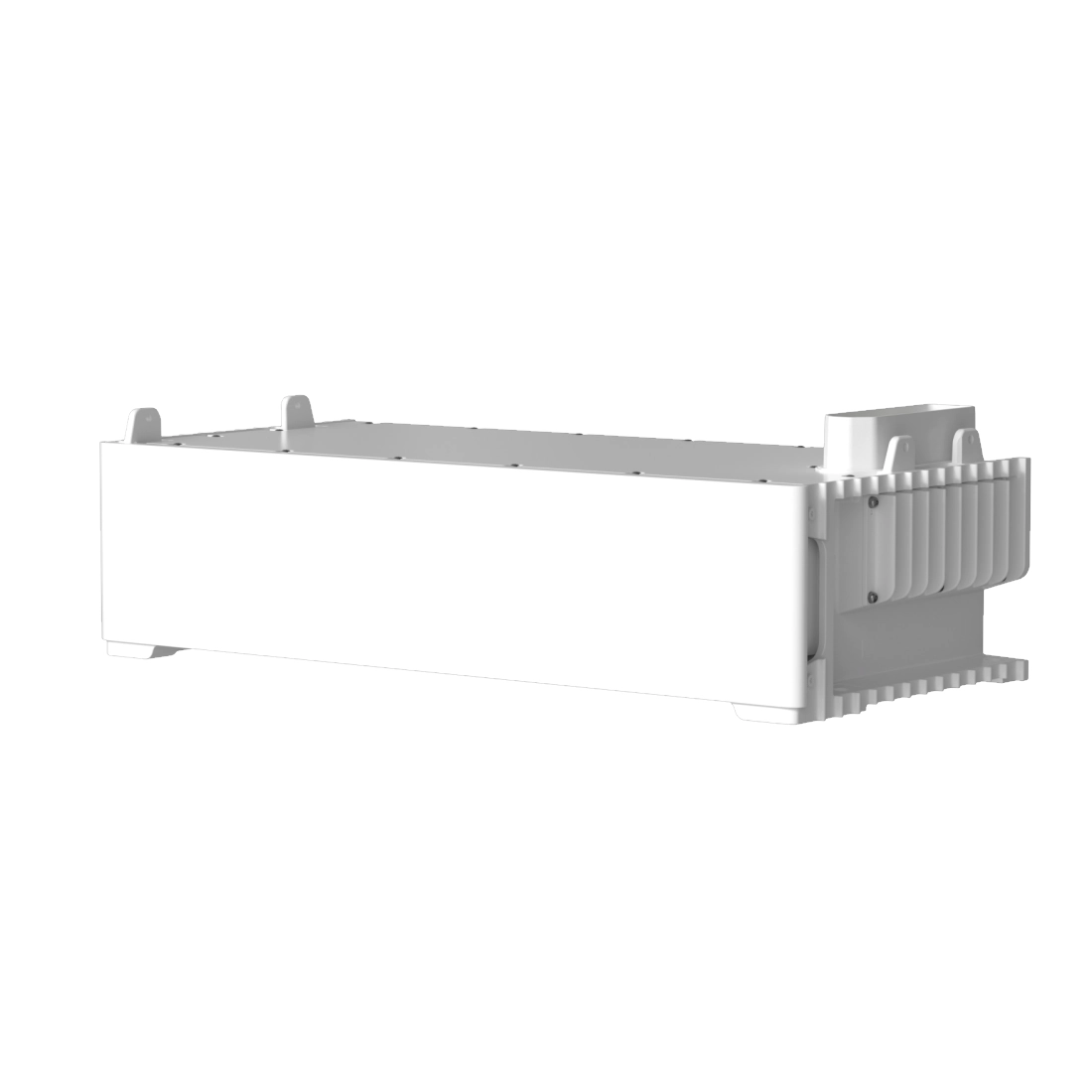

The Sigenergy SigenStack Base MAIN-1C is the floor-standing foundation of the Main stack in a SigenStack 1C commercial battery system. It carries the SigenStack BC M2-1C-BST battery controller at the top of the stack and supports up to seven SigenStack BAT 12.0 battery modules in between, with integrated power and communication connections so the stack goes together without complex site wiring.
Every SigenStack system starts with one Main Base. Specified for 1C high-rate systems, it is the right starting point when the project calls for higher charge and discharge rates, and it extends with Base SUB-1C units for further stacks. The complete system is IP66 rated and works with the Sigen C&I Hybrid Inverter series.
770 × 195 × 363
Base W / H / D (mm)
-20 to 55°C
Operating range
Good to Know
Main stack only. The Base MAIN works with the BC-BST controller, while the Base SUB works with the SigenStack Cover. Each system needs one Base MAIN; add Base SUB-1C (11180007) for any further stacks.
Please Note
Base only. The battery controller (BC M2-1C-BST, 11140002), BAT 12.0 battery modules and the inverter are supplied separately. Sigenergy specifies 1C bases with the 1C-BST controller in its 1C configurations, so select components to match the same rate class.
Important Safety Information
SigenStack is heavy, high-voltage DC equipment (operating range up to 1,100 V; each BAT 12.0 module weighs 105 kg). It must be installed and commissioned by a competent, qualified electrician in line with BS 7671, the Sigenergy installation guide and local building and fire-protection requirements (Sigenergy references NFPA 855). The installation guide requires a level, solid, non-combustible surface with sufficient load-bearing capacity, and a lifting plan prepared for the modules. Do not use a battery module that has been dropped.
Key Features
Main stack foundation
Carries the battery controller at the top and the BAT 12.0 modules in between, giving the whole Main stack a stable, level footprint on the floor.
Integrated power and comms
Power and communication connections are built into the base, and the connecting cables are supplied in the packing box, so stacking is plug-and-play.
Up to 7 modules per stack
Accepts 1 to 7 BAT 12.0 modules on the Main stack, up to 84.42 kWh in a single stack with seven modules.
Built for 1C systems
Designed for 1C configurations paired with the BC M2-1C-BST, which is rated at 314 A nominal battery current.
IP66 system protection
The SigenStack system is IP66 rated against dust and water ingress, with Smart Air Cooling and aerosol fire suppression at system level.
Scales with Sub stacks
Add Base SUB-1C stacks to grow to 21 modules and 253 kWh per system, all managed from one Sigen C&I Hybrid Inverter.

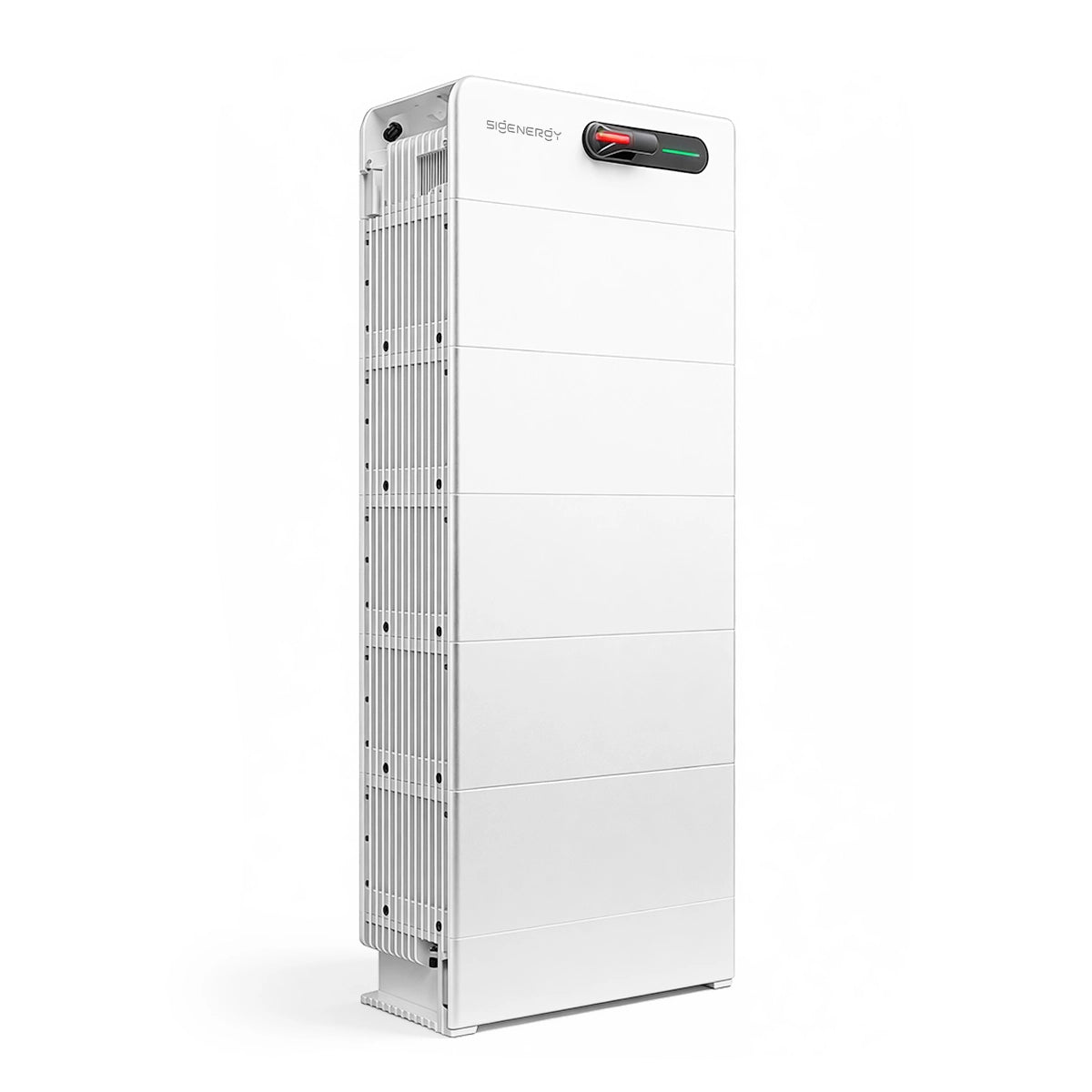

Single Main Stack Sizing
The manufacturer's figures below cover one complete Main stack, including this base, the BC controller and the stated number of BAT 12.0 modules. Total width is 770 mm and total depth 363 mm in every case.
Modules in stack
Total energy
Total weight
Total height
4
48.24 kWh
500 kg
1,643 mm
5
60.30 kWh
605 kg
1,943 mm
6
72.36 kWh
710 kg
2,243 mm
7
84.42 kWh
815 kg
2,543 mm
Technical Specifications
Product Details
Model
SigenStack Base MAIN-1C
Manufacturer part number
11180006
Function
Main base for the Main stack; carries the BC-BST battery controller
Dimensions (W / H / D)
770 / 195 / 363 mm
Installation method
Floor standing
System Compatibility
Battery controller
SigenStack BC M2-1C-BST (11140002)
Battery module
SigenStack BAT 12.0 – LiFePO4, 314 Ah cell, 12.06 kWh
Sub stack base
SigenStack Base SUB-1C (11180007)
Top cover (Sub stacks)
SigenStack Cover
System configuration range
4 to 21 modules (max. 253 kWh)
Compatible inverter
Sigen C&I Hybrid Inverter series
Environmental (SigenStack System)
System ingress protection
IP66
Storage temperature
-25 to 60°C
Operating temperature
-20 to 55°C
Relative humidity
0% to 100%
Max. operating altitude
4,000 m (derating from 2,000 m)
Cooling
Smart air cooling
Fire suppression
Aerosol, smoke sensor and exhausting system
Standards
IEC/EN 60730-1, UN 38.3, IEC/EN 62619, IEC/EN 63056, IEC/EN 62040, UL9540A
Frequently Asked Questions
Do I need a Main Base for every SigenStack system?
Yes. Every SigenStack system is built around one Base MAIN, which carries the BC-BST battery controller on the Main stack. Further stacks use Base SUB-1C.
How many battery modules fit on the Main stack?
The installation guide allows 1 to 7 BAT 12.0 modules on the Main stack, while the system as a whole needs at least 4 modules and supports up to 21 (253 kWh).
Can I use this base in a 0.5C system?
This is the 1C base. Sigenergy's 1C configurations use the BC M2-1C-BST, Base MAIN-1C and Base SUB-1C together, with separate 0.5C components for 0.5C systems.
What else do I need to complete a Main stack?
You need the BC M2-1C-BST controller, the BAT 12.0 modules and a compatible Sigen C&I Hybrid Inverter. The installer also supplies an outdoor single-core copper PE cable of at least 25 mm² for the Base MAIN and the DC power cable between the inverter and controller.
Can it be installed outdoors?
The SigenStack system is IP66 rated for indoor or outdoor use. It must stand on a level, non-combustible surface such as concrete with enough load-bearing capacity, and the battery rack must be secured as described in the installation guide.
