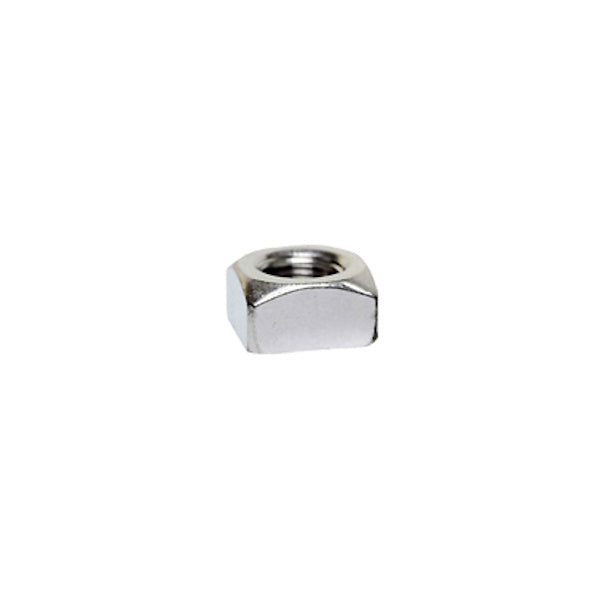

Schletter Square M8 Nut, Stainless Steel DIN 557 | 943914-008

Description

This Schletter Square M8 Nut fits within the click groove of Schletter's system rails, working together with the KlickIn click component to allow the nut to be inserted at any point along the rail's KlickNut M8 channel.

Manufactured to DIN 557 in stainless steel, its square profile prevents it from rotating within the rail channel while a matching bolt is tightened from outside.

M8

Thread Size

DIN 557

Standard

13mm

Wrench Size (A/F)

1.25mm

Thread Pitch

11.5mm

Outer Diameter

Stainless Steel

Material

Key Features

Fits Any Schletter M8 Click Groove

Compatible with all Schletter system rails that use the standard KlickNut M8 groove, giving wide applicability across product ranges.

Anti-Rotation Square Profile

The square shape locates within the rail channel and resists turning as the matching bolt is tightened, allowing single-person installation.

Works With KlickIn Component

Pairs with the KlickIn click component (SLT-129010-008) for simplified insertion of the nut at any desired point along the rail.

DIN 557 Manufacturing Standard

Produced to the recognised DIN 557 square nut specification, giving a documented basis for structural sign-off.

Stainless Steel Construction

Manufactured in stainless steel, giving good general corrosion resistance for long-term outdoor use.

Technical Specification

Fastener Specification

Thread Size

M8

Manufacturing Standard

DIN 557

Wrench Size (Across Flats)

13 mm

Thread Pitch

1.25 mm

Height

5.92 mm

Outer Diameter

11.5 mm

Left-Hand Thread

No

Materials

Material

Stainless steel

Surface Protection

Untreated

Compatibility

Compatible Systems

All Schletter system rails with KlickNut M8 channel

Related Component

KlickIn click component for M8 nut (SLT-129010-008)

Frequently Asked Questions

What is this nut used for?

It's a square nut designed to sit within the KlickNut M8 channel of Schletter system rails, giving a fixing point for a matching bolt from outside the rail.

Why is the nut square rather than hexagonal?

The square profile locates securely inside the rail's channel and resists rotation as the matching bolt is tightened, making single-handed installation easier.

What is the KlickIn component used for alongside this nut?

The KlickIn click component (SLT-129010-008) simplifies inserting this square nut at any point along the rail's KlickNut M8 groove, rather than needing to slide it in from the rail end.

What wrench size fits the matching bolt?

This nut has a 13mm across-flats dimension; check the specific bolt you're pairing it with for its own wrench size.

Is this nut suitable for outdoor use?

Yes, it's manufactured in stainless steel, giving good general corrosion resistance for outdoor PV mounting applications.
