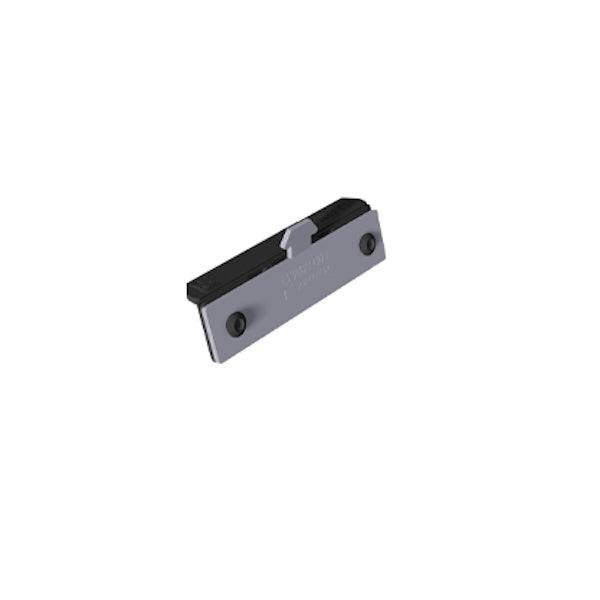

Schletter SingleFix Pro, for Corrugation Heights from 22mm (1 Piece) | 113009-003

Description

SingleFix Pro is Schletter's direct fastening system for self-supporting trapezoidal sheet roofs and manufacturer-approved sandwich panels, combining Schletter Pro rails with individual SingleFix Pro fastening elements for both vertical and horizontal module mounting.

Rather than fixing through to the roof's structural substructure, SingleFix Pro clamps directly onto the raised corrugation of the roof sheet, offering a simple, fast fastening option where substructure penetration isn't practical or where sandwich panel condensation risk needs to be avoided.

22mm Min

Corrugation Height

0.5mm Min

Roof Sheet Thickness

2 Screws

Fixing Per Piece

Stainless Steel

Material

EPDM Gasket

Sealing

V+H

Mounting Orientation

Key Features

Direct Fastening, No Substructure Penetration

Clamps directly onto the roof sheet's raised corrugation, avoiding the need to fix into the structural substructure below.

Suits Corrugation Heights From 22mm

Designed for profiles with a minimum rib height of 22mm, covering a wide range of common trapezoidal roof sheet profiles.

Structurally Optimised With Lateral Screws

Uses lateral screw fixing for a structurally optimised connection, part of what makes SingleFix Pro an unrivalled simple fastening system for this roof type.

Compatible With Schletter Pro Rails

Designed as part of a combination with Schletter Pro rails, supporting both vertical and horizontal module mounting from the same fastening system.

Stainless Steel With EPDM Gasket

Built from stainless steel with an EPDM gasket, giving a weatherproofed, corrosion-resistant fixing at each point.

Suitable for Sloped and Flat Roof Mounting

Rated for use in both sloped and flat roof mounting applications on suitable trapezoidal roofing.

Please Note

Fixing screws are not included and must be ordered separately — two screws are required per SingleFix Pro piece.

Technical Specification

Fastener Specification

Minimum Rib/Corrugation Height

22 mm

Minimum Roof Sheet Thickness

0.5 mm

Fixing Screws Required

2 per piece (ordered separately)

Mounting Plate Width

20 mm

Mounting Plate Length

90 mm

Mounting Plate Height

2 mm

Tilt Angle Range

0–90°

Roof Penetration Required

Yes

Suitable For

Sloped roof mounting, flat roof mounting

Mounting Orientation

Portrait or landscape

Materials

Material

Stainless steel

Sealing

EPDM gasket

Surface Protection

Untreated

Frequently Asked Questions

What roof types is SingleFix Pro designed for?

It's designed for self-supporting trapezoidal sheet roofs and manufacturer-approved sandwich panel roofs, where direct fastening to the roof sheet's corrugation is preferable to fixing through to the substructure.

What is the minimum corrugation height this fastener suits?

It's suitable for profiles with a minimum rib height of 22mm.

Are fixing screws included?

No, screws must be ordered separately; two screws are required per SingleFix Pro piece.

Can modules be mounted in both portrait and landscape orientation?

Yes, SingleFix Pro is designed for both vertical and horizontal module mounting.

Does this fastener require roof penetration?

Yes, unlike the non-penetrative SingleFix-V system for Solo rails, SingleFix Pro requires roof penetration as part of its fixing method.
