Schletter Roof Hook RapidA Pro 45 Max, High Wind and Snow Loads | 101020-120

Description

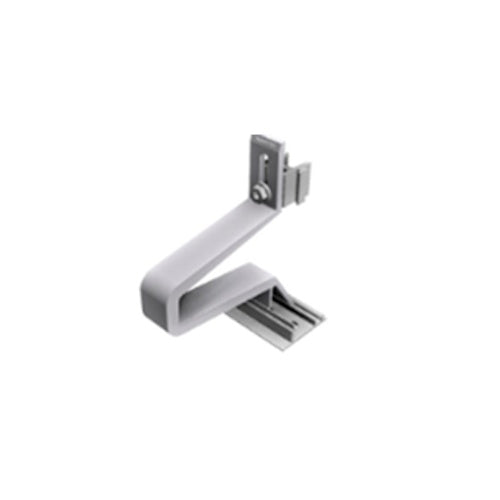

This Schletter RapidA Pro 45 Max roof hook covers the majority of applications on tiled roofs and is rated for higher snow and wind loads than Schletter's standard roof hook range, making it suited to exposed or higher-load UK sites.

A single wafer-head Torx screw secures the screw-on plate to the rafter, and the hook bracket then clicks into place — a fast, low-part-count fixing method that still delivers strong structural performance.

45mm

Fork Height

98mm

Base Plate Width

116mm

Overall Height

High Wind/Snow

Load Rating

1 Screw

Fixing Points

Aluminium

Material

Key Features

Rated for Higher Wind and Snow Loads

Purpose-built to handle elevated wind and snow loading, suiting more exposed sites than Schletter's standard roof hook range.

Single-Screw Fixing

The screw-on plate secures to the rafter with just one pan head Torx screw, and the bracket then clicks into place — fast to fit without sacrificing strength.

Rotatable Multi-Adapter

A rotatable multi-adapter lets the hook combine with both ProLine series profiles and the classic Schletter modular system from a single part.

Height-Adjustable Upper Connection

The upper connection is height-adjustable, with a quick-mounting adapter helping level the rail run across uneven roof surfaces.

Robust Aluminium Construction

Manufactured in aluminium with a variable bar arrangement, giving durable performance for demanding roof conditions.

Pre-Assembled Clamping Part

The clamping part arrives pre-assembled, reducing on-site handling and speeding up installation.

Please Note

Wood screws are not included and must be ordered separately to complete the fixing.

Technical Specification

Roof Hook Specification

Fork Height (a)

45 mm

Base Plate Width (b)

98 mm

Overall Height (c)

116 mm

Base Plate Length (d)

60 mm

Total Length (e)

100 mm

Hook Width

90 mm

Load Rating

Higher wind and snow loads

System Compatibility

ProLine series and classic Schletter modular system, via rotatable multi-adapter

Height Adjustment

Yes, at upper connection

Fixing

1 x pan head Torx screw (ordered separately)

Materials

Material

Aluminium

Bar Arrangement

Variable

Clamping Part

Pre-assembled

Frequently Asked Questions

What makes this hook suitable for high wind and snow loads?

It's engineered specifically for elevated wind and snow loading conditions, making it a stronger choice than Schletter's standard roof hook range for exposed sites.

How many screws does this hook need?

Just one pan head Torx screw secures the mounting plate to the rafter; the hook bracket then clicks into place.

What rail systems does this hook connect to?

Via its rotatable multi-adapter, it connects to both the ProLine series profiles and the classic Schletter modular system.

Does this hook include the fixing screw?

No, wood screws must be ordered separately to complete the installation.

Can this hook compensate for uneven roof surfaces?

Yes, the upper connection includes height adjustment with a quick-mounting adapter to help level the rail run.
