Schletter Roof Hook Rapid2+Pro 45 | 101001-020

Description

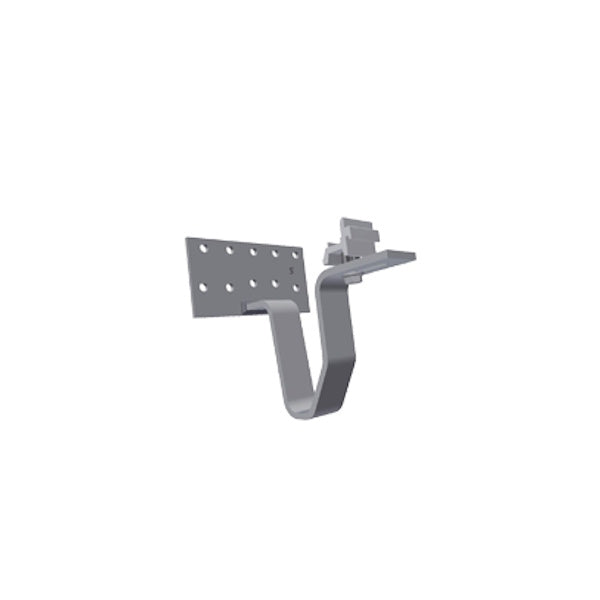

The Schletter Rapid2+Pro 45 roof hook is the standard-height variant in the Rapid2+ range, built in stainless steel with a symmetric, welded bar arrangement for reliable, repeatable performance across tiled roof installations.

Part of the wider Rapid2+ system — designed so all four mounting steps use just one tool (Torx TX40) — this hook uses a rotatable multi-adapter to connect with both ProLine series profiles and the classic Schletter modular system.

45mm

Fork Height

90mm

Hook Width

110mm

Base Plate Width

118mm

Overall Height

150mm

Total Length

Stainless Steel

Material

Key Features

Standard 45mm Fork Height

Suited to typical batten configurations, giving reliable rail positioning above the tile line for most standard tiled roof setups.

Symmetric Welded Bar Arrangement

A symmetric, welded bar design gives balanced, consistent load transfer into the rafter.

Rotatable Multi-Adapter

Connects to both ProLine series profiles and the classic Schletter modular system via a rotatable multi-adapter, from a single hook part.

Part of the One-Tool Rapid2+ System

As part of the Rapid2+ system, all mounting steps — including this hook's installation — use just a single Torx TX40 tool, reducing kit requirements on site.

Pre-Assembled Stainless Steel Build

Arrives pre-assembled in stainless steel, giving strong corrosion resistance and straightforward fitting.

Please Note

Wood screws are not included and must be ordered separately to complete the fixing.

Technical Specification

Roof Hook Specification

Fork Height

45 mm

Hook Width

90 mm

Base Plate Width

110 mm

Overall Height

118 mm

Total Length

150 mm

Bar Arrangement

Symmetric, welded

System Compatibility

ProLine series and classic Schletter modular system, via rotatable multi-adapter

Installation Tool

Torx TX40

Assembly

Pre-assembled

Materials

Material

Stainless steel, VA quality

Frequently Asked Questions

What roof configuration is this hook suited to?

The standard 45mm fork height suits typical batten configurations found across most tiled roofs. For roofs with lower battens, the 35mm-height Rapid2+ Pro 35 variant is available instead.

What rail systems does this hook connect to?

Via its rotatable multi-adapter, it connects to both ProLine series profiles and the classic Schletter modular system.

What tool do I need to install this hook and the wider Rapid2+ system?

Just a Torx TX40 tool is needed for all four mounting steps in the Rapid2+ system, including this roof hook.

Does this hook include fixing screws?

No, wood screws must be ordered separately to complete the installation.

What material is this hook made from?

It's manufactured in stainless steel, VA quality, with a welded symmetric bar arrangement.
