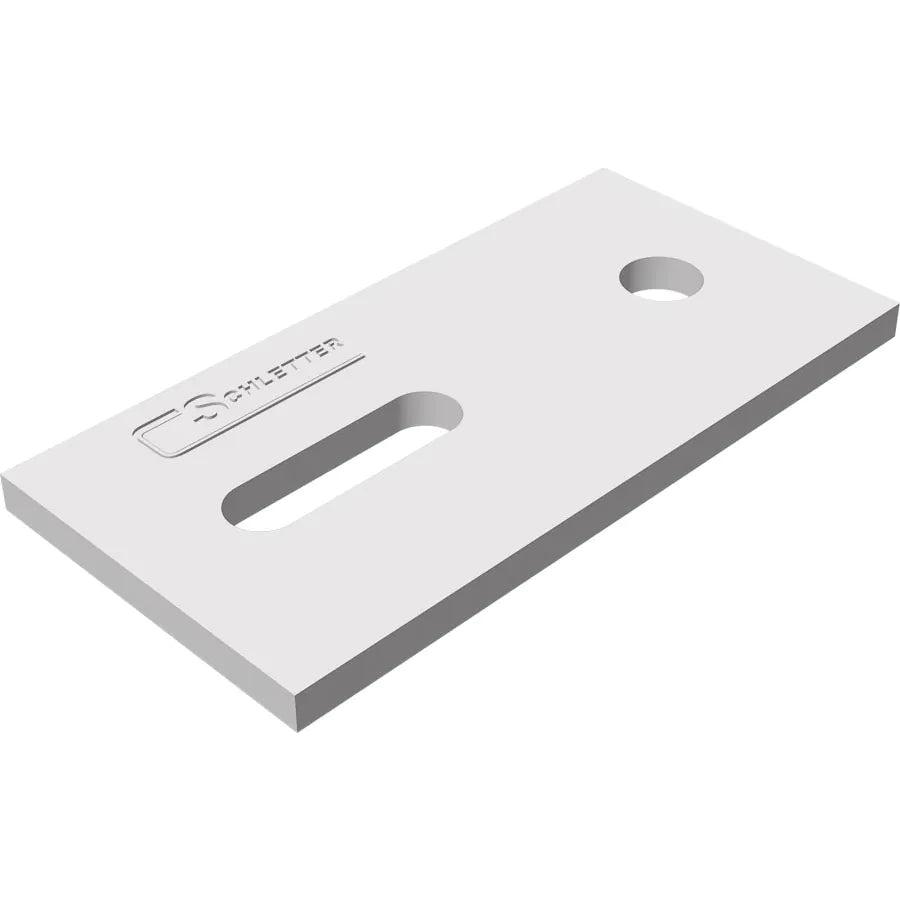

Schletter Mounting Plate for Hanger Bolt, M10/M12 | 119002-000

Description

This Schletter mounting plate pairs with an M10 or M12 hanger bolt to complete a corrugated roof fixing kit, bridging the roof-penetrating bolt and the mounting hardware above.

Supplied loose in aluminium at 120 x 60 x 6mm, it gives a stable base plate for the hanger bolt assembly on corrugated fibre-cement or trapezoidal sheet metal roofing.

M10 / M12

Compatible Bolt Sizes

120 x 60mm

Plate Dimensions

6mm

Plate Thickness

Aluminium

Material

Loose Part

Supply Format

Corrugated Roofs

Application

Key Features

Universal M10/M12 Compatibility

Suits both M10 and M12 hanger bolt diameters from a single mounting plate part.

Solid Aluminium Base Plate

At 120 x 60 x 6mm, the plate gives a stable, load-spreading base for the hanger bolt assembly.

Completes Corrugated Roof Fixing Kits

Works together with a hanger bolt kit to form the complete fastening system for corrugated fibre-cement or trapezoidal sheet metal roofing.

Lightweight Yet Durable

Manufactured in aluminium, balancing structural strength with reduced weight compared with heavier steel alternatives.

Technical Specification

Plate Specification

Compatible Bolt Sizes

M10 / M12 hanger bolt

Dimensions (L x W x H)

120 x 60 x 6 mm

Application

Corrugated fibre-cement or trapezoidal sheet metal roofing

Materials

Material

Aluminium

Supply Format

Loose

Frequently Asked Questions

What is this mounting plate used for?

It pairs with an M10 or M12 hanger bolt to form a complete corrugated roof fixing kit, giving a stable base plate above the roof penetration.

Does this plate fit both M10 and M12 hanger bolts?

Yes, it's a universal design suited to both bolt diameters.

What are the plate's dimensions?

120 x 60mm, with a thickness of 6mm.

What roof types is this plate used with?

Corrugated fibre-cement roofing and trapezoidal sheet metal roofing.

Does this plate come with the hanger bolt included?

No, this listing is for the mounting plate only; the matching hanger bolt kit is ordered separately.
