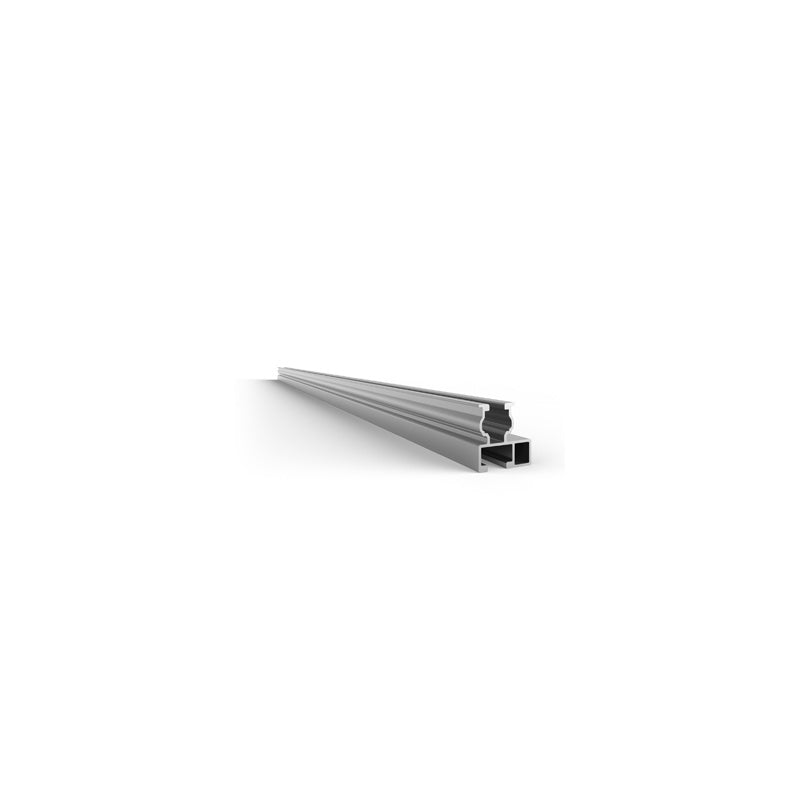

Schletter Module Bearing Rail EcoLight, 450mm | 120011-00450

Description

This Schletter EcoLight rail section is a pre-cut 450mm length of module-bearing profile, purpose-sized for use with the SingleFix Pro direct fastening system on trapezoidal and sandwich panel roofs.

Rather than cutting down a full-length rail for short spans, this ready-to-use section gives a cost-effective, no-waste solution — the profile piece becomes a complete assembly kit once paired with SingleFix Pro.

450mm

Rail Length

M8

Upper KlickNut

M10

Lower Screw Channel

SingleFix Pro

System Pairing

Pre-Cut

Format

Cost-Effective

vs Full-Length Rail

Key Features

Pre-Cut for Short Spans

A ready-cut 450mm section avoids the waste and extra labour of cutting down a full-length rail for shorter fixing points.

Purpose-Matched to SingleFix Pro

Sized specifically for use in conjunction with SingleFix Pro, becoming a ready-to-use assembly kit once combined.

Same Dual-Channel Design as Full-Length Rails

Retains the upper KlickNut M8 channel and lower M10 screw channel found on Schletter's standard-length rails, so the same clamps and hardware apply.

Cost-Effective Alternative to Full Rail Lengths

A more economical solution than purchasing and cutting a full rail length when only a short section is needed at each fixing point.

Technical Specification

Rail Specification

Length

450 mm

Upper Connection

KlickNut M8 channel

Lower Connection

Screw channel M10

Intended Use

In conjunction with SingleFix Pro fastening system

Frequently Asked Questions

What is this short rail section used for?

It's a pre-cut 450mm rail section designed for use with the SingleFix Pro direct fastening system, avoiding the need to cut down a full-length rail for shorter spans.

Does this rail have the same channel design as full-length Schletter rails?

Yes, it has the same upper KlickNut M8 channel and lower M10 screw channel found on Schletter's standard rail lengths.

Do I need to buy SingleFix Pro separately?

Yes, this listing is for the rail section only; the SingleFix Pro fastening elements are ordered separately to complete the assembly.

Why choose this over cutting a full-length rail?

It's a more cost-effective solution when only a short rail section is needed at each fixing point, avoiding wasted material from cutting a longer length.

What roof types is this rail typically used on?

Trapezoidal and sandwich panel roofs where SingleFix Pro provides the direct fastening method.
