Schletter Connector Plate Eco05 Internal Connector Kit, Including Screws | 129001-014 Kit

Description

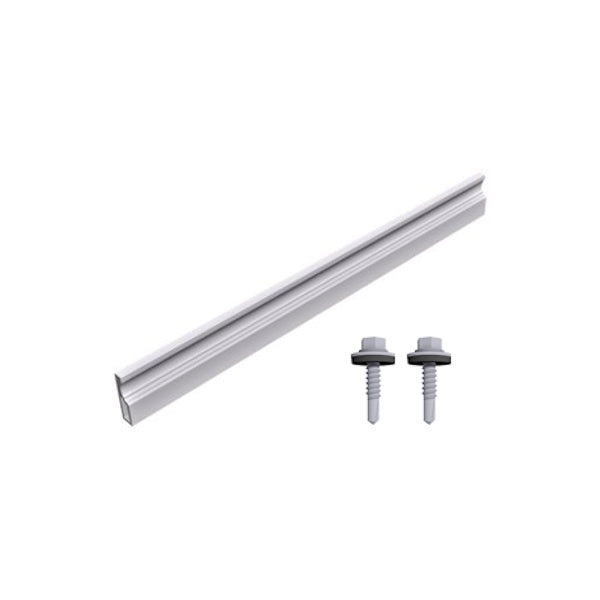

This combined kit pairs the Schletter Connector Plate Eco05 Internal Connector (SLT-129001-014) with its two required thin sheet metal screws (SLT-943001-232), giving a complete, ready-to-fit rail joining solution for Eco05 profile rails in a single order.

Designed as the easier and cleaner solution for joining Eco rails, this internal connector creates a continuous rail run without external bracketry, keeping the finished join visually neat and structurally solid.

2-Part Kit

Connector + Screws

2x Screws

Included

Eco05 Profile

Rail Compatibility

Internal Fit

Connector Type

6.0 x 22mm

Screw Size

A2 Stainless

Screw Material

Key Features

Complete Rail-Joining Solution

Bundles the connector plate with its two required screws, removing the need to calculate and order matching fasteners separately.

Clean Internal Joint

As an internal connector, it sits inside the rail profile itself, giving a visually neat joint without external plates or brackets.

Purpose-Built for Eco05 Rails

Designed specifically for Eco05 profile rails, ensuring a correct dimensional fit at the joint.

Correct Screw Count Included

Includes exactly 2 screws, matching Schletter's specified fixing requirement per connection for this connector type.

A2 Stainless Steel Screws With Oz Gasket

The included screws feature an Oz gasket for a weatherproofed fixing, manufactured in A2 stainless steel for corrosion resistance.

Technical Specification

Kit Contents

Component 1

1 x Connector Plate Eco05 Internal Connector (SLT-129001-014)

Component 2

2 x Thin Sheet Metal Screw 6.0 x 22 A2 with Oz Gasket (SLT-943001-232)

Connector Specification

Compatible Rail

Eco05 profile rails

Connector Type

Internal (profile connector)

Screw Specification

Screw Size

6.0 x 22 mm

Material

A2 stainless steel

Sealing

Oz gasket

Quantity Required Per Connection

2

Frequently Asked Questions

What's included in this kit?

The kit includes one Connector Plate Eco05 Internal Connector along with the two thin sheet metal screws needed to fit it, so nothing extra needs to be ordered for a single connection.

What rail profile is this connector designed for?

It's designed specifically for Eco05 profile rails, joining two rail sections into one continuous run.

Is this connector fitted internally or externally?

Internally — it sits inside the rail profile, giving a cleaner finished joint than an external bracket-style connector.

How many kits do I need for a full rail run?

Order one kit for each rail-to-rail connection point across your run.

What are the included screws made from?

A2 stainless steel with an Oz gasket for a weatherproofed fixing at each screw point.
