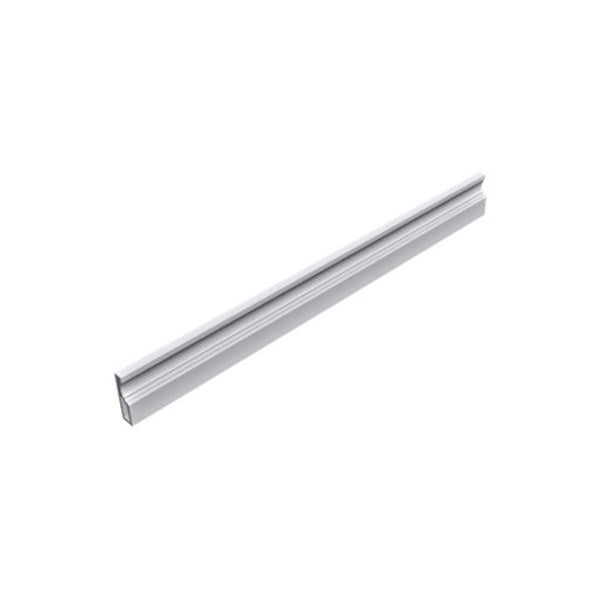

Schletter Connector Plate Eco05 Internal Connector | 129001-014

Description

This Schletter internal connector joins two Eco05 profile rail sections into a single continuous run, sitting inside the rail itself for a clean, unobtrusive joint compared with external bracket-style connectors.

Described by Schletter as the easier and cleaner solution for joining Eco rails, it requires two matching self-tapping screws (ordered separately) to complete the connection.

Eco05 Profile

Rail Compatibility

Internal Fit

Connector Type

2 Screws

Fixing Required

250mm

Connector Length

Profile Connector

Function

Schletter

Manufacturer

Key Features

Clean Internal Joint

Sits inside the Eco05 rail profile, giving a neater finished appearance than an external connector plate.

Purpose-Built for Eco05 Rails

Designed specifically to match the Eco05 profile rail's internal dimensions, ensuring a snug, correctly aligned joint.

The Easier, Cleaner Rail-Joining Solution

Positioned by Schletter as a simpler alternative to other rail joining methods for the Eco range.

Requires Two Fixing Screws

Needs two self-tapping screws (SLT-943755-925 or SLT-943001-232, ordered separately) per connection to secure the joint.

Please Note

Fixing screws are not included and must be ordered separately — two self-drilling screws (5.5 x 25mm A2, SLT-943755-925) are required per connection.

Technical Specification

Connector Specification

Compatible Rail

Eco05 profile rails

Connector Type

Internal profile connector

Length

250 mm

Screws Required Per Connection

2 (ordered separately)

Frequently Asked Questions

What rail profile is this connector designed for?

It's designed specifically for Eco05 profile rails.

Does this connector come with screws?

No, two self-tapping screws are required per connection and must be ordered separately.

How is this different from an external rail connector?

This is an internal connector that sits inside the rail profile itself, giving a cleaner finished joint compared with external bracket-style connectors.

How long is this connector?

It is 250mm long, spanning across the joint between two Eco05 rail sections.

How many of these connectors do I need?

Order one connector for each rail-to-rail joint across your Eco05 rail run.
