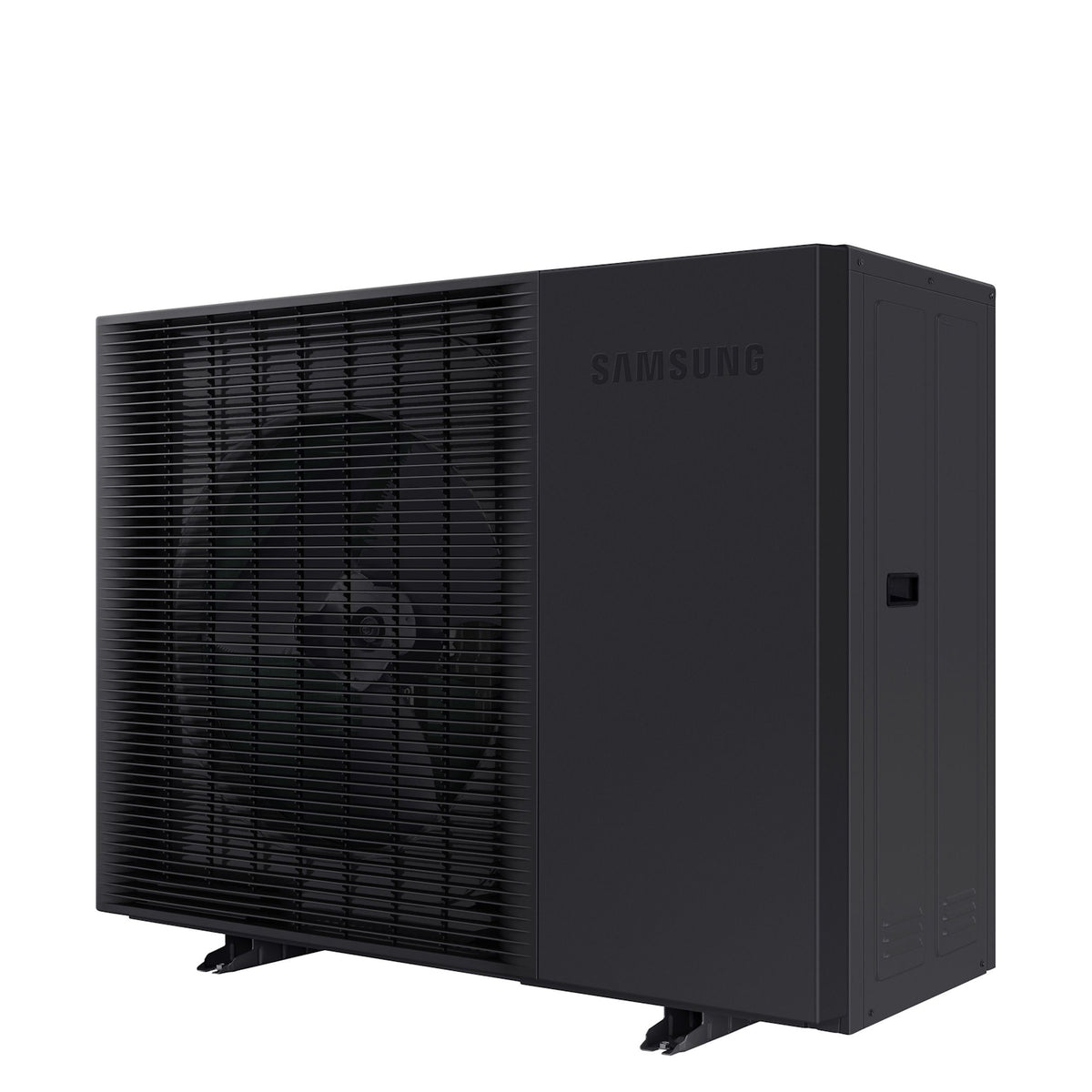

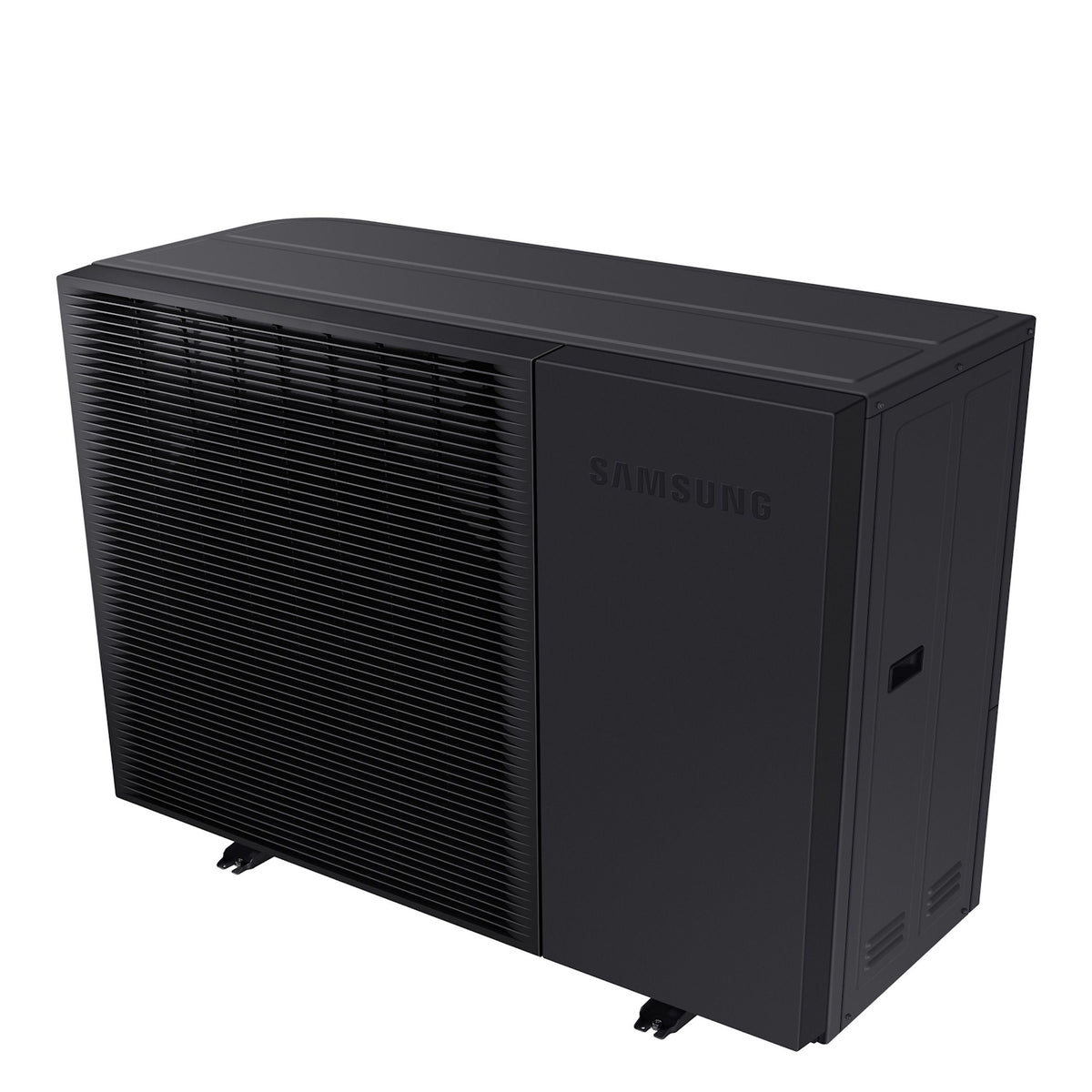

Samsung Integrated Mono Gen 7 R290 Heat Pump - 5kW to 16kW

The Samsung R290 Integrated Heat Pump range comprises high‑temperature, integrated monobloc air‑to‑water heat pumps with built‑in hydraulics and natural R290 refrigerant, available in single‑phase and three‑phase variants from 5kW to 16kW.

Product Description

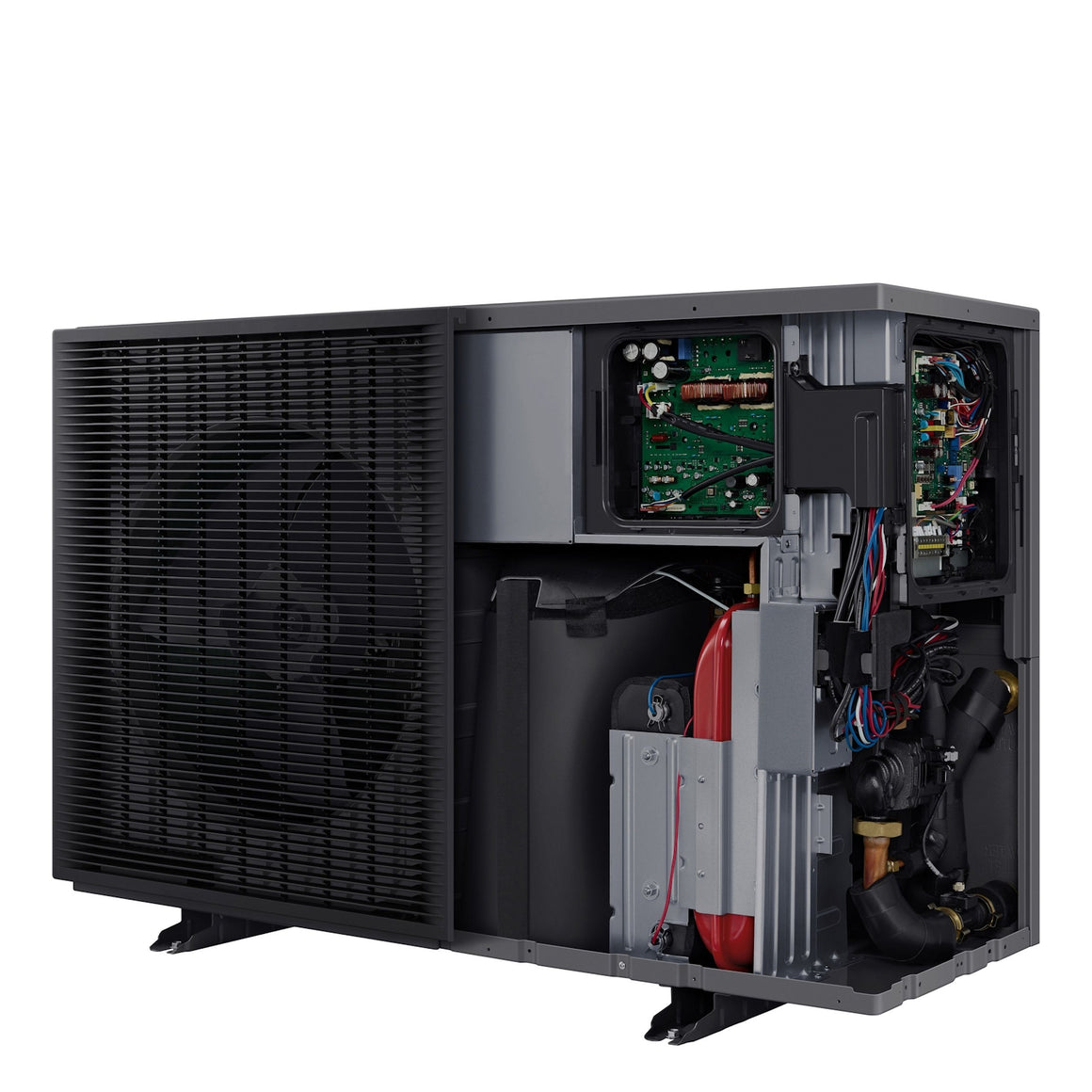

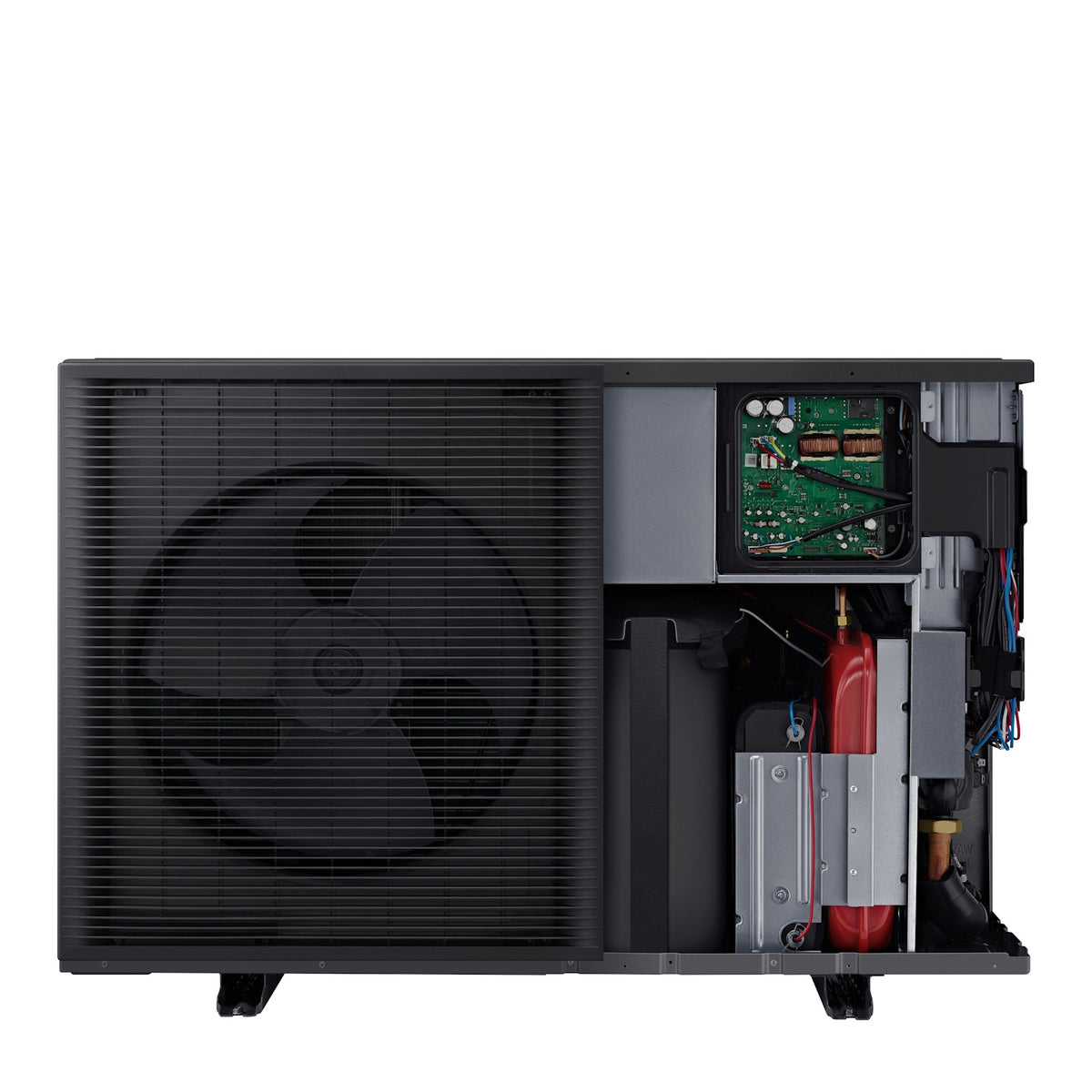

Each unit is an outdoor monobloc that incorporates the refrigerant circuit, primary pump, expansion vessel, flow and pressure sensors, safety valve and control electronics in a single casing, removing the need for a separate hydro box. Using R290, the units can deliver high flow temperatures suitable for radiator systems and high‑temperature DHW cylinders, making them well suited for boiler replacement and retrofit as well as new‑builds.

Key Features

• Natural R290 refrigerant: very low GWP with high flow‑temperature capability for efficient high‑temperature heating.
• High‑temperature operation: design flow temperatures up to around 75°C, supporting legacy radiator circuits and hot‑water cylinders.
• Integrated hydraulics: factory‑fitted pump, expansion vessel, strainer, flow sensor and pressure relief valve reduce installation time and internal plant requirements.
• High efficiency and low noise: inverter‑driven compressors with A+++‑class seasonal performance (model‑dependent) and multi‑step quiet modes on the R290 Mono platform.
• Smart control ready: compatible with Samsung EHS controls and SmartThings on supported control kits for remote monitoring and scheduling.

Single‑Phase Models (BEK)

• AE050CXYBEK/EU – 5kW Integrated Monobloc
  Compact 5kW high‑temperature integrated R290 monobloc for smaller, well‑insulated homes or low‑heat‑loss properties using radiators or underfloor heating via a cylinder.
  Approx. unit dimensions (W × D × H): 1270 × 500 × 850mm
  Approx. net weight: 113kg
• AE080CXYBEK/EU – 8kW Integrated Monobloc
  8kW single‑phase integrated unit for typical UK homes, providing high‑temperature heating and cylinder charging in a simple monobloc + cylinder arrangement.
  Approx. unit dimensions (W × D × H): 1270 × 500 × 850mm
  Approx. net weight: 125kg
• AE120CXYBEK/EU – 12kW Integrated Monobloc
  12kW model suited to larger dwellings or higher‑loss properties requiring higher space‑heating output and strong hot‑water recovery on a single‑phase supply.
  Typical platform dimensions (W × D × H): 1270 × 530 × 1018mm (R290 12–16kW)
  Net weight: ~135kg
• AE160CXYBEK/EU – 16kW Integrated Monobloc
  Largest single‑phase integrated unit at 16kW, aimed at large homes or light commercial premises with high heat loss and multiple bathrooms.
  Unit dimensions (W × D × H): 1270 × 530 × 1018mm
  Approx. net weight: ~140kg

Three‑Phase Models (BGK)

• AE080CXYBGK/EU – 8kW 3‑Phase Integrated Monobloc
  8kW three‑phase version for small to medium properties or small commercial sites with 400V three‑phase supplies, sharing the same physical envelope as the 8kW single‑phase model.
  Typical unit dimensions (W × D × H): 1270 × 500 × 850mm

• AE120CXYBGK/EU – 12kW 3‑Phase Integrated Monobloc
  12kW three‑phase model designed for larger dwellings or mixed‑use buildings that benefit from three‑phase loading and higher continuous output.
  Typical unit dimensions (W × D × H): 1270 × 530 × 1018mm

• AE160CXYBGK/EU – 16kW 3‑Phase Integrated Monobloc
  Top‑end 16kW three‑phase unit for large homes, multi‑residential blocks or small commercial buildings with high peak loads.
  Typical unit dimensions (W × D × H): 1270 × 530 × 1018mm


System & Application Notes

• System layout: connects directly from the outdoor integrated monobloc to heating circuits and an external hot‑water cylinder; no separate hydro box is required.
• Electrical supply: BEK models are single‑phase (230V), BGK models are three‑phase (400V); selection must match both site supply and calculated heat load.
• Typical use cases: high‑temperature radiator retrofits, boiler replacements and new‑builds requiring compact external plant with minimal indoor equipment.
