S4 RooFit Universal Frame (ART2600)

Description

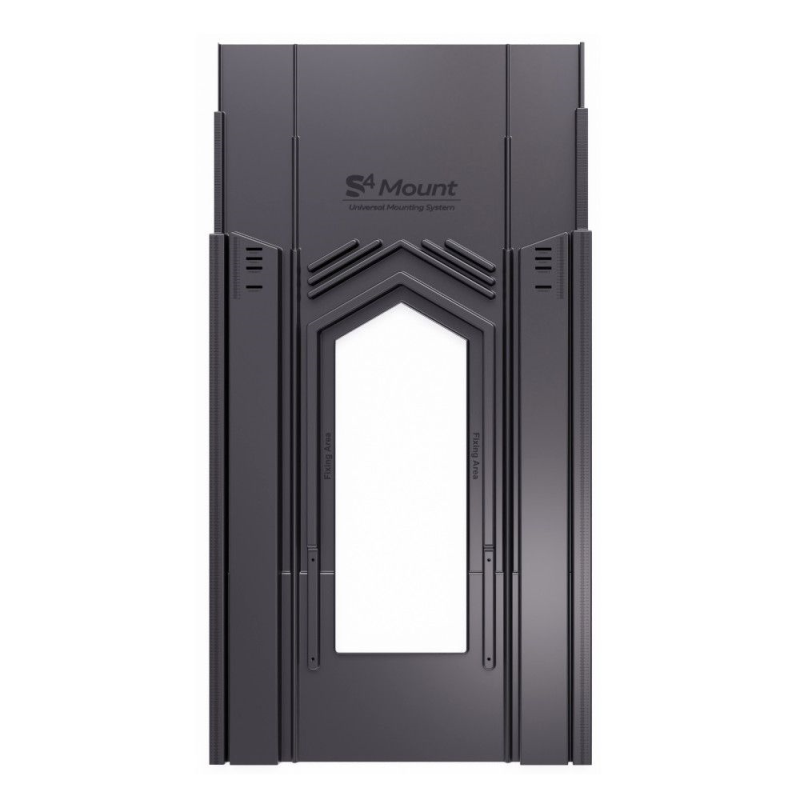

The S4 RooFit Universal Frame is the patented base plate at the heart of the S4 in-roof mounting system. It forms the core mounting point that every panel connects to, and is engineered as a single universal component compatible with all panel sizes, in both portrait and landscape orientation.

By replacing multiple part references with one patented base plate, the frame eliminates layout errors, reduces the number of components an installer needs to carry, and speeds up on-roof assembly considerably.

12°–70°

Roof Pitch Range

10 Years

Warranty

25+ Years

Design Life

Portrait/Landscape

Orientation

PP/Aluminium

Material

UK

Origin

Patented Universal Base Plate

One frame accommodates all supported panel sizes, so stock complexity and installation time are both reduced compared with panel-specific mounting rails.

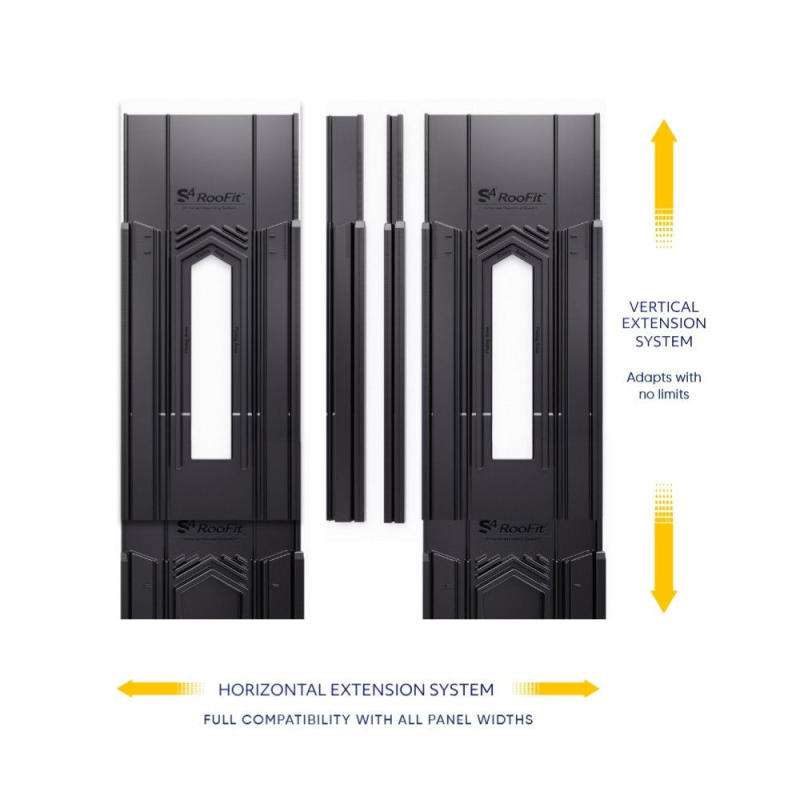

Universal Compatibility

Fits all panel sizes in portrait or landscape orientation without needing separate part numbers.

Simplified Panel Replacement

If a panel is replaced with a different size in future, only the module changes — the frame stays in place.

Integrated Waterproofing

Designed to work with the system's flashing components so no separate top flashings are required.

Reduced Component Count

Part of a wider system built from just five core accessory types, cutting logistics complexity.

Mixed Orientation Support

Portrait and landscape panels can be combined on the same roof to make best use of available surface.

Long Service Life

Engineered for a design life exceeding 25 years, backed by a 10-year warranty.

Technical Specification

MPN

ART2600

Component type

Universal base plate / frame

System

S4 RooFit in-roof mounting system

Colour

Black

Material

PP, aluminium and stainless steel (100% recyclable)

Operating temperature range

-20°C to +85°C

Compatible roof pitch

12° to 70°

Warranty

10-year manufacturer warranty, durability exceeding 25 years

Manufacture

Made in UK

Frequently Asked Questions

Can the S4 Universal Frame be used for both portrait and landscape panel layouts?

Yes. The frame is designed as a single universal component that supports both orientations without needing different part numbers.

Does the frame include the clamps needed to secure the panel?

No. The frame is the base plate only; single or double clamps (e.g. ART2630, ART2632) are ordered separately to secure the panel to the frame.

Is the Universal Frame compatible with other in-roof mounting brands?

The Universal Frame is designed specifically as part of the S4 RooFit universal mounting system and is not intended for use with third-party in-roof rail or clamp systems.

What roof pitches is the S4 RooFit system suitable for?

The system is rated for roof pitches from 12° to 70°, in line with the manufacturer's installation manual.

Does this component carry a warranty?

Yes. S4 RooFit components are backed by a 10-year manufacturer warranty, with a design life exceeding 25 years.

Where is the S4 RooFit system manufactured?

The S4 RooFit system is manufactured in the UK and is BBA and MCS certified.
