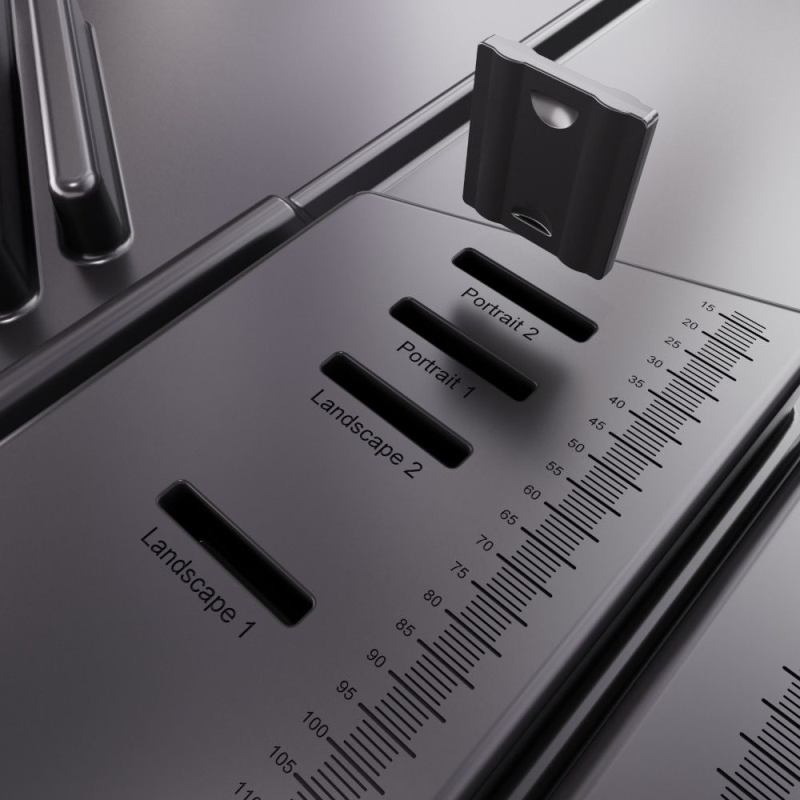

S4 RooFit PV Panel Support Pins (ART2609)

Description

The S4 RooFit PV Panel Support Pins are designed to provide precise panel positioning within the S4 universal mounting system, ensuring consistent spacing between modules.

By keeping panel positioning consistent, the pins help improve load distribution across the mounting frame and support a secure, professional installation.

Panel Positioning

Function

Consistent Spacing

Benefit

12°–70°

Roof Pitch

10 Years

Warranty

Black

Colour

UK

Origin

Accurate Panel Alignment

Supports accurate panel alignment and spacing across the array.

Improved Load Distribution

Helps improve load distribution by keeping panel positioning consistent.

Secure Installation

Contributes to a secure, professional finish on every row.

Simple to Fit

Small, low-profile component that fits quickly during panel placement.

Consistent Across Rows

Helps maintain the same spacing on every row of the array.

Durable Construction

Built for long-term outdoor performance as part of the S4 system.

Technical Specification

MPN

ART2609

Component type

PV panel support pin

Used with

S4 Universal Frame (ART2600)

Colour

Black

Material

PP, aluminium and stainless steel (100% recyclable)

Operating temperature range

-20°C to +85°C

Compatible roof pitch

12° to 70°

Warranty

10-year manufacturer warranty, durability exceeding 25 years

Manufacture

Made in UK

Frequently Asked Questions

How many support pins are needed per panel?

Quantity requirements vary by panel size and layout; refer to the manufacturer's installation manual or online configurator for the exact quantity for your project.

Is the PV Panel Support Pins compatible with other in-roof mounting brands?

The PV Panel Support Pins is designed specifically as part of the S4 RooFit universal mounting system and is not intended for use with third-party in-roof rail or clamp systems.

What roof pitches is the S4 RooFit system suitable for?

The system is rated for roof pitches from 12° to 70°, in line with the manufacturer's installation manual.

Does this component carry a warranty?

Yes. S4 RooFit components are backed by a 10-year manufacturer warranty, with a design life exceeding 25 years.

Where is the S4 RooFit system manufactured?

The S4 RooFit system is manufactured in the UK and is BBA and MCS certified.
