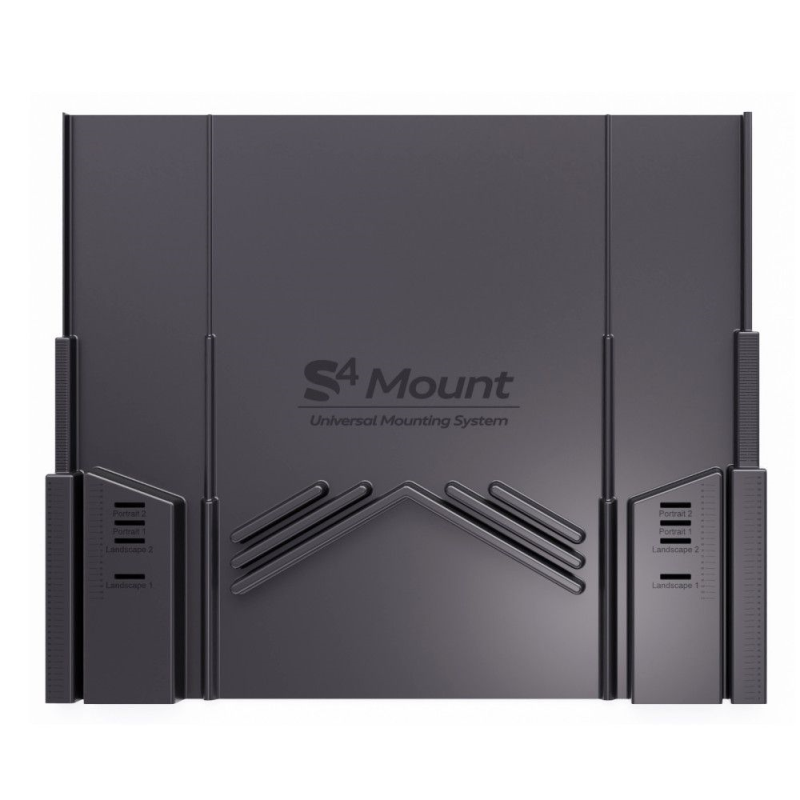

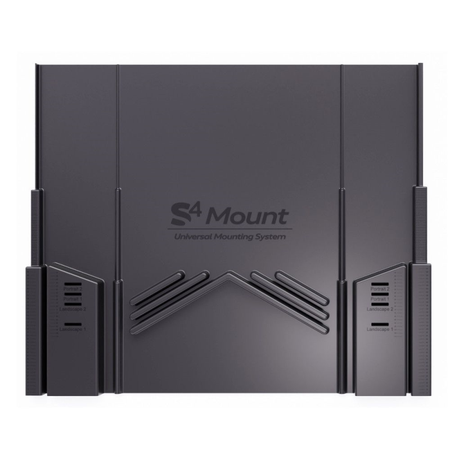

S4 RooFit Lateral Adaptors - PV Array Ends for Vertical Extension (ART2607)

Description

The S4 RooFit Lateral Adaptors for Array Ends (Vertical Extension variant) provide secure end-of-array support and connection where the S4 Vertical Extension (ART2604) has been used to increase panel height coverage.

They create stable, neat attachment points at the outer edges of the PV array, ensuring consistent alignment and load distribution even at extended sections of the roof.

Array End Termination

Function

Use with Vertical Extension

Designed For

12°–70°

Roof Pitch

10 Years

Warranty

Black

Colour

UK

Origin

Purpose-Built for Vertical Extension

Sized specifically to terminate array ends where ART2604 is used.

Secure End-of-Array Support

Provides stable termination points at the edges of extended arrays.

Consistent Panel Alignment

Helps keep rows aligned across the full width of the installation.

Even Load Distribution

Supports structural stability by distributing load evenly at the array ends.

Clean, Finished Edge

Contributes to a tidy, well-finished perimeter.

Durable Construction

Built from PP, aluminium and stainless steel for long-term outdoor performance.

Technical Specification

MPN

ART2607

Component type

Lateral adaptor - array end, vertical extension variant

Used with

S4 Vertical Extension (ART2604)

Colour

Black

Material

PP, aluminium and stainless steel (100% recyclable)

Operating temperature range

-20°C to +85°C

Compatible roof pitch

12° to 70°

Warranty

10-year manufacturer warranty, durability exceeding 25 years

Manufacture

Made in UK

Frequently Asked Questions

What is the difference between ART2607 and ART2603?

ART2607 is sized for use where the Vertical Extension (ART2604) is fitted, while ART2603 is used with the standard base frame.

Is the Lateral Adaptors for Vertical Extension compatible with other in-roof mounting brands?

The Lateral Adaptors for Vertical Extension is designed specifically as part of the S4 RooFit universal mounting system and is not intended for use with third-party in-roof rail or clamp systems.

What roof pitches is the S4 RooFit system suitable for?

The system is rated for roof pitches from 12° to 70°, in line with the manufacturer's installation manual.

Does this component carry a warranty?

Yes. S4 RooFit components are backed by a 10-year manufacturer warranty, with a design life exceeding 25 years.

Where is the S4 RooFit system manufactured?

The S4 RooFit system is manufactured in the UK and is BBA and MCS certified.
