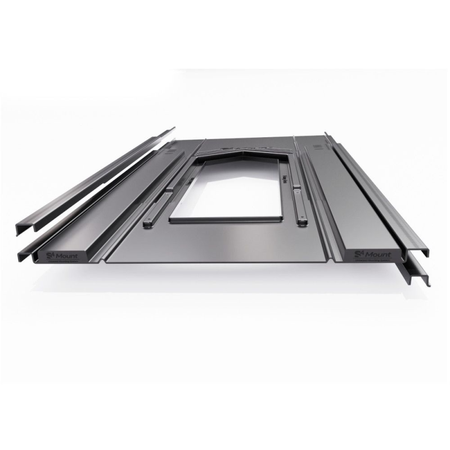

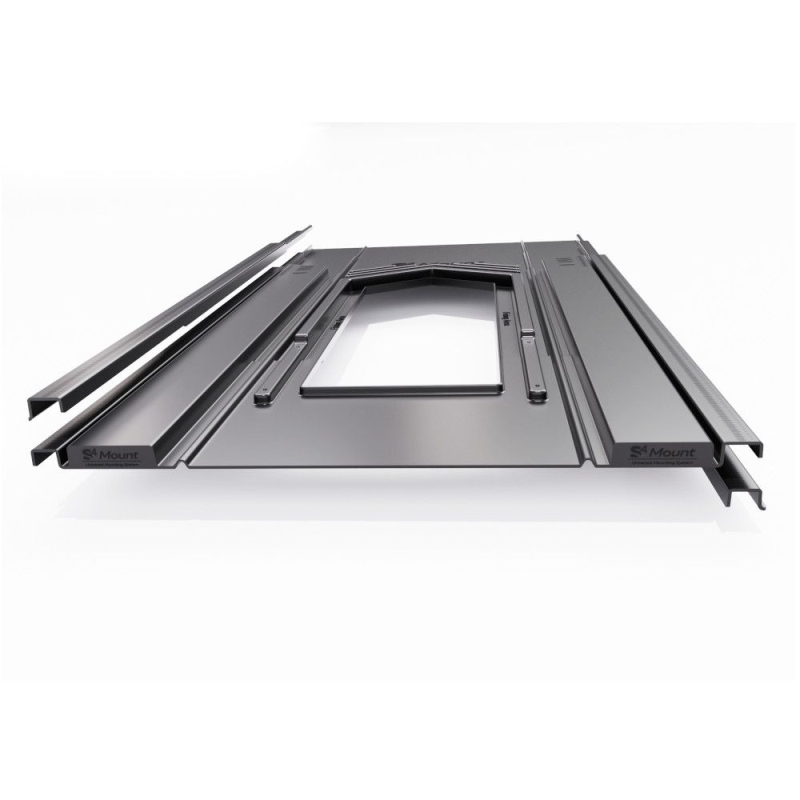

S4 RooFit Lateral Adaptors - PV Array Ends (ART2603)

Description

The S4 RooFit Lateral Adaptors for PV Array Ends are mounting accessories designed to provide secure end-of-array support and connection within the S4 universal in-roof mounting system.

They create neat, stable attachment points at the outer edges of the PV array, ensuring consistent alignment and even load distribution across each panel row.

Array End Termination

Function

Outer Array Edges

Location

12°–70°

Roof Pitch

10 Years

Warranty

Black

Colour

UK

Origin

Secure End-of-Array Support

Provides stable termination points at the edges of the PV array.

Consistent Panel Alignment

Helps keep rows aligned across the full width of the installation.

Even Load Distribution

Supports structural stability by distributing load evenly at the array ends.

Clean Finish

Contributes to a tidy, well-finished array edge.

Simple Integration

Designed to fit directly onto the S4 universal frame and lateral extension rails.

Durable Construction

Built from PP, aluminium and stainless steel for long-term outdoor performance.

Technical Specification

MPN

ART2603

Component type

Lateral adaptor - array end

Used with

S4 Universal Frame (ART2600)

Colour

Black

Material

PP, aluminium and stainless steel (100% recyclable)

Operating temperature range

-20°C to +85°C

Compatible roof pitch

12° to 70°

Warranty

10-year manufacturer warranty, durability exceeding 25 years

Manufacture

Made in UK

Frequently Asked Questions

How many of these adaptors are needed per array?

Typically one adaptor is required at each exposed lateral end of the array; exact quantities should be confirmed against the manufacturer's layout configurator or installation manual for the specific project.

What is the difference between ART2603 and ART2607?

ART2603 is used with the standard base frame, while ART2607 is the equivalent adaptor sized for use with the Vertical Extension (ART2604).

Is the Lateral Adaptors compatible with other in-roof mounting brands?

The Lateral Adaptors is designed specifically as part of the S4 RooFit universal mounting system and is not intended for use with third-party in-roof rail or clamp systems.

What roof pitches is the S4 RooFit system suitable for?

The system is rated for roof pitches from 12° to 70°, in line with the manufacturer's installation manual.

Does this component carry a warranty?

Yes. S4 RooFit components are backed by a 10-year manufacturer warranty, with a design life exceeding 25 years.

Where is the S4 RooFit system manufactured?

The S4 RooFit system is manufactured in the UK and is BBA and MCS certified.
