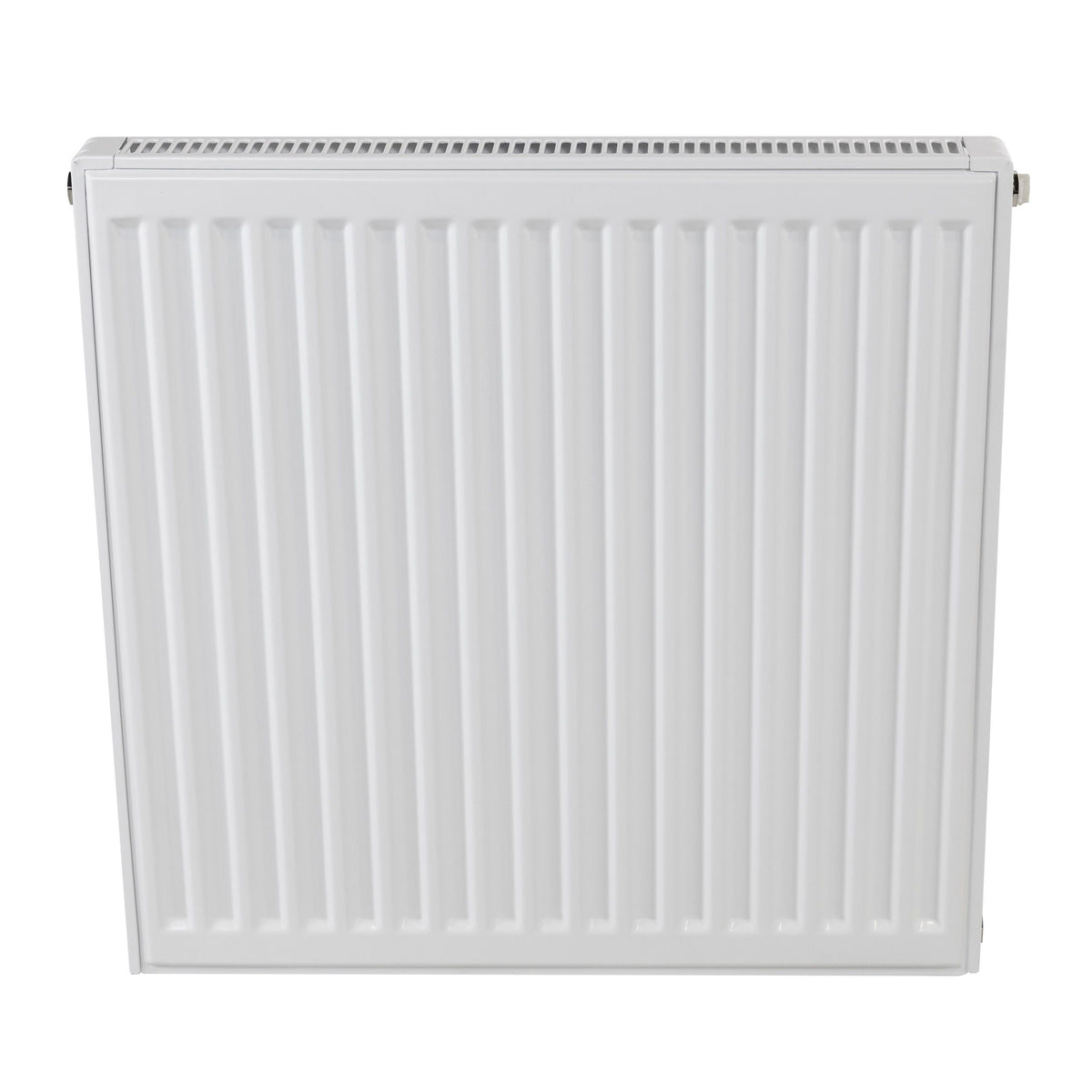

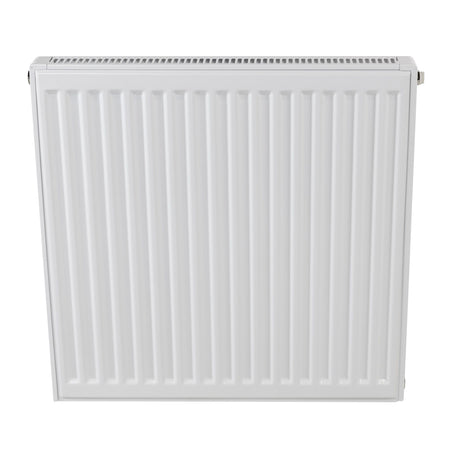

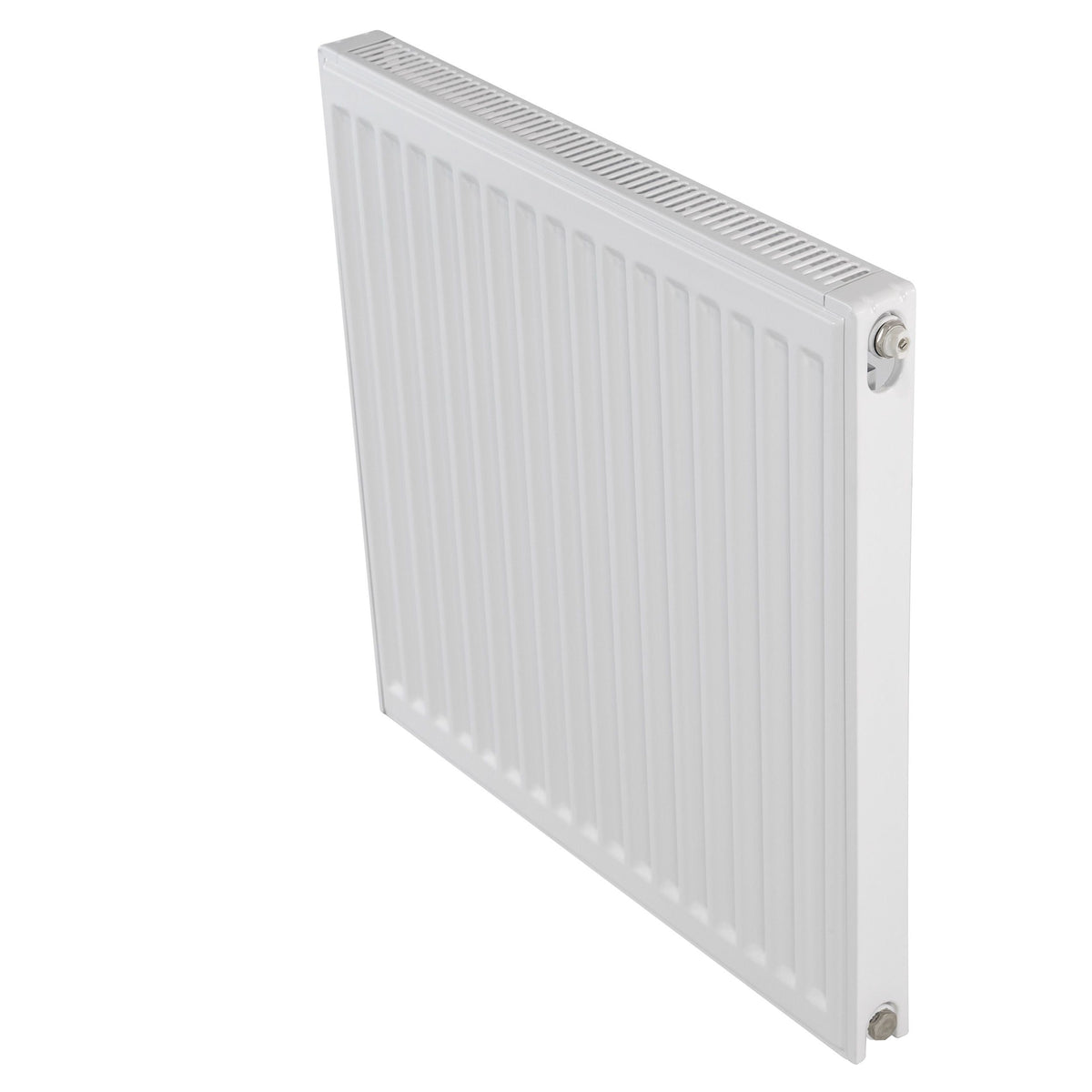

600x600mm K1 Compact Radiator | Single Panel | White

Description

The Revive2 600mm x 600mm K1 Compact Radiator is a single panel, single convector (Type 11) central heating radiator built for the slimmest possible profile in this range. One steel panel with a single convector fin gives this size a rated output of 580W (1978 BTU/h) at the industry-standard Delta T50 test condition — a straightforward, cost-effective option for smaller rooms and tight spaces such as bathrooms and hallways.

Finished in durable powder-coated white with a slim, wall-hugging profile, the K1 compact suits domestic and light commercial installations on standard wet central heating systems. Its square 600mm x 600mm footprint makes it a practical fit above a WC, beside a doorway, or in other tight corners where a full-size radiator would be impractical.

580W

Heat Output

1978

BTU/h

600mm

Height

600mm

Length

K1 / Type 11

Configuration

10 Year

Warranty

Good to Know

Heat output for this size (580W / 1978 BTU/h) is the figure listed for this exact Revive2 model at the BS EN 442 Delta T50 test condition (mean water temperature 70°C against a 20°C room). Always confirm the exact figure on your order confirmation before final room heat-loss calculations.

Single Panel, Single Convector

K1 (Type 11) construction: one steel panel plus one convector fin, giving the slimmest and most economical option in the compact range.

Square Compact Footprint

The 600mm x 600mm square profile fits neatly above a WC, beside a doorway, or in a small kitchen or utility room.

Minimal Wall Projection

A shallow depth of around 100mm keeps this radiator unobtrusive in tight spaces where wall projection is limited.

BS EN 442 Tested

Manufactured and tested to BS EN 442, the harmonised European standard for radiator heat output, pressure and safety performance.

10 Bar Rated

Rated to a maximum operating pressure of 10 bar, giving it headroom for pressurised and unvented central heating systems as well as standard open-vent setups.

10-Year Manufacturer Warranty

Backed by a 10-year warranty against manufacturing defects, giving long-term peace of mind on a radiator built for everyday use.

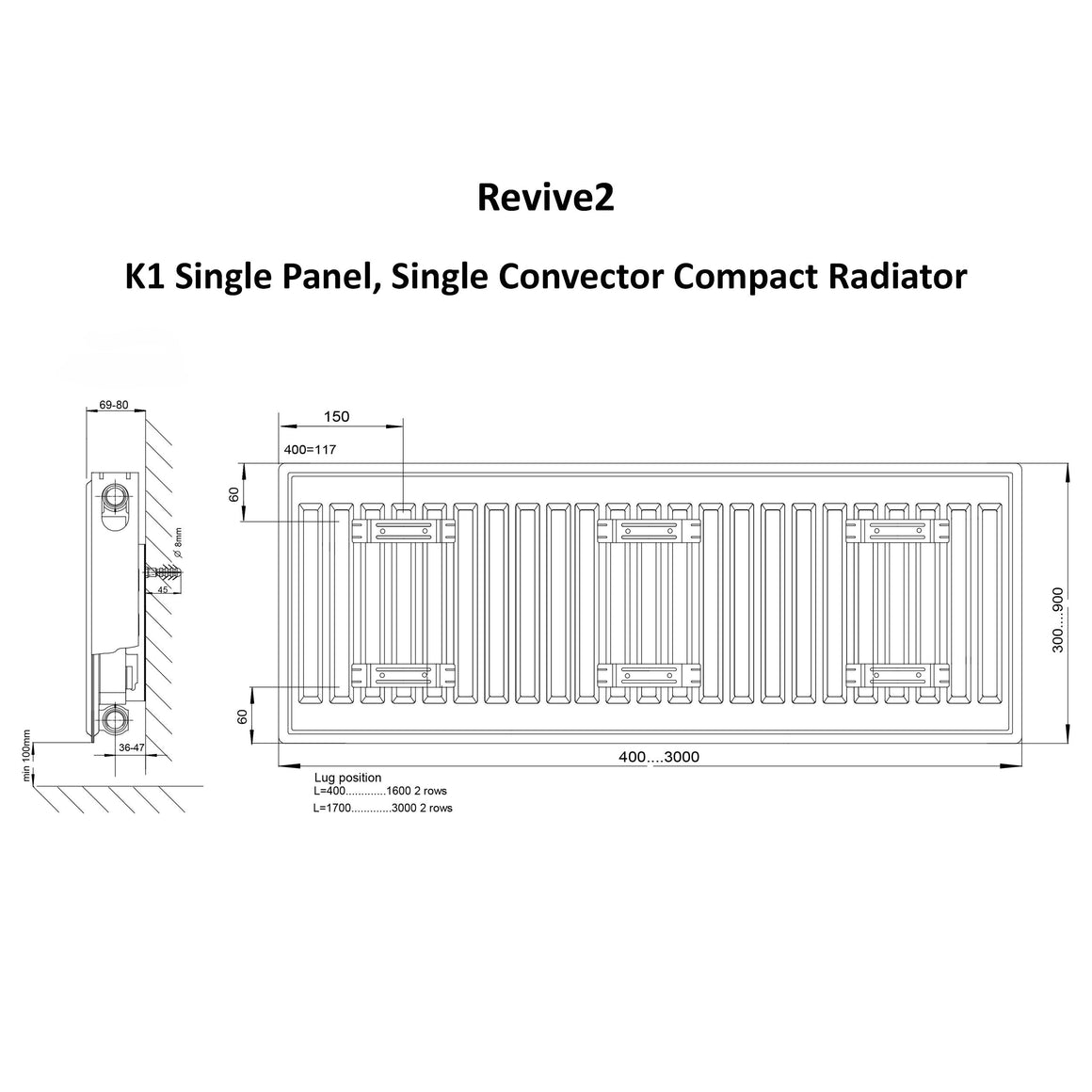

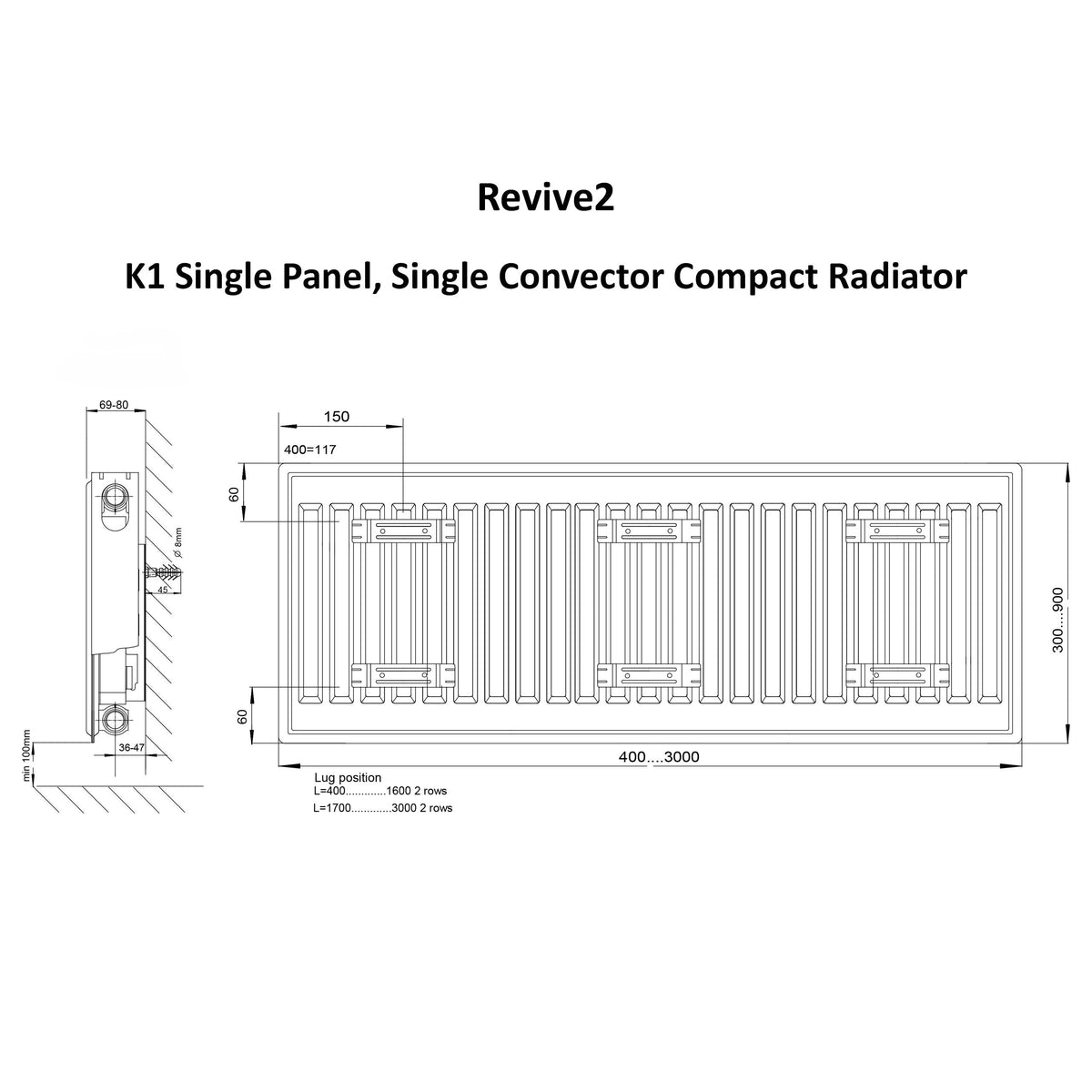

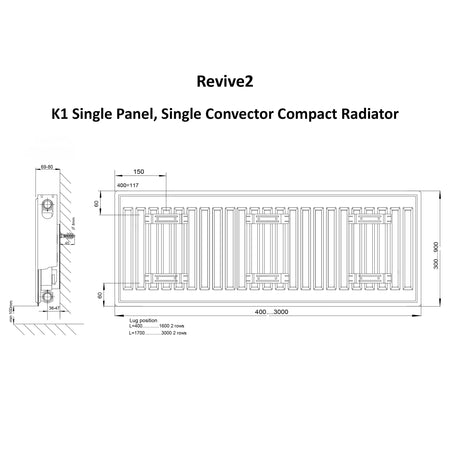

Dimensions

Height

600mm

Length

600mm

Depth

100mm

Wall-to-centre pipework

Approx. 69-80mm

Projection from wall

Approx. 36-47mm

Performance

Heat output (Watts)

580W

Heat output (BTU/h)

1978 BTU/h

Test standard

BS EN 442, Delta T50

Construction

Configuration

K1 / Type 11 - single panel, single convector

Material

Steel

Finish

White

Compatibility

Standard wet central heating systems (gas, oil, heat pumps)

What's included

Radiator valves

Not included - select compatible valves separately

Identification

MPN

8698284088566

EAN

80260017802

Warranty

Manufacturer warranty

10 years

Is this a K1 or Type 11 radiator?

Both terms describe the same construction. "K1" and "Type 11" are interchangeable industry names for a single panel, single convector radiator - the slimmest and most economical configuration in this range, with lower output than a P+ (Type 21) or K2 (Type 22) radiator of the same dimensions.

What size room will this radiator heat?

At 580W (1978 BTU/h), this size is best suited to a small room, bathroom or cloakroom, or as a supplementary heat source. Actual suitability depends on room volume, insulation standard, window area and target temperature, so we'd recommend running a proper heat-loss calculation for your specific room before ordering.

Where does this radiator suit best?

The square 600mm x 600mm footprint works well above a WC, beside a doorway, in a small kitchen, or anywhere a compact but capable radiator is needed without much wall space to spare.

Does it come with a valve?

No. Radiator valves are sold separately so you can choose the type that suits your system - manual, thermostatic (TRV), or angled/straight/corner pattern to match your pipework.
