Renusol VarioSole+ Rail Connector for 41x35mm Rail - REN-400531 | Aluminium Rail Splice
Regular price
£9.50
Inc. VAT
£7.92
Exc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders*
Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Do you have a question
about this product?
One of our expert advisors will be happy to help you!
Contact Us
Tools & Kits
Build your kit
Need a full system?
Design your complete solution in minutes with our kit builders.

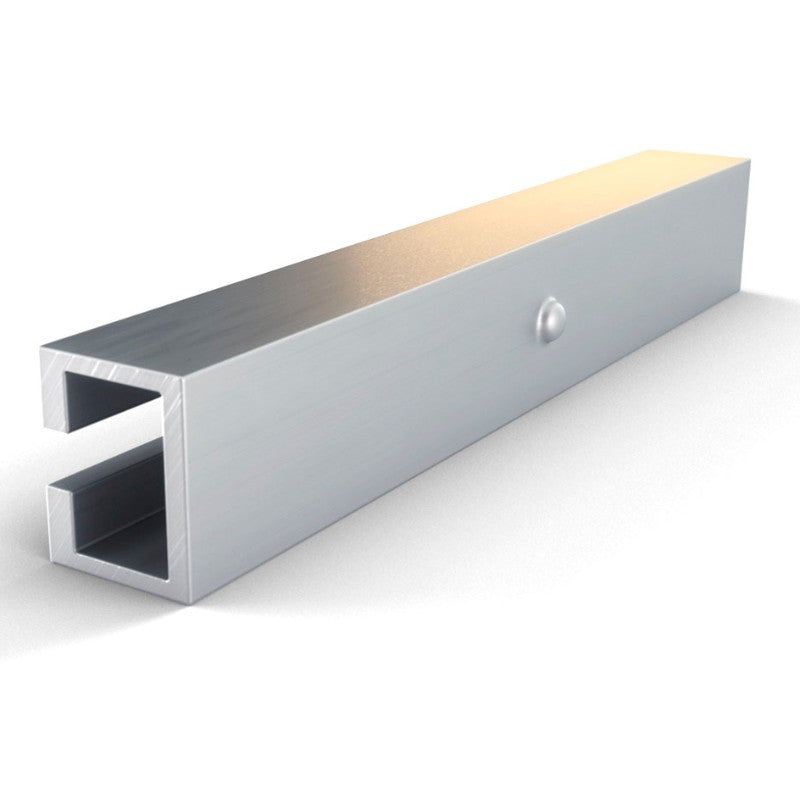

The Renusol VarioSole+ Rail Connector (Part No: REN-400531) is an internal splice fitting used to join two lengths of Renusol VS+ 41×35mm mounting rail end-to-end, allowing installers to build continuous rail runs across longer roof spans. Manufactured from aluminium, the connector slides inside the rail profile to create a rigid, aligned joint between sections.
TÜV certified and matched precisely to the 41×35mm VS+ rail profile, this connector is a standard component for extending rail length beyond a single manufactured section, or for splicing rail runs around obstacles on the roof.
195×24.1×30mm
Dimensions
0.151kg
Weight
195mm
Connector Length
Aluminium
Material
41×35mm
Rail Compatibility
TÜV Certified
Certification
Compatibility Warning
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
Match Connector to Rail Profile
This connector is sized specifically for the VS+ 41×35mm rail profile. For the larger 50×37mm rail profile, a different, correspondingly sized connector is required.
Key Features
Internal Rail Splice
Slides inside the rail profile to join two lengths of VS+ 41×35mm rail into a single continuous run.
Aluminium Construction
Manufactured from aluminium for a lightweight, corrosion-resistant connection.
Precise Profile Match
Engineered specifically for the 41×35mm VS+ mounting rail, ensuring a snug, rigid joint with no play between sections.
Extends Rail Runs
Allows installers to extend rail length beyond a single manufactured section, useful for larger roof spans or multi-row layouts.
TÜV Certified
Certified to TÜV ID 48970 and MCS012 IK0197/03, supporting MCS-compliant solar PV installations.
Compact, Easy-to-Stock Component
A small connector that's simple to keep as spare stock for extending or repairing rail runs on site.
