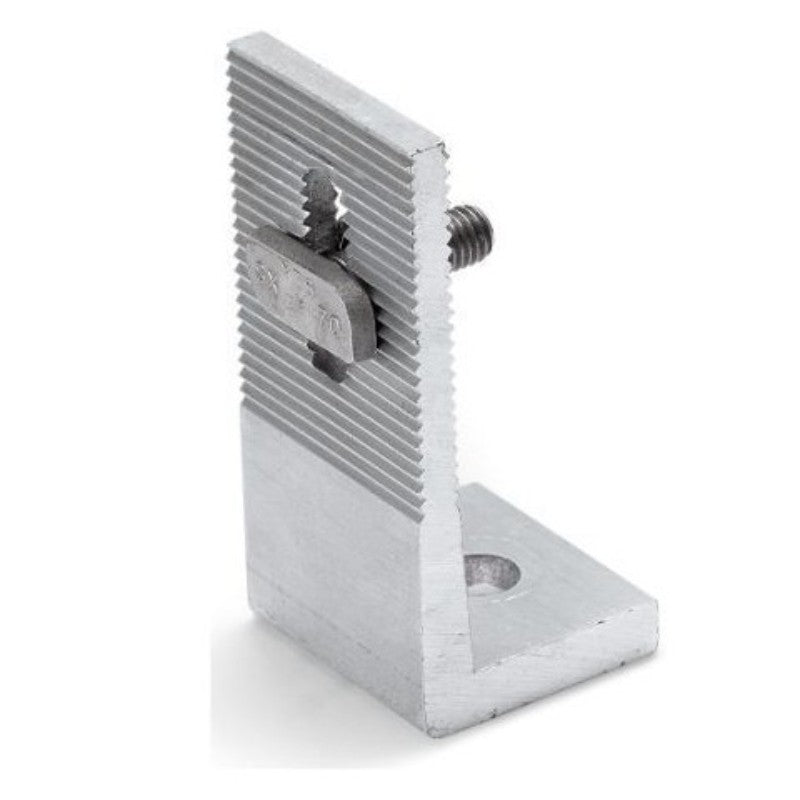

The Renusol VarioSole L Bracket M10 (Part No: REN-420014) is a straight, centrally fixed L-bracket used to connect a compatible M10 hanger bolt to the Renusol VS+ mounting rail. Manufactured from aluminium and stainless steel, the bracket is supplied as a complete pre-assembled set, giving hanger-bolt-mounted installations a rail fixing point equivalent in function to the larger M12 bracket.
This central-fixing bracket pairs with wooden or steel purlin hanger bolts to anchor the VS+ rail directly into the roof's timber or steel substructure — where the hanger bolt fixing point needs to sit offset from the rail, the corresponding offset L bracket (REN-420131) should be used instead.
Aluminium + Steel
Material
Central Fixing
Bracket Type
Compatibility Warning
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
Central vs Offset Bracket
This is the central (straight) fixing bracket, distinct from the offset L-bracket (REN-420131). The offset bracket is generally preferred by installers as it makes tightening the hanger bolt easier once the rail is in position — confirm which geometry your installation needs before ordering.
Key Features
Central Hanger Bolt Fixing
A straight L-bracket design that connects the hanger bolt directly in line with the mounting rail fixing point.
Complete Pre-Assembled Set
Supplied with the bracket, hammerhead bolt, and serrated flange nut included, ready to fit without sourcing separate fixings.
Aluminium and Stainless Steel Construction
Built from aluminium and stainless steel for reliable, long-term corrosion resistance outdoors.
Equivalent to M12 Bracket Function
Provides identical functionality to the larger M12 bracket, giving installers a consistent fixing method across different hanger bolt sizes.
Wide Component Compatibility
Compatible with a broad range of Renusol hanger bolts and hooks across the VS+ system.
Compact, Easy-to-Stock Component
A small bracket that's simple to keep as spare stock alongside larger mounting hardware orders.
Technical Specifications
General
Product Name
VarioSole L Bracket M10 (with Central fixing)
System Compatibility
Renusol VarioSole+ / VS+
Construction
Material
Aluminium; stainless steel
Dimensions
40 × 38 × 85mm
Set
Complete, pre-assembled
Set Contents
Bolt
1 × Hammerhead bolt M8 x 25
Nut
1 × Hexagon Nut w. serration DIN6923 - M8 A2-70
Compatible Components
Part Numbers
900181–900192, 400011, 400081, 400094, 400230, 420015, 420019, 420020, 430009, 490018, 900138, 900163
Frequently Asked Questions
What's the difference between this bracket and the offset L-bracket?
This is the central (straight) fixing bracket (REN-420014), connecting the hanger bolt directly in line with the rail. The offset bracket (REN-420131) shifts the fixing point to one side, which many installers find easier to tighten once the rail is in place.
Does this bracket come with the fixing hardware included?
Yes. It is supplied as a complete pre-assembled set with the bracket, hammerhead bolt, and serrated flange nut all included.
What hanger bolt sizes is this bracket compatible with?
It is designed for use with M10 hanger bolts and is compatible with a wide range of Renusol hanger bolt and hook part numbers across the VS+ system.
Is this bracket equivalent to the M12 bracket?
Yes. Renusol confirms this bracket provides identical functionality to the larger M12 bracket, simply scaled for M10 hanger bolts.
Can I use this bracket with hanger bolts or rails from another manufacturer?
No. Renusol mounting equipment must not be mixed with components from other suppliers, as doing so would void the system warranty.
