Renusol UK M8 90 Degree Bracket - REN-420353 | Roof Hook Landscape Conversion Bracket

Description

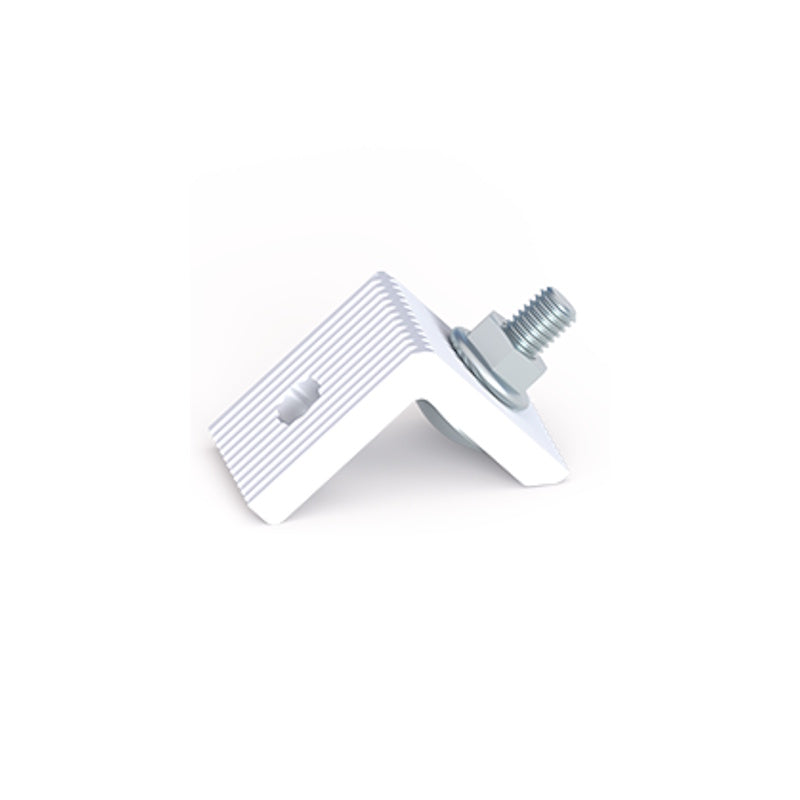

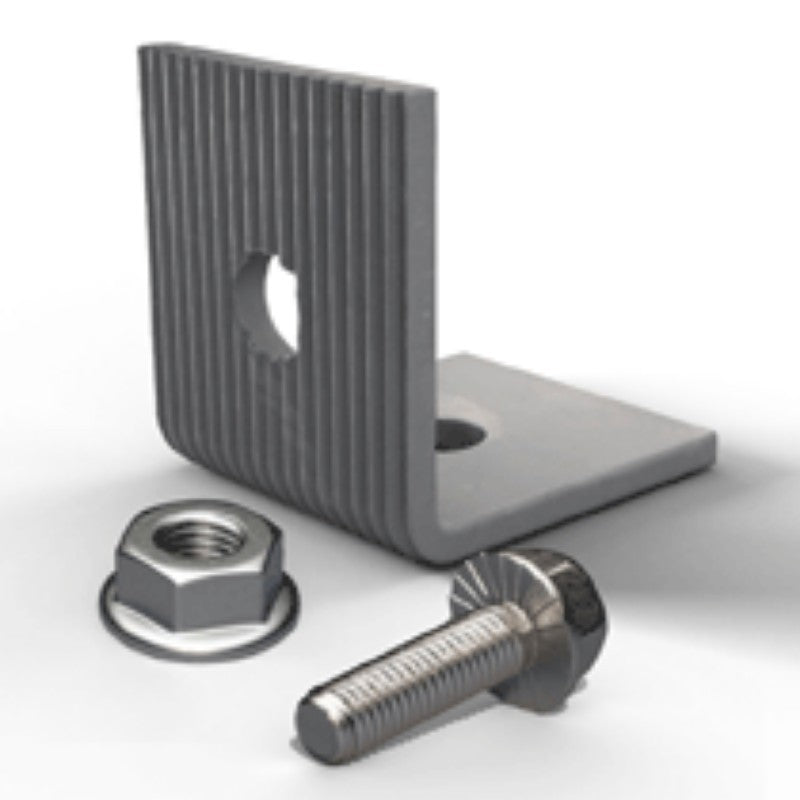

The Renusol UK M8 90 Degree Bracket (Part No: REN-420353) is a small L-shaped bracket used to convert a portrait-mounted Renusol roof hook into a landscape (horizontal) rail fixing. Fitted to the top of a compatible roof hook, the bracket provides a dedicated M8 fixing point, allowing the mounting rail to run horizontally across the roof instead of vertically up the slope.

Manufactured from aluminium and stainless steel and supplied as a pre-assembled set, this bracket is specified by Renusol for use with roof hooks across the VarioSole range, including pairing with the RH1 high-load roof hook to achieve a landscape module layout.

40×39×37mm

Dimensions

0.040kg

Weight

Aluminium + Steel

Material

M8

Screw Diameter

Landscape

Module Orientation

Pre-Assembled

Set Type

Compatibility Warning

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

Roof Hook Required — Sold Separately

This is a connection accessory only and is not a substitute for a roof hook — a compatible Renusol roof hook from the VarioSole range (such as the RH1) must be fitted separately for this bracket to attach to.

Key Features

Converts Portrait Hooks to Landscape Fixing

Attaches to the top of a compatible roof hook to turn a portrait fixing into a landscape fixing, allowing the mounting rail to run horizontally.

Aluminium and Stainless Steel Construction

Built from aluminium and stainless steel for reliable, long-term corrosion resistance outdoors.

Pre-Assembled Set

Supplied as a pre-assembled set, ready to fit to a compatible roof hook without sourcing loose components.

Compact, Lightweight Design

At just 0.040kg, the bracket adds minimal weight to the overall mounting assembly.

Dedicated M8 Fixing Point

Provides a defined M8 fixing hole for connecting the mounting rail at 90 degrees to the hook's standard orientation.

Compatible Across the VarioSole Roof Hook Range

Renusol specifies this bracket for use with roof hooks from the VarioSole range, including the RH1 high-load roof hook.

Technical Specifications

General

Part Number

REN-420353

Product Name

VS+ Roof Hook 90° bracket (SET)

Manufacturer

Renusol

System

VarioSole+ (VS+)

Construction

Material

Aluminium; stainless steel

Dimensions

40 × 39 × 37mm

Weight

0.040kg

Set

Pre-assembled

Fixing

Screw Diameter

M8

Module Orientation

Landscape

Compatibility

Suitable For

Roof hooks from the Renusol VarioSole range, including RH1

Frequently Asked Questions

Does this bracket include a roof hook?

No. This is a connection bracket only. A compatible Renusol roof hook from the VarioSole range must be purchased and fitted separately for this bracket to attach to.

What does this bracket do?

It attaches to the top of a portrait-mounted roof hook to convert it into a landscape fixing, allowing the mounting rail to run horizontally across the roof.

Which roof hooks is this bracket compatible with?

Renusol specifies it for use with roof hooks from the VarioSole range, including the RH1 high-load roof hook, where it provides the landscape rail fixing point.

What material is this bracket made from?

It is manufactured from aluminium and stainless steel, giving long-term corrosion resistance in outdoor conditions.

Can this bracket be used with hooks or rails from another manufacturer?

No. Renusol mounting equipment must not be mixed with components from other suppliers, as doing so would void the system warranty.
