Renusol TriSole+ L-Profile Cross Striving Profile SET REN-420600 | Pitched & Flat Roof PV Frame

Description

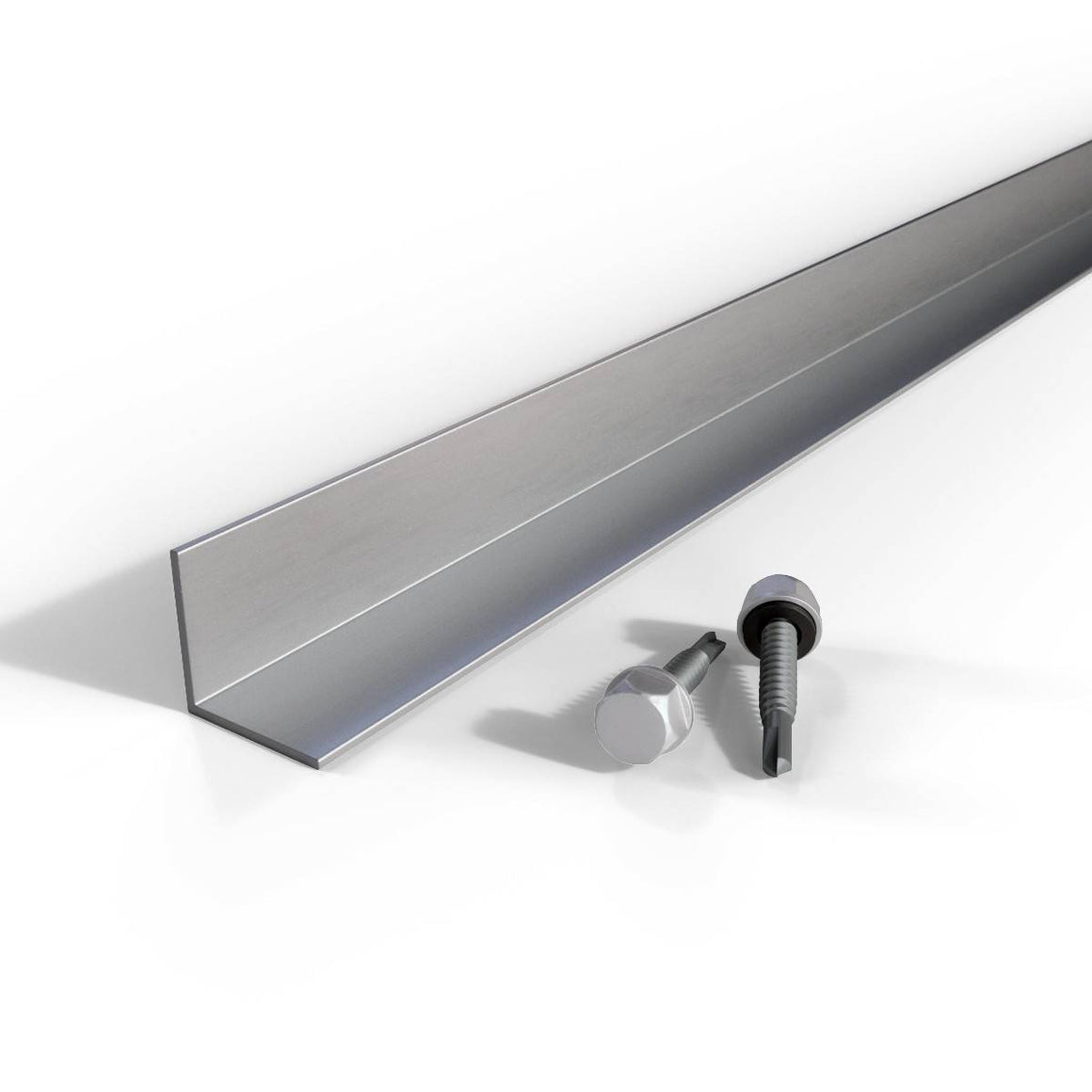

The Renusol TriSole+ L-Profile Cross Striving Profile (SET) (Part No. REN-420600) is a tri-angular module support frame for mounting a single PV module on pitched or low-pitch flat roofs using penetrative fixings into the roof structure. Unlike the ballasted ConSole+ family, TriSole+ attaches directly to the roof via Renusol's MS+, MS+P, or VS+ anchor systems, making it suited to sheet metal (trapezoidal/corrugated), sandwich panel, and fibre-cement roofing on commercial, industrial, and agricultural buildings. The set includes the tri-angle frame (supplied pre-assembled or unassembled) and a back support, with the module tilt adjustable from 10° to 35° in 5° steps to suit the site's orientation and shading requirements.

10°–35°

Adjustable Tilt (5° Steps)

2°–25°

Roof Slope, Orthogonal Install

2°–45°

Roof Slope, Parallel Install

30–50 mm

Compatible Frame Height

10 Years

System Warranty

0.45–0.49 kg

Set Weight

⚠ Penetrative Fixing — Not a ConSole+ Ballasted Component

TriSole+ is a roof-penetrating mounting system and attaches to the structure using Renusol's MS+, MS+P, or VS+ anchor range. It is not compatible with, and does not form part of, the ballasted ConSole+ (CS+) system — the two are listed by Renusol as alternative approaches to flat-roof mounting, not complementary components. Confirm which method suits the roof type and warranty requirements before ordering.

ⓘ Roof Covering Determines Compatible Anchor System

TriSole+ is designed for sheet metal (trapezoidal or corrugated), sandwich panel, and fibre-cement roofing. The correct anchor point (MS+, MS+P, or VS+) depends on the roof covering and structure, and must be selected and fixed in line with Renusol's installation manual for the relevant anchor product.

✓ Flexible Orientation and Tilt

The frame supports both landscape and portrait module orientation and offers seven tilt positions between 10° and 35°, giving installers latitude to optimise solar yield across a range of roof pitches and building orientations.

Tri-Angular Frame Geometry

The triangular support structure provides a stable, self-bracing mounting point for a single framed module, distributing wind and snow load through the roof anchor rather than relying on ballast.

Wide Roof Slope Range

TriSole+ can be installed orthogonal to the roof slope up to 25°, or parallel to the roof slope up to 45°, covering both near-flat commercial roofs and steeper pitched applications with the same core frame.

Stainless Steel and Aluminium Build

Constructed from stainless steel and aluminium, the frame is built for long-term outdoor exposure on commercial and agricultural roofs without the added weight or cost of a fully stainless assembly.

Step-Adjustable Tilt

Tilt is adjustable from 10° to 35° in 5° increments, letting installers fine-tune module angle for solar yield without needing a different frame for every roof pitch.

One-Sided Installation

The system is designed for single-sided (one-row) module installation, simplifying layout planning on roofs where a back-to-back ballasted array isn't practical or permitted.

10-Year System Warranty

Renusol backs the TriSole+ system with a 10-year warranty, provided it's installed as a complete, unmodified system with Renusol-approved anchor components.

System Overview
Part Number	REN-420600
System Name	TriSole+ L-Profile Cross Striving Profile (SET)
Mounting Type	Tri-angular module support, penetrative fixing
Application	Pitched and flat roofs — commercial, industrial, agricultural buildings
System Orientation	One-sided installation
System Warranty	10 years
Roof Compatibility
Roof Covering	Sheet metal (trapezoidal/corrugated), sandwich panel, fibre-cement
Roof Slope — Orthogonal Install	min. 2° / max. 25°
Roof Slope — Parallel Install	min. 2° / max. 45°
Roof Attachment	Via Renusol MS+, MS+P, or VS+ anchor systems (sold separately)
Module Compatibility
Module Tilt	10° to 35°, adjustable in 5° steps
Module Orientation	Landscape (horizontal) or portrait (vertical)
Compatible Frame Height	30–50 mm
Materials & Weight
Material	Stainless steel, aluminium
Set Weight	0.45–0.49 kg (source-dependent)
Kit Contents
Frame	1 x Tri-angle support (pre-assembled or unassembled, per order)
Support	1 x Back support

Is the TriSole+ compatible with the Renusol ConSole+ ballast tray?

No. TriSole+ and ConSole+ are separate, alternative mounting approaches — TriSole+ fixes to the roof structure through penetrative anchors, while ConSole+ is held down entirely by ballast weight. Renusol does not combine the two into a single installation.

What roof types is this suitable for?

TriSole+ is designed for sheet metal roofing (trapezoidal or corrugated), sandwich panels, and fibre-cement roofs typically found on commercial, industrial, and agricultural buildings.

What tilt angles does it support?

The frame is adjustable from 10° to 35° in 5° increments, allowing the installer to select the angle that best suits the roof orientation and desired solar yield.

Does this kit include the roof anchor points?

No. This SET includes only the tri-angle frame and back support. The roof anchor (MS+, MS+P, or VS+, depending on roof covering) must be ordered separately to complete the installation.

What size solar modules does it fit?

TriSole+ is designed for framed PV modules with a frame height of 30–50 mm, and supports both landscape and portrait module orientation.
